Pentair IntelliFlo Variable Speed High Performance Pool Pump with Digital Time Clock | 3HP Max | EC-011028 Parts

Back to Product

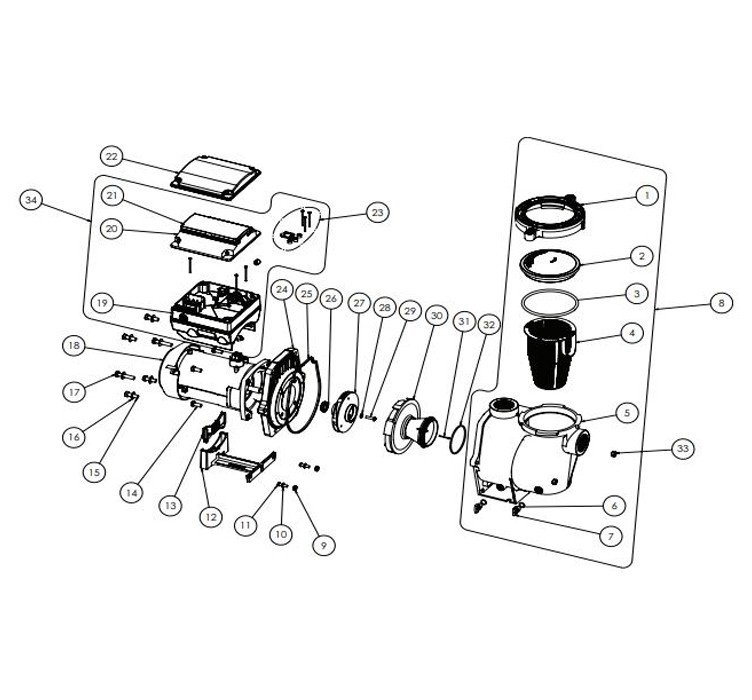

Pentair IntelliFlo Variable Speed High Performance Pool Pump with Digital Time Clock | 3HP Max | EC-011028 Parts Schematic
1
Pentair WhisperFlo IntelliFlo Cam and Ramp Plastic Clamp | Almond | 357199
Pentair WhisperFlo IntelliFlo Cam and Ramp Plastic Clamp | Almond | 357199
This item is currently out of stock.

2
Pentair IntelliFlo-WhisperFlo Strainer Cover After 11-98 | Clear | 357151
Pentair IntelliFlo-WhisperFlo Strainer Cover After 11-98 | Clear | 357151
Quantity:
$31.96

3
Pentair Pump Trap Lid O-Ring After 11-98 | 350013 350013Z
Pentair Pump Trap Lid O-Ring After 11-98 | 350013 350013Z
Quantity:
$9.39

4
Pentair WhisperFlo & IntelliFlo Pump Strainer Basket | 070387 P01325 070387Z
Pentair WhisperFlo & IntelliFlo Pump Strainer Basket | 070387 P01325 070387Z
Quantity:
$16.71

5
Pentair Housing WFE | Almond | 350015
Pentair Housing WFE | Almond | 350015
This item is currently out of stock.

6
Pentair Buna-N 70 Shore Drain Plug O-Ring 1/16" x 1/2" ID | 192115 192115Z
Pentair Buna-N 70 Shore Drain Plug O-Ring  1/16" x 1/2" ID | 192115 192115Z
Quantity:
$3.51

7
Pentair 3/8" Drain Plug Knob Thumb Twist | 2 Required | Almond | P19656 071131 071131Z
Pentair 3/8" Drain Plug Knob Thumb Twist | 2 Required | Almond | P19656 071131 071131Z
Quantity:
$8.78

8
Pentair Pot & Volute Kit | Almond | 357243
Pentair Pot & Volute Kit | Almond | 357243
This item is currently out of stock.

9
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Quantity:
$4.38

10
Pentair Flat Washer 1/4" ID x 5/8" OD Stainless Steel | 2 Required | P35010 072183
Pentair Flat Washer 1/4" ID x 5/8" OD Stainless Steel | 2 Required | P35010 072183
Quantity:
$4.38

11
Pentair SS Screw Hex Cap 1/4"-20 x 1" | 2-Required | P26948 071657 071657Z
Pentair SS Screw Hex Cap 1/4"-20 x 1" | 2-Required | P26948 071657 071657Z
Quantity:
$4.20

12
Pentair Whisperflo WF Motor Support Foot | Almond | 070927
Pentair Whisperflo WF Motor Support Foot | Almond | 070927
Quantity:
$32.32

13
Pentair Whisperflo Foot Insert | Almond | 070929
Pentair Whisperflo Foot Insert | Almond | 070929
Quantity:
$18.72

14
Pentair Bolt Hex Head 3/8"-16 x 7/8" | 4-Required | 070429 070429Z
Pentair Bolt Hex Head 3/8"-16 x 7/8" | 4-Required | 070429 070429Z
Quantity:
$5.27

15
Pentair Stainless Steel Bolt | 3/8-16 x 1-1/4" | 070430
Pentair Stainless Steel Bolt | 3/8-16 x 1-1/4" | 070430
Quantity:
$4.95

16
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Quantity:
$4.32

17
Pentair Stainless Steel Bolt 3/8-16 x 2" | 2 Required | 070431
Pentair Stainless Steel Bolt 3/8-16 x 2" | 2 Required | 070431
Quantity:
$5.44

18
Pentair IntelliFlo Motor 3.2kW 10 Pole | Almond | 350305S
Pentair IntelliFlo Motor 3.2kW 10 Pole | Almond | 350305S
Quantity:
$507.59

19
Pentair IntelliFlo Variable Speed Drive Assembly Bottom | Almond | 356878Z
Pentair IntelliFlo Variable Speed Drive Assembly Bottom | Almond | 356878Z
Quantity:
$697.73

20
Pentair IntelliFlo Keypad Assembly Kit with Keypad Cover | Almond | 357527Z
Pentair IntelliFlo Keypad Assembly Kit with Keypad Cover | Almond | 357527Z
Quantity:
$217.55

21
Pentair IntelliFlo VS Pump Cover | Almond | 400100
Pentair IntelliFlo VS Pump Cover | Almond | 400100
Quantity:
$142.25

22
Pentair Keypad Relocation Kit | Almond | 356904Z
Pentair Keypad Relocation Kit | Almond | 356904Z
Quantity:
$53.23

23
Pentair IntelliFlo Drive Hardware Kit | 355685
Pentair IntelliFlo Drive Hardware Kit | 355685
Quantity:
$73.80

24
Pentair Seal Plate | Almond | 074564 074564Z
Pentair Seal Plate | Almond | 074564 074564Z
Quantity:
$74.21

25
Pentair Seal Plate Gasket | Black | 357100 357100Z
Pentair Seal Plate Gasket | Black | 357100 357100Z
Quantity:
$8.23

26
Pentair PS1000 WFE Seal Kit | 071734S
Pentair PS1000 WFE Seal Kit | 071734S
Quantity:
$27.50

27
Pentair Whisperflo & Intelliflo Impeller 3 HP Full Rate - Purex WFE 12 | 073131
Pentair Whisperflo & Intelliflo Impeller 3 HP Full Rate - Purex WFE 12 | 073131
Quantity:
$71.04

28
Pentair Rubber Impeller Screw Washer | 075713
Pentair Rubber Impeller Screw Washer | 075713
Quantity:
$4.32

29
Pentair Impeller Screw SS | 1/4"-20 x 1" | 071652 071652Z
Pentair Impeller Screw SS | 1/4"-20 x 1" | 071652 071652Z
Quantity:
$5.02

30
Pentair Whisperflo Diffuser Assembly 3HP Only WFE | Black | 072928
Pentair Whisperflo Diffuser Assembly 3HP Only WFE | Black | 072928
Quantity:
$64.67

31
Pentair Diffuser Screw Set 4-40 X 1-1/8 WFE Stainless Steel | 2-Required | 071660 071660Z
Pentair Diffuser Screw Set 4-40 X 1-1/8 WFE Stainless Steel | 2-Required | 071660 071660Z
Quantity:
$5.56

32
Pentair Diffuser O-Ring | 355227 355227Z
Pentair Diffuser O-Ring | 355227 355227Z
Quantity:
$5.56

33
Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403
Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403
Quantity:
$4.32

34
Pentair IntelliFlo VS Drive Kit with Keypad | Almond | 356879Z
Pentair IntelliFlo VS Drive Kit with Keypad | Almond | 356879Z
Quantity:
$834.03

N/A
Pentair IntelliFlo 50ft Communication Cable | 350122
Pentair IntelliFlo 50ft Communication Cable | 350122
Quantity:
$86.78

N/A
Pentair Seal Plate Kit with Gasket | Almond | 350202
Pentair Seal Plate Kit with Gasket | Almond | 350202
Quantity:
$137.60

N/A
Pentair Power End for Intelliflo 2 VST | 354044
Pentair Power End for Intelliflo 2 VST | 354044
Quantity:
$1,356.30

N/A
Pentair Volute and Seal Plate Kit | 074565 357149
Pentair Volute and Seal Plate Kit | 074565 357149
Quantity:
$193.94
