Home Pentair IntelliFlo Variable Speed High Performance Pool Pump with Digital Time Clock | 3HP Max | EC-011028
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

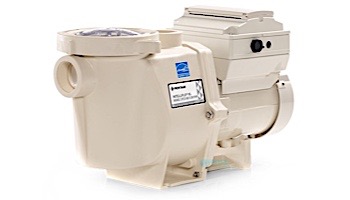

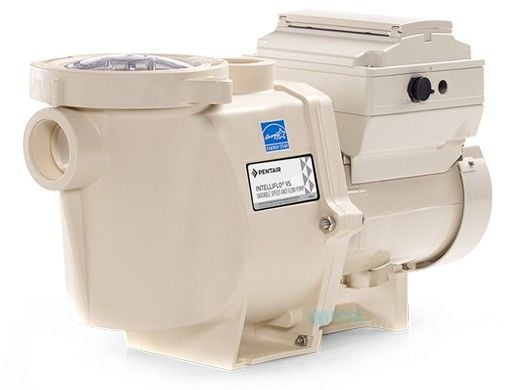

Pentair IntelliFlo Variable Speed High Performance Pool Pump with Digital Time Clock | 3HP Max | EC-011028

Pentair IntelliFlo Variable Speed High Performance Pool Pump with Digital Time Clock | 3HP Max | EC-011028 Pentair IntelliFlo Variable Speed High Performance Pool Pump with Digital Time Clock | 3HP Max | EC-011028 Pentair IntelliFlo Variable Speed High Performance Pool Pump with Digital Time Clock | 3HP Max | EC-011028
$1,559.00

Quantity:
Shipping Flat Rate Shipping $34.95
Energy EfficientEnergy Efficient
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Control keypad can be rotated for convenient orientation on the pump or wall mounted with Relocation Kit
  • Intuitive, easy to use menu structure for programming and monitoring
  • Interfaces perfectly with Pentair automation systems that give you the convenience of mobile device control
  • Totally enclosed fan cooled design for quiet operation and long life
  • Top-mounted field wiring compartment makes access and installation easier
  • Online part number EC-011028 is the direct replacement for part number 011028
OVERVIEW
IntelliFlo Variable Speed High Performance Pump

IntelliFlo Variable Speed High Performance Pump is the next generation of Pentair's variable speed pump technology. With energy savings up to 90% versus conventional pumps, near-silent operation and advanced programming capabilities, this pump continues to deliver everything a pool owner wants and reliability no other competitor can match.

Specifications:
Model Voltage Full Load
Amps
kW HP SF SFHP Freq. Certifications Port Size
(NPT)
IntelliFlo VS 230 16 3.2 3 1.32 3.95 50Hz/60Hz UL, NSF, APSP 2in x 2in

Why More Pool Owners Save with IntelliFlo Variable Speed Pumps
When Pentair first introduced IntelliFlo variable speed technology, it set off a marketplace revolution with its energy efficiency, near-silent operation and long service life.

The IntelliFlo Variable Speed Pump further refines the field-proven advancements that have led IntelliFlo pumps to outsell all other variable speed brands. Check out these advantages, and you'll quickly see why:
  • Estimated cost savings of up to $1,500 each year ¹
  • Energy savings up to 90% versus traditional pumps
  • Dramatically quieter operation-as low as 45 decibels.†
  • 8 programmable speed settings and built-in timer assure optimum speed and run times for maximum efficiency and savings
¹ Savings based on variable speed pump compared to a single-speed pump running 12 hours per day at an average of $0.16 per kWh in a 20,000 gallon pool. Actual savings may vary based on local utility rates, pool size, pump run time, pump horsepower, pump rpm, plumbing size and length, pump model, service factor and other hydraulic factors.

†Compared to noise level of typical 1.5-horsepower single-speed pump.

First Then, First Now
IntelliFlo pumps brought variable speed technology to market-years ahead of every other manufacturer. But, the leader never stands still. So, they've taken full advantage of our head start to perfect these IntelliFlo pump firsts:
  • Ultra-efficient, permanent magnet motors, as used in advanced hybrid cars
  • Precise matching of motor speed to your pool's needs
  • Totally enclosed fan-cooled (TEFC) motor design for long life and quiet operation
  • Built-in diagnostics protect the pump for longer service life
And today, IntelliFlo pumps still lead the way with all these advantages:
  • Permanent magnet motor design for greater efficiency
  • More total energy savings than any other pool pump family in history
  • Nearly a decade of proven in-field reliability
  • Exclusive software and digital controls make programming a cinch
  • Easy installation for inground pools and pool/spa combos of all types and sizes, new or existing
  • Once installed, the IntelliFlo pump is fully compatible with IntelliTouch®, EasyTouch® and SunTouch® Control Systems, providing a range of options from indoor control panels to wireless remotes to manage pool heating, lighting, spa jets, water features and more. For even greater control, add an optional ScreenLogic® Interface to your automation system and access your pool from practically anywhere and at anytime using your smartphone, computer or mobile digital device


Brand: Pentair
SPECIFICATIONS
Horsepower
3 HP
Speed
Variable Speed
Voltage
230V
Pipe Size
2"
Color
Almond
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 30 questions Browse 30 questions and 19 answers
What is difference than a Jandy variable speed pump?
Jack C on Oct 5, 2020
Do you have the Pentair IntelliFlo Variable Speed High Performance Pool Pump with Digital Time Clock | 3HP Max | EC-011028 in stock?
EVAN B on Apr 19, 2021
CAN YOU SHOW A WIRING DIAGRAM TO PUMP?
A shopper on Aug 5, 2019
Can I run this 24/7 at the lowest speed?
CARLOS R on Dec 8, 2019
BEST ANSWER: ⁷ can you show me how to run the pump 24/7?
Can different speeds be programmed for different times of day?
Steve W on Oct 21, 2019
BEST ANSWER: Yes. The intelliflo can be programmed for different speeds at different times of the day.
my timer went off how do i reset clock?
A shopper on Jul 5, 2021
Will this pump interface with the Jandy iAquaLink controller without extra hardware?
briansid on Mar 21, 2021
Is Pentair IntelliFlo Variable Speed High Performance Pool Pump with Digital Time Clock | 3HP Max | EC-011028 in stock?
A shopper on Apr 23, 2022
Can this pump be used with salt water pool?
Dina C on Nov 23, 2021
BEST ANSWER: Yes, almost all pool pumps can be used with salt systems as the salt content is very minimal in the water compared to, say the ocean. The biggest hit to a pump is debris getting past the screens (basket) and PH level going acidic.
Looking to buy pentair variable speed pump. Which hp I need if my pool is 18000 gallons. Please provide item number of pump?
Ghassan M on Mar 30, 2022
BEST ANSWER: The pump is variable speed you can change speed or HP from 1/2hp to 3hp . Just set the speed that works for your pool . There are 4 speeds you can set .they are very Efficient
How many hours a day should this pump run?
A shopper on Aug 9, 2021
BEST ANSWER: This is really dependent on how large the pool is. You ideally want the pump to be able to cycle the water at least 3 times a day at a minimum. This means that if you have a 10K gallon pool, and the pump is running 80 gallons a minute, it is cycling 4,800 gallons an hour so the pool would cycle three times in 6 hours. Since this is a variable speed pump, you can reduce the speed and run it longer, but there are a number of factors that you have to consider for this question.
I have a whisper flo 1hp now. 18000 gallon pool? Will this one work? I see it says 3hp MAX.
Jenjen88 on Jun 28, 2021
BEST ANSWER: It works for our 12,000 gallon salt water pool just fine. Our Pentair controls switch the pump to hot tub mode and powers the jets.
what is the decibels over the full operating range? info says "as low as 45dB' What is the decibels at 2700 and at full rpms?
Tom H on Mar 25, 2021
BEST ANSWER: I do not have a dB value for the 2700 or full rpm. I can say that the pump runs very quiet. A very satisfied customer.
motor temperature, casing was reading 134deg at 3400RPM another was reading 105deg. at 1100RPM?
wendell s on Sep 18, 2021
BEST ANSWER: Whats the question?
Drain excess rain water?
A shopper on Jul 25, 2021
BEST ANSWER: Yes
Is this pump in stock?
A shopper on Apr 23, 2022
I need a vaccum release pump or pump control. What is available?
Curtis S on Mar 24, 2022
My gaskets are leaking on my Janie var speed pump... I there a replacement gaskets set or should I simple replace the whole pump & motor?
Gene A on Dec 31, 2021
How to change time on off in program?
A shopper on Dec 4, 2021
What is the lighting bolt indicator tell you about the pump?
A shopper on Nov 4, 2021
Availability of EC-011028?
A shopper on Oct 15, 2021
Is this I, stock

In stock?
A shopper on Oct 11, 2021
Do you have this pump in stock now 10/4/21?
Garret T on Oct 4, 2021
intelliFlo VS Pumps if power goes out will the pump restart automatically?
A shopper on May 19, 2021
i have a pentair 011774 2 hp pump now but i would like to replace it with a Intllilo. now sure which one i need?
Darin f on Dec 31, 2020
how to program my IPHONE with this pump?
don r on Dec 8, 2020
What are the dimensions of this pump and what does it weigh?
A shopper on Dec 7, 2020
What size of variable motor and pump i need for a 9,000 gal pool?
Brad A on Sep 19, 2020
can this unit be wired to and programmed to run from an RS4 control panel?
Boze1 on Aug 3, 2020
I am thinking about buying a Pentair Intelliflo Variable Speed pump (3HP) and currenlty have a Pentair Intelli.Touch System i7+3. Since both are intelligent, do they work together and which one controls?
Jerry P on Feb 7, 2020
REVIEWS
4.7 / 5.0
21 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
18
2
0
0
1
Rated 5 out of 5
Pool Pump
Installed easily and works as designed. I don't have 50 characters to comment on this pump.
October 19, 2019
Purchased
over 2 years ago
Rated 5 out of 5
Quick and easy purchase and delivery was on time. The pump arrived in perfect condition.
June 2, 2019
Purchased
over 3 years ago
Rated 5 out of 5
I am satisfied with the pool pump and looking forward to the energy efficient savings. Thanks very much.
I haved received the Pentair pool pump and it has been installed. I had a couple of issues with the computer and with the help of Pool Supply Unlimited personnel each were resolved..
July 21, 2019
Purchased
over 2 years ago
Rated 5 out of 5
This is a wonderful Quiet smart pump
This is a wonderful quiet pump that saving me a fortune in electricity highly recommended I had one before that lasted over 10 years. I love the new LED control panel.
July 5, 2019
Purchased
over 2 years ago
Rated 5 out of 5
Most satisfied with my purchase the delivery was unbelievable

this pump is so quiet you don't know it's running. Now I'm

looking to replace my heater and am going to invest in a

Pentair, I will purchase it from Pool Supply because of their

service, they're like your neighborhood pool supply store but

less expensive.
July 13, 2019
Purchased
over 2 years ago
Rated 4 out of 5
Excellent pump, but user interface needs work
Pump works very well. Quiet and efficient. My only gripe is that the control board menus are not intuitive or user friendly. Setting a schedule shouldn't take a Ph.D. They should use something similar to a sprinkler system schedule setup. Also, there should be a "schedule setup example" in the manual. I get that it's trial and error to get it perfect for each pool, but a template to work with would be helpful.
May 18, 2021
Purchased
1 year ago
Rated 1 out of 5
It would be nice if I had the pump to make a review, but am waiting like everybody else that has ordered this pump to come in. Where is my Pentair Pump!!!
October 15, 2021
Purchased
7 months ago
Rated 5 out of 5
This Pump Rocks
This pump is great. Installation was easy (did it myself). Programming the controls is easy. It runs much quieter than the pump I replaced. Highly recommend.
July 19, 2021
Purchased
10 months ago
Rated 5 out of 5
Excellent pump
Pentair is the top of line pumps and used by 360 Blue Custom Pools on every build!
July 25, 2021
Purchased
10 months ago
Rated 5 out of 5
Excellent Pool Pump
My original Intelliflo pump gave up the ghost (well, bearings) after 10+ years of stable, reliable performance. I did not consider a different pump. Installation was a breeze. Integration with my Pentair automation system was as easy as connecting the cable; my configurations for my original pump worked seamlessly.

And two great big thumbs up for the people at Pool Supply Unlimited. They patiently answered my questions to ensure I purchased the correct pump for my pool.

Great product! Great people! Big win!
September 5, 2020
Purchased
1 year ago
RESOURCES
Adobe Acrobat PDF Data Sheet
Adobe Acrobat PDF Installation & Users Guide

Register your Pentair product online at www.pentair.com.

WARRANTY
You've always been able to count on the quality and long service life of Pentair products. Pentair uses state of the art workmanship, materials and manufacturing processes to create the most innovative pool and spa equipment anywhere. And now Pentair products can deliver even more value and peace of mind, because Pentair offers extended warranty coverage on select products that are installed by a qualified installer*.

While the majority of Pentair products are covered by a sixty- (60) day warranty, a select number of products qualify for extended warranty coverage.

Select Bundled Products: applies to purchases and qualified installation of a minimum of a pump and filter, and one or more of the following: heaters, heat pumps, control systems, automatic cleaners, lighting, salt chlorine generators or UV sterilizer**

*Note: Qualified Installer - Defined as a licensed professional who charges a fee for his services, and possesses a business license, contractor's license and/or resale permit. Common examples of a "qualified installer" include: Swimming Pool, Home Repair or Landscape Professional; Plumber or Electrician; General Contractor; Heating and Air Conditioning Specialist.

**Note: Bundled products - must be purchased on the same invoice and installed at the same time. If any product within a bundle is ineligible for the bundled warranty coverage then all products within the same bundle will be disqualified from receiving the three (3) year extended warranty coverage for bundled products.

TradeGrade products must be purchased from a retail store (brick & mortar), pool builder or pool service company to receive a one-year, two-year or three-year warranty. If purchased online will only receive a sixty-day limited warranty. View the list of TradeGrade Products.

Ecommerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products beginning with EC-) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty.

Visit www.pentair.com to submit your product warranty registration.

This information was updated on 11/19/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.


 Adobe Acrobat PDF Warranty Information
