Pentair IntelliFlo Variable Speed High Performance Pump VS+SVRS 3.2kW 3HP Max 230V | EC-011057

Pentair IntelliFlo Variable Speed High Performance Pump VS+SVRS 3.2kW 3HP Max 230V | EC-011057 Pentair IntelliFlo Variable Speed High Performance Pump VS+SVRS 3.2kW 3HP Max 230V | EC-011057 Pentair IntelliFlo Variable Speed High Performance Pump VS+SVRS 3.2kW 3HP Max 230V | EC-011057 Pentair IntelliFlo Variable Speed High Performance Pump VS+SVRS 3.2kW 3HP Max 230V | EC-011057
Sale $1,669.00
$1,599.00

Quantity:
Shipping Free Shipping *
Energy EfficientEnergy Efficient
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Integrated safety vacuum release system (SVRS)
  • Meets ASME A112.19.17.2002 standards for anti-body entrapment protection
  • Onboard intelligence detects blockage and automatically shuts pump off within seconds
  • 8 settable, changeable speeds ranging from 1100 to 3450 RPMs
  • New rotatable keypad for easy programming and viewing
  • Online part number EC-011057 is the direct replacement for part number 011057
OVERVIEW
Super Efficient. Added Savings. Greater Peace Of Mind

The IntelliFlo VS+SVRS Variable Speed Pump was the first pump developed with an integrated Safety Vacuum Release System (SVRS). This system features a built-in controller and proprietary software designed to help detect a suction or drain blockage and automatically stop the pump to provide an added layer of protection against entrapment. The IntelliFlo VS+SVRS pump complies with the current ASME A112.19.17 standard for Safety Vacuum Release Systems (SVRS)

Designed to pair with Pentair Easy Touch or IntelliTouch Automation Systems, the IntelliFlo VS+SVRS can be programmed to deliver the right flow required for filtration, water features, spas and other equipment. With the IntelliFlo VS+SVRS, you can add equipment and features, or change them, without reducing pump performance all while still providing maximum energy efficiency.

Features
  • Proprietary software designed to help detect a suction or drain blockage, automatically stopping the pump
  • Compliant with the current ASME A112.19.17 standard for Safety Vacuum Release Systems (SVRS)
  • Eight (8) programmable speed settings and built-in timer
  • New rotatable keypad for easy programming and viewing - keypad has the ability to be wall mounted with optional wall mount kit (sold separately)
  • Intuitive interface/ HMI simplifies programming and use
  • Top-mounted field wiring compartment for easy access and installation
  • Totally-enclosed fan-cooled design (TEFC) for quiet operation
  • Built-in diagnostics protect the pump for longer service life
  • Interfaces perfectly with Pentair automation systems
  • ENERGY STAR Certified
Standard for residential and commercial swimming pool, spa, hot tub and wading pool suction systems, as required by the virginia graeme baker pool and spa safety act.
Optional keypad wall mount kit part No. 356904Z

The ONLY Way To Comply With New Federal Anti-Body Entrapment Standards And Save Money

There's simply no better way to add a Safety Vacuum Release System (SVRS) to your public pool or spa than with the IntelliFlo VS+SVRS pump. It helps prevent suction entrapment and also provides value that no other solution can. While other safety solutions represent an added cost, the IntelliFlo VS+SVRS pump is an investment that may potentially save thousands of dollars in energy costs over its long life.

Safety Features
  • Includes a built-in controller with proprietary software that detects blockage and automatically shuts itself off within seconds
  • Meets ASME A112.19.17.2002 standards, thus complying with the Virginia Graeme Baker Pool Safety Act SVRS Requirements
  • No SVRS calibration required: the blockage detection/shut down function is pre-programmed into the software
  • Unlike other devices, the IntelliFlo VS+SVRS pump’s SVRS protection cannot be turned off
  • For added safety, if the SVRS becomes disabled, the pump will not run
  • Safety lock-out feature (password protected) prevents pump speed settings from being changed by unauthorized personnel
Why slower is better

The surprising secret to minimizing pump energy costs is to operate at the lowest speed needed to accomplish a job. It takes far less energy to move water slowly than quickly. Why? Because there’s lower resistance in the filter, accessories and plumbing system. Even with only modest pump speed reductions, the effect on electricity usage can be dramatic. In fact, reducing pump motor speed by 25% actually reduces the power needed by 58% of what’s consumed at the higher speed. A good analogy is your car: you get much better gas mileage at 30 mph than at 90 mph. The same is true with pool pumps—run slower to reduce energy used.


Engineered for exceptionally long life

The IntelliFlo® VS+SVRS Pump’s permanent magnet motor produces far less heat and vibration than traditional induction motors. This not only results in less stress and wear on pump components, but on other equipment, too. Exclusive load-sensing software provides nearly instant priming which saves energy and reduces wear and tear on the pump. Plus, built-in diagnostics protect the IntelliFlo VS+SVRS pump from the most common causes of premature pump failure—loss of prime, overheating, freezing and voltage irregularities. The result is you can expect dramatically longer life and an even greater return on your investment.

Other Features

The IntelliFlo VS+SVRS pump anticipates and solves other pool operating challenges:
  • Easy to program and monitor: simple push-button controls and clear LCD readouts make operation a cinch
  • Ability to set minimum and maximum speeds: The IntelliFlo VS+SVRS pump will only operate within the ranges you set to help assure safer operation and long equipment life
  • Built-in clock and timer: eliminates the need for an added time clock or expensive controller


Brand: Pentair
SPECIFICATIONS
Horsepower
3 HP
Speed
Variable Speed
Voltage
230V
Pipe Size
2"
Color
Almond
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 13 questions Browse 13 questions and 10 answers
Currently have a Hayward, 2 hp, one speed, and a Pro Logic automated control unit. Will the variable speed pump work with the Goldline controls ?
Leonard S on Jul 3, 2017
I would like to put in three 3' sheer decent in my pool. What size pump will I need to handle the flow? Will a 3 hp pentair work?
vera m on Aug 14, 2018
BEST ANSWER: I installed the Pentair Intelliflo Variable Speed Pump and I use with three (3) 24” long sheer descents, and I also use the same pump to power returns and bubblers. It will provide enough volume for all when operated at a higher speed level, but when I use it or the sheer descents, it will easily supply the sheer descents. I do recommend a variable speed pump for the sheer descents so that you can adjust it to a desirable level.
I currently have a 1hp Hayward pump. Is this adequate for this filter. Is there any advantage to Pentair IntelliFlo pumps?
John V on Feb 13, 2018
Pentair IntelliFlo Variable Speed High Performance Pump VS+SVRS 3.2kW 3HP Max 230V | EC-011057
Pentair IntelliFlo Variable Speed High Performance Pump VS+SVRS 3.2kW 3HP Max 230V | EC-011057
Hayward SwimClear Multi-Element Cartridge Filter | 325 sq. ft. | W3C3030
Hayward SwimClear Multi-Element Cartridge Filter | 325 sq. ft. | W3C3030
BEST ANSWER: First, I am not an expert, but I purchased the Intelliflo pump due to the fact that I have a large pool and a water feature and so I needed more HP. Also it is energy star rated so it is less expensive to operate and a rebate is available for me, and that model of variable speed pump has safety vacuum release system, which is a safety measure designed to help avoid entrapment at the main pool drain.

You should decide whether these features are important to you and that the value of these features is worth any additional cost.

Also, the size of your pool is a better gauge of whether a pump is sufficiently sized, not the filter size. You should ensure that the pool has adequate turnover of volume of water through the filter to keep the water clean.
When the pump is on it is not circulating like it should be, can somebodyhelp?
A shopper on Apr 8, 2018
BEST ANSWER: In my experience, this is an excellent pump. Whilst the pump is designed to cut out if the input(s) from the drain(s) is/are partly or wholly obstructed by, for example, a person or debris, I have found two other circumstances which can cause the pump to trip.

Firstly, the pump does not like dealing, for an extended time, with large quantities of air. If your water level falls because of, say, a faulty autofill, then air can enter by the skimmer port.

Secondly, if the resistance in the system increases because either the pump inlet filter or the main filter is wholly or nearly blocked, the pump will trip.

Check for these scenarios. I hope this helps.

Very Best Regards

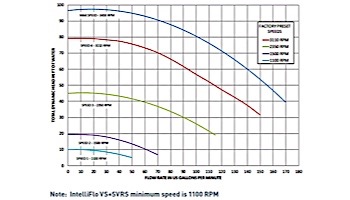

Where could I get cubic feet per minute vs RPM graph for this pump Pentair IntelliFlo Variable Speed High Performance Pump VS+SVRS 3.2kW 3HP Max ?230V | 011057
Nick on Sep 5, 2019
BEST ANSWER: Look in the Installation and User's Guide for the Pump, around page 41. You should find Flow and Power vs Flow Pump Curves.
Does this require a timer?
John on Jul 12, 2018
BEST ANSWER: No this model you can program it to run when you want it to and for how long
power was turned off to pump and now it says alarm but wont turn back on?
A shopper on Feb 23, 2017
BEST ANSWER: Some times when I clean my basket, I take long time to clean it because lots of hair and debris. the pump looses the water in the lines ,so when you turn on the pump it gets a hard time to get the water back. I take a bucket and fill the basket area until the water goes into the line and cover it quick ,bang the pump primes and all good.
Does this pump have a freeze guard ?
rob p on Jan 9, 2017
BEST ANSWER: Yes it does. It automatically turns on when the water gets to freezing temp.
Do you have this pump in stock?
A shopper on Feb 24, 2021
Manual for Intelliflo pool pump?
A shopper on Jan 18, 2021
Need help setting timer for daily 2 hr cycle?
Dustin S on Sep 13, 2020
I’m getting a new pool the VSP they are upgrading us too is 11056 I don’t see it. Can you give me any information on it?
Andrea on Jun 12, 2020
where would I find the model # on the pump?
alan C on Apr 9, 2019
REVIEWS
5.0 / 5.0
4 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
4
0
0
0
0
Rated 5 out of 5
Excellent pump
Love the product. Just takes some time to understand programming. Wish it came with a tutorial video.
September 11, 2020
Purchased
11 months ago
Rated 5 out of 5
Great product
One could not ask for a better product for its price. I will definitely recommend this product to all whom I know that need such an item. I am extremely satisfied with the versatility of this pump. I would be remiss if I did not particularly mention how cost effective it is in terms of how I can customize my electric usage and still get optimum performance from this pump. I would hesitate to buy this particular item again, of course from "Pool Supply Unlimited" again, if need be!

Staffel, an extremely satisfied customer.
December 13, 2020
Purchased
8 months ago
Rated 5 out of 5
I'm very impress with my Pentair intelliflo variable speed pump. When summer time is coming I can increase the speed to have better circulation in my pool. when its winter time I can decrease the speed to save the pump motor. it's very quiet and efficient. I told many of my friends to invest in this type of pool pump. I'm really happy.
Aloha from Hawaii
Steven
December 18, 2018
Purchased
over 2 years ago
Rated 5 out of 5
High quality equipment
I ordered this pump to replace the original one that was installed when I had my pool built. It was exactly what I needed.
September 4, 2016
Purchased
over 4 years ago
RESOURCES
Adobe Acrobat PDF Brochure
Adobe Acrobat PDF Installation & Users Guide

Register your Pentair product online at www.pentair.com.

WARRANTY
  • LIMITED WARRANTY: Pentair warrants its products to be free from defects in material and/or workmanship for a period of sixty (60) days (parts only) from the original date of purchase and/or installation. Customer agrees to prepay all shipping charges to Pentair.
  • EXTENDED WARRANTY: To receive a product extended warranty (longer than 60 days from the original date of installation), customer must:
  1. Register the product;
  2. Provide a copy of the sales receipt; and
  3. Provide a copy of the installation invoice, provided by the qualified installer, within 60 days of installation (if required). Certain products do not require qualified installation but still require product registration and copy of the sales receipt to receive the extended warranty.
  • TRADEGRADE WARRANTY: TradeGrade products must be purchased from a retail store (brick and mortar), pool builder or pool service company. If purchased online (via internet) the product will only receive a sixty (60) day limited warranty. View the list of TradeGrade products here.
  • ECOMMERCE (EC) WARRANTY: Products purchased from an Authorized Pentair Online Reseller receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty. To receive an eCommerce warranty, customer must:
  1. Register the product, and
  2. Provide a copy of the sales receipt

Visit www.pentair.com to submit your product warranty registration.

This information was updated on 04/05/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.


 Adobe Acrobat PDF Warranty Information
