Home Pool SALE Pool & Spa Heaters Pentair MasterTemp Low NOx Pool Heater - Electronic Ignition - Natural Gas - 400000 BTU | EC-462028 Parts

Pentair MasterTemp Low NOx Pool Heater - Electronic Ignition - Natural Gas - 400000 BTU | EC-462028 Parts

Back to Product

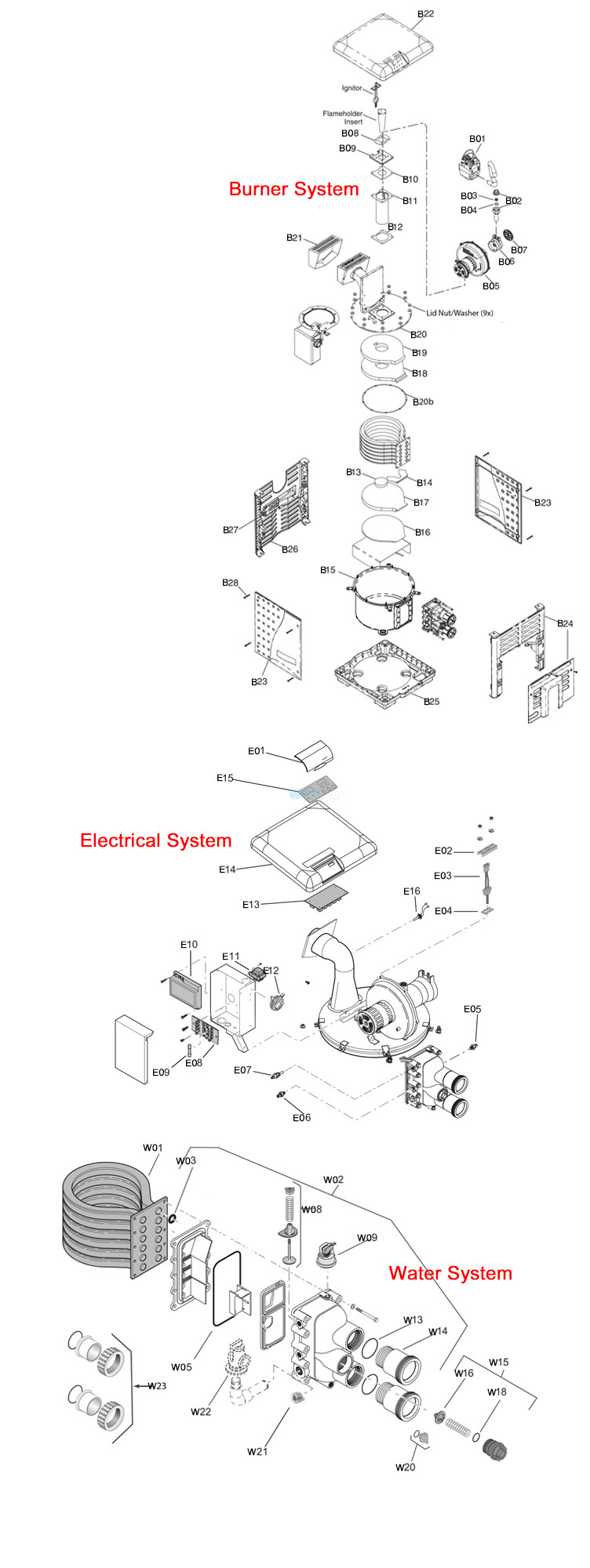

Pentair MasterTemp Low NOx Pool Heater - Electronic Ignition - Natural Gas - 400000 BTU | EC-462028 Parts Schematic
B01
Pentair MasterTemp & Sta-Rite Max-E-Therm Combination Gas Valve Kit | 42001-0051S
Pentair MasterTemp & Sta-Rite Max-E-Therm Combination Gas Valve Kit | 42001-0051S
Quantity:
$358.73

B02
Pentair Union Burner System | 3/4" | 38404-4097S
Pentair Union Burner System | 3/4" | 38404-4097S
Quantity:
$38.89

B05
Pentair MasterTemp & Sta-Rite Max-E-Therm 400 Natural Gas Heater Blower Kit | 77707-0253
Pentair MasterTemp & Sta-Rite Max-E-Therm 400 Natural Gas Heater Blower Kit | 77707-0253
Quantity:
$667.70

B07
Pentair Air Orifice Kit | 77707-0113
Pentair Air Orifice Kit | 77707-0113
Quantity:
$64.62

B08,B09,B10,B12,B13
Pentair Blower/Adapter Plate Gasket Kit | 77707-0011
Pentair Blower/Adapter Plate Gasket Kit | 77707-0011
Quantity:
$63.63

B10,B11,B12,B13
Pentair MasterTemp 400 Flameholder Kit | 77707-0204
Pentair MasterTemp 400 Flameholder Kit | 77707-0204
Quantity:
$175.35

B13,B14,B16,B17,B18,B19
Pentair MasterTemp & Sta-Rite Max-E-Therm Heater Insulation Kit | 77707-0008
Pentair MasterTemp & Sta-Rite Max-E-Therm Heater Insulation Kit | 77707-0008
Quantity:
$139.89

B15
Pentair Combustion Chamber Assembly | 474957
Pentair Combustion Chamber Assembly | 474957
Quantity:
$348.10

B15
Pentair Max-E-Therm Combustion Chamber | 474095
Pentair Max-E-Therm Combustion Chamber | 474095
This item has been discontinued.

B20
Pentair Combustion Chamber O-Ring Kit | 474952
Pentair Combustion Chamber O-Ring Kit | 474952
Quantity:
$37.56

B20
Pentair Elbow/Combustion Chamber Cover Assembly After 01/12/19 | Metal | 474094
Pentair Elbow/Combustion Chamber Cover Assembly After 01/12/19 | Metal | 474094
This item has been discontinued.

B20
Pentair Tub O-Ring Kit | Between 1/12/09 and 10/31/13 | 474201
Pentair Tub O-Ring Kit | Between 1/12/09 and 10/31/13 | 474201
Quantity:
$48.35

B20
Pentair Combustion Chamber Cover | 474958
Pentair Combustion Chamber Cover | 474958
Quantity:
$395.11

B21
Pentair Metal Vent Cover | 42002-0005S
Pentair Metal Vent Cover | 42002-0005S
Quantity:
$124.00

B22
Pentair MasterTemp Heater Top | 42002-0034Z
Pentair MasterTemp Heater Top | 42002-0034Z
Quantity:
$298.29

B23
Pentair MasterTemp Heater Panel | 42002-0039Z
Pentair MasterTemp Heater Panel | 42002-0039Z
Quantity:
$291.76

B24
Pentair Master Temp Panel | Manifold Side | 42002-0033Z
Pentair Master Temp Panel | Manifold Side | 42002-0033Z
Quantity:
$292.52

B25
Pentair MasterTemp Heater Bottom | 42002-0031Z
Pentair MasterTemp Heater Bottom | 42002-0031Z
Quantity:
$152.89

B26
Pentair MasterTemp Heater Panel | Flue Stack Vent Side | 42002-0032Z
Pentair MasterTemp Heater Panel | Flue Stack Vent Side | 42002-0032Z
Quantity:
$225.11

B27
Pentair MasterTemp Junction Box Cover | 42002-0041Z
Pentair MasterTemp Junction Box Cover | 42002-0041Z
Quantity:
$23.84

B28
Pentair Burner System Panel Hardware Replacement Kit | 474292
Pentair Burner System Panel Hardware Replacement Kit | 474292
Quantity:
$28.05

E01
Pentair Display Cover for MasterTemp Heater | 42002-0035Z
Pentair Display Cover for MasterTemp Heater | 42002-0035Z
Quantity:
$53.22

E02
Pentair Igniter Bracket | 42001-0030S
Pentair Igniter Bracket | 42001-0030S
Quantity:
$53.22

E03
Pentair Sta-Rite MasterTemp & Max-E-Therm Igniter with Gasket Kit | 77707-0054
Pentair Sta-Rite MasterTemp & Max-E-Therm Igniter with Gasket Kit | 77707-0054
Quantity:
$60.62

E04
Pentair MasterTemp Electrical System Igniter Gasket | 42001-0066S
Pentair MasterTemp Electrical System Igniter Gasket | 42001-0066S
Quantity:
$53.22

E05
Pentair MasterTemp & Sta-Rite Max-E-Therm Air Gas Shutoff (AGS) Switch | 42002-0025S
Pentair MasterTemp & Sta-Rite Max-E-Therm Air Gas Shutoff (AGS) Switch | 42002-0025S
Quantity:
$50.72

E06
Pentair MasterTemp & Sta-Rite Max-E-Therm High Limit Switch | 42001-0063S
Pentair MasterTemp & Sta-Rite Max-E-Therm High Limit Switch | 42001-0063S
Quantity:
$61.21

E07
Pentair Thermistor Temperature Sensor Max-E-Therm & MasterTemp | 42001-0053S
Pentair Thermistor Temperature Sensor Max-E-Therm & MasterTemp | 42001-0053S
Quantity:
$77.00

E08
Pentair MasterTemp & Sta-Rite Max-E-Therm Terminal Board | 42001-0056S
Pentair MasterTemp & Sta-Rite Max-E-Therm Terminal Board | 42001-0056S
Quantity:
$53.22

E09
Pentair Firemans Switch Fuse | 1.25A 1.25in | 32850-0099
Pentair Firemans Switch Fuse | 1.25A 1.25in | 32850-0099
Quantity:
$12.27

E10
Pentair MasterTemp Max-E-Therm Ignition Control Module | 42001-0052S | 476223
Pentair MasterTemp Max-E-Therm Ignition Control Module | 42001-0052S | 476223
Quantity:
$287.88

E11
Pentair MasterTemp & Max-E-Therm Heater Dual Voltage Transformer Kit | 115/230V | 42001-0107S
Pentair MasterTemp & Max-E-Therm Heater Dual Voltage Transformer Kit | 115/230V | 42001-0107S
Quantity:
$66.75

E12
Pentair MasterTemp & Sta-Rite Max-E-Therm Air Flow Switch | 42001-0061S
Pentair MasterTemp & Sta-Rite Max-E-Therm Air Flow Switch | 42001-0061S
Quantity:
$129.94

E13
Pentair Sta-Rite MasterTemp & Max-E-Therm Control Board Circuit Board Kit NG & LP | 42002-0007S
Pentair Sta-Rite MasterTemp & Max-E-Therm Control Board Circuit Board Kit NG & LP | 42002-0007S
A Replacement is available for this item.
This item is obsolete.

E15
Pentair MasterTemp Membrane Pad Kit | 472610Z
Pentair MasterTemp Membrane Pad Kit | 472610Z
Quantity:
$111.02

E16
Pentair Sta-Rite MasterTemp & Max-E-Therm Stack Flue Sensor | 42002-0024S
Pentair Sta-Rite MasterTemp & Max-E-Therm Stack Flue Sensor | 42002-0024S
Quantity:
$115.12

W01
Pentair MasterTemp & Sta-Rite Max-E-Therm Tube Sheet Coil Assembly Kit | Models 400NA & 400LP | Prior to 1-12-09 | 77707-0234
Pentair MasterTemp & Sta-Rite Max-E-Therm Tube Sheet Coil Assembly Kit | Models 400NA & 400LP | Prior to 1-12-09 | 77707-0234
Quantity:
$1,088.43

W01
Pentair Tube Sheet Coil Assembly Kit for Models 400NA 400LP | 474061
Pentair Tube Sheet Coil Assembly Kit for Models 400NA 400LP | 474061
Quantity:
$1,131.15

W02
Pentair MasterTemp & Sta-Rite Max-E-Therm Heater Manifold Assembly 400NA 400LP Models | 77707-0016
Pentair MasterTemp & Sta-Rite Max-E-Therm Heater Manifold Assembly 400NA 400LP Models | 77707-0016
Quantity:
$525.68

W02
Pentair Basic Manifold Kit | 474200
Pentair Basic Manifold Kit | 474200
Quantity:
$182.08

W03
Pentair MaterTemp Coil & Tubesheet Sealing O-Ring Kit | 77707-0119
Pentair MaterTemp Coil & Tubesheet Sealing O-Ring Kit | 77707-0119
Quantity:
$53.22

W08
Pentair MasterTemp & Sta-Rite Max-E-Therm Manifold Bypass Valve Kit | 77707-0001
Pentair MasterTemp & Sta-Rite Max-E-Therm Manifold Bypass Valve Kit | 77707-0001
Quantity:
$55.98

W09
Pentair MasterTemp & Sta-Rite Max-E-Therm Water Pressure Switch | 42001-0060S
Pentair MasterTemp & Sta-Rite Max-E-Therm Water Pressure Switch | 42001-0060S
Quantity:
$79.57

W09
Pentair MasterTemp & Sta-Rite Max-E-Therm Water Pressure Switch Kit | Prior to 10/2012 | 473716Z
Pentair MasterTemp & Sta-Rite Max-E-Therm Water Pressure Switch Kit | Prior to 10/2012 | 473716Z
Quantity:
$215.66

W13
Pentair Union Diffuser O-Ring | U9-226 | U9-226Z
Pentair Union Diffuser O-Ring | U9-226 | U9-226Z
Quantity:
$6.76

W14
Pentair MasterTemp and Sta-Rite Max-E-Therm Connector Tube Kit | 77707-0017
Pentair MasterTemp and Sta-Rite Max-E-Therm Connector Tube Kit | 77707-0017
Quantity:
$54.10

W15
Pentair MasterTemp & Sta-Rite Max-E-Therm Thermal Regulator Kit | 77707-0010
Pentair MasterTemp & Sta-Rite Max-E-Therm Thermal Regulator Kit | 77707-0010
Quantity:
$99.59

W16
Pentair Sta-Rite MasterTemp and Max-E-Therm Thermal Regulator with clip | 38000-0007S
Pentair Sta-Rite MasterTemp and Max-E-Therm Thermal Regulator with clip | 38000-0007S
Quantity:
$70.43

W18
Pentair Thermal Regulator Cap O-Ring | Size: 2-326 | 2 Inch | 35505-1313
Pentair Thermal Regulator Cap O-Ring | Size: 2-326 | 2 Inch | 35505-1313
Quantity:
$9.30

W20
Pentair Multiport Valve Drain Plug With O-Ring | U178-920P U178-920PZ
Pentair Multiport Valve Drain Plug With O-Ring | U178-920P U178-920PZ
Quantity:
$15.99

W21
Pentair 3/4" Pipe Plug for Max-E-Therm Heater Water System | U78-60ZPS
Pentair 3/4" Pipe Plug for Max-E-Therm Heater Water System | U78-60ZPS
Quantity:
$10.32

W22
Pentair MasterTemp Pressure Relief Valve | 50PSI | 473715Z
Pentair MasterTemp Pressure Relief Valve | 50PSI | 473715Z
Quantity:
$140.12

W23
Pentair Union Kit, 2 Inch Union Half x 2 Inch Slip Connection | PKG 188 PKG 188Z
Pentair Union Kit, 2 Inch Union Half x 2 Inch Slip Connection | PKG 188 PKG 188Z
Quantity:
$35.00
