Home Pentair EQK500 Series 5HP Nema Premium Efficiency 3-Phase Pool Pump without Strainer 208-230-460V | 340020 Parts

Pentair EQK500 Series 5HP Nema Premium Efficiency 3-Phase Pool Pump without Strainer 208-230-460V | 340020 Parts

Back to Product

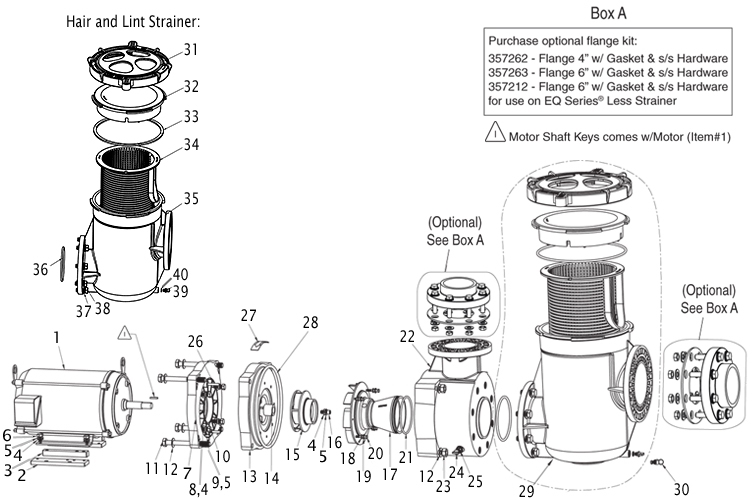

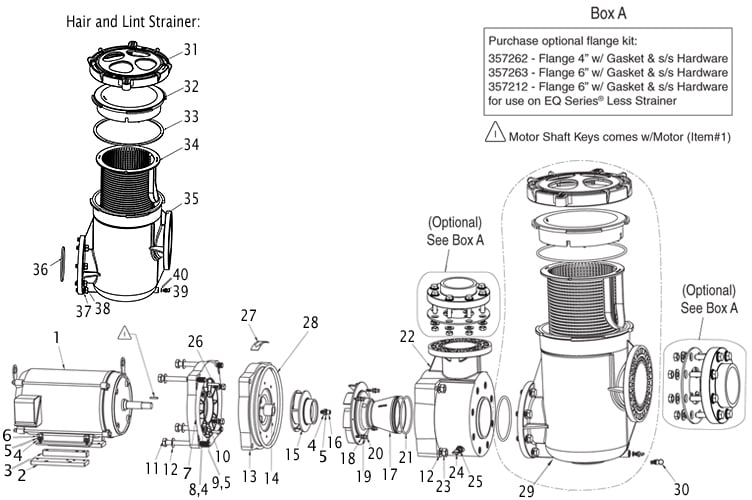

Pentair EQK500 Series 5HP Nema Premium Efficiency 3-Phase Pool Pump without Strainer 208-230-460V | 340020 Parts Schematic
4
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Quantity:
$10.99

5
Pentair Ultra-Flow Split Lock Washer 3/8" | Stainless Steel | 98220600
Pentair Ultra-Flow Split Lock Washer 3/8" | Stainless Steel | 98220600
Quantity:
$4.16

7
Pentair EQ Series Motor Adapter | 356790
Pentair EQ Series Motor Adapter | 356790
Quantity:
$720.89

10
Pentair Screw Cap 3/8-16x1" Stainless Steel | 354290
Pentair Screw Cap 3/8-16x1" Stainless Steel | 354290
Call us to order.

13
Pentair EQ Series Seal Plate | 356795
Pentair EQ Series Seal Plate | 356795
Quantity:
$954.94

14
Pentair EQ Series Service Seal Set | 071725S
Pentair EQ Series Service Seal Set | 071725S
Quantity:
$50.31

15
Pentair EQ500 Pump Impeller Assembly | Plastic | 350030
Pentair EQ500 Pump Impeller Assembly | Plastic | 350030
Quantity:
$399.91

16
Pentair EQ Series Impeller Lock Screw C-35 | Stainless Steel | 071037 P13550
Pentair EQ Series Impeller Lock Screw C-35 | Stainless Steel | 071037 P13550
Quantity:
$10.69

17
Pentair EQ Series Diffuser Assembly | Plastic | 5HP | 350032
Pentair EQ Series Diffuser Assembly | Plastic | 5HP | 350032
Quantity:
$640.69

18
Pentair Washer 1/4" | Stainless Steel | 51008500
Pentair Washer 1/4" | Stainless Steel | 51008500
Quantity:
$8.29

19
Pentair Lock Washer 1/4" | Two Required | Stainless Steel | 072172 P34876
Pentair Lock Washer 1/4" | Two Required | Stainless Steel | 072172 P34876
Quantity:
$1.21

21
Pentair EQ Series Diffuser O-Ring | 350037
Pentair EQ Series Diffuser O-Ring | 350037
Quantity:
$24.51

22
Pentair EQ Series Pump Housing | 356755
Pentair EQ Series Pump Housing | 356755
Quantity:
$2,769.45

24
Pentair Drain Plug 1/4" NPT | 154699
Pentair Drain Plug 1/4" NPT | 154699
A Replacement is available for this item.
This item has been discontinued.

25
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$13.99

26
Pentair EQ Series Pin Dowel | 5/16" x 1.75" | Stainless Steel | 350060
Pentair EQ Series Pin Dowel | 5/16" x 1.75" | Stainless Steel | 350060
Quantity:
$31.98

28
Pentair EQ Series Seal Plate O-Ring | 356780
Pentair EQ Series Seal Plate O-Ring | 356780
Quantity:
$55.40

29
Pentair EQ Series Hair & Lint Strainer Pot Complete | 6"x 6" | 340013
Pentair EQ Series Hair & Lint Strainer Pot Complete | 6"x 6" | 340013
Quantity:
$1,233.19

31
Pentair EQ Series Strainer Pot | 356725
Pentair EQ Series Strainer Pot | 356725
Quantity:
$905.73

32
Pentair EQ Series Basket Strainer | Plastic | 357184
Pentair EQ Series Basket Strainer | Plastic | 357184
Quantity:
$200.80

33
Pentair EQ Series Pump Lid O-Ring | 350166
Pentair EQ Series Pump Lid O-Ring | 350166
Quantity:
$28.43

34
Pentair EQ Series Strainer Lid | Clear | 356750
Pentair EQ Series Strainer Lid | Clear | 356750
Quantity:
$421.84

35
Pentair EQ Series Pump Lock Ring and Gasket | 350171
Pentair EQ Series Pump Lock Ring and Gasket | 350171
Quantity:
$575.54

40
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Quantity:
$16.00
