Home Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Copper Exchanger | 500K BTU Propane Gas | MT0500IP09C1PC Parts

Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Copper Exchanger | 500K BTU Propane Gas | MT0500IP09C1PC Parts

Back to Product

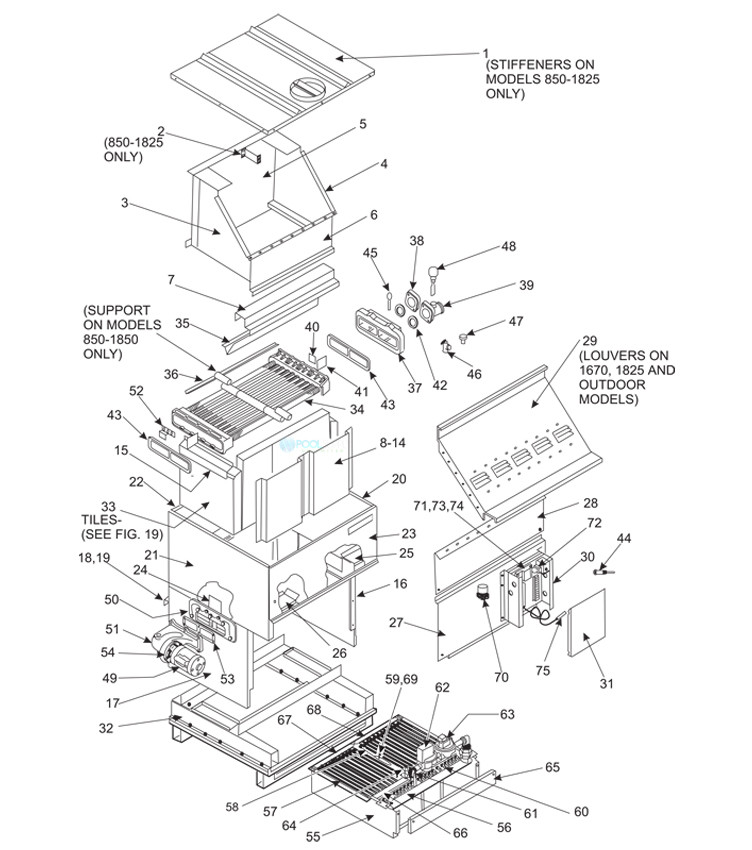

Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Copper Exchanger | 500K BTU Propane Gas | MT0500IP09C1PC Parts Schematic
1
Pentair MegaTherm 500 Top Panel Assembly | 10535701
Pentair MegaTherm 500 Top Panel Assembly | 10535701
Quantity:
$324.76
3
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Quantity:
$63.44
4
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Quantity:
$63.44
5
Pentair MegaTherm 500 Flue Collector Rear Panel | 10535501
Pentair MegaTherm 500 Flue Collector Rear Panel | 10535501
Quantity:
$131.56
6
Pentair MegaTherm 500 Flue Collector Front Support | 10534401
Pentair MegaTherm 500 Flue Collector Front Support | 10534401
Quantity:
$63.60
7
Pentair MegaTherm 500 Front/Rear Tile Cover | 10534201
Pentair MegaTherm 500 Front/Rear Tile Cover | 10534201
Quantity:
$33.37
8
Pentair MegaTherm 500 Tile Heat Shield/Spacer | Front & Rear | 10560100
Pentair MegaTherm 500 Tile Heat Shield/Spacer | Front & Rear | 10560100
Quantity:
$44.77
15
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Quantity:
$44.31
16
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Quantity:
$146.03
17
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Quantity:
$137.06
18
Pentair MegaTherm 500 Lower Rear Panel Weldment | 10532901
Pentair MegaTherm 500 Lower Rear Panel Weldment | 10532901
Quantity:
$229.82
19
Pentair MegaTherm 500 Middle Rear Panel/Heat Shield Weldment | 10540401
Pentair MegaTherm 500 Middle Rear Panel/Heat Shield Weldment | 10540401
Quantity:
$191.21
20
Pentair MegaTherm Upper Right End Panel | 10531600
Pentair MegaTherm Upper Right End Panel | 10531600
Quantity:
$132.05
21
Pentair MegaTherm Upper Left End Panel | 10534000
Pentair MegaTherm Upper Left End Panel | 10534000
Quantity:
$106.45
22
Pentair MegaTherm 500 Upper Rear Panel/Heat Shield Weldment | 10540501
Pentair MegaTherm 500 Upper Rear Panel/Heat Shield Weldment | 10540501
Quantity:
$263.71
23
Pentair MegaTherm 500 Upper Front Panel | 10531501
Pentair MegaTherm 500 Upper Front Panel | 10531501
Quantity:
$116.23
24
Pentair MegaTherm End Tile Support Bracket | 10551000
Pentair MegaTherm End Tile Support Bracket | 10551000
Quantity:
$19.06
25
Pentair MegaTherm Right Drafthood Relief Baffle | 10540901
Pentair MegaTherm Right Drafthood Relief Baffle | 10540901
Quantity:
$32.67
26
Pentair MegaTherm 500 Left Drafthood Relief Baffle | 10541001
Pentair MegaTherm 500 Left Drafthood Relief Baffle | 10541001
Quantity:
$32.39
27
Pentair MegaTherm 500 Lower Front Panel/Heat Shield Weldment | 10554601
Pentair MegaTherm 500 Lower Front Panel/Heat Shield Weldment | 10554601
Quantity:
$210.95
28
Pentair MegaTherm 500 Middle Front Panel | 10554401
Pentair MegaTherm 500 Middle Front Panel | 10554401
Quantity:
$84.76
29
Pentair MegaTherm 500 Flue Collector Sweep Sheet | 10533901
Pentair MegaTherm 500 Flue Collector Sweep Sheet | 10533901
Quantity:
$130.60
30
Pentair MegaTherm Control Box Weldment | 10545800
Pentair MegaTherm Control Box Weldment | 10545800
Quantity:
$43.42
31
Pentair MegaTherm Control Box Cover | 10547200
Pentair MegaTherm Control Box Cover | 10547200
Quantity:
$47.40
32
Pentair MegaTherm 500 Base/Tile Support Assembly | 10536901
Pentair MegaTherm 500 Base/Tile Support Assembly | 10536901
Quantity:
$1,101.96
33
Pentair Complete Tile Assembly | 20051701
Pentair Complete Tile Assembly | 20051701
Quantity:
$482.12
35
Pentair MegaTherm 500 Front/Rear Heat Exchanger Baffle | 10534301
Pentair MegaTherm 500 Front/Rear Heat Exchanger Baffle | 10534301
Quantity:
$18.59
36
Pentair MegaTherm 500 Heat Exchanger Baffle | 10534601
Pentair MegaTherm 500 Heat Exchanger Baffle | 10534601
Quantity:
$13.61
37
PENTAIR 10364500 HEADER INLET/OUTLET
PENTAIR 10364500 HEADER INLET/OUTLET
This item has been discontinued.
38
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Quantity:
$73.91
38
Pentair MegaTherm Flange Gasket Kit 2.5" | Bronze | R10391304
Pentair MegaTherm Flange Gasket Kit 2.5" | Bronze | R10391304
Quantity:
$293.68
39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Quantity:
$457.45
39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Bronze | 20150303
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Bronze | 20150303
Quantity:
$613.64
40
Pentair Inlet Water Baffle | 10338300
Pentair Inlet Water Baffle | 10338300
Quantity:
$29.74
42
Pentair Flange Gasket Laars AP850 | S0063700
Pentair Flange Gasket Laars AP850 | S0063700
Quantity:
$10.70
43
Pentair Header Gasket with Barrier | 8 Tube | S0095100
Pentair Header Gasket with Barrier | 8 Tube | S0095100
Quantity:
$38.35
46
Pentair Pressure Relief Valve | 0.75" NPT | 75 psi | A0063300
Pentair Pressure Relief Valve | 0.75" NPT | 75 psi | A0063300
Quantity:
$40.99
47
Pentair Temperature Gauge | A2089500
Pentair Temperature Gauge | A2089500
Quantity:
$230.29
48
PENTAIR E0013100 FLOW SWITCH INDOOR
PENTAIR E0013100 FLOW SWITCH INDOOR
This item has been discontinued.
50
Pentair MegaTherm Pump Adapter | Bronze | 10364201
Pentair MegaTherm Pump Adapter | Bronze | 10364201
Quantity:
$463.91
50
Pentair MegaTherm 1010 Commercial Pool Heater | Glassed Cast Iron Pump Adapter | 10364200
Pentair MegaTherm 1010 Commercial Pool Heater | Glassed Cast Iron Pump Adapter | 10364200
Quantity:
$195.76
52
Pentair Pump Inlet Baffle Diffuser | 10338400
Pentair Pump Inlet Baffle Diffuser | 10338400
Quantity:
$34.33
53
Pentair 12" Pump Housing Gasket | S0024600
Pentair 12" Pump Housing Gasket | S0024600
Quantity:
$43.76
55
Pentair MegaTherm 500 Burner Tray | 20097401
Pentair MegaTherm 500 Burner Tray | 20097401
Quantity:
$1,762.04
56
Pentair MegaTherm 500 Single Inlet Gas Manifold Weldment | 10525901
Pentair MegaTherm 500 Single Inlet Gas Manifold Weldment | 10525901
Quantity:
$388.05
57
L0052300 BURNER MAIN LAARS LITE
L0052300 BURNER MAIN LAARS LITE
This item has been discontinued.
58
Pentair MegaTherm 500 Pilot Bracket/Burner Weldment | 10529502
Pentair MegaTherm 500 Pilot Bracket/Burner Weldment | 10529502
Quantity:
$63.74
59
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Quantity:
$170.14
60
Pentair Liquid Propane Gas Orifice | L0032900
Pentair Liquid Propane Gas Orifice | L0032900
Quantity:
$7.15
61
Pentair MegaTherm Manual Gas Valve | .75" | V0004800
Pentair MegaTherm Manual Gas Valve | .75" | V0004800
Quantity:
$89.70
62
Pentair MegaTherm Auto Gas Valve | RV0046600
Pentair MegaTherm Auto Gas Valve | RV0046600
Quantity:
$472.13
63
Pentair MegaTherm Combination/Operating Gas Valve | V0054800
Pentair MegaTherm Combination/Operating Gas Valve | V0054800
Quantity:
$656.35
64
Pentair MegaTherm Manual Pilot Valve | W0002100
Pentair MegaTherm Manual Pilot Valve | W0002100
Quantity:
$36.45
65
Pentair MegaTherm 500 Manifold Cover Plate Assembly | 10552901
Pentair MegaTherm 500 Manifold Cover Plate Assembly | 10552901
Quantity:
$84.37
66
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525301
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525301
Quantity:
$26.52
67
Pentair MegaTherm Left Single Pilot Burner Tie Down Bracket | 10525701
Pentair MegaTherm Left Single Pilot Burner Tie Down Bracket | 10525701
Quantity:
$52.14
68
Pentair MegaTherm 500 Right Single Pilot Burner Tie Down Bracket | 10542001
Pentair MegaTherm 500 Right Single Pilot Burner Tie Down Bracket | 10542001
Quantity:
$52.14
69
Pentair MegaTherm Commercial Pool Heaters | Thermocouple | W0036500
Pentair MegaTherm Commercial Pool Heaters | Thermocouple | W0036500
Quantity:
$37.25
70
Pentair Solenoid Pilot Valve | 24V | W0019300
Pentair Solenoid Pilot Valve | 24V | W0019300
Quantity:
$89.95
71
PENTAIR RE2033900 ELEC IGNITION CNTRL W/LOCKOUT
PENTAIR RE2033900 ELEC IGNITION CNTRL W/LOCKOUT
This item has been discontinued.
73
Pentair Manual Reset High Limit Switch | E2103900
Pentair Manual Reset High Limit Switch | E2103900
Quantity:
$201.32
74
Pentair MegaTherm Water Temperature Controller | E2103800
Pentair MegaTherm Water Temperature Controller | E2103800
Quantity:
$178.59
75
Pentair MegaTherm Water Temperature Sensor | E2103600
Pentair MegaTherm Water Temperature Sensor | E2103600
Quantity:
$207.51
