Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Cupro Nickel Exchanger | 500K BTU Propane Gas | MT0500IP09C1PN Parts

Back to Product

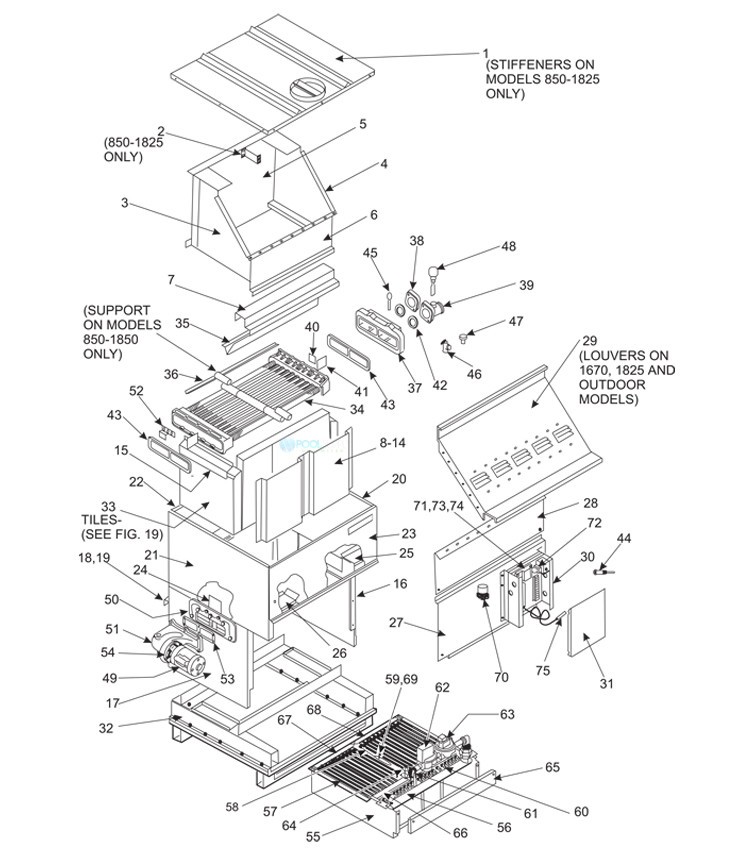

Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Cupro Nickel Exchanger | 500K BTU Propane Gas | MT0500IP09C1PN Parts Schematic
1
Pentair MegaTherm 500 Top Panel Assembly | 10535701
Pentair MegaTherm 500 Top Panel Assembly | 10535701
Quantity:
$295.58

3
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Quantity:
$55.52

4
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Quantity:
$55.51

5
Pentair MegaTherm 500 Flue Collector Rear Panel | 10535501
Pentair MegaTherm 500 Flue Collector Rear Panel | 10535501
Quantity:
$115.93

6
Pentair MegaTherm 500 Flue Collector Front Support | 10534401
Pentair MegaTherm 500 Flue Collector Front Support | 10534401
Quantity:
$55.64

7
Pentair MegaTherm 500 Front/Rear Tile Cover | 10534201
Pentair MegaTherm 500 Front/Rear Tile Cover | 10534201
Quantity:
$30.61

8
Pentair MegaTherm 500 Tile Heat Shield/Spacer | Front & Rear | 10560100
Pentair MegaTherm 500 Tile Heat Shield/Spacer | Front & Rear | 10560100
Quantity:
$44.77

15
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Quantity:
$40.75

16
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Quantity:
$134.07

17
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Quantity:
$120.77

18
Pentair MegaTherm 500 Lower Rear Panel Weldment | 10532901
Pentair MegaTherm 500 Lower Rear Panel Weldment | 10532901
Quantity:
$199.54

19
Pentair MegaTherm 500 Middle Rear Panel/Heat Shield Weldment | 10540401
Pentair MegaTherm 500 Middle Rear Panel/Heat Shield Weldment | 10540401
Quantity:
$168.35

20
Pentair MegaTherm Upper Right End Panel | 10531600
Pentair MegaTherm Upper Right End Panel | 10531600
Quantity:
$116.34

21
Pentair MegaTherm Upper Left End Panel | 10534000
Pentair MegaTherm Upper Left End Panel | 10534000
Quantity:
$93.46

22
Pentair MegaTherm 500 Upper Rear Panel/Heat Shield Weldment | 10540501
Pentair MegaTherm 500 Upper Rear Panel/Heat Shield Weldment | 10540501
Quantity:
$230.49

23
Pentair MegaTherm 500 Upper Front Panel | 10531501
Pentair MegaTherm 500 Upper Front Panel | 10531501
Quantity:
$100.91

24
Pentair MegaTherm End Tile Support Bracket | 10551000
Pentair MegaTherm End Tile Support Bracket | 10551000
Quantity:
$18.04

25
Pentair MegaTherm Right Drafthood Relief Baffle | 10540901
Pentair MegaTherm Right Drafthood Relief Baffle | 10540901
Quantity:
$28.92

26
Pentair MegaTherm 500 Left Drafthood Relief Baffle | 10541001
Pentair MegaTherm 500 Left Drafthood Relief Baffle | 10541001
Quantity:
$28.66

27
Pentair MegaTherm 500 Lower Front Panel/Heat Shield Weldment | 10554601
Pentair MegaTherm 500 Lower Front Panel/Heat Shield Weldment | 10554601
Quantity:
$185.67

28
Pentair MegaTherm 500 Middle Front Panel | 10554401
Pentair MegaTherm 500 Middle Front Panel | 10554401
Quantity:
$73.59

29
Pentair MegaTherm 500 Flue Collector Sweep Sheet | 10533901
Pentair MegaTherm 500 Flue Collector Sweep Sheet | 10533901
Quantity:
$115.07

30
Pentair MegaTherm Control Box Weldment | 10545800
Pentair MegaTherm Control Box Weldment | 10545800
Quantity:
$43.42

31
Pentair MegaTherm Control Box Cover | 10547200
Pentair MegaTherm Control Box Cover | 10547200
Quantity:
$43.33

32
Pentair MegaTherm 500 Base/Tile Support Assembly | 10536901
Pentair MegaTherm 500 Base/Tile Support Assembly | 10536901
Quantity:
$961.01

33
Pentair Complete Tile Assembly | 20051701
Pentair Complete Tile Assembly | 20051701
Quantity:
$482.12

35
Pentair MegaTherm 500 Front/Rear Heat Exchanger Baffle | 10534301
Pentair MegaTherm 500 Front/Rear Heat Exchanger Baffle | 10534301
Quantity:
$16.13

36
Pentair MegaTherm 500 Heat Exchanger Baffle | 10534601
Pentair MegaTherm 500 Heat Exchanger Baffle | 10534601
Quantity:
$13.16

37
PENTAIR 10364500 HEADER INLET/OUTLET
PENTAIR 10364500 HEADER INLET/OUTLET
This item has been discontinued.

38
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Quantity:
$65.16

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Quantity:
$354.03

40
Pentair Inlet Water Baffle | 10338300
Pentair Inlet Water Baffle | 10338300
Quantity:
$26.86

42
Pentair Flange Gasket Laars AP850 | S0063700
Pentair Flange Gasket Laars AP850 | S0063700
Quantity:
$9.30

43
Pentair Header Gasket with Barrier | 8 Tube | S0095100
Pentair Header Gasket with Barrier | 8 Tube | S0095100
Quantity:
$33.87

46
Pentair Pressure Relief Valve | 0.75" NPT | 75 psi | A0063300
Pentair Pressure Relief Valve | 0.75" NPT | 75 psi | A0063300
Quantity:
$37.30

47
Pentair Temperature Gauge | A2089500
Pentair Temperature Gauge | A2089500
Quantity:
$202.66

48
PENTAIR E0013100 FLOW SWITCH INDOOR
PENTAIR E0013100 FLOW SWITCH INDOOR
This item has been discontinued.

49
PENTAIR RA2001800 1/2HP PUMP FOR AP COMM HTR
PENTAIR RA2001800 1/2HP PUMP FOR AP COMM HTR
This item has been discontinued.

50
Pentair MegaTherm 1010 Commercial Pool Heater | Glassed Cast Iron Pump Adapter | 10364200
Pentair MegaTherm 1010 Commercial Pool Heater | Glassed Cast Iron Pump Adapter | 10364200
Quantity:
$195.76

52
Pentair Pump Inlet Baffle Diffuser | 10338400
Pentair Pump Inlet Baffle Diffuser | 10338400
Quantity:
$33.20

53
Pentair 12" Pump Housing Gasket | S0024600
Pentair 12" Pump Housing Gasket | S0024600
Quantity:
$40.22

55
Pentair MegaTherm 500 Burner Tray | 20097401
Pentair MegaTherm 500 Burner Tray | 20097401
Quantity:
$1,529.96

56
Pentair MegaTherm 500 Single Inlet Gas Manifold Weldment | 10525901
Pentair MegaTherm 500 Single Inlet Gas Manifold Weldment | 10525901
Quantity:
$339.06

57
L0052300 BURNER MAIN LAARS LITE
L0052300 BURNER MAIN LAARS LITE
This item has been discontinued.

58
Pentair MegaTherm 500 Pilot Bracket/Burner Weldment | 10529502
Pentair MegaTherm 500 Pilot Bracket/Burner Weldment | 10529502
Quantity:
$55.76

59
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Quantity:
$170.14

60
Pentair Liquid Propane Gas Orifice | L0032900
Pentair Liquid Propane Gas Orifice | L0032900
Quantity:
$6.21

61
Pentair MegaTherm Manual Gas Valve | .75" | V0004800
Pentair MegaTherm Manual Gas Valve | .75" | V0004800
Quantity:
$77.89

62
Pentair MegaTherm Auto Gas Valve | RV0046600
Pentair MegaTherm Auto Gas Valve | RV0046600
Quantity:
$386.83

63
Pentair MegaTherm Combination/Operating Gas Valve | V0054800
Pentair MegaTherm Combination/Operating Gas Valve | V0054800
Quantity:
$577.04

64
Pentair MegaTherm Manual Pilot Valve | W0002100
Pentair MegaTherm Manual Pilot Valve | W0002100
Quantity:
$33.35

65
Pentair MegaTherm 500 Manifold Cover Plate Assembly | 10552901
Pentair MegaTherm 500 Manifold Cover Plate Assembly | 10552901
Quantity:
$73.26

66
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525301
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525301
Quantity:
$23.50

67
Pentair MegaTherm Left Single Pilot Burner Tie Down Bracket | 10525701
Pentair MegaTherm Left Single Pilot Burner Tie Down Bracket | 10525701
Quantity:
$45.62

68
Pentair MegaTherm 500 Right Single Pilot Burner Tie Down Bracket | 10542001
Pentair MegaTherm 500 Right Single Pilot Burner Tie Down Bracket | 10542001
Quantity:
$45.62

70
Pentair Solenoid Pilot Valve | 24V | W0019300
Pentair Solenoid Pilot Valve | 24V | W0019300
Quantity:
$78.10

73
Pentair Manual Reset High Limit Switch | E2103900
Pentair Manual Reset High Limit Switch | E2103900
Quantity:
$174.80

74
Pentair MegaTherm Water Temperature Controller | E2103800
Pentair MegaTherm Water Temperature Controller | E2103800
Quantity:
$157.17

75
Pentair MegaTherm Water Temperature Sensor | E2103600
Pentair MegaTherm Water Temperature Sensor | E2103600
Quantity:
$182.66
