Home Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Copper Exchanger | 715K BTU Natural Gas | MT0715IN09C1PC Parts

Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Copper Exchanger | 715K BTU Natural Gas | MT0715IN09C1PC Parts

Back to Product

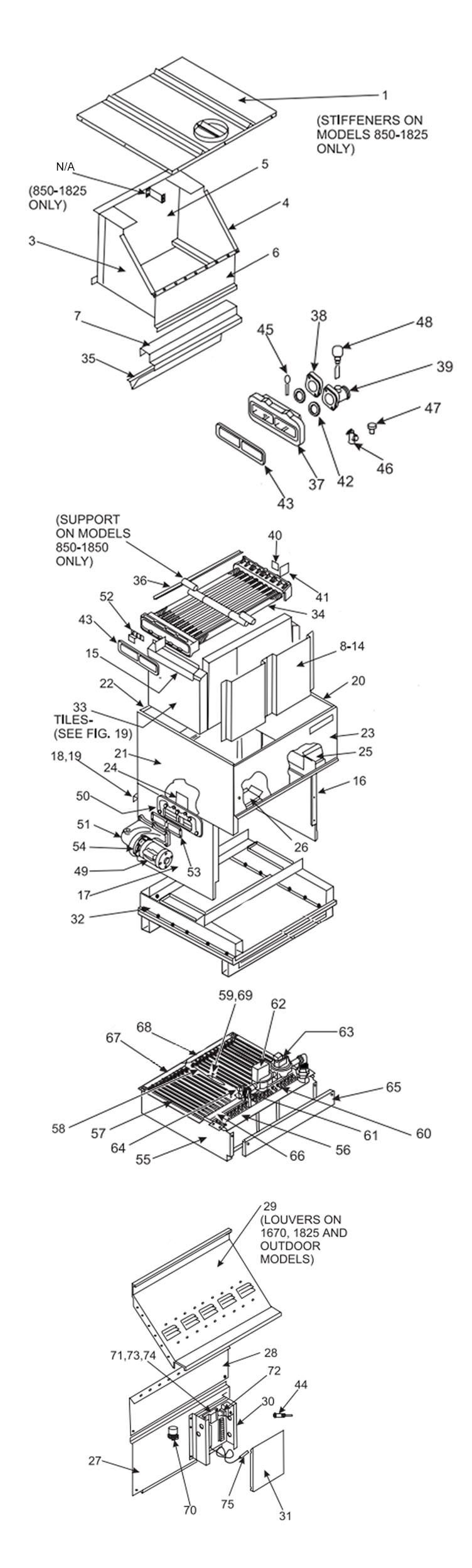

Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Copper Exchanger | 715K BTU Natural Gas | MT0715IN09C1PC Parts Schematic
1
Pentair MegaTherm 715 Top Panel Assembly | 10535703
Pentair MegaTherm 715 Top Panel Assembly | 10535703
Quantity:
$349.57

3
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Quantity:
$63.70

4
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Quantity:
$63.70

5
Pentair MegaTherm 715 Flue Collector Rear Panel | 10535503
Pentair MegaTherm 715 Flue Collector Rear Panel | 10535503
Quantity:
$137.49

6
Pentair MegaTherm 715 Flue Collector Front Support | 10534403
Pentair MegaTherm 715 Flue Collector Front Support | 10534403
Quantity:
$67.92

7
Pentair MegaTherm 715 Front/Rear Tile Cover | 10534203
Pentair MegaTherm 715 Front/Rear Tile Cover | 10534203
Quantity:
$34.92

9
Pentair MegaTherm 715 Front Tile Heat Shield/Spacer | 10547902
Pentair MegaTherm 715 Front Tile Heat Shield/Spacer | 10547902
Quantity:
$111.41

12
Pentair MegaTherm 715 Rear Tile Heat Shield/Spacer | 10548202
Pentair MegaTherm 715 Rear Tile Heat Shield/Spacer | 10548202
Quantity:
$122.04

15
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Quantity:
$44.49

16
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Quantity:
$146.57

17
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Quantity:
$137.60

18
Pentair MegaTherm 715 Lower Rear Panel Weldment | 10532903
Pentair MegaTherm 715 Lower Rear Panel Weldment | 10532903
Quantity:
$232.45

19
Pentair MegaTherm 715 Middle Rear Panel/Heat Shield Weldment | 10540403
Pentair MegaTherm 715 Middle Rear Panel/Heat Shield Weldment | 10540403
Quantity:
$260.86

20
Pentair MegaTherm Upper Right End Panel | 10531600
Pentair MegaTherm Upper Right End Panel | 10531600
Quantity:
$132.56

21
Pentair MegaTherm Upper Left End Panel | 10534000
Pentair MegaTherm Upper Left End Panel | 10534000
Quantity:
$113.56

22
Pentair MegaTherm 715 Upper Rear Panel/Heat Shield Weldment | 10540503
Pentair MegaTherm 715 Upper Rear Panel/Heat Shield Weldment | 10540503
Quantity:
$317.87

23
Pentair MegaTherm 715 Upper Front Panel | 10531503
Pentair MegaTherm 715 Upper Front Panel | 10531503
Quantity:
$127.44

24
Pentair MegaTherm End Tile Support Bracket | 10551000
Pentair MegaTherm End Tile Support Bracket | 10551000
Quantity:
$19.17

25
Pentair MegaTherm 715 Right Drafthood Relief Baffle | 10540903
Pentair MegaTherm 715 Right Drafthood Relief Baffle | 10540903
Quantity:
$31.95

26
Pentair MegaTherm 715 Left Drafthood Relief Baffle | 10541003
Pentair MegaTherm 715 Left Drafthood Relief Baffle | 10541003
Quantity:
$33.33

27
Pentair MegaTherm 715 Lower Front Panel/Heat Shield Weldment | 10554603
Pentair MegaTherm 715 Lower Front Panel/Heat Shield Weldment | 10554603
Quantity:
$267.59

28
Pentair MegaTherm 715 Middle Front Panel | 10554403
Pentair MegaTherm 715 Middle Front Panel | 10554403
Quantity:
$92.31

29
Pentair MegaTherm 715 Flue Collector Sweep Sheet | 10533903
Pentair MegaTherm 715 Flue Collector Sweep Sheet | 10533903
Quantity:
$197.02

31
Pentair MegaTherm Control Box Cover | 10547200
Pentair MegaTherm Control Box Cover | 10547200
Quantity:
$47.59

32
Pentair MegaTherm 715 Base/Tile Support Assembly | 10536903
Pentair MegaTherm 715 Base/Tile Support Assembly | 10536903
Quantity:
$1,204.65

35
Pentair MegaTherm 715 Front/Rear Heat Exchanger Baffle | 10534303
Pentair MegaTherm 715 Front/Rear Heat Exchanger Baffle | 10534303
Quantity:
$18.38

36
Pentair MegaTherm 715 Heat Exchanger Baffle | 10534603
Pentair MegaTherm 715 Heat Exchanger Baffle | 10534603
Quantity:
$14.36

38
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Quantity:
$74.21

38
Pentair MegaTherm Flange Gasket Kit 2.5" | Bronze | R10391304
Pentair MegaTherm Flange Gasket Kit 2.5" | Bronze | R10391304
Quantity:
$294.41

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Quantity:
$407.43

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Bronze | 20150303
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Bronze | 20150303
Quantity:
$614.81

40
Pentair Inlet Water Baffle | 10338300
Pentair Inlet Water Baffle | 10338300
Quantity:
$29.88

42
Pentair Flange Gasket Laars AP850 | S0063700
Pentair Flange Gasket Laars AP850 | S0063700
Quantity:
$11.10

46
Pentair Pressure Relief Valve | 0.75" NPT | 75 psi | A0063300
Pentair Pressure Relief Valve | 0.75" NPT | 75 psi | A0063300
Quantity:
$40.99

47
Pentair Temperature Gauge | A2089500
Pentair Temperature Gauge | A2089500
Quantity:
$230.84

48
Pentair PowerMax Flow Control Switch Kit | RE0013000
Pentair PowerMax Flow Control Switch Kit | RE0013000
Quantity:
$268.32

50
Pentair MegaTherm Pump Adapter | Bronze | 10364201
Pentair MegaTherm Pump Adapter | Bronze | 10364201
Quantity:
$463.91

52
Pentair Pump Inlet Baffle Diffuser | 10338400
Pentair Pump Inlet Baffle Diffuser | 10338400
Quantity:
$34.48

53
Pentair 12" Pump Housing Gasket | S0024600
Pentair 12" Pump Housing Gasket | S0024600
Quantity:
$43.93

55
Pentair MegaTherm 715 Burner Tray | 10550603
Pentair MegaTherm 715 Burner Tray | 10550603
Quantity:
$2,551.37

55
Pentair MegaTherm 715 Burner Tray | 20097403
Pentair MegaTherm 715 Burner Tray | 20097403
Quantity:
$2,034.60

56
Pentair MegaTherm 715 Single Inlet Gas Manifold Weldment | 10525903
Pentair MegaTherm 715 Single Inlet Gas Manifold Weldment | 10525903
Quantity:
$504.70

58
Pentair MegaTherm 500 Pilot Bracket/Burner Weldment | 10529502
Pentair MegaTherm 500 Pilot Bracket/Burner Weldment | 10529502
Quantity:
$63.98

59
Pentair MegaTherm 500 Pilot Burner | W2001300
Pentair MegaTherm 500 Pilot Burner | W2001300
Quantity:
$224.19

60
Pentair Gas Orifice | #44 - Natural Gas | L0050700
Pentair Gas Orifice | #44 - Natural Gas | L0050700
Quantity:
$7.74

61
Pentair MegaTherm Manual Gas Valve | 1" | V0004200
Pentair MegaTherm Manual Gas Valve | 1" | V0004200
Quantity:
$92.04

62
Pentair MegaTherm Auto Gas Valve | RV0046600
Pentair MegaTherm Auto Gas Valve | RV0046600
Quantity:
$473.05

63
Pentair MegaTherm Combination Gas Valve | RV0051200
Pentair MegaTherm Combination Gas Valve | RV0051200
Quantity:
$612.05

64
Pentair MegaTherm Manual Pilot Valve | W0002100
Pentair MegaTherm Manual Pilot Valve | W0002100
Quantity:
$36.62

65
Pentair MegaTherm 715 Manifold Cover Plate Assembly | 10552903
Pentair MegaTherm 715 Manifold Cover Plate Assembly | 10552903
Quantity:
$91.76

66
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525303
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525303
Quantity:
$36.04

67
Pentair MegaTherm Left Single Pilot Burner Tie Down Bracket | 10525703
Pentair MegaTherm Left Single Pilot Burner Tie Down Bracket | 10525703
Quantity:
$54.93

68
Pentair MegaTherm 715 Right Single Pilot Burner Tie Down Bracket | 10542003
Pentair MegaTherm 715 Right Single Pilot Burner Tie Down Bracket | 10542003
Quantity:
$57.66

69
Pentair MegaTherm Commercial Pool Heaters | Thermocouple | W0036500
Pentair MegaTherm Commercial Pool Heaters | Thermocouple | W0036500
Quantity:
$37.42

69
Pentair MegaTherm Commercial Pool Heater | Thermocouple | W0035900
Pentair MegaTherm Commercial Pool Heater | Thermocouple | W0035900
Quantity:
$47.94

70
Pentair Solenoid Pilot Valve | 24V | W0019300
Pentair Solenoid Pilot Valve | 24V | W0019300
Quantity:
$93.35

70
Pentair MegaTherm Manual Reset Pilot Relay | W0030000
Pentair MegaTherm Manual Reset Pilot Relay | W0030000
Quantity:
$269.37

71
Pentair MegaTherm Commercial Pool Heater | Electronic Ignition Control | E2305500
Pentair MegaTherm Commercial Pool Heater | Electronic Ignition Control | E2305500
Quantity:
$162.36

71
Pentair MegaTherm Commercial Pool Heater | Electronic Ignition Control - Single Try | E2305400
Pentair MegaTherm Commercial Pool Heater | Electronic Ignition Control - Single Try | E2305400
Quantity:
$272.72

72
Pentair MegaTherm Commercial Pool Heater | Transformer 40VA | R0021300
Pentair MegaTherm Commercial Pool Heater | Transformer 40VA | R0021300
Quantity:
$61.50

73
Pentair Manual Reset High Limit Switch | E2103900
Pentair Manual Reset High Limit Switch | E2103900
Quantity:
$302.40

74
Pentair MegaTherm Water Temperature Controller | E2103800
Pentair MegaTherm Water Temperature Controller | E2103800
Quantity:
$179.18

75
Pentair MegaTherm Water Temperature Sensor | E2103600
Pentair MegaTherm Water Temperature Sensor | E2103600
Quantity:
$208.04
