Home Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Copper Exchanger | 715K BTU Propane Gas | MT0715IP09C1PC Parts

Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Copper Exchanger | 715K BTU Propane Gas | MT0715IP09C1PC Parts

Back to Product

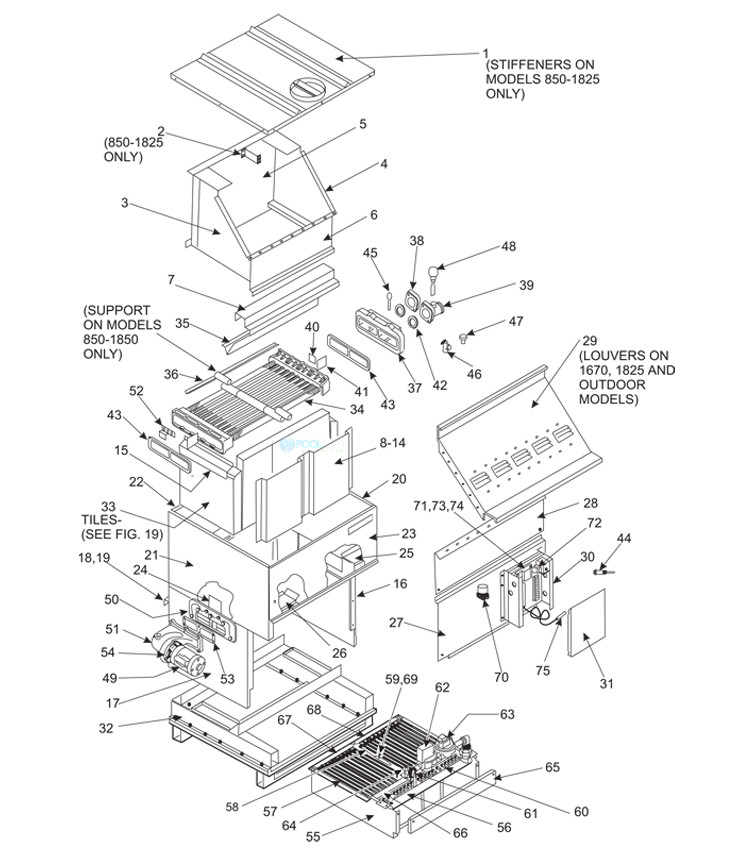

Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Copper Exchanger | 715K BTU Propane Gas | MT0715IP09C1PC Parts Schematic
1
Pentair MegaTherm 715 Top Panel Assembly | 10535703
Pentair MegaTherm 715 Top Panel Assembly | 10535703
Quantity:
$362.82

3
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Quantity:
$66.01

4
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Quantity:
$66.01

5
Pentair MegaTherm 715 Flue Collector Rear Panel | 10535503
Pentair MegaTherm 715 Flue Collector Rear Panel | 10535503
Quantity:
$137.49

6
Pentair MegaTherm 715 Flue Collector Front Support | 10534403
Pentair MegaTherm 715 Flue Collector Front Support | 10534403
Quantity:
$70.37

7
Pentair MegaTherm 715 Front/Rear Tile Cover | 10534203
Pentair MegaTherm 715 Front/Rear Tile Cover | 10534203
Quantity:
$36.17

9
Pentair MegaTherm 715 Front Tile Heat Shield/Spacer | 10547902
Pentair MegaTherm 715 Front Tile Heat Shield/Spacer | 10547902
Quantity:
$111.41

12
Pentair MegaTherm 715 Rear Tile Heat Shield/Spacer | 10548202
Pentair MegaTherm 715 Rear Tile Heat Shield/Spacer | 10548202
Quantity:
$124.64

15
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Quantity:
$45.99

16
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Quantity:
$146.57

17
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Quantity:
$134.85

18
Pentair MegaTherm 715 Lower Rear Panel Weldment | 10532903
Pentair MegaTherm 715 Lower Rear Panel Weldment | 10532903
Quantity:
$241.22

19
Pentair MegaTherm 715 Middle Rear Panel/Heat Shield Weldment | 10540403
Pentair MegaTherm 715 Middle Rear Panel/Heat Shield Weldment | 10540403
Quantity:
$268.91

20
Pentair MegaTherm Upper Right End Panel | 10531600
Pentair MegaTherm Upper Right End Panel | 10531600
Quantity:
$137.38

21
Pentair MegaTherm Upper Left End Panel | 10534000
Pentair MegaTherm Upper Left End Panel | 10534000
Quantity:
$246.46

22
Pentair MegaTherm 715 Upper Rear Panel/Heat Shield Weldment | 10540503
Pentair MegaTherm 715 Upper Rear Panel/Heat Shield Weldment | 10540503
Quantity:
$319.60

23
Pentair MegaTherm 715 Upper Front Panel | 10531503
Pentair MegaTherm 715 Upper Front Panel | 10531503
Quantity:
$132.08

24
Pentair MegaTherm End Tile Support Bracket | 10551000
Pentair MegaTherm End Tile Support Bracket | 10551000
Quantity:
$19.83

25
Pentair MegaTherm 715 Right Drafthood Relief Baffle | 10540903
Pentair MegaTherm 715 Right Drafthood Relief Baffle | 10540903
Quantity:
$33.09

26
Pentair MegaTherm 715 Left Drafthood Relief Baffle | 10541003
Pentair MegaTherm 715 Left Drafthood Relief Baffle | 10541003
Quantity:
$32.65

27
Pentair MegaTherm 715 Lower Front Panel/Heat Shield Weldment | 10554603
Pentair MegaTherm 715 Lower Front Panel/Heat Shield Weldment | 10554603
Quantity:
$277.69

28
Pentair MegaTherm 715 Middle Front Panel | 10554403
Pentair MegaTherm 715 Middle Front Panel | 10554403
Quantity:
$94.60

29
Pentair MegaTherm 715 Flue Collector Sweep Sheet | 10533903
Pentair MegaTherm 715 Flue Collector Sweep Sheet | 10533903
Quantity:
$201.69

30
Pentair MegaTherm Control Box Weldment | 10545800
Pentair MegaTherm Control Box Weldment | 10545800
Quantity:
$43.42

31
Pentair MegaTherm Control Box Cover | 10547200
Pentair MegaTherm Control Box Cover | 10547200
Quantity:
$49.31

32
Pentair MegaTherm 715 Base/Tile Support Assembly | 10536903
Pentair MegaTherm 715 Base/Tile Support Assembly | 10536903
Quantity:
$1,251.36

33
Pentair Complete Tile Assembly | 20051703
Pentair Complete Tile Assembly | 20051703
Quantity:
$607.79

35
Pentair MegaTherm 715 Front/Rear Heat Exchanger Baffle | 10534303
Pentair MegaTherm 715 Front/Rear Heat Exchanger Baffle | 10534303
Quantity:
$19.02

36
Pentair MegaTherm 715 Heat Exchanger Baffle | 10534603
Pentair MegaTherm 715 Heat Exchanger Baffle | 10534603
Quantity:
$18.78

38
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Quantity:
$76.89

37
PENTAIR 10364500 HEADER INLET/OUTLET
PENTAIR 10364500 HEADER INLET/OUTLET
This item has been discontinued.

38
Pentair MegaTherm Flange Gasket Kit 2.5" | Bronze | R10391304
Pentair MegaTherm Flange Gasket Kit 2.5" | Bronze | R10391304
Quantity:
$305.55

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Quantity:
$420.45

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Bronze | 20150303
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Bronze | 20150303
Quantity:
$614.81

40
Pentair Inlet Water Baffle | 10338300
Pentair Inlet Water Baffle | 10338300
Quantity:
$30.25

42
Pentair Flange Gasket Laars AP850 | S0063700
Pentair Flange Gasket Laars AP850 | S0063700
Quantity:
$11.10

43
Pentair Header Gasket with Barrier | 8 Tube | S0095100
Pentair Header Gasket with Barrier | 8 Tube | S0095100
Quantity:
$39.79

46
Pentair Pressure Relief Valve | 0.75" NPT | 75 psi | A0063300
Pentair Pressure Relief Valve | 0.75" NPT | 75 psi | A0063300
Quantity:
$39.71

47
Pentair Temperature Gauge | A2089500
Pentair Temperature Gauge | A2089500
Quantity:
$238.95

48
PENTAIR E0013100 FLOW SWITCH INDOOR
PENTAIR E0013100 FLOW SWITCH INDOOR
This item has been discontinued.

49
PENTAIR RA2001800 1/2HP PUMP FOR AP COMM HTR
PENTAIR RA2001800 1/2HP PUMP FOR AP COMM HTR
This item has been discontinued.

50
Pentair MegaTherm 1010 Commercial Pool Heater | Glassed Cast Iron Pump Adapter | 10364200
Pentair MegaTherm 1010 Commercial Pool Heater | Glassed Cast Iron Pump Adapter | 10364200
Quantity:
$195.76

50
Pentair MegaTherm Pump Adapter | Bronze | 10364201
Pentair MegaTherm Pump Adapter | Bronze | 10364201
Quantity:
$463.94

52
Pentair Pump Inlet Baffle Diffuser | 10338400
Pentair Pump Inlet Baffle Diffuser | 10338400
Quantity:
$35.63

53
Pentair 12" Pump Housing Gasket | S0024600
Pentair 12" Pump Housing Gasket | S0024600
Quantity:
$45.40

55
Pentair MegaTherm 715 Burner Tray | 20097403
Pentair MegaTherm 715 Burner Tray | 20097403
Quantity:
$2,034.60

56
Pentair MegaTherm 715 Single Inlet Gas Manifold Weldment | 10525903
Pentair MegaTherm 715 Single Inlet Gas Manifold Weldment | 10525903
Quantity:
$524.09

57
L0052300 BURNER MAIN LAARS LITE
L0052300 BURNER MAIN LAARS LITE
This item has been discontinued.

58
Pentair MegaTherm 500 Pilot Bracket/Burner Weldment | 10529502
Pentair MegaTherm 500 Pilot Bracket/Burner Weldment | 10529502
Quantity:
$66.14

59
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Quantity:
$170.38

60
Pentair Liquid Propane Gas Orifice | L0032900
Pentair Liquid Propane Gas Orifice | L0032900
Quantity:
$7.44

61
Pentair MegaTherm Manual Gas Valve | .75" | V0004800
Pentair MegaTherm Manual Gas Valve | .75" | V0004800
Quantity:
$93.33

62
Pentair MegaTherm Auto Gas Valve | RV0046600
Pentair MegaTherm Auto Gas Valve | RV0046600
Quantity:
$473.05

63
Pentair MegaTherm Combination/Operating Gas Valve | V0054800
Pentair MegaTherm Combination/Operating Gas Valve | V0054800
Quantity:
$680.70

64
Pentair MegaTherm Manual Pilot Valve | W0002100
Pentair MegaTherm Manual Pilot Valve | W0002100
Quantity:
$37.29

65
Pentair MegaTherm 715 Manifold Cover Plate Assembly | 10552903
Pentair MegaTherm 715 Manifold Cover Plate Assembly | 10552903
Quantity:
$94.06

66
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525303
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525303
Quantity:
$45.77

67
Pentair MegaTherm Left Single Pilot Burner Tie Down Bracket | 10525703
Pentair MegaTherm Left Single Pilot Burner Tie Down Bracket | 10525703
Quantity:
$77.84

68
Pentair MegaTherm 715 Right Single Pilot Burner Tie Down Bracket | 10542003
Pentair MegaTherm 715 Right Single Pilot Burner Tie Down Bracket | 10542003
Quantity:
$81.69

69
Pentair MegaTherm Commercial Pool Heaters | Thermocouple | W0036500
Pentair MegaTherm Commercial Pool Heaters | Thermocouple | W0036500
Quantity:
$38.75

70
Pentair Solenoid Pilot Valve | 24V | W0019300
Pentair Solenoid Pilot Valve | 24V | W0019300
This item has been discontinued.

71
PENTAIR RE0100900 ELEC IGNITION CONTROL REPL KIT
PENTAIR RE0100900 ELEC IGNITION CONTROL REPL KIT
This item has been discontinued.

73
Pentair Manual Reset High Limit Switch | E2103900
Pentair Manual Reset High Limit Switch | E2103900
Quantity:
$302.40

74
Pentair MegaTherm Water Temperature Controller | E2103800
Pentair MegaTherm Water Temperature Controller | E2103800
Quantity:
$185.29

75
Pentair MegaTherm Water Temperature Sensor | E2103600
Pentair MegaTherm Water Temperature Sensor | E2103600
Quantity:
$215.91
