Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Cupro Nickel Exchanger | 850K BTU Natural Gas | MT0850IN09C1PN Parts

Back to Product

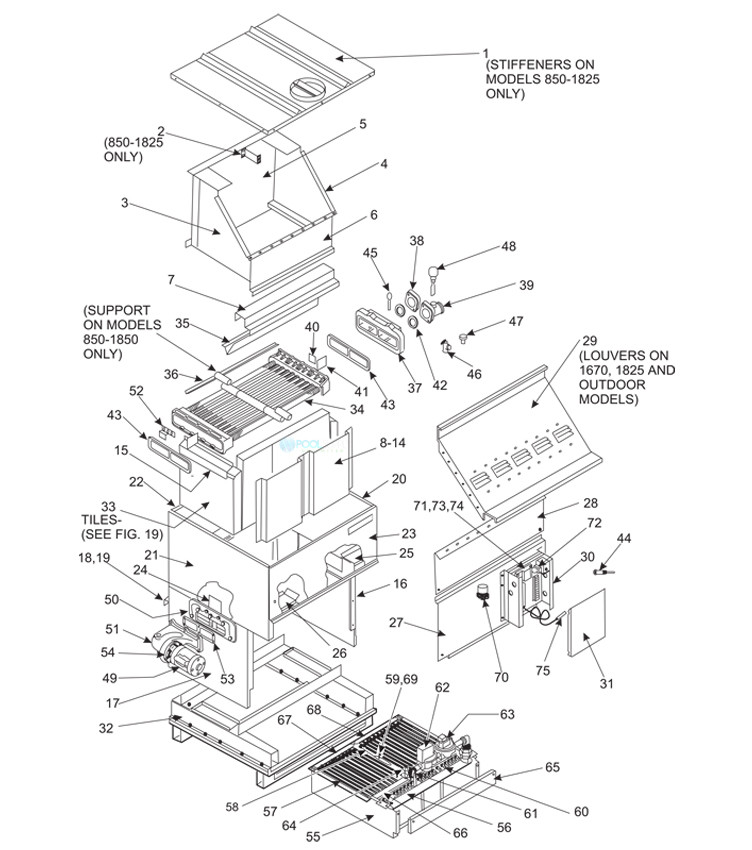

Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Cupro Nickel Exchanger | 850K BTU Natural Gas | MT0850IN09C1PN Parts Schematic
1
Pentair MegaTherm 850 Top Panel Assembly | 10535704
Pentair MegaTherm 850 Top Panel Assembly | 10535704
Quantity:
$412.57

2
Pentair MegaTherm Flue Collector Spacer | 10540800
Pentair MegaTherm Flue Collector Spacer | 10540800
Quantity:
$26.54

3
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Quantity:
$66.01

4
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Quantity:
$66.01

5
Pentair MegaTherm 850 Flue Collector Rear Panel | 10535504
Pentair MegaTherm 850 Flue Collector Rear Panel | 10535504
Quantity:
$145.12

6
Pentair MegaTherm 850 Flue Collector Front Support | 10534404
Pentair MegaTherm 850 Flue Collector Front Support | 10534404
Quantity:
$72.85

7
Pentair MegaTherm 850 Front/Rear Tile Cover | 10534204
Pentair MegaTherm 850 Front/Rear Tile Cover | 10534204
Quantity:
$33.21

10
Pentair MegaTherm 850 Front Tile Heat Shield/Spacer | 10548002
Pentair MegaTherm 850 Front Tile Heat Shield/Spacer | 10548002
Quantity:
$141.31

13
Pentair MegaTherm 850 Rear Tile Heat Shield/Spacer | 10548302
Pentair MegaTherm 850 Rear Tile Heat Shield/Spacer | 10548302
Quantity:
$183.22

15
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Quantity:
$45.99

16
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Quantity:
$146.57

17
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Quantity:
$134.85

18
Pentair MegaTherm 850 Lower Rear Panel Weldment | 10532904
Pentair MegaTherm 850 Lower Rear Panel Weldment | 10532904
Quantity:
$237.36

19
Pentair MegaTherm 850 Middle Rear Panel/Heat Shield Weldment | 10540404
Pentair MegaTherm 850 Middle Rear Panel/Heat Shield Weldment | 10540404
Quantity:
$318.68

20
Pentair MegaTherm Upper Right End Panel | 10531600
Pentair MegaTherm Upper Right End Panel | 10531600
Quantity:
$137.38

21
Pentair MegaTherm Upper Left End Panel | 10534000
Pentair MegaTherm Upper Left End Panel | 10534000
Quantity:
$246.46

22
Pentair MegaTherm 850 Upper Rear Panel/Heat Shield Weldment | 10540504
Pentair MegaTherm 850 Upper Rear Panel/Heat Shield Weldment | 10540504
Quantity:
$326.05

23
Pentair MegaTherm 850 Upper Front Panel | 10531504
Pentair MegaTherm 850 Upper Front Panel | 10531504
Quantity:
$139.89

24
Pentair MegaTherm End Tile Support Bracket | 10551000
Pentair MegaTherm End Tile Support Bracket | 10551000
Quantity:
$19.83

25
Pentair MegaTherm 850 Right Drafthood Relief Baffle | 10540904
Pentair MegaTherm 850 Right Drafthood Relief Baffle | 10540904
Quantity:
$33.72

26
Pentair MegaTherm 850 Left Drafthood Relief Baffle | 10541004
Pentair MegaTherm 850 Left Drafthood Relief Baffle | 10541004
Quantity:
$33.39

27
Pentair MegaTherm 850 Lower Front Panel/Heat Shield Weldment | 10554604
Pentair MegaTherm 850 Lower Front Panel/Heat Shield Weldment | 10554604
Quantity:
$317.78

28
Pentair MegaTherm 850 Middle Front Panel | 10554404
Pentair MegaTherm 850 Middle Front Panel | 10554404
Quantity:
$99.07

29
Pentair MegaTherm 850 Flue Collector Sweep Sheet | 10533904
Pentair MegaTherm 850 Flue Collector Sweep Sheet | 10533904
Quantity:
$225.86

30
Pentair MegaTherm Control Box Weldment | 10545800
Pentair MegaTherm Control Box Weldment | 10545800
Quantity:
$43.42

31
Pentair MegaTherm Control Box Cover | 10547200
Pentair MegaTherm Control Box Cover | 10547200
Quantity:
$49.31

32
Pentair MegaTherm 850 Base/Tile Support Assembly | 10536904
Pentair MegaTherm 850 Base/Tile Support Assembly | 10536904
Quantity:
$1,261.48

33
Pentair Complete Tile Assembly | 20051704
Pentair Complete Tile Assembly | 20051704
Quantity:
$708.00

35
Pentair MegaTherm 850 Front/Rear Heat Exchanger Baffle | 10534304
Pentair MegaTherm 850 Front/Rear Heat Exchanger Baffle | 10534304
Quantity:
$18.62

36
Pentair MegaTherm 850 Heat Exchanger Baffle | 10534604
Pentair MegaTherm 850 Heat Exchanger Baffle | 10534604
Quantity:
$14.19

37
PENTAIR 10364500 HEADER INLET/OUTLET
PENTAIR 10364500 HEADER INLET/OUTLET
This item has been discontinued.

38
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Quantity:
$76.89

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Quantity:
$420.45

40
Pentair Inlet Water Baffle | 10338300
Pentair Inlet Water Baffle | 10338300
Quantity:
$30.25

42
Pentair Flange Gasket Laars AP850 | S0063700
Pentair Flange Gasket Laars AP850 | S0063700
Quantity:
$11.10

43
Pentair Header Gasket with Barrier | 8 Tube | S0095100
Pentair Header Gasket with Barrier | 8 Tube | S0095100
Quantity:
$39.79

46
Pentair Pressure Relief Valve | 0.75" NPT | 75 PSI | A0063600
Pentair Pressure Relief Valve | 0.75" NPT | 75 PSI | A0063600
Quantity:
$152.39

47
Pentair Temperature Gauge | A2089500
Pentair Temperature Gauge | A2089500
Quantity:
$238.95

48
PENTAIR E0013100 FLOW SWITCH INDOOR
PENTAIR E0013100 FLOW SWITCH INDOOR
This item has been discontinued.

49
PENTAIR RA2001800 1/2HP PUMP FOR AP COMM HTR
PENTAIR RA2001800 1/2HP PUMP FOR AP COMM HTR
This item has been discontinued.

50
Pentair MegaTherm 1010 Commercial Pool Heater | Glassed Cast Iron Pump Adapter | 10364200
Pentair MegaTherm 1010 Commercial Pool Heater | Glassed Cast Iron Pump Adapter | 10364200
Quantity:
$195.76

52
Pentair Pump Inlet Baffle Diffuser | 10338400
Pentair Pump Inlet Baffle Diffuser | 10338400
Quantity:
$35.63

53
Pentair 12" Pump Housing Gasket | S0024600
Pentair 12" Pump Housing Gasket | S0024600
Quantity:
$45.40

55
Pentair MegaTherm 850 Burner Tray | R10550604
Pentair MegaTherm 850 Burner Tray | R10550604
Quantity:
$2,713.31

56
Pentair MegaTherm 850 Single Inlet Gas Manifold Weldment | 10525904
Pentair MegaTherm 850 Single Inlet Gas Manifold Weldment | 10525904
Quantity:
$615.90

57
L0052300 BURNER MAIN LAARS LITE
L0052300 BURNER MAIN LAARS LITE
This item has been discontinued.

58
Pentair MegaTherm 500 Pilot Bracket/Burner Weldment | 10529502
Pentair MegaTherm 500 Pilot Bracket/Burner Weldment | 10529502
Quantity:
$66.14

59
Pentair MegaTherm Pilot Assembly | RW0034300
Pentair MegaTherm Pilot Assembly | RW0034300
Quantity:
$159.03

60
Pentair Gas Orifice | #44 - Natural Gas | L0050700
Pentair Gas Orifice | #44 - Natural Gas | L0050700
Quantity:
$10.16

61
Pentair MegaTherm Manual Gas Valve | V0004300
Pentair MegaTherm Manual Gas Valve | V0004300
Quantity:
$136.41

62
Pentair MegaTherm Auto Gas Valve | RV0046600
Pentair MegaTherm Auto Gas Valve | RV0046600
Quantity:
$473.05

63
Pentair MegaTherm Combination Gas Valve | RV0051200
Pentair MegaTherm Combination Gas Valve | RV0051200
Quantity:
$612.05

64
Pentair MegaTherm Manual Pilot Valve | W0002100
Pentair MegaTherm Manual Pilot Valve | W0002100
Quantity:
$37.29

65
Pentair MegaTherm 850 Manifold Cover Plate Assembly | 10552904
Pentair MegaTherm 850 Manifold Cover Plate Assembly | 10552904
Quantity:
$101.61

66
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525304
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525304
Quantity:
$37.07

67
Pentair MegaTherm Left Single Pilot Burner Tie Down Bracket | 10525704
Pentair MegaTherm Left Single Pilot Burner Tie Down Bracket | 10525704
Quantity:
$56.03

68
Pentair MegaTherm 850 Right Single Pilot Burner Tie Down Bracket | 10542004
Pentair MegaTherm 850 Right Single Pilot Burner Tie Down Bracket | 10542004
Quantity:
$56.03

70
Pentair Solenoid Pilot Valve | 24V | W0019300
Pentair Solenoid Pilot Valve | 24V | W0019300
This item has been discontinued.

71
PENTAIR RE0100900 ELEC IGNITION CONTROL REPL KIT
PENTAIR RE0100900 ELEC IGNITION CONTROL REPL KIT
This item has been discontinued.

73
Pentair Manual Reset High Limit Switch | E2103900
Pentair Manual Reset High Limit Switch | E2103900
Quantity:
$302.40

74
Pentair MegaTherm Water Temperature Controller | E2103800
Pentair MegaTherm Water Temperature Controller | E2103800
Quantity:
$185.29

75
Pentair MegaTherm Water Temperature Sensor | E2103600
Pentair MegaTherm Water Temperature Sensor | E2103600
Quantity:
$215.91
