Pentair MegaTherm High Performance Indoor Pool Heater with CSD-1 | 850K BTU | Natural Gas | Cupro-Nickel Tubing | MT0850IN09C1PNJX Parts

Back to Product

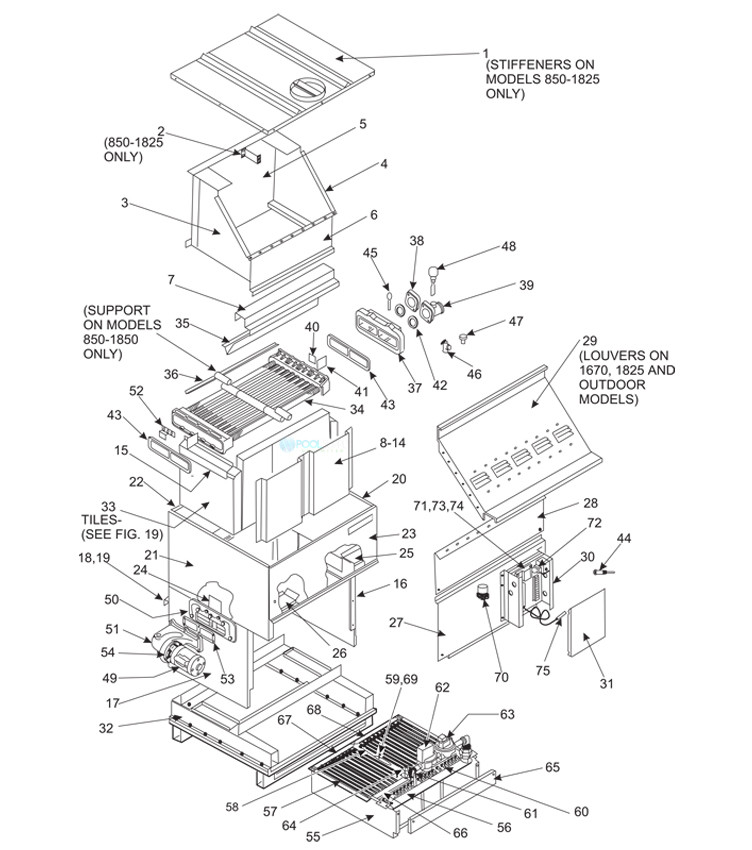

Pentair MegaTherm High Performance Indoor Pool Heater with CSD-1 | 850K BTU | Natural Gas | Cupro-Nickel Tubing | MT0850IN09C1PNJX Parts Schematic
1
Pentair MegaTherm 850 Top Panel Assembly | 10535704
Pentair MegaTherm 850 Top Panel Assembly | 10535704
Quantity:
$346.49

2
Pentair MegaTherm Flue Collector Spacer | 10540800
Pentair MegaTherm Flue Collector Spacer | 10540800
Quantity:
$23.54

3
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Quantity:
$55.52

4
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Quantity:
$55.51

5
Pentair MegaTherm 850 Flue Collector Rear Panel | 10535504
Pentair MegaTherm 850 Flue Collector Rear Panel | 10535504
Quantity:
$132.78

6
Pentair MegaTherm 715 Flue Collector Front Support | 10534403
Pentair MegaTherm 715 Flue Collector Front Support | 10534403
Quantity:
$58.74

7
Pentair MegaTherm 850 Front/Rear Tile Cover | 10534204
Pentair MegaTherm 850 Front/Rear Tile Cover | 10534204
Quantity:
$29.87

10
Pentair MegaTherm 850 Front Tile Heat Shield/Spacer | 10548002
Pentair MegaTherm 850 Front Tile Heat Shield/Spacer | 10548002
Quantity:
$129.31

13
Pentair MegaTherm 850 Rear Tile Heat Shield/Spacer | 10548302
Pentair MegaTherm 850 Rear Tile Heat Shield/Spacer | 10548302
Quantity:
$155.40

15
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Quantity:
$40.75

16
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Quantity:
$134.07

17
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Quantity:
$120.77

18
Pentair MegaTherm 850 Lower Rear Panel Weldment | 10532904
Pentair MegaTherm 850 Lower Rear Panel Weldment | 10532904
Quantity:
$200.78

19
Pentair MegaTherm 850 Middle Rear Panel/Heat Shield Weldment | 10540404
Pentair MegaTherm 850 Middle Rear Panel/Heat Shield Weldment | 10540404
Quantity:
$278.17

20
Pentair MegaTherm Upper Right End Panel | 10531600
Pentair MegaTherm Upper Right End Panel | 10531600
Quantity:
$116.34

21
Pentair MegaTherm 1430 Flue Collector Sweep Sheet | 10533907
Pentair MegaTherm 1430 Flue Collector Sweep Sheet | 10533907
Quantity:
$244.29

22
Pentair MegaTherm 850 Upper Rear Panel/Heat Shield Weldment | 10540504
Pentair MegaTherm 850 Upper Rear Panel/Heat Shield Weldment | 10540504
Quantity:
$291.51

23
Pentair MegaTherm 850 Upper Front Panel | 10531504
Pentair MegaTherm 850 Upper Front Panel | 10531504
Quantity:
$118.47

24
Pentair MegaTherm End Tile Support Bracket | 10551000
Pentair MegaTherm End Tile Support Bracket | 10551000
Quantity:
$18.04

25
Pentair MegaTherm 850 Right Drafthood Relief Baffle | 10540904
Pentair MegaTherm 850 Right Drafthood Relief Baffle | 10540904
Quantity:
$29.73

26
Pentair MegaTherm 850 Left Drafthood Relief Baffle | 10541004
Pentair MegaTherm 850 Left Drafthood Relief Baffle | 10541004
Quantity:
$30.02

27
Pentair MegaTherm 850 Lower Front Panel/Heat Shield Weldment | 10554604
Pentair MegaTherm 850 Lower Front Panel/Heat Shield Weldment | 10554604
Quantity:
$277.40

28
Pentair MegaTherm 850 Middle Front Panel | 10554404
Pentair MegaTherm 850 Middle Front Panel | 10554404
Quantity:
$83.61

29
Pentair MegaTherm 850 Flue Collector Sweep Sheet | 10533904
Pentair MegaTherm 850 Flue Collector Sweep Sheet | 10533904
Quantity:
$191.07

31
Pentair MegaTherm Control Box Cover | 10547200
Pentair MegaTherm Control Box Cover | 10547200
Quantity:
$43.33

32
Pentair MegaTherm 850 Base/Tile Support Assembly | 10536904
Pentair MegaTherm 850 Base/Tile Support Assembly | 10536904
Quantity:
$1,124.64

35
Pentair MegaTherm 850 Front/Rear Heat Exchanger Baffle | 10534304
Pentair MegaTherm 850 Front/Rear Heat Exchanger Baffle | 10534304
Quantity:
$15.54

36
Pentair MegaTherm 850 Heat Exchanger Baffle | 10534604
Pentair MegaTherm 850 Heat Exchanger Baffle | 10534604
Quantity:
$13.16

38
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Quantity:
$65.16

38
Pentair MegaTherm Flange Gasket Kit 2.5" | Bronze | R10391304
Pentair MegaTherm Flange Gasket Kit 2.5" | Bronze | R10391304
Quantity:
$260.11

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Quantity:
$354.03

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Bronze | 20150303
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Bronze | 20150303
Quantity:
$539.46

40
Pentair Inlet Water Baffle | 10338300
Pentair Inlet Water Baffle | 10338300
Quantity:
$26.86

42
Pentair Flange Gasket Laars AP850 | S0063700
Pentair Flange Gasket Laars AP850 | S0063700
Quantity:
$9.30

46
Pentair Pressure Relief Valve | 0.75" NPT | 75 PSI | A0063600
Pentair Pressure Relief Valve | 0.75" NPT | 75 PSI | A0063600
Quantity:
$139.92

47
Pentair Temperature Gauge | A2089500
Pentair Temperature Gauge | A2089500
Quantity:
$202.66

50
Pentair MegaTherm Pump Adapter | Bronze | 10364201
Pentair MegaTherm Pump Adapter | Bronze | 10364201
Quantity:
$463.91

52
Pentair Pump Inlet Baffle Diffuser | 10338400
Pentair Pump Inlet Baffle Diffuser | 10338400
Quantity:
$33.20

53
Pentair 12" Pump Housing Gasket | S0024600
Pentair 12" Pump Housing Gasket | S0024600
Quantity:
$40.22

55
Pentair MegaTherm 850 Burner Tray | 20097404
Pentair MegaTherm 850 Burner Tray | 20097404
Quantity:
$1,946.37

55
Pentair MegaTherm 850 Burner Tray | 10526204
Pentair MegaTherm 850 Burner Tray | 10526204
Quantity:
$1,664.54

56
Pentair MegaTherm 850 Single Inlet Gas Manifold Weldment | 10525904
Pentair MegaTherm 850 Single Inlet Gas Manifold Weldment | 10525904
Quantity:
$537.13

59
Pentair Standing Pilot Burner | W0034400
Pentair Standing Pilot Burner | W0034400
Quantity:
$182.96

59
Pentair MegaTherm Standing Pilot Burner | W0035800
Pentair MegaTherm Standing Pilot Burner | W0035800
Quantity:
$137.86

59
Pentair MegaTherm Pilot Assembly | RW0034300
Pentair MegaTherm Pilot Assembly | RW0034300
Quantity:
$158.81

59
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Quantity:
$170.14

60
Pentair Gas Orifice | #44 - Natural Gas | L0050700
Pentair Gas Orifice | #44 - Natural Gas | L0050700
Quantity:
$6.21

60
Pentair Liquid Propane Gas Orifice | L0032900
Pentair Liquid Propane Gas Orifice | L0032900
Quantity:
$6.21

61
Pentair MegaTherm Manual Gas Valve | V0004300
Pentair MegaTherm Manual Gas Valve | V0004300
Quantity:
$116.50

61
Pentair MegaTherm Manual Gas Valve | .75" | V0004800
Pentair MegaTherm Manual Gas Valve | .75" | V0004800
Quantity:
$78.55

62
Pentair MegaTherm Auto Gas Valve | RV0046600
Pentair MegaTherm Auto Gas Valve | RV0046600
Quantity:
$386.83

63
Pentair MegaTherm Combination Gas Valve | RV0051200
Pentair MegaTherm Combination Gas Valve | RV0051200
Quantity:
$537.07

63
Pentair MegaTherm Combination/Operating Gas Valve | V0054800
Pentair MegaTherm Combination/Operating Gas Valve | V0054800
Quantity:
$577.04

64
Pentair MegaTherm Manual Pilot Valve | W0002100
Pentair MegaTherm Manual Pilot Valve | W0002100
Quantity:
$33.35

65
Pentair MegaTherm 850 Manifold Cover Plate Assembly | 10552904
Pentair MegaTherm 850 Manifold Cover Plate Assembly | 10552904
Quantity:
$88.87

66
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525304
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525304
Quantity:
$32.60

67
Pentair MegaTherm Left Single Pilot Burner Tie Down Bracket | 10525704
Pentair MegaTherm Left Single Pilot Burner Tie Down Bracket | 10525704
Quantity:
$47.11

68
Pentair MegaTherm 850 Right Single Pilot Burner Tie Down Bracket | 10542004
Pentair MegaTherm 850 Right Single Pilot Burner Tie Down Bracket | 10542004
Quantity:
$47.11

69
Pentair MegaTherm Commercial Pool Heaters | Thermocouple | W0036500
Pentair MegaTherm Commercial Pool Heaters | Thermocouple | W0036500
Quantity:
$34.67

70
Pentair Solenoid Pilot Valve | 24V | W0019300
Pentair Solenoid Pilot Valve | 24V | W0019300
Quantity:
$78.10

70
Pentair MegaTherm Manual Reset Pilot Relay | W0030000
Pentair MegaTherm Manual Reset Pilot Relay | W0030000
Quantity:
$234.85

73
Pentair Manual Reset High Limit Switch | E2103900
Pentair Manual Reset High Limit Switch | E2103900
Quantity:
$174.80

74
Pentair MegaTherm Water Temperature Controller | E2103800
Pentair MegaTherm Water Temperature Controller | E2103800
Quantity:
$157.17

75
Pentair MegaTherm Water Temperature Sensor | E2103600
Pentair MegaTherm Water Temperature Sensor | E2103600
Quantity:
$182.66
