Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Copper Exchanger | 850K BTU Propane Gas | MT0850IP09C1PC Parts

Back to Product

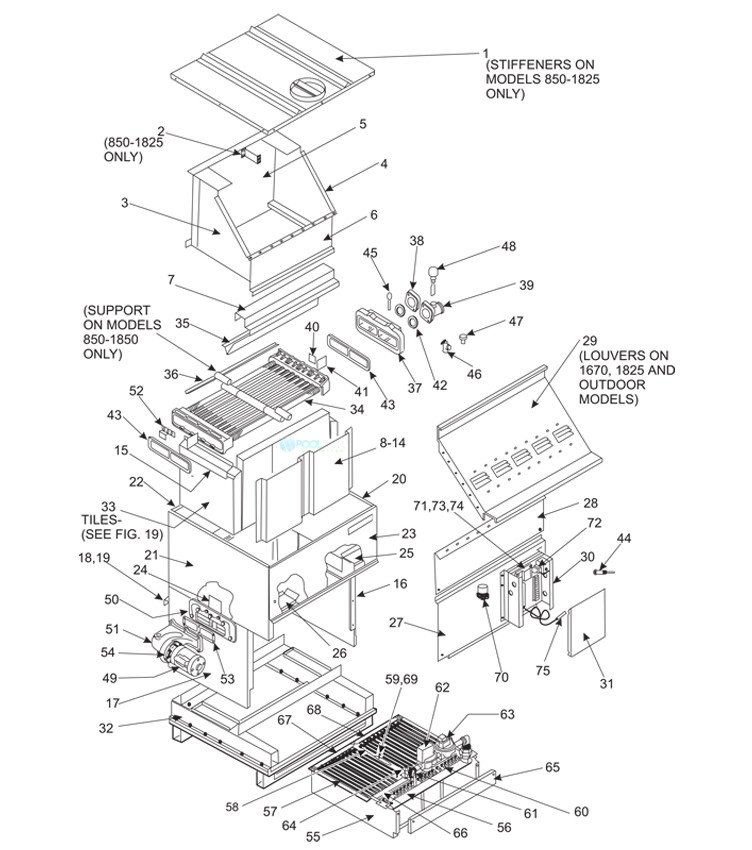

Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Copper Exchanger | 850K BTU Propane Gas | MT0850IP09C1PC Parts Schematic
1
Pentair MegaTherm 850 Top Panel Assembly | 10535704
Pentair MegaTherm 850 Top Panel Assembly | 10535704
Quantity:
$386.24

2
Pentair MegaTherm Flue Collector Spacer | 10540800
Pentair MegaTherm Flue Collector Spacer | 10540800
Quantity:
$25.75

3
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Quantity:
$61.62

4
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Quantity:
$61.60

5
Pentair MegaTherm 850 Flue Collector Rear Panel | 10535504
Pentair MegaTherm 850 Flue Collector Rear Panel | 10535504
Quantity:
$140.37

6
Pentair MegaTherm 850 Flue Collector Front Support | 10534404
Pentair MegaTherm 850 Flue Collector Front Support | 10534404
Quantity:
$67.99

7
Pentair MegaTherm 850 Front/Rear Tile Cover | 10534204
Pentair MegaTherm 850 Front/Rear Tile Cover | 10534204
Quantity:
$32.76

10
Pentair MegaTherm 850 Front Tile Heat Shield/Spacer | 10548002
Pentair MegaTherm 850 Front Tile Heat Shield/Spacer | 10548002
Quantity:
$136.72

13
Pentair MegaTherm 850 Rear Tile Heat Shield/Spacer | 10548302
Pentair MegaTherm 850 Rear Tile Heat Shield/Spacer | 10548302
Quantity:
$171.43

15
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Quantity:
$43.03

16
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Quantity:
$141.76

17
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Quantity:
$133.07

18
Pentair MegaTherm 850 Lower Rear Panel Weldment | 10532904
Pentair MegaTherm 850 Lower Rear Panel Weldment | 10532904
Quantity:
$224.51

19
Pentair MegaTherm 850 Middle Rear Panel/Heat Shield Weldment | 10540404
Pentair MegaTherm 850 Middle Rear Panel/Heat Shield Weldment | 10540404
Quantity:
$306.95

20
Pentair MegaTherm Upper Right End Panel | 10531600
Pentair MegaTherm Upper Right End Panel | 10531600
Quantity:
$128.20

21
Pentair MegaTherm Upper Left End Panel | 10534000
Pentair MegaTherm Upper Left End Panel | 10534000
Quantity:
$103.36

22
Pentair MegaTherm 850 Upper Rear Panel/Heat Shield Weldment | 10540504
Pentair MegaTherm 850 Upper Rear Panel/Heat Shield Weldment | 10540504
Quantity:
$315.79

23
Pentair MegaTherm 850 Upper Front Panel | 10531504
Pentair MegaTherm 850 Upper Front Panel | 10531504
Quantity:
$130.53

24
Pentair MegaTherm End Tile Support Bracket | 10551000
Pentair MegaTherm End Tile Support Bracket | 10551000
Quantity:
$18.51

25
Pentair MegaTherm 850 Right Drafthood Relief Baffle | 10540904
Pentair MegaTherm 850 Right Drafthood Relief Baffle | 10540904
Quantity:
$33.26

26
Pentair MegaTherm 850 Left Drafthood Relief Baffle | 10541004
Pentair MegaTherm 850 Left Drafthood Relief Baffle | 10541004
Quantity:
$32.92

27
Pentair MegaTherm 850 Lower Front Panel/Heat Shield Weldment | 10554604
Pentair MegaTherm 850 Lower Front Panel/Heat Shield Weldment | 10554604
Quantity:
$306.09

28
Pentair MegaTherm 850 Middle Front Panel | 10554404
Pentair MegaTherm 850 Middle Front Panel | 10554404
Quantity:
$93.48

29
Pentair MegaTherm 850 Flue Collector Sweep Sheet | 10533904
Pentair MegaTherm 850 Flue Collector Sweep Sheet | 10533904
Quantity:
$210.75

30
Pentair MegaTherm Control Box Weldment | 10545800
Pentair MegaTherm Control Box Weldment | 10545800
Quantity:
$43.42

31
Pentair MegaTherm Control Box Cover | 10547200
Pentair MegaTherm Control Box Cover | 10547200
Quantity:
$46.01

32
Pentair MegaTherm 850 Base/Tile Support Assembly | 10536904
Pentair MegaTherm 850 Base/Tile Support Assembly | 10536904
Quantity:
$1,223.20

33
Pentair Complete Tile Assembly | 20051704
Pentair Complete Tile Assembly | 20051704
Quantity:
$708.00

35
Pentair MegaTherm 850 Front/Rear Heat Exchanger Baffle | 10534304
Pentair MegaTherm 850 Front/Rear Heat Exchanger Baffle | 10534304
Quantity:
$17.37

36
Pentair MegaTherm 850 Heat Exchanger Baffle | 10534604
Pentair MegaTherm 850 Heat Exchanger Baffle | 10534604
Quantity:
$14.73

37
PENTAIR 10364500 HEADER INLET/OUTLET
PENTAIR 10364500 HEADER INLET/OUTLET
This item has been discontinued.

38
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Quantity:
$72.83

38
Pentair MegaTherm Flange Gasket Kit 2.5" | Bronze | R10391304
Pentair MegaTherm Flange Gasket Kit 2.5" | Bronze | R10391304
Quantity:
$288.93

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Quantity:
$394.67

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Bronze | 20150303
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Bronze | 20150303
Quantity:
$601.26

40
Pentair Inlet Water Baffle | 10338300
Pentair Inlet Water Baffle | 10338300
Quantity:
$28.87

42
Pentair Flange Gasket Laars AP850 | S0063700
Pentair Flange Gasket Laars AP850 | S0063700
Quantity:
$10.40

43
Pentair Header Gasket with Barrier | 8 Tube | S0095100
Pentair Header Gasket with Barrier | 8 Tube | S0095100
Quantity:
$37.23

46
Pentair Pressure Relief Valve | 0.75" NPT | 75 PSI | A0063600
Pentair Pressure Relief Valve | 0.75" NPT | 75 PSI | A0063600
Quantity:
$147.93

66
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525304
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525304
Quantity:
$34.60

47
Pentair Temperature Gauge | A2089500
Pentair Temperature Gauge | A2089500
Quantity:
$226.62

48
PENTAIR E0013100 FLOW SWITCH INDOOR
PENTAIR E0013100 FLOW SWITCH INDOOR
This item has been discontinued.

49
PENTAIR RA2001800 1/2HP PUMP FOR AP COMM HTR
PENTAIR RA2001800 1/2HP PUMP FOR AP COMM HTR
This item has been discontinued.

50
Pentair MegaTherm 1010 Commercial Pool Heater | Glassed Cast Iron Pump Adapter | 10364200
Pentair MegaTherm 1010 Commercial Pool Heater | Glassed Cast Iron Pump Adapter | 10364200
Quantity:
$195.76

50
Pentair MegaTherm Pump Adapter | Bronze | 10364201
Pentair MegaTherm Pump Adapter | Bronze | 10364201
Quantity:
$463.91

52
Pentair Pump Inlet Baffle Diffuser | 10338400
Pentair Pump Inlet Baffle Diffuser | 10338400
Quantity:
$35.12

53
Pentair 12" Pump Housing Gasket | S0024600
Pentair 12" Pump Housing Gasket | S0024600
Quantity:
$43.50

55
Pentair MegaTherm 850 Burner Tray | 20097404
Pentair MegaTherm 850 Burner Tray | 20097404
Quantity:
$2,144.37

56
Pentair MegaTherm 850 Single Inlet Gas Manifold Weldment | 10525904
Pentair MegaTherm 850 Single Inlet Gas Manifold Weldment | 10525904
Quantity:
$596.81

57
L0052300 BURNER MAIN LAARS LITE
L0052300 BURNER MAIN LAARS LITE
This item has been discontinued.

58
Pentair MegaTherm 500 Pilot Bracket/Burner Weldment | 10529502
Pentair MegaTherm 500 Pilot Bracket/Burner Weldment | 10529502
Quantity:
$61.87

59
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Quantity:
$170.14

60
Pentair Liquid Propane Gas Orifice | L0032900
Pentair Liquid Propane Gas Orifice | L0032900
Quantity:
$6.96

61
Pentair MegaTherm Manual Gas Valve | .75" | V0004800
Pentair MegaTherm Manual Gas Valve | .75" | V0004800
Quantity:
$87.10

62
Pentair MegaTherm Auto Gas Valve | RV0046600
Pentair MegaTherm Auto Gas Valve | RV0046600
Quantity:
$458.38

63
Pentair MegaTherm Combination/Operating Gas Valve | V0054800
Pentair MegaTherm Combination/Operating Gas Valve | V0054800
Quantity:
$637.24

64
Pentair MegaTherm Manual Pilot Valve | W0002100
Pentair MegaTherm Manual Pilot Valve | W0002100
Quantity:
$35.38

65
Pentair MegaTherm 850 Manifold Cover Plate Assembly | 10552904
Pentair MegaTherm 850 Manifold Cover Plate Assembly | 10552904
Quantity:
$98.26

67
Pentair MegaTherm Left Single Pilot Burner Tie Down Bracket | 10525704
Pentair MegaTherm Left Single Pilot Burner Tie Down Bracket | 10525704
Quantity:
$52.28

68
Pentair MegaTherm 850 Right Single Pilot Burner Tie Down Bracket | 10542004
Pentair MegaTherm 850 Right Single Pilot Burner Tie Down Bracket | 10542004
Quantity:
$52.28

69
Pentair MegaTherm Commercial Pool Heaters | Thermocouple | W0036500
Pentair MegaTherm Commercial Pool Heaters | Thermocouple | W0036500
Quantity:
$36.79

70
Pentair Solenoid Pilot Valve | 24V | W0019300
Pentair Solenoid Pilot Valve | 24V | W0019300
Quantity:
$87.34

71
PENTAIR RE2033900 ELEC IGNITION CNTRL W/LOCKOUT
PENTAIR RE2033900 ELEC IGNITION CNTRL W/LOCKOUT
Quantity:
$177.81

73
Pentair Manual Reset High Limit Switch | E2103900
Pentair Manual Reset High Limit Switch | E2103900
Quantity:
$195.46

74
Pentair MegaTherm Water Temperature Controller | E2103800
Pentair MegaTherm Water Temperature Controller | E2103800
Quantity:
$173.40

75
Pentair MegaTherm Water Temperature Sensor | E2103600
Pentair MegaTherm Water Temperature Sensor | E2103600
Quantity:
$201.46
