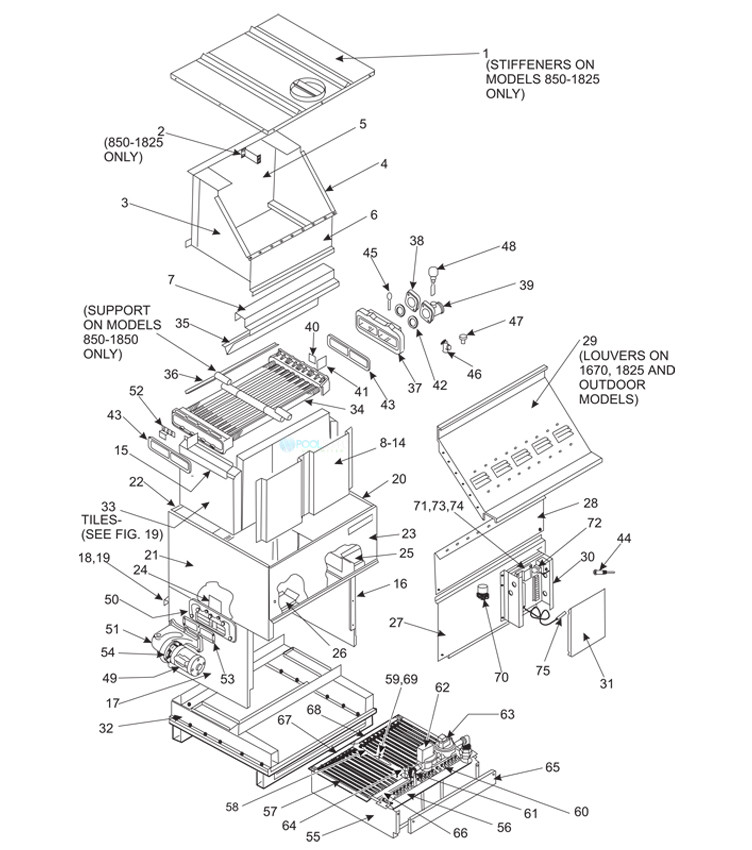

Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Cupro Nickel Exchanger | 1010K BTU Propane Gas | MT1010IP09C1PN Parts Schematic
1
Pentair MegaTherm 1010 Top Panel Assembly | 10535705
Pentair MegaTherm 1010 Top Panel Assembly | 10535705
Quantity:
$412.92

2
Pentair MegaTherm Flue Collector Spacer | 10540800
Pentair MegaTherm Flue Collector Spacer | 10540800
Quantity:
$26.68

3
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Quantity:
$63.70

4
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Quantity:
$63.70

5
Pentair MegaTherm 1010 Flue Collector Rear Panel | 10535505
Pentair MegaTherm 1010 Flue Collector Rear Panel | 10535505
Quantity:
$153.88

6
Pentair MegaTherm 1010 Flue Collector Front Support | 10534405
Pentair MegaTherm 1010 Flue Collector Front Support | 10534405
Quantity:
$73.26

7
Pentair MegaTherm 1010 Front/Rear Tile Cover | 10534205
Pentair MegaTherm 1010 Front/Rear Tile Cover | 10534205
Quantity:
$33.21

10
Pentair MegaTherm 1010 Front Tile Heat Shield/Spacer | 10548003
Pentair MegaTherm 1010 Front Tile Heat Shield/Spacer | 10548003
Quantity:
$143.04

13
Pentair MegaTherm 1010 Rear Tile Heat Shield/Spacer | 10548303
Pentair MegaTherm 1010 Rear Tile Heat Shield/Spacer | 10548303
Quantity:
$142.11

15
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Quantity:
$44.49

16
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Quantity:
$146.57

17
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Quantity:
$137.60

18
Pentair MegaTherm 1010 Lower Rear Panel Weldment | 10532905
Pentair MegaTherm 1010 Lower Rear Panel Weldment | 10532905
Quantity:
$243.66

19
Pentair MegaTherm 1010 Middle Rear Panel/Heat Shield Weldment | 10540405
Pentair MegaTherm 1010 Middle Rear Panel/Heat Shield Weldment | 10540405
Quantity:
$319.36

20
Pentair MegaTherm Upper Right End Panel | 10531600
Pentair MegaTherm Upper Right End Panel | 10531600
Quantity:
$132.56

21
Pentair MegaTherm Upper Left End Panel | 10534000
Pentair MegaTherm Upper Left End Panel | 10534000
Quantity:
$113.56

22
Pentair MegaTherm 1010 Upper Rear Panel/Heat Shield Weldment | 10540505
Pentair MegaTherm 1010 Upper Rear Panel/Heat Shield Weldment | 10540505
Quantity:
$364.71

23
Pentair MegaTherm 1010 Upper Front Panel | 10531505
Pentair MegaTherm 1010 Upper Front Panel | 10531505
Quantity:
$135.83

24
Pentair MegaTherm End Tile Support Bracket | 10551000
Pentair MegaTherm End Tile Support Bracket | 10551000
Quantity:
$19.17

25
Pentair MegaTherm 1010 Right Drafthood Relief Baffle | 10540905
Pentair MegaTherm 1010 Right Drafthood Relief Baffle | 10540905
Quantity:
$33.16

26
Pentair MegaTherm 1010 Left Drafthood Relief Baffle | 10541005
Pentair MegaTherm 1010 Left Drafthood Relief Baffle | 10541005
Quantity:
$32.84

27
Pentair MegaTherm 1010 Lower Front Panel/Heat Shield Weldment | 10554605
Pentair MegaTherm 1010 Lower Front Panel/Heat Shield Weldment | 10554605
This item has been discontinued.

28
Pentair MegaTherm 1010 Middle Front Panel | 10554405
Pentair MegaTherm 1010 Middle Front Panel | 10554405
Quantity:
$100.55

29
Pentair MegaTherm 1010 Flue Collector Sweep Sheet | 10533905
Pentair MegaTherm 1010 Flue Collector Sweep Sheet | 10533905
Quantity:
$245.45

30
Pentair MegaTherm Control Box Weldment | 10545800
Pentair MegaTherm Control Box Weldment | 10545800
Quantity:
$43.42

31
Pentair MegaTherm Control Box Cover | 10547200
Pentair MegaTherm Control Box Cover | 10547200
Quantity:
$47.59

32
Pentair MegaTherm 1010 Base/Tile Support Assembly | 10536905
Pentair MegaTherm 1010 Base/Tile Support Assembly | 10536905
Quantity:
$1,421.63

35
Pentair MegaTherm 1010 Front/Rear Heat Exchanger Baffle | 10534305
Pentair MegaTherm 1010 Front/Rear Heat Exchanger Baffle | 10534305
Quantity:
$18.55

36
Pentair MegaTherm 1010 Heat Exchanger Baffle | 10534605
Pentair MegaTherm 1010 Heat Exchanger Baffle | 10534605
Quantity:
$13.70

37
PENTAIR 10364500 HEADER INLET/OUTLET
PENTAIR 10364500 HEADER INLET/OUTLET
This item has been discontinued.

38
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Quantity:
$74.21

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Quantity:
$407.43

40
Pentair Inlet Water Baffle | 10338300
Pentair Inlet Water Baffle | 10338300
Quantity:
$29.88

42
Pentair Flange Gasket Laars AP850 | S0063700
Pentair Flange Gasket Laars AP850 | S0063700
Quantity:
$11.10

43
Pentair Header Gasket with Barrier | 8 Tube | S0095100
Pentair Header Gasket with Barrier | 8 Tube | S0095100
Quantity:
$38.51

46
Pentair Pressure Relief Valve | 0.75" NPT | 75 PSI | A0063600
Pentair Pressure Relief Valve | 0.75" NPT | 75 PSI | A0063600
Quantity:
$152.39

47
Pentair Temperature Gauge | A2089500
Pentair Temperature Gauge | A2089500
Quantity:
$230.84

48
PENTAIR E0013100 FLOW SWITCH INDOOR
PENTAIR E0013100 FLOW SWITCH INDOOR
This item has been discontinued.

49
PENTAIR RA2001800 1/2HP PUMP FOR AP COMM HTR
PENTAIR RA2001800 1/2HP PUMP FOR AP COMM HTR
This item has been discontinued.

50
Pentair MegaTherm 1010 Commercial Pool Heater | Glassed Cast Iron Pump Adapter | 10364200
Pentair MegaTherm 1010 Commercial Pool Heater | Glassed Cast Iron Pump Adapter | 10364200
Quantity:
$195.76

52
Pentair Pump Inlet Baffle Diffuser | 10338400
Pentair Pump Inlet Baffle Diffuser | 10338400
Quantity:
$34.48

53
Pentair 12" Pump Housing Gasket | S0024600
Pentair 12" Pump Housing Gasket | S0024600
Quantity:
$43.93

55
Pentair MegaTherm 1010 Burner Tray | 20097405
Pentair MegaTherm 1010 Burner Tray | 20097405
Quantity:
$2,661.68

56
Pentair MegaTherm 1010 Single Inlet Gas Manifold Weldment | 10525905
Pentair MegaTherm 1010 Single Inlet Gas Manifold Weldment | 10525905
Quantity:
$666.89

57
L0052300 BURNER MAIN LAARS LITE
L0052300 BURNER MAIN LAARS LITE
This item has been discontinued.

58
Pentair MegaTherm 500 Pilot Bracket/Burner Weldment | 10529502
Pentair MegaTherm 500 Pilot Bracket/Burner Weldment | 10529502
Quantity:
$63.98

59
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Quantity:
$170.14

60
Pentair Liquid Propane Gas Orifice | L0032900
Pentair Liquid Propane Gas Orifice | L0032900
Quantity:
$7.22

61
Pentair MegaTherm Manual Gas Valve | 1" | V0004200
Pentair MegaTherm Manual Gas Valve | 1" | V0004200
Quantity:
$92.04

62
Pentair MegaTherm Auto Gas Valve | RV0046600
Pentair MegaTherm Auto Gas Valve | RV0046600
Quantity:
$473.05

63
Pentair MegaTherm Combination/Operating Gas Valve | V0054800
Pentair MegaTherm Combination/Operating Gas Valve | V0054800
Quantity:
$657.59

64
Pentair MegaTherm Manual Pilot Valve | W0002100
Pentair MegaTherm Manual Pilot Valve | W0002100
Quantity:
$36.62

65
Pentair MegaTherm 1010 Manifold Cover Plate Assembly | 10552905
Pentair MegaTherm 1010 Manifold Cover Plate Assembly | 10552905
Quantity:
$115.46

66
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525305
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525305
Quantity:
$40.82

67
Pentair MegaTherm Right Side Burner Tie Down Bracket | 10525705
Pentair MegaTherm Right Side Burner Tie Down Bracket | 10525705
Quantity:
$56.49

68
Pentair MegaTherm Right Side Burner Tie Down Bracket | 10542005
Pentair MegaTherm Right Side Burner Tie Down Bracket | 10542005
Quantity:
$58.85

70
Pentair Solenoid Pilot Valve | 24V | W0019300
Pentair Solenoid Pilot Valve | 24V | W0019300
Quantity:
$93.35

73
Pentair Manual Reset High Limit Switch | E2103900
Pentair Manual Reset High Limit Switch | E2103900
Quantity:
$302.40

74
Pentair MegaTherm Water Temperature Controller | E2103800
Pentair MegaTherm Water Temperature Controller | E2103800
Quantity:
$179.18

75
Pentair MegaTherm Water Temperature Sensor | E2103600
Pentair MegaTherm Water Temperature Sensor | E2103600
Quantity:
$208.04
