Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Copper Exchanger | 1200K BTU | Propane Gas | MT1200IP09C1PC Parts

Back to Product

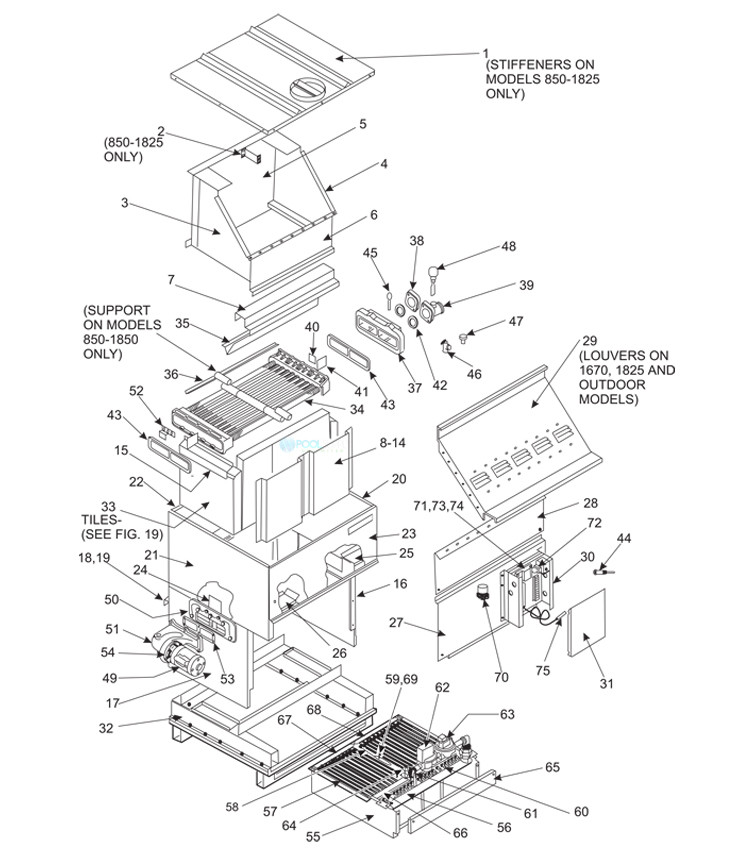

Pentair MegaTherm High Performance Indoor Commercial Swimming Pool Heater Pump Mounted | Copper Exchanger | 1200K BTU | Propane Gas | MT1200IP09C1PC Parts Schematic
1
Pentair MegaTherm 1200 Top Panel Assembly | 10535706
Pentair MegaTherm 1200 Top Panel Assembly | 10535706
Quantity:
$456.63

2
Pentair MegaTherm Flue Collector Spacer | 10540800
Pentair MegaTherm Flue Collector Spacer | 10540800
Quantity:
$23.54

3
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Quantity:
$55.52

4
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Quantity:
$55.51

5
Pentair MegaTherm 1200 Flue Collector Rear Panel | 10535506
Pentair MegaTherm 1200 Flue Collector Rear Panel | 10535506
Quantity:
$146.77

6
Pentair MegaTherm 1200 Flue Collector Front Support | 10534406
Pentair MegaTherm 1200 Flue Collector Front Support | 10534406
Quantity:
$66.16

7
Pentair MegaTherm 1200 Front/Rear Tile Cover | 10534206
Pentair MegaTherm 1200 Front/Rear Tile Cover | 10534206
Quantity:
$31.53

9
Pentair MegaTherm 1200 Front Tile Heat Shield/Spacer | 10547903
Pentair MegaTherm 1200 Front Tile Heat Shield/Spacer | 10547903
Quantity:
$97.92

11
Pentair MegaTherm 1200 Front Tile Heat Shield/Spacer | 10548101
Pentair MegaTherm 1200 Front Tile Heat Shield/Spacer | 10548101
Quantity:
$103.72

12
Pentair MegaTherm 1200 Rear Tile Heat Shield/Spacer | 10548203
Pentair MegaTherm 1200 Rear Tile Heat Shield/Spacer | 10548203
Quantity:
$101.97

14
Pentair MegaTherm 1200 Rear Tile Heat Shield/Spacer | 10548401
Pentair MegaTherm 1200 Rear Tile Heat Shield/Spacer | 10548401
Quantity:
$108.73

15
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Quantity:
$40.75

16
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Quantity:
$134.07

17
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Quantity:
$120.77

18
Pentair MegaTherm 1200 Lower Rear Panel Weldment | 10532906
Pentair MegaTherm 1200 Lower Rear Panel Weldment | 10532906
Quantity:
$213.71

19
Pentair MegaTherm 1200 Middle Rear Panel/Heat Shield Weldment | 10540406
Pentair MegaTherm 1200 Middle Rear Panel/Heat Shield Weldment | 10540406
Quantity:
$316.29

20
Pentair MegaTherm Upper Right End Panel | 10531600
Pentair MegaTherm Upper Right End Panel | 10531600
Quantity:
$116.34

21
Pentair MegaTherm Upper Left End Panel | 10534000
Pentair MegaTherm Upper Left End Panel | 10534000
Quantity:
$93.46

22
Pentair MegaTherm 1200 Upper Rear Panel/Heat Shield Weldment | 10540506
Pentair MegaTherm 1200 Upper Rear Panel/Heat Shield Weldment | 10540506
Quantity:
$388.89

23
Pentair MegaTherm 1200 Upper Front Panel | 10531506
Pentair MegaTherm 1200 Upper Front Panel | 10531506
Quantity:
$132.78

24
Pentair MegaTherm End Tile Support Bracket | 10551000
Pentair MegaTherm End Tile Support Bracket | 10551000
Quantity:
$18.04

25
Pentair MegaTherm 1200 Right Drafthood Relief Baffle | 10540906
Pentair MegaTherm 1200 Right Drafthood Relief Baffle | 10540906
Quantity:
$30.69

26
Pentair MegaTherm 1200 Left Drafthood Relief Baffle | 10541006
Pentair MegaTherm 1200 Left Drafthood Relief Baffle | 10541006
Quantity:
$30.53

27
Pentair MegaTherm 1200 Lower Front Panel/Heat Shield Weldment | 10554606
Pentair MegaTherm 1200 Lower Front Panel/Heat Shield Weldment | 10554606
Quantity:
$320.94

28
Pentair MegaTherm 1200 Middle Front Panel | 10554406
Pentair MegaTherm 1200 Middle Front Panel | 10554406
Quantity:
$92.81

29
Pentair MegaTherm 1200 Flue Collector Sweep Sheet | 10533906
Pentair MegaTherm 1200 Flue Collector Sweep Sheet | 10533906
Quantity:
$242.36

31
Pentair MegaTherm Control Box Cover | 10547200
Pentair MegaTherm Control Box Cover | 10547200
Quantity:
$43.33

32
Pentair MegaTherm 1200 Base/Tile Support Assembly | 10536906
Pentair MegaTherm 1200 Base/Tile Support Assembly | 10536906
Quantity:
$1,318.18

33
Pentair Complete Tile Assembly | 20051706
Pentair Complete Tile Assembly | 20051706
Quantity:
$852.38

35
Pentair MegaTherm 1200 Front/Rear Heat Exchanger Baffle | 10534306
Pentair MegaTherm 1200 Front/Rear Heat Exchanger Baffle | 10534306
Quantity:
$16.40

36
Pentair MegaTherm 1200 Heat Exchanger Baffle | 10534606
Pentair MegaTherm 1200 Heat Exchanger Baffle | 10534606
Quantity:
$13.16

37
PENTAIR 10364500 HEADER INLET/OUTLET
PENTAIR 10364500 HEADER INLET/OUTLET
This item has been discontinued.

38
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Quantity:
$65.16

38
Pentair MegaTherm Flange Gasket Kit 2.5" | Bronze | R10391304
Pentair MegaTherm Flange Gasket Kit 2.5" | Bronze | R10391304
Quantity:
$260.11

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Quantity:
$354.03

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Bronze | 20150303
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Bronze | 20150303
Quantity:
$539.46

40
Pentair Inlet Water Baffle | 10338300
Pentair Inlet Water Baffle | 10338300
Quantity:
$26.86

42
Pentair Flange Gasket Laars AP850 | S0063700
Pentair Flange Gasket Laars AP850 | S0063700
Quantity:
$9.30

43
Pentair Header Gasket with Barrier | 8 Tube | S0095100
Pentair Header Gasket with Barrier | 8 Tube | S0095100
Quantity:
$33.87

46
Pentair Pressure Relief Valve | 0.75" NPT | 75 PSI | A0063600
Pentair Pressure Relief Valve | 0.75" NPT | 75 PSI | A0063600
Quantity:
$139.92

47
Pentair Temperature Gauge | A2089500
Pentair Temperature Gauge | A2089500
Quantity:
$202.66

48
PENTAIR E0013100 FLOW SWITCH INDOOR
PENTAIR E0013100 FLOW SWITCH INDOOR
This item has been discontinued.

49
PENTAIR RA2001800 1/2HP PUMP FOR AP COMM HTR
PENTAIR RA2001800 1/2HP PUMP FOR AP COMM HTR
This item has been discontinued.

50
Pentair MegaTherm 1010 Commercial Pool Heater | Glassed Cast Iron Pump Adapter | 10364200
Pentair MegaTherm 1010 Commercial Pool Heater | Glassed Cast Iron Pump Adapter | 10364200
Quantity:
$195.76

50
Pentair MegaTherm Pump Adapter | Bronze | 10364201
Pentair MegaTherm Pump Adapter | Bronze | 10364201
Quantity:
$463.91

52
Pentair Pump Inlet Baffle Diffuser | 10338400
Pentair Pump Inlet Baffle Diffuser | 10338400
Quantity:
$33.20

53
Pentair 12" Pump Housing Gasket | S0024600
Pentair 12" Pump Housing Gasket | S0024600
Quantity:
$40.22

55
Pentair MegaTherm 1200 Burner Tray | 20097406
Pentair MegaTherm 1200 Burner Tray | 20097406
Quantity:
$2,326.10

56
Pentair MegaTherm 1200 Single Inlet Gas Manifold Weldment | 10525906
Pentair MegaTherm 1200 Single Inlet Gas Manifold Weldment | 10525906
Quantity:
$593.18

57
L0052300 BURNER MAIN LAARS LITE
L0052300 BURNER MAIN LAARS LITE
This item has been discontinued.

58
Pentair MegaTherm 500 Pilot Bracket/Burner Weldment | 10529502
Pentair MegaTherm 500 Pilot Bracket/Burner Weldment | 10529502
Quantity:
$55.76

59
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Quantity:
$170.14

60
Pentair Liquid Propane Gas Orifice | L0032900
Pentair Liquid Propane Gas Orifice | L0032900
Quantity:
$6.21

61
Pentair MegaTherm Manual Gas Valve | 1" | V0004200
Pentair MegaTherm Manual Gas Valve | 1" | V0004200
Quantity:
$79.60

62
Pentair MegaTherm Auto Gas Valve | RV0046600
Pentair MegaTherm Auto Gas Valve | RV0046600
Quantity:
$386.83

63
Pentair MegaTherm Combination/Operating Gas Valve | V0054800
Pentair MegaTherm Combination/Operating Gas Valve | V0054800
Quantity:
$577.04

64
Pentair MegaTherm Manual Pilot Valve | W0002100
Pentair MegaTherm Manual Pilot Valve | W0002100
Quantity:
$33.35

65
Pentair MegaTherm 1200 Manifold Cover Plate Assembly | 10552906
Pentair MegaTherm 1200 Manifold Cover Plate Assembly | 10552906
Quantity:
$108.31

66
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525306
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525306
Quantity:
$39.93

67
Pentair MegaTherm Left Burner Tie Down Bracket | 10525707
Pentair MegaTherm Left Burner Tie Down Bracket | 10525707
Quantity:
$48.70

68
Pentair MegaTherm 1200 Right Single Pilot Burner Tie Down Bracket | 10542007
Pentair MegaTherm 1200 Right Single Pilot Burner Tie Down Bracket | 10542007
Quantity:
$48.70

69
Pentair MegaTherm Commercial Pool Heaters | Thermocouple | W0036500
Pentair MegaTherm Commercial Pool Heaters | Thermocouple | W0036500
Quantity:
$34.67

70
Pentair Solenoid Pilot Valve | 24V | W0019300
Pentair Solenoid Pilot Valve | 24V | W0019300
Quantity:
$78.10

71
PENTAIR RE2033900 ELEC IGNITION CNTRL W/LOCKOUT
PENTAIR RE2033900 ELEC IGNITION CNTRL W/LOCKOUT
Quantity:
$177.81

73
Pentair Manual Reset High Limit Switch | E2103900
Pentair Manual Reset High Limit Switch | E2103900
Quantity:
$174.80

74
Pentair MegaTherm Water Temperature Controller | E2103800
Pentair MegaTherm Water Temperature Controller | E2103800
Quantity:
$157.17

75
Pentair MegaTherm Water Temperature Sensor | E2103600
Pentair MegaTherm Water Temperature Sensor | E2103600
Quantity:
$182.66
