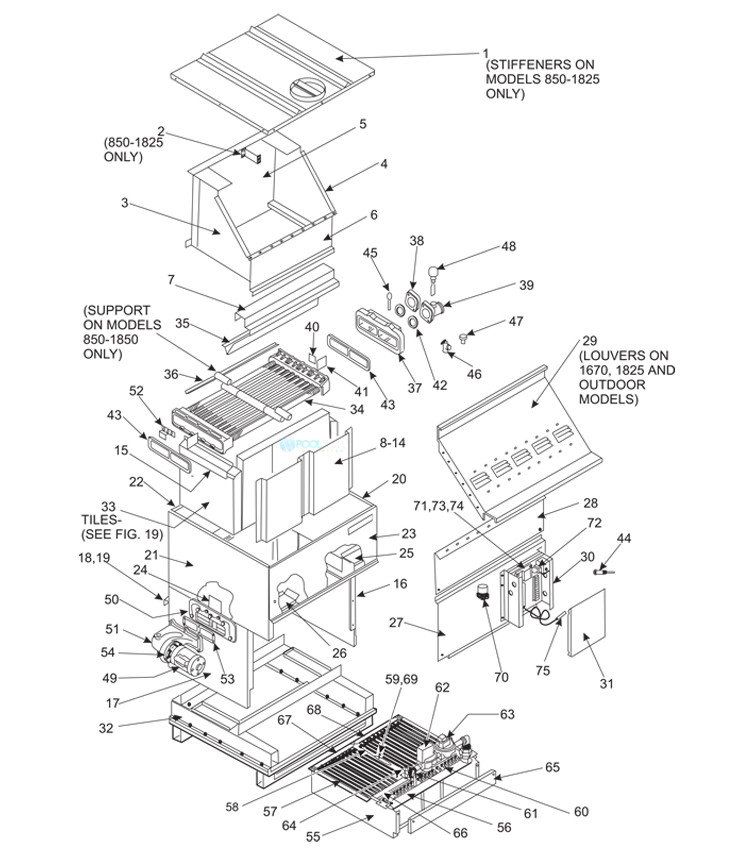

Pentair MegaTherm High Performance Outdoor Pool Heater with CSD-1 | 1,670K BTU | Natural Gas | Copper Tubing | MT1670EN09CBPCJX Parts Schematic
1
Pentair MegaTherm 1670 Top Panel Assembly | 10535708
Pentair MegaTherm 1670 Top Panel Assembly | 10535708
Quantity:
$465.58

2
Pentair MegaTherm Flue Collector Spacer | 10540800
Pentair MegaTherm Flue Collector Spacer | 10540800
Quantity:
$26.54

3
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Quantity:
$66.01

4
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Quantity:
$66.01

5
Pentair MegaTherm 1670 Flue Collector Rear Panel | 10535508
Pentair MegaTherm 1670 Flue Collector Rear Panel | 10535508
Quantity:
$225.30

6
Pentair MegaTherm 1670 Front Support Flue Collector | 10662108
Pentair MegaTherm 1670 Front Support Flue Collector | 10662108
Quantity:
$87.25

7
Pentair MegaTherm 1670 Front/Rear Tile Cover | 10661508
Pentair MegaTherm 1670 Front/Rear Tile Cover | 10661508
Quantity:
$40.55

9
Pentair MegaTherm 1670 Front Tile Heat Shield/Spacer | 10547904
Pentair MegaTherm 1670 Front Tile Heat Shield/Spacer | 10547904
Quantity:
$130.26

11
Pentair MegaTherm 1670 Front Tile Heat Shield/Spacer | 10548103
Pentair MegaTherm 1670 Front Tile Heat Shield/Spacer | 10548103
Quantity:
$143.45

12
Pentair MegaTherm 1670 Rear Tile Heat Shield/Spacer | 10548204
Pentair MegaTherm 1670 Rear Tile Heat Shield/Spacer | 10548204
Quantity:
$231.23

14
Pentair MegaTherm 1670 Rear Tile Heat Shield/Spacer | 10548403
Pentair MegaTherm 1670 Rear Tile Heat Shield/Spacer | 10548403
Quantity:
$142.87

15
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Quantity:
$45.99

16
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Quantity:
$146.57

17
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Quantity:
$134.85

18
Pentair MegaTherm 1670 Lower Rear Panel Weldment | 10532908
Pentair MegaTherm 1670 Lower Rear Panel Weldment | 10532908
Quantity:
$291.40

19
Pentair MegaTherm 1670 Middle Rear Panel/Heat Shield Weldment | 10540408
Pentair MegaTherm 1670 Middle Rear Panel/Heat Shield Weldment | 10540408
Quantity:
$448.80

20
Pentair MegaTherm Upper Right End Panel | 10531600
Pentair MegaTherm Upper Right End Panel | 10531600
Quantity:
$137.38

21
Pentair MegaTherm Upper Left End Panel | 10534000
Pentair MegaTherm Upper Left End Panel | 10534000
Quantity:
$246.46

22
Pentair MegaTherm 1670 Upper Rear Panel/Heat Shield Weldment | 10540508
Pentair MegaTherm 1670 Upper Rear Panel/Heat Shield Weldment | 10540508
Quantity:
$443.17

23
Pentair MegaTherm 1670 Upper Front Panel | 10531508
Pentair MegaTherm 1670 Upper Front Panel | 10531508
Quantity:
$170.00

24
Pentair MegaTherm End Tile Support Bracket | 10551000
Pentair MegaTherm End Tile Support Bracket | 10551000
Quantity:
$19.83

25
Pentair MegaTherm 1670 Right Drafthood Relief Baffle | 10540908
Pentair MegaTherm 1670 Right Drafthood Relief Baffle | 10540908
Quantity:
$34.42

26
Pentair MegaTherm 1670 Left Drafthood Relief Baffle | 10541008
Pentair MegaTherm 1670 Left Drafthood Relief Baffle | 10541008
Quantity:
$34.22

27
Pentair MegaTherm 1670 Lower Front Panel/Heat Shield Weldment | 10554608
Pentair MegaTherm 1670 Lower Front Panel/Heat Shield Weldment | 10554608
Quantity:
$426.02

28
Pentair MegaTherm 1670 Middle Front Panel | 10662008
Pentair MegaTherm 1670 Middle Front Panel | 10662008
Quantity:
$105.51

29
Pentair MegaTherm 1430 Flue Collector Sweep Sheet | 10662208
Pentair MegaTherm 1430 Flue Collector Sweep Sheet | 10662208
Quantity:
$313.80

31
Pentair MegaTherm Control Box Cover | 10547200
Pentair MegaTherm Control Box Cover | 10547200
Quantity:
$49.31

32
Pentair MegaTherm 1670 Base/Tile Support Assembly | 10536908
Pentair MegaTherm 1670 Base/Tile Support Assembly | 10536908
Quantity:
$1,896.26

35
Pentair MegaTherm 1670 Front/Rear Heat Exchanger Baffle | 20020108
Pentair MegaTherm 1670 Front/Rear Heat Exchanger Baffle | 20020108
Quantity:
$87.84

36
Pentair MegaTherm 1670 Heat Exchanger Baffle | 10667708
Pentair MegaTherm 1670 Heat Exchanger Baffle | 10667708
Quantity:
$14.10

38
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Quantity:
$76.89

38
Pentair MegaTherm Flange Gasket Kit 2.5" | Bronze | R10391304
Pentair MegaTherm Flange Gasket Kit 2.5" | Bronze | R10391304
Quantity:
$305.55

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Quantity:
$420.45

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Bronze | 20150303
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Bronze | 20150303
Quantity:
$614.81

40
Pentair Inlet Water Baffle | 10338300
Pentair Inlet Water Baffle | 10338300
Quantity:
$30.25

42
Pentair Flange Gasket Laars AP850 | S0063700
Pentair Flange Gasket Laars AP850 | S0063700
Quantity:
$11.10

46
Pentair Pressure Relief Valve | 0.75" NPT | 75 PSI | A0063600
Pentair Pressure Relief Valve | 0.75" NPT | 75 PSI | A0063600
Quantity:
$152.39

47
Pentair Temperature Gauge | A2089500
Pentair Temperature Gauge | A2089500
Quantity:
$238.95

50
Pentair MegaTherm Pump Adapter | Bronze | 10364201
Pentair MegaTherm Pump Adapter | Bronze | 10364201
Quantity:
$463.91

52
Pentair Pump Inlet Baffle Diffuser | 10338400
Pentair Pump Inlet Baffle Diffuser | 10338400
Quantity:
$35.63

53
Pentair 12" Pump Housing Gasket | S0024600
Pentair 12" Pump Housing Gasket | S0024600
Quantity:
$45.40

55
Pentair 2-Stage On / Off Natural Burner Tray | R10550608
Pentair 2-Stage On / Off Natural Burner Tray | R10550608
Quantity:
$3,970.18

55
Pentair MegaTherm 1670 Burner Tray | 20097408
Pentair MegaTherm 1670 Burner Tray | 20097408
Quantity:
$3,124.05

55
Pentair MegaTherm 1670 Burner Tray | 10526208
Pentair MegaTherm 1670 Burner Tray | 10526208
Quantity:
$2,467.63

56
Pentair MegaTherm 1670 Single Inlet Gas Manifold Weldment | 10525908
Pentair MegaTherm 1670 Single Inlet Gas Manifold Weldment | 10525908
Quantity:
$721.20

59
Pentair MegaTherm Standing Pilot Burner | W0035800
Pentair MegaTherm Standing Pilot Burner | W0035800
Quantity:
$137.86

59
Pentair Standing Pilot Burner | W0034400
Pentair Standing Pilot Burner | W0034400
Quantity:
$216.28

59
Pentair MegaTherm Pilot Assembly | RW0034300
Pentair MegaTherm Pilot Assembly | RW0034300
Quantity:
$158.81

59
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Quantity:
$170.14

60
Pentair Gas Orifice | #44 - Natural Gas | L0050700
Pentair Gas Orifice | #44 - Natural Gas | L0050700
Quantity:
$10.16

60
Pentair Liquid Propane Gas Orifice | L0032900
Pentair Liquid Propane Gas Orifice | L0032900
Quantity:
$7.44

61
Pentair MegaTherm Manual Gas Valve | V0004300
Pentair MegaTherm Manual Gas Valve | V0004300
Quantity:
$136.41

62
Pentair Safety Gas Valve Kit | RV0046700
Pentair Safety Gas Valve Kit | RV0046700
Quantity:
$578.30

63
Pentair MegaTherm 2-Stage Combination/Operating Gas Valve | V0054900
Pentair MegaTherm 2-Stage Combination/Operating Gas Valve | V0054900
Quantity:
$833.63

64
Pentair MegaTherm Manual Pilot Valve | W0002100
Pentair MegaTherm Manual Pilot Valve | W0002100
Quantity:
$37.29

65
Pentair MegaTherm 1670 Manifold Cover Plate Assembly | 10552908
Pentair MegaTherm 1670 Manifold Cover Plate Assembly | 10552908
Quantity:
$138.11

66
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525308
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525308
Quantity:
$51.75

67
Pentair MegaTherm Left Burner Tie Down Bracket | 10525709
Pentair MegaTherm Left Burner Tie Down Bracket | 10525709
Quantity:
$59.88

68
Pentair MegaTherm 1670 Right Single Pilot Burner Tie Down Bracket | 10542009
Pentair MegaTherm 1670 Right Single Pilot Burner Tie Down Bracket | 10542009
Quantity:
$59.88

69
Pentair MegaTherm Commercial Pool Heaters | Thermocouple | W0036500
Pentair MegaTherm Commercial Pool Heaters | Thermocouple | W0036500
Quantity:
$38.75

70
Pentair Solenoid Pilot Valve | 24V | W0019300
Pentair Solenoid Pilot Valve | 24V | W0019300
This item has been discontinued.

70
Pentair MegaTherm Manual Reset Pilot Relay | W0030000
Pentair MegaTherm Manual Reset Pilot Relay | W0030000
Quantity:
$279.55

73
Pentair Manual Reset High Limit Switch | E2103900
Pentair Manual Reset High Limit Switch | E2103900
Quantity:
$302.40

74
Pentair MegaTherm Water Temperature Controller | E2103800
Pentair MegaTherm Water Temperature Controller | E2103800
Quantity:
$185.29

75
Pentair MegaTherm Water Temperature Sensor | E2103600
Pentair MegaTherm Water Temperature Sensor | E2103600
Quantity:
$215.91
