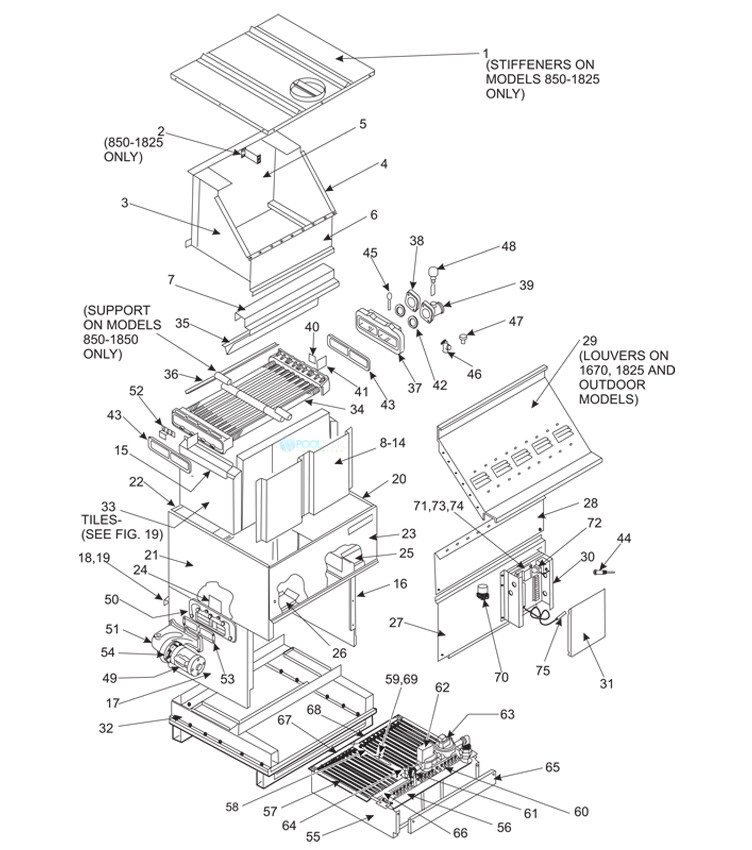

Home Pentair MegaTherm High Performance Outdoor Pool Heater with CSD-1 | 1,825K BTU | Natural Gas | Copper Tubing | MT1825EN09CBPCJX Parts

Pentair MegaTherm High Performance Outdoor Pool Heater with CSD-1 | 1,825K BTU | Natural Gas | Copper Tubing | MT1825EN09CBPCJX Parts

Back to Product
Pentair MegaTherm High Performance Outdoor Pool Heater with CSD-1 | 1,825K BTU | Natural Gas | Copper Tubing | MT1825EN09CBPCJX Parts Schematic
1
Pentair MegaTherm 1825 Top Panel Assembly | 10535709
Pentair MegaTherm 1825 Top Panel Assembly | 10535709
Quantity:
$477.64

2
Pentair MegaTherm Flue Collector Spacer | 10540800
Pentair MegaTherm Flue Collector Spacer | 10540800
Quantity:
$26.68

3
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Pentair MegaTherm Left Flue Collector End Panel | 10533700
Quantity:
$63.70

4
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Pentair MegaTherm Right Flue Collector End Panel | 10533800
Quantity:
$63.70

5
Pentair MegaTherm 1825 Flue Collector Rear Panel | 10535509
Pentair MegaTherm 1825 Flue Collector Rear Panel | 10535509
Quantity:
$231.46

6
Pentair MegaTherm 1825 Front Support Flue Collector | 10662109
Pentair MegaTherm 1825 Front Support Flue Collector | 10662109
Quantity:
$90.90

7
Pentair MegaTherm 1825 Front/Rear Tile Cover | 10661509
Pentair MegaTherm 1825 Front/Rear Tile Cover | 10661509
Quantity:
$41.75

9
Pentair MegaTherm 1200 Front Tile Heat Shield/Spacer | 10547903
Pentair MegaTherm 1200 Front Tile Heat Shield/Spacer | 10547903
Quantity:
$113.22

10
Pentair MegaTherm 1825 Front Tile Heat Shield/Spacer | 10548001
Pentair MegaTherm 1825 Front Tile Heat Shield/Spacer | 10548001
Quantity:
$122.45

11
Pentair MegaTherm 1825 Front Tile Heat Shield/Spacer | 10548104
Pentair MegaTherm 1825 Front Tile Heat Shield/Spacer | 10548104
Quantity:
$119.91

12
Pentair MegaTherm 1200 Rear Tile Heat Shield/Spacer | 10548203
Pentair MegaTherm 1200 Rear Tile Heat Shield/Spacer | 10548203
Quantity:
$117.89

13
Pentair MegaTherm 1825 Rear Tile Heat Shield/Spacer | 10548301
Pentair MegaTherm 1825 Rear Tile Heat Shield/Spacer | 10548301
Quantity:
$121.81

14
Pentair MegaTherm 1825 Rear Tile Heat Shield/Spacer | 10548404
Pentair MegaTherm 1825 Rear Tile Heat Shield/Spacer | 10548404
Quantity:
$121.18

15
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Pentair MegaTherm Saddle End Tile Assembly | 10533600
Quantity:
$44.49

16
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Pentair MegaTherm Right Lower Rear Panel/Heat Shield Weldment | 10540701
Quantity:
$146.57

17
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Pentair MegaTherm Left Lower Rear Panel/Heat Shield Weldment | 10540702
Quantity:
$137.60

18
Pentair MegaTherm 1825 Lower Rear Panel Weldment | 10532909
Pentair MegaTherm 1825 Lower Rear Panel Weldment | 10532909
Quantity:
$229.49

19
Pentair MegaTherm 1825 Middle Rear Panel/Heat Shield Weldment | 10540409
Pentair MegaTherm 1825 Middle Rear Panel/Heat Shield Weldment | 10540409
Quantity:
$452.14

20
Pentair MegaTherm Upper Right End Panel | 10531600
Pentair MegaTherm Upper Right End Panel | 10531600
Quantity:
$132.56

21
Pentair MegaTherm Upper Left End Panel | 10534000
Pentair MegaTherm Upper Left End Panel | 10534000
Quantity:
$113.56

22
Pentair MegaTherm 1825 Upper Rear Panel/Heat Shield Weldment | 10540509
Pentair MegaTherm 1825 Upper Rear Panel/Heat Shield Weldment | 10540509
Quantity:
$497.06

23
Pentair MegaTherm 1825 Upper Front Panel | 10531509
Pentair MegaTherm 1825 Upper Front Panel | 10531509
Quantity:
$171.28

24
Pentair MegaTherm End Tile Support Bracket | 10551000
Pentair MegaTherm End Tile Support Bracket | 10551000
Quantity:
$19.17

25
Pentair MegaTherm 1825 Right Drafthood Relief Baffle | 10540909
Pentair MegaTherm 1825 Right Drafthood Relief Baffle | 10540909
Quantity:
$33.70

26
Pentair MegaTherm 1825 Left Drafthood Relief Baffle | 10541009
Pentair MegaTherm 1825 Left Drafthood Relief Baffle | 10541009
Quantity:
$35.29

27
Pentair MegaTherm 1825 Lower Front Panel/Heat Shield Weldment | 10554609
Pentair MegaTherm 1825 Lower Front Panel/Heat Shield Weldment | 10554609
Quantity:
$448.73

28
Pentair MegaTherm 1825 Middle Front Panel | 10662009
Pentair MegaTherm 1825 Middle Front Panel | 10662009
Quantity:
$110.54

29
Pentair MegaTherm 1670 Flue Collector Sweep Sheet | 10662209
Pentair MegaTherm 1670 Flue Collector Sweep Sheet | 10662209
Quantity:
$325.59

31
Pentair MegaTherm Control Box Cover | 10547200
Pentair MegaTherm Control Box Cover | 10547200
Quantity:
$47.59

32
Pentair MegaTherm 1825 Base/Tile Support Assembly | 10536909
Pentair MegaTherm 1825 Base/Tile Support Assembly | 10536909
Quantity:
$2,037.48

35
Pentair MegaTherm 1825 Front/Rear Heat Exchanger Baffle | 20020109
Pentair MegaTherm 1825 Front/Rear Heat Exchanger Baffle | 20020109
Quantity:
$88.87

36
Pentair MegaTherm 500 Heat Exchanger Baffle | 10667709
Pentair MegaTherm 500 Heat Exchanger Baffle | 10667709
Quantity:
$11.26

36
Pentair MegaTherm 1825 Heat Exchanger Baffle | 10667702
Pentair MegaTherm 1825 Heat Exchanger Baffle | 10667702
Quantity:
$13.65

38
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Pentair MegaTherm Machined Flange 2.5" NPT | Iron | 10391303
Quantity:
$74.21

38
Pentair MegaTherm Flange Gasket Kit 2.5" | Bronze | R10391304
Pentair MegaTherm Flange Gasket Kit 2.5" | Bronze | R10391304
Quantity:
$294.41

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Bronze | 20150303
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Bronze | 20150303
Quantity:
$614.81

39
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Quantity:
$407.43

40
Pentair Inlet Water Baffle | 10338300
Pentair Inlet Water Baffle | 10338300
Quantity:
$29.88

42
Pentair Flange Gasket Laars AP850 | S0063700
Pentair Flange Gasket Laars AP850 | S0063700
Quantity:
$11.10

46
Pentair Pressure Relief Valve | 0.75" NPT | 75 PSI | A0063600
Pentair Pressure Relief Valve | 0.75" NPT | 75 PSI | A0063600
Quantity:
$152.39

47
Pentair Temperature Gauge | A2089500
Pentair Temperature Gauge | A2089500
Quantity:
$230.84

50
Pentair MegaTherm Pump Adapter | Bronze | 10364201
Pentair MegaTherm Pump Adapter | Bronze | 10364201
Quantity:
$463.91

52
Pentair Pump Inlet Baffle Diffuser | 10338400
Pentair Pump Inlet Baffle Diffuser | 10338400
Quantity:
$34.48

53
Pentair 12" Pump Housing Gasket | S0024600
Pentair 12" Pump Housing Gasket | S0024600
Quantity:
$43.93

55
Pentair MegaTherm 1825 Burner Tray | 10550609
Pentair MegaTherm 1825 Burner Tray | 10550609
Quantity:
$4,003.74

55
Pentair MegaTherm 1825 Burner Tray | 20097409
Pentair MegaTherm 1825 Burner Tray | 20097409
Quantity:
$3,073.11

55
Pentair MegaTherm 1825 Burner Tray | 10526209
Pentair MegaTherm 1825 Burner Tray | 10526209
Quantity:
$2,584.91

56
Pentair MegaTherm 1825 Single Inlet Gas Manifold Weldment | 10525909
Pentair MegaTherm 1825 Single Inlet Gas Manifold Weldment | 10525909
Quantity:
$741.51

59
Pentair MegaTherm Standing Pilot Burner | W0035800
Pentair MegaTherm Standing Pilot Burner | W0035800
Quantity:
$137.86

59
Pentair Standing Pilot Burner | W0034400
Pentair Standing Pilot Burner | W0034400
Quantity:
$208.41

59
Pentair MegaTherm Pilot Assembly | RW0034300
Pentair MegaTherm Pilot Assembly | RW0034300
Quantity:
$158.81

59
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Pentair MegaTherm Spark Ignition Pilot Burner | W2001500
Quantity:
$170.14

60
Pentair Gas Orifice | #44 - Natural Gas | L0050700
Pentair Gas Orifice | #44 - Natural Gas | L0050700
Quantity:
$7.74

60
Pentair Liquid Propane Gas Orifice | L0032900
Pentair Liquid Propane Gas Orifice | L0032900
Quantity:
$7.22

61
Pentair MegaTherm Manual Gas Valve | V0004300
Pentair MegaTherm Manual Gas Valve | V0004300
Quantity:
$131.62

62
Pentair MegaTherm Motor Mod Safety Gas Valve | V0046800
Pentair MegaTherm Motor Mod Safety Gas Valve | V0046800
Quantity:
$563.23

62
Pentair Safety Gas Valve Kit | RV0046700
Pentair Safety Gas Valve Kit | RV0046700
Quantity:
$558.69

63
Pentair MegaTherm 2-Stage Combination/Operating Gas Valve | V0054900
Pentair MegaTherm 2-Stage Combination/Operating Gas Valve | V0054900
Quantity:
$802.75

64
Pentair MegaTherm Manual Pilot Valve | W0002100
Pentair MegaTherm Manual Pilot Valve | W0002100
Quantity:
$36.62

65
Pentair MegaTherm 1825 Manifold Cover Plate Assembly | 10552909
Pentair MegaTherm 1825 Manifold Cover Plate Assembly | 10552909
Quantity:
$146.94

66
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525309
Pentair MegaTherm Burner Anti-Rotation Bracket | 10525309
Quantity:
$54.15

67
Pentair MegaTherm Left Burner Tie Down Bracket | 10525710
Pentair MegaTherm Left Burner Tie Down Bracket | 10525710
Quantity:
$58.30

68
Pentair MegaTherm 1825 Right Single Pilot Burner Tie Down Bracket | 10542010
Pentair MegaTherm 1825 Right Single Pilot Burner Tie Down Bracket | 10542010
Quantity:
$58.30

69
Pentair MegaTherm Commercial Pool Heaters | Thermocouple | W0036500
Pentair MegaTherm Commercial Pool Heaters | Thermocouple | W0036500
Quantity:
$37.42

70
Pentair Solenoid Pilot Valve | 24V | W0019300
Pentair Solenoid Pilot Valve | 24V | W0019300
Quantity:
$93.35

70
Pentair MegaTherm Manual Reset Pilot Relay | W0030000
Pentair MegaTherm Manual Reset Pilot Relay | W0030000
Quantity:
$269.37

73
Pentair Manual Reset High Limit Switch | E2103900
Pentair Manual Reset High Limit Switch | E2103900
Quantity:
$302.40

74
Pentair MegaTherm Water Temperature Controller | E2103800
Pentair MegaTherm Water Temperature Controller | E2103800
Quantity:
$179.18

75
Pentair MegaTherm Water Temperature Sensor | E2103600
Pentair MegaTherm Water Temperature Sensor | E2103600
Quantity:
$208.04
