Pentair MegaTherm High Performance Outdoor Commercial Swimming Pool Heater Less Pump | Copper Exchanger | 3600K BTU Natural Gas | MT3600EN18CCAC Parts

Back to Product

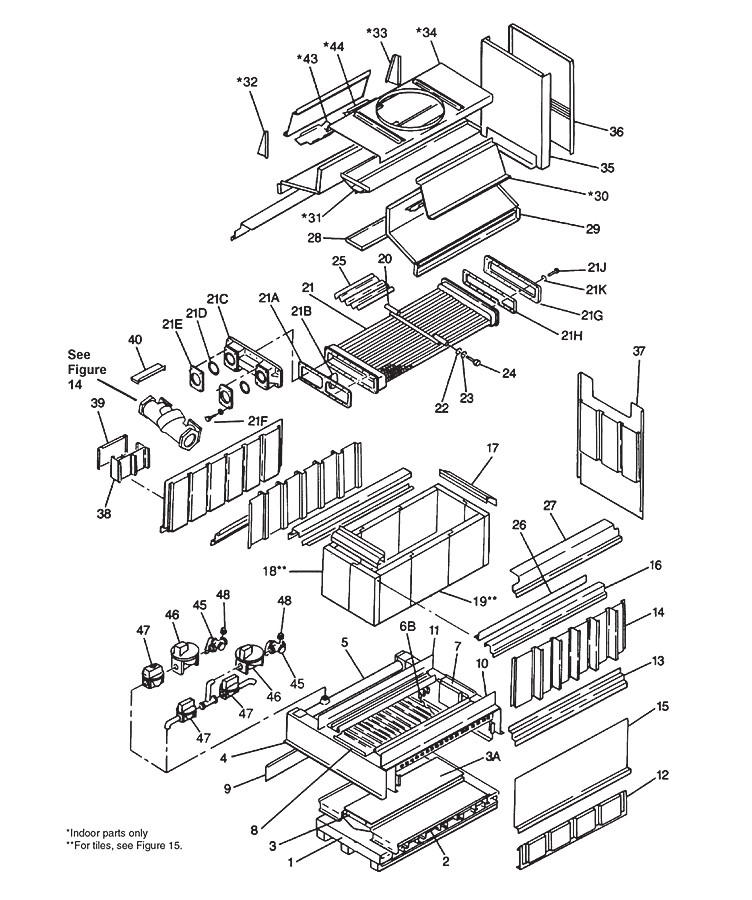

Pentair MegaTherm High Performance Outdoor Commercial Swimming Pool Heater Less Pump | Copper Exchanger | 3600K BTU Natural Gas | MT3600EN18CCAC Parts Schematic
1
Pentair Base Weldment Assembly | 20067205
Pentair Base Weldment Assembly | 20067205
Quantity:
$1,819.91

2
Pentair Base Assembly | 20011005
Pentair Base Assembly | 20011005
Quantity:
$4,373.27

3
Pentair Center Heat Shield Assembly | 20005705
Pentair Center Heat Shield Assembly | 20005705
Quantity:
$640.04

3A
Pentair Center Heat Shield Panel | 20005605
Pentair Center Heat Shield Panel | 20005605
Quantity:
$266.09

6A
Pentair Pilot Burner-Bracket Welder | 20012600
Pentair Pilot Burner-Bracket Welder | 20012600
Quantity:
$143.50

7
Pentair Inner Shield | 20002300
Pentair Inner Shield | 20002300
Quantity:
$35.11

8
Pentair End Tile Channel | 20002600
Pentair End Tile Channel | 20002600
Quantity:
$26.79

9
Pentair Front Lower Closure | 20004305
Pentair Front Lower Closure | 20004305
Quantity:
$175.14

10
Pentair Rear Tile Rail Assembly | 20011405
Pentair Rear Tile Rail Assembly | 20011405
Quantity:
$912.64

11
Pentair Front Tile Rail Assembly | 20011305
Pentair Front Tile Rail Assembly | 20011305
Quantity:
$791.85

12
Pentair Rear Closure Assembly | 20012405
Pentair Rear Closure Assembly | 20012405
Quantity:
$237.39

13
Pentair Heat Shield Support Bracket | 20003205
Pentair Heat Shield Support Bracket | 20003205
Quantity:
$74.29

14
Pentair Tile Heat Shield Assembly | 20012105
Pentair Tile Heat Shield Assembly | 20012105
Quantity:
$529.66

15
Pentair Front & Rear Lower Panel Assembly | 20011605
Pentair Front & Rear Lower Panel Assembly | 20011605
Quantity:
$492.81

16
Pentair Tile Cover | 20005805
Pentair Tile Cover | 20005805
Quantity:
$40.46

17
Pentair Saddle End Tile Assembly | 10533601
Pentair Saddle End Tile Assembly | 10533601
Quantity:
$47.25

18,19
Pentair Complete Pyro Tile Assembly | 20052505
Pentair Complete Pyro Tile Assembly | 20052505
Quantity:
$2,817.25

20
Pentair Center Support Assembly | 20004900
Pentair Center Support Assembly | 20004900
Quantity:
$106.81

21
Pentair Double Pass Complete Heat Exchanger Assembly | 20001305
Pentair Double Pass Complete Heat Exchanger Assembly | 20001305
Quantity:
$10,762.33

21A
Pentair Header Gasket | S0095300
Pentair Header Gasket | S0095300
Quantity:
$47.09

21B
Pentair Front Water Barrier | 10397500
Pentair Front Water Barrier | 10397500
Quantity:
$14.63

21C
Pentair Double Pass Inlet-Outlet Header | 10416200
Pentair Double Pass Inlet-Outlet Header | 10416200
Quantity:
$682.98

21D
Pentair Flange Gasket | S0095600
Pentair Flange Gasket | S0095600
Quantity:
$23.50

21E
Pentair Flange | 10417400
Pentair Flange | 10417400
Quantity:
$121.64

21G
Pentair Return Header | 10416100
Pentair Return Header | 10416100
Quantity:
$666.00

21H
Pentair Header Gasket | S0095300
Pentair Header Gasket | S0095300
Quantity:
$47.09

23
Jandy Washers For Headers LAARS Lite | F0011100
Jandy Washers For Headers LAARS Lite | F0011100
Quantity:
$3.39

26
Pentair Front - Rear Heat Exchanger Baffle | 10534314
Pentair Front - Rear Heat Exchanger Baffle | 10534314
Quantity:
$16.66

27
Pentair Front & Rear Closure | 20006405
Pentair Front & Rear Closure | 20006405
Quantity:
$126.62

28
Pentair Inside Baffle Assembly | 20012512
Pentair Inside Baffle Assembly | 20012512
Quantity:
$287.68

29
Pentair Front - Rear Flue Panel Assembly | 20011505
Pentair Front - Rear Flue Panel Assembly | 20011505
Quantity:
$289.87

35
Pentair Flue End Assembly | 20012000
Pentair Flue End Assembly | 20012000
Quantity:
$218.42

36
Pentair Upper End Panel Assembly | 20011900
Pentair Upper End Panel Assembly | 20011900
Quantity:
$194.64

37
Pentair Lower End Panel Assembly | 20011800
Pentair Lower End Panel Assembly | 20011800
Quantity:
$275.40

38
Pentair Control Mounting Panel | 20013700
Pentair Control Mounting Panel | 20013700
Quantity:
$65.93

40
Pentair Top Control Box Cover | 20011200
Pentair Top Control Box Cover | 20011200
Quantity:
$23.50

45
Pentair Manual Gas Valve | V2013800
Pentair Manual Gas Valve | V2013800
Quantity:
$356.45

46
Pentair Auto Safety Gas Valve | V0046900
Pentair Auto Safety Gas Valve | V0046900
Quantity:
$772.79

47
Pentair On-Off Combination-Operating Gas Valve | V0047800
Pentair On-Off Combination-Operating Gas Valve | V0047800
Quantity:
$666.11

48
Pentair MegaTherm Manual Pilot Valve | W0002100
Pentair MegaTherm Manual Pilot Valve | W0002100
Quantity:
$33.35

49A
Pentair Solenoid Pilot Valve | 24V | W0019300
Pentair Solenoid Pilot Valve | 24V | W0019300
Quantity:
$78.10

52
PENTAIR RW0034500 PILOT ASSEMBLY NG JOHNSON
PENTAIR RW0034500 PILOT ASSEMBLY NG JOHNSON
Quantity:
$150.71

52
Pentair MegaTherm Pilot Assembly | RW0034300
Pentair MegaTherm Pilot Assembly | RW0034300
Quantity:
$158.81
