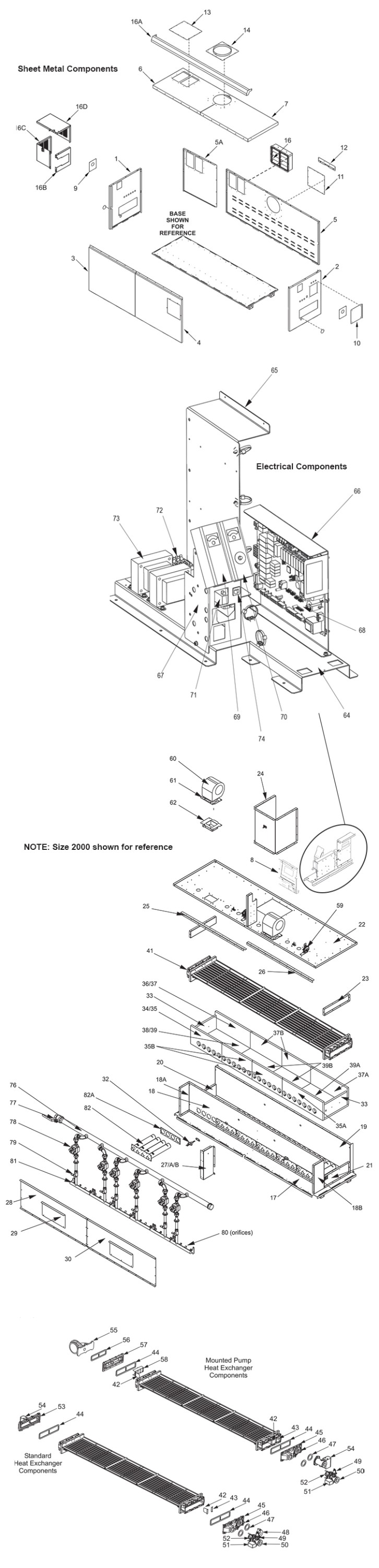

Pentair PowerMax High Performance Outdoor Commercial Swimming Pool Heater | Indoor-Outdoor Pump Mounted | Cupro Nickel Exchanger | 1500K BTU Natural Gas | PM1500NACC2PXN PM1500NACC3PXN Parts

Back to Product
Pentair PowerMax High Performance Outdoor Commercial Swimming Pool Heater | Indoor-Outdoor Pump Mounted | Cupro Nickel Exchanger | 1500K BTU Natural Gas | PM1500NACC2PXN PM1500NACC3PXN Parts Schematic
1
Pentair PowerMax Side Left Jacket Panel | 5C3420
Pentair PowerMax Side Left Jacket Panel | 5C3420
Quantity:
$271.59

2
Pentair Side Right Jacket Panel | 5C3520
Pentair Side Right Jacket Panel | 5C3520
Quantity:
$233.93

3
Pentair PowerMax 1500 Front Left Panel Jacket | 15C3320
Pentair PowerMax 1500 Front Left Panel Jacket | 15C3320
Quantity:
$301.80

4
Pentair PowerMax 1500 Front Right Panel Jacket | 15C3620
Pentair PowerMax 1500 Front Right Panel Jacket | 15C3620
Quantity:
$301.80

5
Pentair PowerMax 1500 Rear Panel Jacket | 15C3220
Pentair PowerMax 1500 Rear Panel Jacket | 15C3220
Quantity:
$593.00

5A
Pentair PowerMax Rear Panel Jacket Filter Enclosure | 15C3026
Pentair PowerMax Rear Panel Jacket Filter Enclosure | 15C3026
Quantity:
$292.37

6
Pentair PowerMax 1500 Top Left Panel Jacket | 15C3021
Pentair PowerMax 1500 Top Left Panel Jacket | 15C3021
Quantity:
$423.59

7
Pentair PowerMax 1500 Top Right Panel Jacket | 15C3025
Pentair PowerMax 1500 Top Right Panel Jacket | 15C3025
Quantity:
$423.59

8
Pentair PowerMax Access Control Door | 5C3011
Pentair PowerMax Access Control Door | 5C3011
This item is no longer available.

9
Pentair PowerMax Gas Pipe Seal Plate | 20C3304
Pentair PowerMax Gas Pipe Seal Plate | 20C3304
Quantity:
$21.67

10
Pentair PowerMax Wiring Cover Plate | 5C3502
Pentair PowerMax Wiring Cover Plate | 5C3502
Quantity:
$19.04

11
Pentair PowerMax Solid Vent Plate | 20C3004
Pentair PowerMax Solid Vent Plate | 20C3004
Quantity:
$34.02

12
Pentair PowerMax Vent Plate Cover | 20C3006
Pentair PowerMax Vent Plate Cover | 20C3006
This item is no longer available.

13
Pentair PowerMax Filter Cover Plate | 15C3002
Pentair PowerMax Filter Cover Plate | 15C3002
Quantity:
$35.93

14
Pentair PowerMax 12" Collar Vent Plate | 15C3100
Pentair PowerMax 12" Collar Vent Plate | 15C3100
Quantity:
$186.37

15
Pentair PowerMax Air Filter Assembly | 15C3700
Pentair PowerMax Air Filter Assembly | 15C3700
This item is no longer available.

16
Pentair PowerMax Air Filter | R2014700
Pentair PowerMax Air Filter | R2014700
Quantity:
$172.28

16A
Pentair PowerMax 1500 Front Jacket Trim | 15C3019
Pentair PowerMax 1500 Front Jacket Trim | 15C3019
This item is no longer available.

16B
Pentair PowerMax Pump Housing | Right Side | 5C3018
Pentair PowerMax Pump Housing | Right Side | 5C3018
This item is no longer available.

16C
Pentair PowerMax Pump Housing | Left Side | 5C3019
Pentair PowerMax Pump Housing | Left Side | 5C3019
This item is no longer available.

16D
Pentair PowerMax Pump Housing Cover | 5C3020
Pentair PowerMax Pump Housing Cover | 5C3020
This item is no longer available.

17
Pentair PowerMax 1500 Base Assembly | 15C1020
Pentair PowerMax 1500 Base Assembly | 15C1020
Quantity:
$1,029.36

18
Pentair PowerMax 1500 Chamber Front Panel | 15C2003
Pentair PowerMax 1500 Chamber Front Panel | 15C2003
Quantity:
$291.13

18A
Pentair PowerMax Left Side Front Chamber | 5C2015
Pentair PowerMax Left Side Front Chamber | 5C2015
Quantity:
$96.60

18B
Pentair PowerMax Right Side Front Chamber | 5C2016
Pentair PowerMax Right Side Front Chamber | 5C2016
Quantity:
$96.60

19
Pentair PowerMax 1500 Chamber Rear Panel | 15C2006
Pentair PowerMax 1500 Chamber Rear Panel | 15C2006
Quantity:
$213.36

20
Pentair Left Bottom Chamber Assembly | 5C2602
Pentair Left Bottom Chamber Assembly | 5C2602
Quantity:
$243.15

21
Pentair Right Bottom Chamber Assembly | 5C2200
Pentair Right Bottom Chamber Assembly | 5C2200
Quantity:
$243.15

22
Pentair PowerMax 1500 Chamber Top | 15C2001
Pentair PowerMax 1500 Chamber Top | 15C2001
Quantity:
$331.46

23
Pentair PowerMax Side Top Chamber | 5C2002
Pentair PowerMax Side Top Chamber | 5C2002
Quantity:
$52.57

24
Pentair PowerMax Exhaust Plenum | 20C2007
Pentair PowerMax Exhaust Plenum | 20C2007
Quantity:
$217.91

25
Pentair PowerMax 1500 Front Left Chamber Bracket | 15C2011
Pentair PowerMax 1500 Front Left Chamber Bracket | 15C2011
Quantity:
$38.50

26
Pentair PowerMax 1500 Front Right Chamber Bracket | 15C2009
Pentair PowerMax 1500 Front Right Chamber Bracket | 15C2009
Quantity:
$38.50

27A
Pentair PowerMax Front Chamber Upper Divider | 15C2005
Pentair PowerMax Front Chamber Upper Divider | 15C2005
This item is no longer available.

27B
Pentair PowerMax Front Chamber Lower Divider | 15C2002
Pentair PowerMax Front Chamber Lower Divider | 15C2002
This item is no longer available.

28
Pentair PowerMax 1500 Front Chamber Cover | 15C2004
Pentair PowerMax 1500 Front Chamber Cover | 15C2004
Quantity:
$112.71

29
Pentair PowerMax Combustion Air Chamber Access Door | 5C2005
Pentair PowerMax Combustion Air Chamber Access Door | 5C2005
Quantity:
$48.06

32
Pentair PowerMax Ignitor with Gasket | 2400-286
Pentair PowerMax Ignitor with Gasket | 2400-286
Quantity:
$129.84

33
Pentair Left & Right Side Tile | T2015600
Pentair Left & Right Side Tile | T2015600
Quantity:
$55.20

35
Pentair PowerMax Front Left Tile | T2016800
Pentair PowerMax Front Left Tile | T2016800
Quantity:
$76.61

35A
Pentair PowerMax Front Right Tile | T2017100
Pentair PowerMax Front Right Tile | T2017100
Quantity:
$104.84

35B
Pentair PowerMax Front Center Tile | T2016900
Pentair PowerMax Front Center Tile | T2016900
Quantity:
$74.33

37
Pentair PowerMax Rear Tile | T2016600
Pentair PowerMax Rear Tile | T2016600
Quantity:
$81.53

37B
Pentair PowerMax Rear Center Tile | T2017200
Pentair PowerMax Rear Center Tile | T2017200
Quantity:
$75.26

39
Pentair PowerMax Bottom Tile | T2017400
Pentair PowerMax Bottom Tile | T2017400
Quantity:
$114.06

39B
Pentair PowerMax Bottom Center Tile | T2015900
Pentair PowerMax Bottom Center Tile | T2015900
Quantity:
$110.52

41
Pentair PowerMax 1500 Cupro-Nickel Heat Exchanger Assembly | R2027805
Pentair PowerMax 1500 Cupro-Nickel Heat Exchanger Assembly | R2027805
Quantity:
$6,150.32

42
Pentair Water Barrier | 20305101
Pentair Water Barrier | 20305101
Quantity:
$110.09

43
Pentair Inlet Water Baffle | 10338300
Pentair Inlet Water Baffle | 10338300
Quantity:
$30.25

44
Pentair Header Gasket with Barrier | 8 Tube | S0095100
Pentair Header Gasket with Barrier | 8 Tube | S0095100
Quantity:
$39.79

45
Pentair Cast Iron In/Out Header Cover | R10364504
Pentair Cast Iron In/Out Header Cover | R10364504
Quantity:
$433.22

46
Pentair Well Temperature Control AP850 | RE2058300
Pentair Well Temperature Control AP850 | RE2058300
Quantity:
$81.96

47
Pentair Flange Gasket Laars AP850 | S0063700
Pentair Flange Gasket Laars AP850 | S0063700
Quantity:
$11.10

48
Pentair PowerMax Cast Iron Flange | 10391302
Pentair PowerMax Cast Iron Flange | 10391302
This item is no longer available.

49
Pentair PowerMax Pressure Relief Valve | 75 PSI | RA0001200
Pentair PowerMax Pressure Relief Valve | 75 PSI | RA0001200
Quantity:
$135.14

49
Pentair Pressure Relief Valve | 0.75" NPT | 75 PSI | A0063600
Pentair Pressure Relief Valve | 0.75" NPT | 75 PSI | A0063600
Quantity:
$152.39

50
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Pentair MegaTherm Outlet Side Flange Tee Adapter | 2-1/2 Inch NPT | Glassed Cast Iron | 20130002
Quantity:
$420.45

51
Pentair PowerMax Flow Control Switch Kit | RE0013000
Pentair PowerMax Flow Control Switch Kit | RE0013000
Quantity:
$268.32

52
Pentair PowerMax Temperature-Pressure Gauge | RA0079000
Pentair PowerMax Temperature-Pressure Gauge | RA0079000
Quantity:
$124.92

54
Pentair Low Water Cutoff | R0021901
Pentair Low Water Cutoff | R0021901
Quantity:
$617.69

55
Pentair PowerMax Pump Housing Heat Pump Adapter | R20607600
Pentair PowerMax Pump Housing Heat Pump Adapter | R20607600
Quantity:
$452.30

56
Pentair 12" Pump Housing Gasket | S0024600
Pentair 12" Pump Housing Gasket | S0024600
Quantity:
$45.40

57
Pentair MegaTherm 1010 Commercial Pool Heater | Glassed Cast Iron Pump Adapter | 10364200
Pentair MegaTherm 1010 Commercial Pool Heater | Glassed Cast Iron Pump Adapter | 10364200
Quantity:
$195.76

58
Pentair Pump Inlet Baffle Diffuser | 10338400
Pentair Pump Inlet Baffle Diffuser | 10338400
Quantity:
$35.63

59
Pentair PowerMax SPDT Pressure Switch | RE0240900
Pentair PowerMax SPDT Pressure Switch | RE0240900
Quantity:
$90.93

60
Pentair PowerMax Blower | R2060900
Pentair PowerMax Blower | R2060900
Quantity:
$598.00

61
Pentair PowerMax Blower Mount Weldment | 5C5300
Pentair PowerMax Blower Mount Weldment | 5C5300
Quantity:
$170.97

62
Pentair Blower Duct Assembly Damper | 15C5400
Pentair Blower Duct Assembly Damper | 15C5400
This item is no longer available.

69
Pentair PowerMax High Limit Auto Reset Temperature Controller | E2217700
Pentair PowerMax High Limit Auto Reset Temperature Controller | E2217700
Quantity:
$381.29

70
Pentair Manual Reset High-Limit Switch 210F | E2217800
Pentair Manual Reset High-Limit Switch 210F | E2217800
Quantity:
$412.33

73
Pentair PowerMax Circuit Breaker | E2318800
Pentair PowerMax Circuit Breaker | E2318800
This item is no longer available.

74
Pentair PowerMax Circuit Breaker | E2318800
Pentair PowerMax Circuit Breaker | E2318800
This item is no longer available.

75
Pentair PowerMax Rocker Switch | RE2343300
Pentair PowerMax Rocker Switch | RE2343300
Quantity:
$159.64

76
Pentair PowerMax 1500 Gas Supply Manifold | 15C6700
Pentair PowerMax 1500 Gas Supply Manifold | 15C6700
This item is no longer available.

77
Pentair PowerMax Ball Valve | R2011600
Pentair PowerMax Ball Valve | R2011600
Quantity:
$154.59

78
Pentair Direction Ignition Gas Valve | V2017600
Pentair Direction Ignition Gas Valve | V2017600
Quantity:
$178.19

79
Pentair PowerMax Manual Shutoff Valve | V2000200
Pentair PowerMax Manual Shutoff Valve | V2000200
This item is no longer available.

80
Pentair PowerMax Natural Gas Orifice | L2013000
Pentair PowerMax Natural Gas Orifice | L2013000
Quantity:
$20.01

81
Pentair PowerMax Right Lower Gas Manifold | 3- Burners | L2012900
Pentair PowerMax Right Lower Gas Manifold | 3- Burners | L2012900
Quantity:
$159.16

81
Pentair PowerMax Left Lower Gas Manifold | 3-Burners | L2012800
Pentair PowerMax Left Lower Gas Manifold | 3-Burners | L2012800
Quantity:
$159.16

81
Pentair PowerMax Right Lower Gas Manifold | 4-Burners | L2012700
Pentair PowerMax Right Lower Gas Manifold | 4-Burners | L2012700
Quantity:
$156.51

81
Pentair PowerMax Left Lower Gas Manifold | 4-Burners | L2012600
Pentair PowerMax Left Lower Gas Manifold | 4-Burners | L2012600
Quantity:
$156.51

82
Pentair PowerMax 3-Burner Assembly | L2012200
Pentair PowerMax 3-Burner Assembly | L2012200
Quantity:
$455.85

82
Pentair PowerMax 4-Burner Assembly | L2012500
Pentair PowerMax 4-Burner Assembly | L2012500
Quantity:
$609.53

82A
Pentair 3-Burner Assembly Gasket | S2012700
Pentair 3-Burner Assembly Gasket | S2012700
Quantity:
$35.08

82A
Pentair 4-Burner Assembly Gasket | S2012500
Pentair 4-Burner Assembly Gasket | S2012500
Quantity:
$38.06

82A
Pentair PowerMax Rear Base Gasket Tape | 43 Feet | R2014500
Pentair PowerMax Rear Base Gasket Tape | 43 Feet | R2014500
This item is no longer available.

82A
Pentair PowerMax Rear Base Gasket Tape | 63 Feet | R2014600
Pentair PowerMax Rear Base Gasket Tape | 63 Feet | R2014600
This item is no longer available.

83
Pentair Valve Actuator | R2027400
Pentair Valve Actuator | R2027400
Quantity:
$1,736.46

84
Pentair Valve Actuator | R2027500
Pentair Valve Actuator | R2027500
Quantity:
$799.04

HABLAMOS ESPAÑOL
Hay muchas maneras diferentes de contactarnos, y nos gustaría hablar con usted sobre las preguntas de su compra, ayudarle a diagnosticar los problemas de su equipo y escuchar acerca de cómo podemos mejorar y todo lo que está en su mente.
Click Here
OPEN 6 DAYS A WEEK
Phone Support (Central Time)
6am - 6pm Monday - Saturday
NEWSLETTER
Be the first to know the latest news, deals & special events!

Email:


By signing up you indicate that you agree to the terms of our privacy policy.



ABOUT THE STORE
Pool Supply Unlimited is an e-commerce company that loves water. We love to pump it, filter it, heat it, chlorinate it, light it up and stare at it while we're barbequing a fat, juicy steak. There are real pool professionals working here. Our guys have seen thousands of pools in their careers, no exaggeration. We are based in San Antonio, TX and can land most products to your door (within the 48 contiguous states) in less than a week.
COMPANY
ABOUT US
CONTACT US
CONTACTO
CUSTOMER REVIEWS
FAQ
HOURS OF OPERATION
PRIVACY
SITE MAP
TESTIMONIALS
MY ACCOUNT
LOGIN
FORGOT PASSWORD
LOYALTY POINTS
RETURN MERCHANDISE
PROMOTIONS
COUPONS
SALES
NEWSLETTER
BREAD FINANCING
PROTECTION PLANS
TERMS
INTERNATIONAL ORDERS
LOYALTY POINTS TERMS
RETURNS POLICY
SHIPPING POLICY
RESOURCES
BLOG
PRODUCT MANUALS
Visa Mastercard Discover American Express
