Home Pentair WhisperFlo .75HP Energy Efficient Full Rated 3-Phase Pool Pump 230-460V | WFK-3 | 011021 Parts

Pentair WhisperFlo .75HP Energy Efficient Full Rated 3-Phase Pool Pump 230-460V | WFK-3 | 011021 Parts

Back to Product

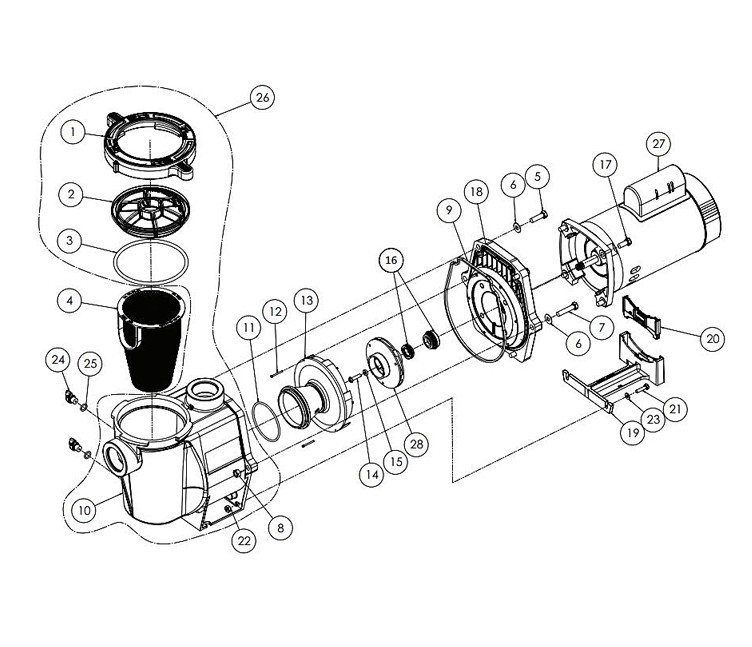

Pentair WhisperFlo .75HP Energy Efficient Full Rated 3-Phase Pool Pump 230-460V | WFK-3 | 011021 Parts Schematic
27
Pentair Motor Square Flange | .75HP 208/230V 3-Phase 60 Hz | Almond | 355001S
Pentair Motor Square Flange | .75HP 208/230V 3-Phase 60 Hz | Almond | 355001S
Quantity:
$302.11

1
Pentair WhisperFlo IntelliFlo Cam and Ramp Plastic Clamp | Almond | 357199
Pentair WhisperFlo IntelliFlo Cam and Ramp Plastic Clamp | Almond | 357199
Quantity:
$48.88

2
Pentair IntelliFlo WhisperFlo Strainer Cover After 1998 | Clear | 357151
Pentair IntelliFlo WhisperFlo Strainer Cover After 1998 | Clear | 357151
Quantity:
$40.04

3
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Quantity:
$16.58

4
Pentair WhisperFlo & IntelliFlo Pump Strainer Basket | 070387 P01325 070387Z
Pentair WhisperFlo & IntelliFlo Pump Strainer Basket | 070387 P01325 070387Z
Quantity:
$21.14

5
Pentair Stainless Steel Bolt | 3/8-16 x 1-1/4" | 070430
Pentair Stainless Steel Bolt | 3/8-16 x 1-1/4" | 070430
Quantity:
$13.54

6
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Quantity:
$11.43

7
Pentair Stainless Steel Bolt 3/8-16 x 2" | 2 Required | 070431
Pentair Stainless Steel Bolt 3/8-16 x 2" | 2 Required | 070431
Quantity:
$6.09

8
Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403
Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403
Quantity:
$10.54

9
Pentair WhisperFlo & IntelliFlo Seal Plate Gasket | Almond | 357102 | 357102Z
Pentair WhisperFlo & IntelliFlo Seal Plate Gasket | Almond | 357102 | 357102Z
Quantity:
$10.13

10
Pentair Housing WFE | Almond | 350015
Pentair Housing WFE | Almond | 350015
Quantity:
$206.80

11
Pentair Diffuser O-Ring | 355227 | 355227Z
Pentair Diffuser O-Ring | 355227 | 355227Z
Quantity:
$7.19

12
Pentair Diffuser Screw Set 4-40 X 1-1/8 WFE Stainless Steel | 2-Required | 071660 071660Z
Pentair Diffuser Screw Set 4-40 X 1-1/8 WFE Stainless Steel | 2-Required | 071660 071660Z
Quantity:
$14.58

13
Pentair Whisperflo Diffuser Assembly 3HP Only WFE | Black | 072928
Pentair Whisperflo Diffuser Assembly 3HP Only WFE | Black | 072928
Quantity:
$87.19

14
Pentair Impeller Screw SS | 1/4"-20 x 1" | 071652 | 071652Z
Pentair Impeller Screw SS | 1/4"-20 x 1" | 071652 | 071652Z
Quantity:
$14.53

15
Pentair Rubber Impeller Screw Washer | 075713
Pentair Rubber Impeller Screw Washer | 075713
Quantity:
$5.07

16
Pentair PS1000 WFE Seal Kit | 071734S
Pentair PS1000 WFE Seal Kit | 071734S
Quantity:
$34.37

17
Pentair Bolt Hex Head 3/8"-16 x 7/8" | 4-Required | 070429 070429Z
Pentair Bolt Hex Head 3/8"-16 x 7/8" | 4-Required | 070429 070429Z
Quantity:
$12.46

18
Pentair Whisperflo Intelliflo Seal Plate Kit | Almond | 350201
Pentair Whisperflo Intelliflo Seal Plate Kit | Almond | 350201
Quantity:
$117.86

19
Pentair WhisperFlo WF Motor Support Foot | Almond | 070927
Pentair WhisperFlo WF Motor Support Foot | Almond | 070927
Quantity:
$41.38

20
Pentair WhisperFlo Foot Insert | Almond | 070929
Pentair WhisperFlo Foot Insert | Almond | 070929
Quantity:
$25.77

21
Pentair SS Screw Hex Cap 1/4"-20 x 1" | 2-Required | P26948 071657 071657Z
Pentair SS Screw Hex Cap 1/4"-20 x 1" | 2-Required | P26948 071657 071657Z
Quantity:
$4.20

22
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Quantity:
$4.62

23
Pentair Flat Washer 1/4" ID x 5/8" OD Stainless Steel | 2 Required | P35010 072183
Pentair Flat Washer 1/4" ID x 5/8" OD Stainless Steel | 2 Required | P35010 072183
Quantity:
$4.37

24
Pentair Drain Plug Knob Thumb Twist | 3/8" | 2 Required | Almond | P19656 071131 071131Z
Pentair Drain Plug Knob Thumb Twist | 3/8" | 2 Required | Almond | P19656 071131 071131Z
Quantity:
$10.32

25
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$14.50

26
Pentair Volute and Seal Plate Kit | 074565 357149
Pentair Volute and Seal Plate Kit | 074565 357149
Quantity:
$265.95

28
Pentair Whisperflo Impeller | 0.75HP | WFE-3 WF-24 | 073127
Pentair Whisperflo Impeller | 0.75HP | WFE-3 WF-24 | 073127
Quantity:
$98.43

N/A
Pentair Seal Plate Kit with Gasket | Almond | 350202
Pentair Seal Plate Kit with Gasket | Almond | 350202
Quantity:
$184.45

N/A
Pentair Pot & Volute Kit | Almond | 357243
Pentair Pot & Volute Kit | Almond | 357243
This item is currently out of stock.
