Polaris 360 Automatic Pool Cleaner BLACK MAX - Includes Hose and Back-up Valve - F1B Parts

Back to Product

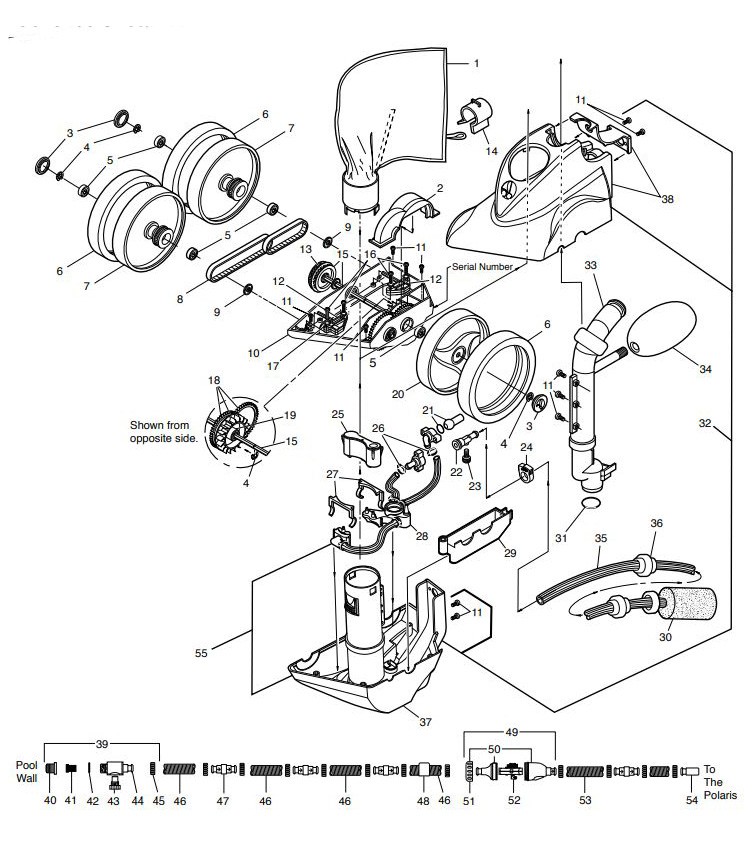

Polaris 360 Automatic Pool Cleaner BLACK MAX - Includes Hose and Back-up Valve - F1B Parts Schematic

1

Polaris 380 & 360 All Purpose Bag | 9-100-1014

1

Zodiac Polaris 380/360 All Purpose Bag | Black | 9-100-1016

1

Zodiac Polaris 380/360 All Purpose Bag | Zipper Black | 9-100-1022

2

Zodiac Polaris Upper Turbine Housing for 360 and 380 Cleaners | 9-100-1152

3

Zodiac Polaris Hub Cap for 340/360/380 Cleaners | White | 9-100-1114

3

Zodiac Hub Cap | Black | 380/360/340 | 9-100-1115

4

Zodiac Polaris E-Clip Stainless Steel Wheel for 340/360/380 Cleaners | 9-100-5107

5

Zodiac Polaris Wheel Bearing for 340/360/380 Cleaners | 9-100-1108

6

Polaris Tire for 380/360/280 | Black | C-11

6

Zodiac Positrax Tire | Black | C14

6

Zodiac Max Trax All-Purpose Tire 380/360/280/180 | White | C10

7

Zodiac Polaris Double Side Wheel for 360 and 380 Cleaners | White | 9-100-1008

8

Zodiac Polaris Belt Kit for 360 and 380 Cleaners | Small and Large | 9-100-1017

9

Zodiac Polaris Shield Bearing for 340/360/380 Cleaners | 9-100-7011

10

Zodiac Polaris Frame Exchange Only for 360 and 380 Cleaners | 9-100-1005

11

Zodiac Pan Head Screw 8-32 x 1/2in | 380/360 | Stainless Steel | 9-100-5125

12

Zodiac Front-Rear Axle Block Kit 380/360/340 | 2 pack | 9-100-1139

13

Zodiac Polaris Belt Divider and Transfer Pulley for 360 and 380 Cleaners | 9-100-1010

14

Zodiac Vac-Sweep Collar Bag Tie | 360 | 9-100-3135

14

Zodiac Collar Bag Tie 360 | Black | 9-100-3136

15

Zodiac Polaris Transfer Pulley Drive Shaft for 360 and 380 Cleaners | 9-100-1007

16

Zodiac Pan Head Screw | 380/360/340 | Stainless Steel | 9-100-5115

17

Zodiac Axle Block Lock Washer | 360/380/ATV | 4-Bag | 9-100-5130

18

Zodiac Polaris Drive Train Gear Kit for 360 and 380 Cleaners | 9-100-1132

19

Zodiac Polaris Turbine Wheel with Bearing for 360 and 380 Cleaners | 9-100-1103

20

Zodiac Polaris Single Side Wheel for 360 and 380 Cleaners | White | 9-100-1116

21

Zodiac Thrust Jet Repair Kit | 380-280-180-360 | C131

22

Zodiac Polaris Sweep Hose Barb Complete for 360 and 380 Cleaners | 9-100-7008

23

Zodiac Polaris Sweep Hose Adjustment Screw | B20

24

Zodiac Sweep Hose Attachment Clamp | White | 380/280/180/360 | B15

24

Zodiac Sweep Hose Attachment Clamp | 380/280/180/360 | Black | B16

25

Zodiac Vac-Sweep Base Weight | 360 | 9-100-3005

26

Zodiac Polaris Hose Clamp for Water Management for | 380-280-180-360 | Cleaners | 9-100-7170

27

Zodiac Polaris Jet Retainer for 360 and 380 | 9-100-7009

28

Zodiac Vac-Sweep Water Management System Kit | 360 | 9-100-7014

29

Zodiac Turbine Lower Housing | 380/360 | 9-100-1155

30

Zodiac Sweep Hose Complete Kit 360 | Black | 9-100-1020

30

Polaris Sweep Tail Scrubber Models | 380-280-180-360 | 9-100-3105

31

Zodiac Polaris Timer O-Ring for 360 and 380 Cleaners | 9-100-5132

32

Zodiac Polaris White Top and Base Assembly for 360 and 380 Cleaners | 9-100-7030

33

Zodiac Max Feed Pipe with Timer Blank 360 | Black | 9-100-1001

33

Zodiac Polaris Feed Pipe with Timer Blank for 360 Cleaners | 9-100-1002

34

Polaris Float Head | Black | Fits 380,280,180,360 | A-21

34

Zodiac Float Head for 380-280-180-360 Cleaner | White | A20

35

Zodiac Polaris Sweep Hose Assembly for 360 Cleaner | 9-100-1011

36

Zodiac Wear Rings for Sweep Hose for Polaris 380/280/180/360 Cleaner | B10

37

Zodiac Polaris Base Assembly | Black | 9-100-7027

37

Zodiac Polaris Top and Base Assembly for 360 and 380 Cleaners | Black | 9-100-7031

37

Zodiac Polaris Base Assembly for 360 and 380 Cleaners | White | 9-100-7026

38

Zodiac Polaris Top Housing | Blue | 9-100-1240

39

Zodiac UWF Connector Assembly 360 | Black | 9-100-3010

39

Zodiac Polaris Universal Wall Fitting Connector Assembly for 360 Cleaner | 9-100-3008

40

Polaris Universal Wall Fitting | White | 6-500-00

41

Zodiac Polaris Universal Wall Fitting and Quick Disconnect Filter Screen | 6-504-00

42

Zodiac Polaris Universal Wall Fitting and Quick Disconnect O-Ring | 6-505-00

43

Zodiac Polaris Pressure Relief Valve for 360 Cleaner | White | 9-100-3009

44

Zodiac Polaris 360 Quick Disconnect UWF | 9-100-3006

45

Zodiac Polaris Hose Nut for 360 Cleaner | Black | 9-100-3112

45

Polaris Hose Nut Cuffless Hose 360 360 | 9-100-3109

46

Zodiac Feed Hose Complete 360 | Black | 9-100-3101

46

Polaris 360 Cuffless Hose 6' | 9-100-3102

46

Zodiac 6-foot Feed Hose for 360 Cleaner | Black | 9-100-3110

47

Zodiac Polaris Hose Swivel for 360 Cleaner | White | 9-100-3002

47

Zodiac Swivel Hose 360 | Black | 9-100-3003

48

Zodiac Feed Hose Float 360 | Black | 9-100-1207

48

Polaris 360 Feed Hose Float | 9-100-1206

49

Zodiac Back-Up Valve 360 | Black | 9-100-1201

49

Polaris 360 In-Line Back-Up Valve | 9-100-1200

50

Zodiac Back Up Valve Collar | Black | 180/280/360/380 | G67

50

Zodiac Vac-Sweep Inline Back Up Valve Case Kit | 360 | 9-100-1202

51

Zodiac Back-Up Valve Case Kit 360 | Black | 9-100-1203

51

Zodiac Back-Up Valve Collar | White | 9-100-1213

52

Zodiac Polaris In-Line Back-Up Valve Mechanism for 360 Cleaner | 9-100-1204

53

Zodiac Polaris 1-foot Cuffless Hose for 360 Cleaner | 9-100-3103
