Raypak Versa 130k BTU Above Ground & Spa Heater | Electronic Ignition | Natural Gas | Cupro Nickel Heat Exchanger | P-M130A-EN-X #51 | 011500 Parts

Back to Product

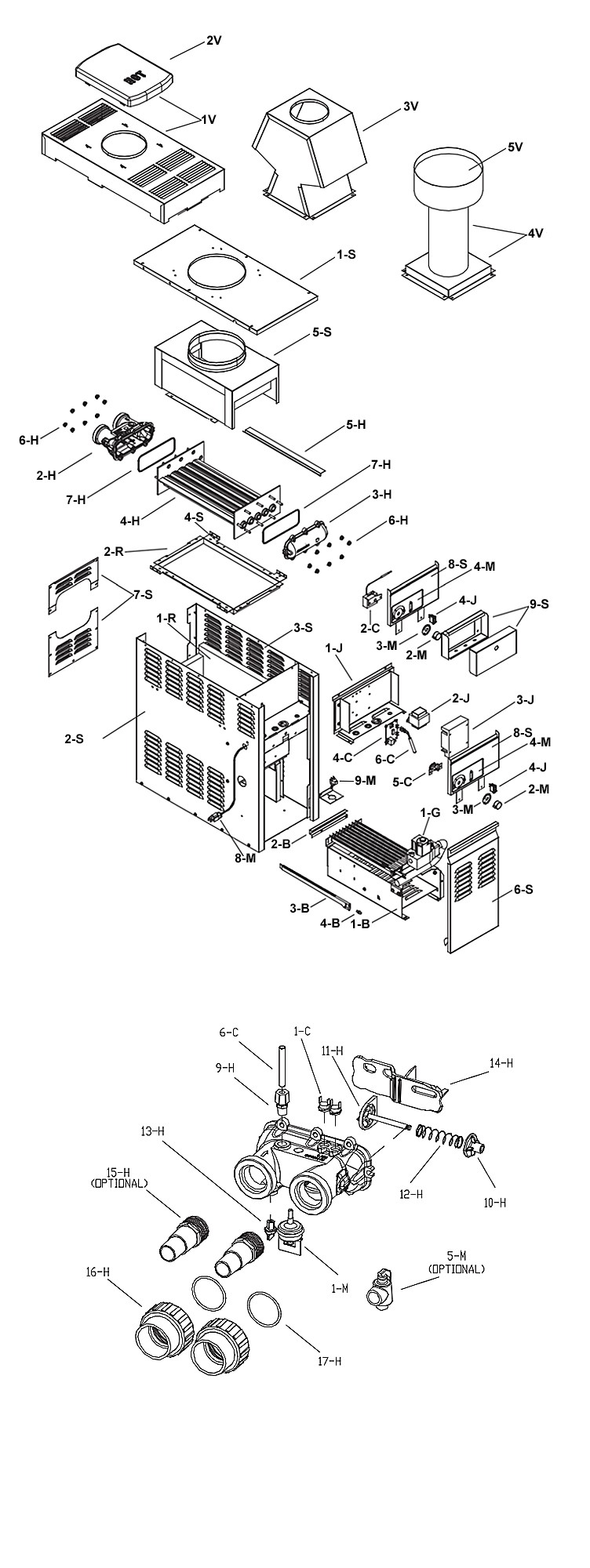

Raypak Versa 130k BTU Above Ground & Spa Heater | Electronic Ignition | Natural Gas | Cupro Nickel Heat Exchanger | P-M130A-EN-X #51 | 011500 Parts Schematic
1-B
Raypak Burner Tray with Gas Valve | Natural Gas - DSI Units | 011582F
Raypak Burner Tray with Gas Valve | Natural Gas - DSI Units | 011582F
Quantity:
$532.95

2-B
Raypak Burner Hold Down Kit | 011584F
Raypak Burner Hold Down Kit | 011584F
Quantity:
$38.09

3-B
Raypak Stainless Steel Burner | 301210
Raypak Stainless Steel Burner | 301210
Quantity:
$14.54

4-B
Raypak Brass Burner Orifice #51 | Natural Gas | 350080F
Raypak Brass Burner Orifice #51 | Natural Gas | 350080F
Quantity:
$5.96

1-C
Raypak Auto Reset Thermostat 135 Degree Surface Mount | 006725F
Raypak Auto Reset Thermostat 135 Degree Surface Mount | 006725F
Quantity:
$36.06

3-C
Raypak Solid State Thermostat Control | DSI Units | 011585F
Raypak Solid State Thermostat Control | DSI Units | 011585F
Quantity:
$227.29

4-C
Raypak Heaters Versa IID PC Board | 005086B
Raypak Heaters Versa IID PC Board | 005086B
Quantity:
$175.05

5-C
Raypak Potentiometer | 011586F
Raypak Potentiometer | 011586F
Quantity:
$40.29

6-C
Raypak Temperature Sensor | 011587F
Raypak Temperature Sensor | 011587F
Quantity:
$52.79

1-G
Raypak Combination Gas Valve | Natural Gas - DSI Units | 011590F
Raypak Combination Gas Valve | Natural Gas - DSI Units | 011590F
Quantity:
$173.82

1-H
Raypak Heat Exchanger Complete for 130k Heaters Cupro Nickel | 011593F
Raypak Heat Exchanger Complete for 130k Heaters Cupro Nickel | 011593F
Quantity:
$733.06

2-H
Raypak Inlet Outlet Header Assembly Complete 130K BTU | 011594F
Raypak Inlet Outlet Header Assembly Complete 130K BTU | 011594F
Quantity:
$366.30

3-H
Raypak Return Header Asembly 130K BTU | 011596F
Raypak Return Header Asembly 130K BTU | 011596F
Quantity:
$88.18

4-H
Raypak Tube Bundle 130K Cupro Nickel | 011598F
Raypak Tube Bundle 130K Cupro Nickel | 011598F
Quantity:
$645.83

5-H
Raypak Baffle | 011599F
Raypak Baffle | 011599F
Quantity:
$62.67

6-H
Raypak Flange Nut Kit 1/4"-20 | 008259F
Raypak Flange Nut Kit 1/4"-20 | 008259F
Quantity:
$24.84

7-H
Raypak O-Ring Gasket Set 130K BTU Heaters | 2 Included | 011600F
Raypak O-Ring Gasket Set 130K BTU Heaters | 2 Included | 011600F
Quantity:
$32.68

8-H
Raypak Sensor Adaptor Digital Electronic | 006714F
Raypak Sensor Adaptor Digital Electronic | 006714F
Quantity:
$32.70

9-H
Raypak Bypass Kit | 011601F
Raypak Bypass Kit | 011601F
Quantity:
$52.97

10-H
Raypak Bypass Valve for Capron Header Heaters | 006716F
Raypak Bypass Valve for Capron Header Heaters | 006716F
Quantity:
$33.04

11-H
Raypak Capron Bypass Shaft/Dam | 006717F
Raypak Capron Bypass Shaft/Dam | 006717F
Quantity:
$42.43

12-H
Raypak Bypass Spring | 011602F
Raypak Bypass Spring | 011602F
Quantity:
$75.01

13-H
Raypak Capron Drain Plug | R185A - R405A | 006721F
Raypak Capron Drain Plug | R185A - R405A | 006721F
Quantity:
$20.05

14-H
Raypak Inlet/Outlet Header Dam | 011603F
Raypak Inlet/Outlet Header Dam | 011603F
Quantity:
$94.27

15-H
Raypak 106A,156A Hose Adapter | 1.5" | 011635
Raypak 106A,156A Hose Adapter | 1.5" | 011635
Quantity:
$25.68

16-H
Raypak 2" CPVC Connector & Nut Kit | 006723F
Raypak  2" CPVC Connector & Nut Kit | 006723F
Quantity:
$54.84

17-H
Raypak 2" O-Ring Kit | 006724F
Raypak 2" O-Ring Kit | 006724F
Quantity:
$27.77

1-J
Raypak Control Box Kit | 011604F
Raypak Control Box Kit | 011604F
Quantity:
$457.86

2-J
Raypak Transformer 120/240/24V | 011605F
Raypak Transformer 120/240/24V | 011605F
Quantity:
$68.74

3-J
Raypak Electronic Ignition Control | 011606F
Raypak Electronic Ignition Control | 011606F
Quantity:
$180.54

4-J
Raypak Rocker Switch | 009493F
Raypak Rocker Switch | 009493F
Quantity:
$28.23

1-M
Raypak Pressure Switch 1.75 PSI | 006737F
Raypak Pressure Switch 1.75 PSI | 006737F
Quantity:
$47.56

1-M
Raypak Pressure Switch 11 PSI | 009133F
Raypak Pressure Switch 11 PSI | 009133F
Quantity:
$55.00

2M
Raypak Thermostat Knob | 009499F
Raypak Thermostat Knob | 009499F
Quantity:
$78.39

3-M
Raypak Knob Stop | 006886F
Raypak Knob Stop | 006886F
Quantity:
$13.65

4M
Raypak Dial Plate | 901768
Raypak Dial Plate | 901768
Quantity:
$18.44

5-M
Raypak Pressure Relief Valve 125 PSI | 008091F
Raypak Pressure Relief Valve 125 PSI | 008091F
Quantity:
$66.04

6-M
Raypak Deliming Kit | 052871F
Raypak Deliming Kit | 052871F
Quantity:
$230.88

7M
Raypak Wire Harness DSI | 011608F
Raypak Wire Harness DSI | 011608F
Quantity:
$73.55

8M
Raypak Line Cord | 011609F
Raypak Line Cord | 011609F
Quantity:
$34.07

9-M
Raypak Thermal Fuse | 005899F
Raypak Thermal Fuse | 005899F
Quantity:
$39.71

10-M
Raypak Touch-Up Paint | Green | 750125
Raypak Touch-Up Paint | Green | 750125
Quantity:
$43.22

10-M
Raypak Touch-Up Paint | Dark Grey | 750126
Raypak Touch-Up Paint | Dark Grey | 750126
Quantity:
$67.85

7-P
Raypak Ignitor Kit 130K BTU Heaters DS1130 | 011611F
Raypak Ignitor Kit 130K BTU Heaters DS1130 | 011611F
Quantity:
$45.02

8-P
Raypak High Tension Wire | 130A DSI Units | Green | 011612F
Raypak High Tension Wire | 130A DSI Units | Green | 011612F
Quantity:
$26.63

1-R
Raypak Refractory Kit 130A | 011613F
Raypak Refractory Kit 130A | 011613F
Quantity:
$229.69

2-R
Raypak Refractory Retainer Kit | 011614F
Raypak Refractory Retainer Kit | 011614F
Quantity:
$140.71

1-S
Raypak Jacket Top 130A | Green | 011615F
Raypak Jacket Top 130A | Green | 011615F
Quantity:
$58.63

2-S
Raypak Jacket 130A | Left Side Panel | Green | 011617F
Raypak Jacket 130A | Left Side Panel | Green | 011617F
Quantity:
$94.55

3-S
Raypak Jacket 130A | Right Side Panel | Green | 011619F
Raypak Jacket 130A | Right Side Panel | Green | 011619F
Quantity:
$94.55

4-S
Raypak Jacket for CHX 750 Condensing Heat Exchanger | Rear Side Panel | 011621F
Raypak Jacket for CHX 750 Condensing Heat Exchanger | Rear Side Panel | 011621F
Quantity:
$88.28

5-S
Raypak Flue Collector | 130A Heater | 011623F
Raypak Flue Collector | 130A Heater | 011623F
Quantity:
$112.93

6-S
Raypak 130A Heater Door Assembly | Green | 011624F
Raypak 130A Heater Door Assembly | Green | 011624F
Quantity:
$125.52

7-S
Raypak Access Panels | Green | 011626F
Raypak Access Panels | Green | 011626F
Quantity:
$60.65

8-S
Raypak Control Panel | Green | 011628F
Raypak Control Panel | Green | 011628F
Quantity:
$70.76

9-S
Raypak Rheem Poolstat Thermostat Cover and Lock Kit | 55K BTU Models | 006492
Raypak Rheem Poolstat Thermostat Cover and Lock Kit | 55K BTU Models | 006492
Quantity:
$50.65

1-V
Raypak Outdoor Stackless Top | Green | 011630F
Raypak Outdoor Stackless Top | Green | 011630F
Quantity:
$157.19

2-V
Raypak Pagoda Top | Green | 010334
Raypak Pagoda Top | Green | 010334
Quantity:
$55.82

3-V
Raypak Indoor Drafthood Heater Stacktop for Versa 130A 155A Model Heaters | 003723
Raypak Indoor Drafthood Heater Stacktop for Versa 130A 155A Model Heaters | 003723
Quantity:
$85.08
