Home Raypak Raytherm P514 Commercial Swimming Pool Heater without Top | Propane Gas 511,500 BTUH | 001401 Parts

Raypak Raytherm P514 Commercial Swimming Pool Heater without Top | Propane Gas 511,500 BTUH | 001401 Parts

Back to Product

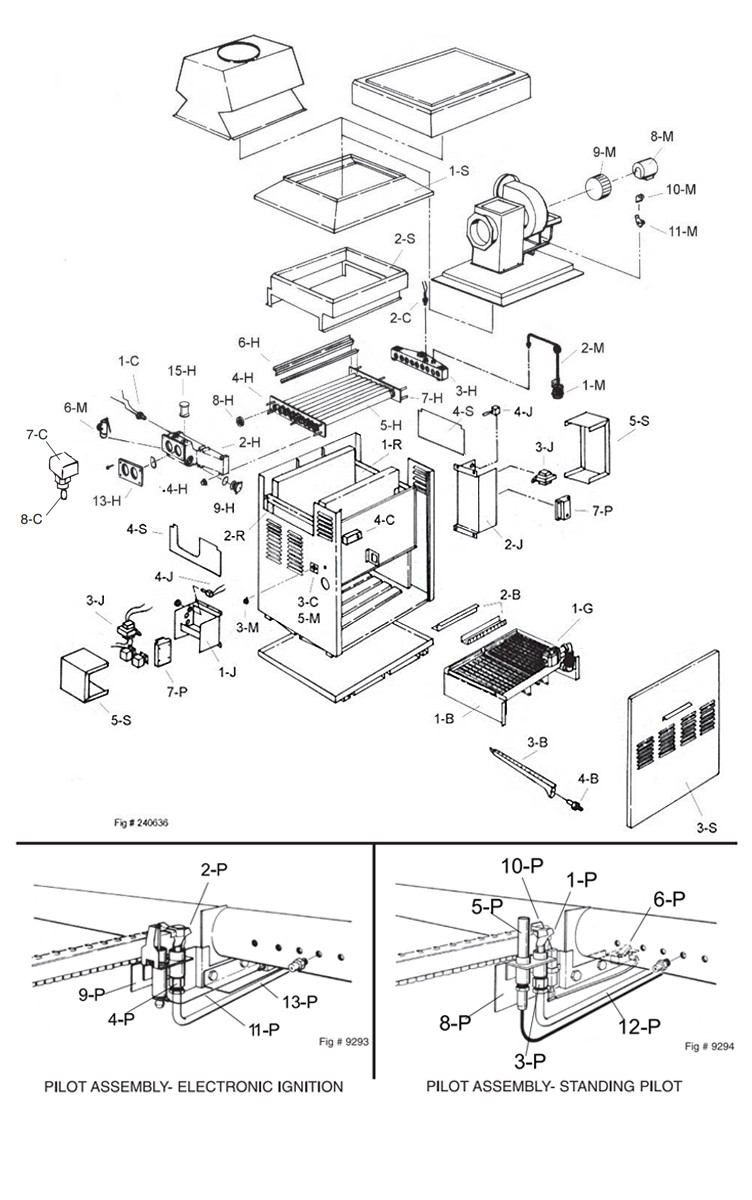

Raypak Raytherm P514 Commercial Swimming Pool Heater without Top | Propane Gas 511,500 BTUH | 001401 Parts Schematic
1-B
Raypak Burner Tray with Burners | 001853F
Raypak Burner Tray with Burners | 001853F
Quantity:
$1,082.81

1-B
Raypak Burner Tray without Burners | 001865F
Raypak Burner Tray without Burners | 001865F
Quantity:
$837.45

2-B
Raypak Burner Spacer Hold Down Bracket Kit | 001877F
Raypak Burner Spacer Hold Down Bracket Kit | 001877F
Quantity:
$130.11

3-B
Raypak Stainless Steel Burner | 301210
Raypak Stainless Steel Burner | 301210
A Replacement is available for this item.
This item has been discontinued.

4-B
Raypak Burner Orifice #57 | Propane Gas | 350083F
Raypak Burner Orifice #57 | Propane Gas | 350083F
Quantity:
$17.42

1-C
Raypak High Limit Switch 135 Degree - Red Epoxy | 600892B
Raypak High Limit Switch 135 Degree - Red Epoxy | 600892B
Quantity:
$41.60

2-C
Raypak Auto Reset High Limit Switch 140 Degree - Black Epoxy | 600893B
Raypak Auto Reset High Limit Switch 140 Degree - Black Epoxy | 600893B
Quantity:
$42.83

3-C
Raypak Mechanical Thermostat Control | Millivolt Units | 003346F
Raypak Mechanical Thermostat Control | Millivolt Units | 003346F
Quantity:
$125.38

4-C
Raypack High Limit with Manual Reset 40 -180 Degree F | 009554F
Raypack High Limit with Manual Reset 40 -180 Degree F | 009554F
Quantity:
$287.60

5-C
Raypak Low Water Cutoff | 006202F
Raypak Low Water Cutoff | 006202F
Quantity:
$434.97

6-C
Raypak I-6 Temperature Limiting - Max 100 Fahrenheit | 006040
Raypak I-6 Temperature Limiting - Max 100 Fahrenheit  | 006040
Quantity:
$295.96

7-C
Raypak Flow Switch | 007142F
Raypak Flow Switch | 007142F
Quantity:
$218.51

8-C
Raypak Flow Switch Paddle | 004079F
Raypak Flow Switch Paddle | 004079F
Quantity:
$89.93

8-C
Raypak Flow Switch Paddle Kit | 010026F
Raypak Flow Switch Paddle Kit | 010026F
Quantity:
$100.93

1-G
004878F GAS VALVE COMBO KIT LP 1"
004878F GAS VALVE COMBO KIT LP 1
Quantity:
$464.58

1-H
Raypak Heat Exchange | 002468F
Raypak Heat Exchange | 002468F
Quantity:
$3,648.58

2-H
002473F HEADER IN/OUT 334 - 1223BTU
002473F HEADER IN/OUT 334 - 1223BTU
Quantity:
$1,136.42

3-H
Raypak Return Header | 002491F
Raypak Return Header | 002491F
Quantity:
$388.46

4-H
Raypak ASME Metal Tube Bundle | 003163F
Raypak ASME Metal Tube Bundle | 003163F
Quantity:
$1,862.56

5-H
Raypak Heat Exchange Tube | 002387F
Raypak Heat Exchange Tube | 002387F
Quantity:
$223.70

6-H
Raypak Baffle Kit | 001618F
Raypak Baffle Kit | 001618F
Quantity:
$83.18

7-H
001051F STUD BOLT KIT MODEL 315A
001051F STUD BOLT KIT MODEL 315A
Quantity:
$94.06

8-H
Raypak Header Gasket 9-Pack 155B-C | 800086B
Raypak Header Gasket 9-Pack 155B-C | 800086B
Quantity:
$27.08

9-H
Raypak Unitherm Governor 334-824 | 002475F
Raypak Unitherm Governor 334-824 | 002475F
Quantity:
$391.66

10-H
Raypak Drain Valve 1/4 NPT | 014158F
Raypak Drain Valve 1/4 NPT | 014158F
Quantity:
$15.23

11-H
Raypak Bulb Sensor Well Kit | 007211F
Raypak Bulb Sensor Well Kit | 007211F
Quantity:
$37.37

12-H
Raypak Well Retaining Clip | 300203
Raypak Well Retaining Clip | 300203
Quantity:
$18.01

13-H
Raypak Inlet/Outlet Flange 334-824 | 002477F
Raypak Inlet/Outlet Flange 334-824 | 002477F
Quantity:
$134.90

14-H
Raypak Flange Gasket Set 2" Connections | 2-Pack | 800080B
Raypak Flange Gasket Set 2" Connections | 2-Pack | 800080B
Quantity:
$22.05

15-H
006994F BYPASS VALVE MANUAL 122 - 322
006994F BYPASS VALVE MANUAL 122 - 322
Quantity:
$206.54

1-J
Raypak J Box Propene Gas IID | 002653F
Raypak  J Box Propene Gas IID | 002653F
Quantity:
$545.43

2-J
Raypak J-Box Natural/Propane | 002479F
Raypak  J-Box Natural/Propane | 002479F
Quantity:
$578.97

3-J
Raypak Transformer 120V/240V/24V | 006736F
Raypak Transformer 120V/240V/24V | 006736F
Quantity:
$83.57

4-J
RAYPAK 650760 TOGGLE SWITCH IID UNITS
RAYPAK 650760 TOGGLE SWITCH IID UNITS
Quantity:
$13.65

4-J
RAYPAK 650761 TOGGLE SWITCH MV UNITS
RAYPAK 650761 TOGGLE SWITCH MV UNITS
Quantity:
$20.86

1-M
Raypak Heater Pressure Switch | 062237B
Raypak Heater Pressure Switch | 062237B
Quantity:
$65.09

2-M
Raypak Pressure Switch Tube Kit 334-1826 | 003273F
Raypak Pressure Switch Tube Kit 334-1826 | 003273F
Quantity:
$138.11

3-M
Raypak Thermostat Knob Kit 47 | 006885F
Raypak Thermostat Knob Kit 47 | 006885F
Quantity:
$34.18

4-M
Raypak Knob Stop | 006886F
Raypak Knob Stop | 006886F
Quantity:
$39.86

5-M
Zodiac Gray Float for Polaris 65/165 Float Hose | 6-222-00
Zodiac Gray Float for Polaris 65/165 Float Hose | 6-222-00
Quantity:
$11.44

6-M
Raypak Pressure Relief Valve 125 PSI | 261-401 & 263-403 | 007224F
Raypak Pressure Relief Valve 125 PSI | 261-401 & 263-403 | 007224F
Quantity:
$92.70

7-M
Raypak Deliming Kit | 052870F
Raypak Deliming Kit | 052870F
Quantity:
$368.74

8-M
Raypak Power Vent Motor Kit | 951105F
Raypak Power Vent Motor Kit | 951105F
Quantity:
$2,213.93

9-M
Raypak Power Vent Wheel | 951106F
Raypak Power Vent Wheel | 951106F
Quantity:
$509.01

10-M
Raypak D-2 Power Vent PC Board | 005503F
Raypak D-2 Power Vent PC Board | 005503F
Quantity:
$137.66

11-M
Raypak Power Vent Pressure Switch | 601212
Raypak Power Vent Pressure Switch | 601212
Quantity:
$52.84

12-M
Raypak Touch-Up Paint | Green | 750125
Raypak Touch-Up Paint | Green | 750125
This item has been discontinued.

2-P
002235F PILOT 334-4000 E11 PRO-KIT
002235F PILOT 334-4000 E11 PRO-KIT
Quantity:
$192.07

4-P
Raypak Propane Gas Pilot Orifice | 600894
Raypak Propane Gas Pilot Orifice | 600894
Quantity:
$24.18

7-P
Raypak Electronic Ignition Control with Lockout LP Propane | 004818B
Raypak Electronic Ignition Control with Lockout LP Propane | 004818B
Quantity:
$182.55

9-P
Raypak Mounting Bracket IID | 304666
Raypak Mounting Bracket IID | 304666
Quantity:
$15.78

11-P
Raypak Ignition Wire with Wire Insulator | 064839
Raypak Ignition Wire with Wire Insulator | 064839
This item has been discontinued.

13-P
400013 PILOT TUBE ALUM 1/4"OD x .035"
400013 PILOT TUBE ALUM 1/4
Quantity:
$4.88

14-P
Raypak High Tension Wire 334-824 | 002663B
Raypak High Tension Wire 334-824 | 002663B
Quantity:
$57.31

1-R
001314F REFRACTORY RETAINER KT 510/514
001314F REFRACTORY RETAINER KT 510/514
Quantity:
$508.16

2-R
Raypak Refractory Retainer Kit | 001627F
Raypak Refractory Retainer Kit | 001627F
Quantity:
$135.81

1-S
Raypak Jacket Top | 002419F
Raypak Jacket Top | 002419F
Quantity:
$162.02

2-S
Raypak Flue Collector | 002425F
Raypak Flue Collector | 002425F
Quantity:
$748.54

3-S
Raypak Door Assembly | 001836F
Raypak Door Assembly | 001836F
Quantity:
$188.85

4-S
Raypak Access Panel Group | 001841F
Raypak Access Panel Group | 001841F
Quantity:
$109.47

5-S
Raypak Sheet Metal Junction-Box | 002668F
Raypak Sheet Metal Junction-Box | 002668F
Quantity:
$176.68

1-V
Raypak Commercial Outdoor Top for Raytherm P514 | 001103
Raypak Commercial Outdoor Top for Raytherm P514 | 001103
Quantity:
$673.60

2-V
Raypak D-10 Commercial Indoor Drafthood for Raytherm P514 | 001457
Raypak D-10 Commercial Indoor Drafthood for Raytherm P514 | 001457
Quantity:
$316.98
