Raypak Raytherm P1414 #57 Cold Run Commercial Swimming Pool Heater with H-Style Bypass and Outdoor Top | Propane Gas 1,413,000 MBTU | 012387 Parts

Back to Product

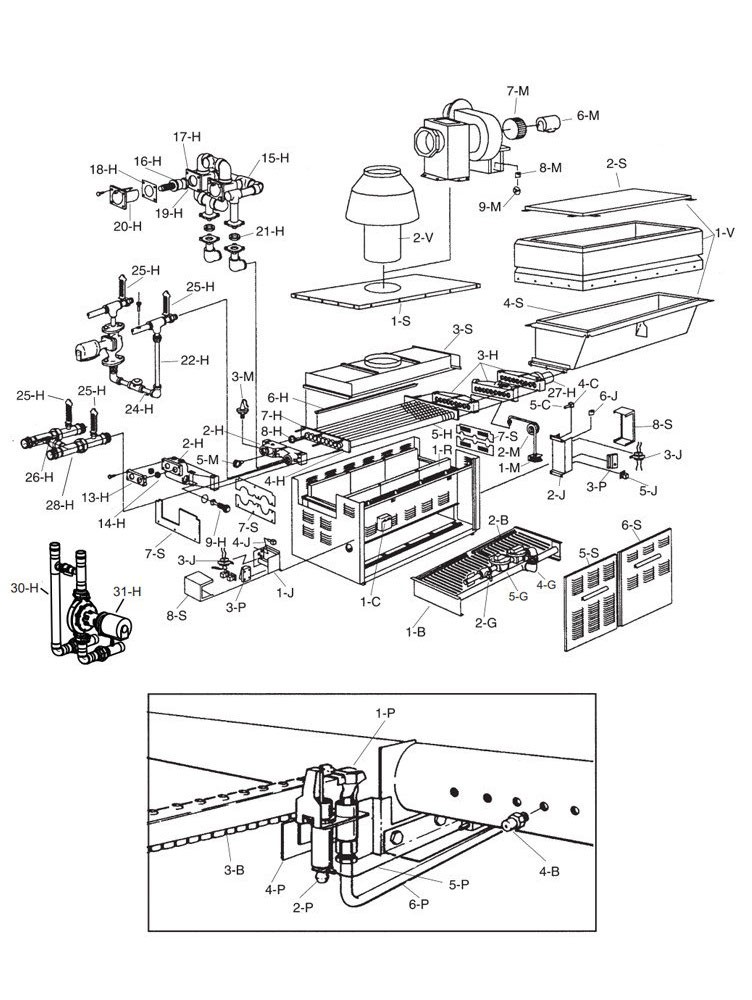

Raypak Raytherm P1414 #57 Cold Run Commercial Swimming Pool Heater with H-Style Bypass and Outdoor Top | Propane Gas 1,413,000 MBTU | 012387 Parts Schematic
1-B
Raypak Burner Tray with Burners | 002096F
Raypak Burner Tray with Burners | 002096F
Quantity:
$2,298.64

1-B
Raypak Burner Tray without Burners | 002103F
Raypak Burner Tray without Burners | 002103F
Quantity:
$1,350.42

2-B
Raypak Burner Hold Down/Spacer | 002124F
Raypak Burner Hold Down/Spacer | 002124F
Quantity:
$168.82

3-B
Raypak Stainless Steel Burner | 301210
Raypak Stainless Steel Burner | 301210
Quantity:
$13.72

4-B
Raypak Burner Orifice #57 | Propane Gas | 350083F
Raypak Burner Orifice #57 | Propane Gas | 350083F
Quantity:
$5.96

1-C
Raypak Auto Dualstat | 010863F
Raypak Auto Dualstat | 010863F
Quantity:
$334.82

1-C
Raypak Auto Reset High Limit 240 Degree F | 007141F
Raypak Auto Reset High Limit 240 Degree F | 007141F
Quantity:
$172.92

2-C
Raypack High Limit with Manual Reset 40 -180 Degree F | 009554F
Raypack High Limit with Manual Reset 40 -180 Degree F | 009554F
Quantity:
$227.50

3-C
Raypak Low Water Cutoff | 006202F
Raypak Low Water Cutoff | 006202F
Quantity:
$363.27

4-C
Raypak Flow Switch | 007142F
Raypak Flow Switch | 007142F
Quantity:
$177.52

5-C
Raypak Flow Switch Paddle | 004079F
Raypak Flow Switch Paddle | 004079F
Quantity:
$36.83

5-C
Raypak Flow Switch Paddle Kit | 010026F
Raypak Flow Switch Paddle Kit | 010026F
Quantity:
$65.59

6-C
Raypak Mechanical Thermostat Control | Millivolt Units | 003346F
Raypak Mechanical Thermostat Control | Millivolt Units | 003346F
Quantity:
$104.53

8-C
Raypak I-6 Temperature Limiting - Max 100 Fahrenheit | 006040
Raypak I-6 Temperature Limiting - Max 100 Fahrenheit  | 006040
Quantity:
$287.05

9-C
Raypak Poolstat 66-106F with Cover | 010353
Raypak Poolstat 66-106F with Cover | 010353
Quantity:
$238.19

1-G
Raypak Valve Gas Manual B Kit | 007195F
Raypak Valve Gas Manual B Kit | 007195F
Quantity:
$37.35

2-G
Raypak Manual A Valve | 007190F
Raypak Manual A Valve | 007190F
Quantity:
$98.86

3-G
Raypak LP Pilot Regulator 3/8" | 004061F
Raypak LP Pilot Regulator 3/8" | 004061F
Quantity:
$87.03

4-G
RayPak Auto On Off Valve | 004094F
RayPak Auto On Off Valve | 004094F
Quantity:
$683.44

5-G
Raypak Combination Valve | Propane | 600692
Raypak Combination Valve | Propane | 600692
Quantity:
$320.31

5-G
Raypak Pilot Gas Valve | 600562
Raypak Pilot Gas Valve | 600562
Quantity:
$78.43

1-H
Raypak Heat Exchange Assembly with Pump Heater | 006953F
Raypak Heat Exchange Assembly with Pump Heater | 006953F
Quantity:
$5,360.72

1-H
Raypak Heat Exchange Assembly without Pump Heater | 002486F
Raypak Heat Exchange Assembly without Pump Heater | 002486F
Quantity:
$4,676.43

2-H
Raypak Inlet-Outlet Header | 002216F
Raypak Inlet-Outlet Header | 002216F
Quantity:
$805.81

3-H
002492F (ASME) RETURN HEADER 1287-1826BR
002492F (ASME) RETURN HEADER 1287-1826BR
Quantity:
$1,011.52

3-H
Raypak Return Pump Heater | 002224F
Raypak Return Pump Heater | 002224F
Quantity:
$986.56

4-H
Raypak Tube Bundle ASME | 002198F
Raypak Tube Bundle ASME | 002198F
Quantity:
$3,805.26

5-H
Raypak Heat Exchange Tube | 002212F
Raypak Heat Exchange Tube | 002212F
Quantity:
$534.24

6-H
Raypak Bafle Kit | 001524F
Raypak Bafle Kit | 001524F
Quantity:
$202.29

7-H
001051F STUD BOLT KIT MODEL 315A
001051F STUD BOLT KIT MODEL 315A
Quantity:
$76.47

7-H
Raypak Stud Bolt Kit with Pump Header | 001527F
Raypak Stud Bolt Kit with Pump Header | 001527F
Quantity:
$61.97

8-H
Raypak Gasket Set for Header | 9 Gaskets Included | 800001B
Raypak Gasket Set for Header | 9 Gaskets Included | 800001B
Quantity:
$31.70

11-H
350338 350338 SENSOR WELL 1/2" RAY
350338 350338 SENSOR WELL 1/2
Quantity:
$17.40

12-H
Raypak Well Retaining Clip | 300203
Raypak Well Retaining Clip | 300203
Quantity:
$8.63

17-H
Raypak O-Ring | 005893F
Raypak O-Ring | 005893F
Quantity:
$10.92

21-H
Raypak Flange Gasket | 005897F
Raypak Flange Gasket | 005897F
Quantity:
$32.35

24-H
Raypak Check Valve | 501581
Raypak Check Valve | 501581
Quantity:
$50.04

25-H
600133 THERMOMETER BRASS VERTICAL
600133 THERMOMETER BRASS VERTICAL
Quantity:
$77.13

26-H
Raypak Ball Valve WOG | 501647
Raypak Ball Valve WOG | 501647
Quantity:
$76.38

27-H
Raypak Integral Pump 4.25" Impeller 115V | 004844F
Raypak Integral Pump 4.25" Impeller 115V | 004844F
Quantity:
$1,048.42

28-H
Raypak Bypass Plumbing Assembly | 009507F
Raypak Bypass Plumbing Assembly | 009507F
Quantity:
$2,640.19

30-H
Raypak Bypass Plumbing Assembly | 012408F
Raypak Bypass Plumbing Assembly | 012408F
Quantity:
$4,504.46

31-H
Raypak Pump 115V Inline 2.5in | 007348F
Raypak Pump 115V Inline 2.5in | 007348F
Quantity:
$1,721.53

32-H
Raypak Pump Flange Gasket Taco 1600 Series | 013423F
Raypak Pump Flange Gasket Taco 1600 Series | 013423F
Quantity:
$51.47

1-J
Raypak J-Box with Lockout Pro/NG | 002676F
Raypak J-Box with Lockout Pro/NG | 002676F
Quantity:
$615.29

2-J
Raypak J-Box with Lockout Pro/NG | 002230F
Raypak J-Box with Lockout Pro/NG | 002230F
Quantity:
$667.44

2-J
Raypak J-Box with Lockout and Pump Relay | 005588F
Raypak J-Box with Lockout and Pump Relay | 005588F
Quantity:
$796.53

2-J
Raypak J Box with Lockout and Pump Relay Board | 006494F
Raypak J Box with Lockout and Pump Relay Board | 006494F
Quantity:
$445.46

3-J
Raypak Transformer for Hi-Delta Series | 006533F
Raypak Transformer for Hi-Delta Series | 006533F
Quantity:
$53.28

4-J
Raypak Toggle Switch Kit (SPST) | 008079F
Raypak Toggle Switch Kit (SPST) | 008079F
Quantity:
$34.86

5-J
Raypak Relay SPDT 24V | 007377F
Raypak Relay SPDT 24V | 007377F
Quantity:
$53.28

6-J
Raypak Pump Relay PC Board | 004675F
Raypak Pump Relay PC Board | 004675F
Quantity:
$116.07

1-M
Raypak Heater Pressure Switch | 062237B
Raypak Heater Pressure Switch | 062237B
Quantity:
$52.61

2-M
Raypak Pressure Switch Tube Kit 334-1826 | 003273F
Raypak Pressure Switch Tube Kit 334-1826 | 003273F
Quantity:
$120.62

3-M
Raypak Pressure Relief Valve 125 PSI | 261-401 & 263-403 | 007224F
Raypak Pressure Relief Valve 125 PSI | 261-401 & 263-403 | 007224F
Quantity:
$72.96

4-M
Raypak Deliming Kit | 052870F
Raypak Deliming Kit | 052870F
Quantity:
$293.19

5-M
Raypak Temperature & Pressure Gauge Kit | 007399F
Raypak Temperature & Pressure Gauge Kit | 007399F
Quantity:
$51.93

6-M
Raypak Power Vent Motor Kit | 951112F
Raypak Power Vent Motor Kit | 951112F
Quantity:
$1,029.60

7-M
Raypak Power Vent Wheel | 951113F
Raypak Power Vent Wheel | 951113F
Quantity:
$512.10

8-M
Raypak D-2 Power Vent PC Board | 005503F
Raypak D-2 Power Vent PC Board | 005503F
Quantity:
$121.92

9-M
Raypak Power Vent Pressure Switch | 601212
Raypak Power Vent Pressure Switch | 601212
Quantity:
$45.97

10-M
Raypak Touch-Up Paint | Green | 750125
Raypak Touch-Up Paint | Green | 750125
Quantity:
$40.78

10-M
Raypak Touch-Up Paint | Dark Grey | 750126
Raypak Touch-Up Paint | Dark Grey | 750126
Quantity:
$64.46

10-M
Raypak Touch-Up Paint | Cool Dark Gray | 750256
Raypak Touch-Up Paint | Cool Dark Gray | 750256
Quantity:
$40.78

1-P
002235F PILOT 334-4000 E11 PRO-KIT
002235F PILOT 334-4000 E11 PRO-KIT
Quantity:
$153.43

2-P
Raypak Propane Gas Pilot Orifice | 600894
Raypak Propane Gas Pilot Orifice | 600894
Quantity:
$20.85

3-P
Raypak Electronic Ignition Control with Lockout LP Propane | 004818B
Raypak Electronic Ignition Control with Lockout LP Propane | 004818B
Quantity:
$147.99

4-P
Raypak Pilot Mounting Bracket 926-1826 | 004728F
Raypak Pilot Mounting Bracket 926-1826 | 004728F
Quantity:
$60.24

5-P
Raypak Ignition Wire IID | 016514F
Raypak Ignition Wire IID | 016514F
Quantity:
$69.47

6-P
400013 PILOT TUBE ALUM 1/4"OD x .035"
400013 PILOT TUBE ALUM 1/4
Quantity:
$2.86

7-P
Raypak High Tension Wire 334-824 | 002663B
Raypak High Tension Wire 334-824 | 002663B
Quantity:
$42.92

1-R
Raypak Refractory 1630/1468 Kit | 001006F
Raypak Refractory 1630/1468 Kit | 001006F
Quantity:
$646.20

2-R
Raypak Model 926-1826 Refractory Retainer Kit | 000991F
Raypak Model 926-1826 Refractory Retainer Kit | 000991F
Quantity:
$229.79

2-S
Raypak Flat Top Assembly | 002316F
Raypak Flat Top Assembly | 002316F
Quantity:
$519.83

4-S
Raypak Flue Collector | 002262F
Raypak Flue Collector | 002262F
Quantity:
$791.96

5-S
Raypak Door Assembly Left | 002283F
Raypak Door Assembly Left | 002283F
Quantity:
$270.11

6-S
Raypak Door Assembly Right | 002290F
Raypak Door Assembly Right | 002290F
Quantity:
$270.11

6-S
Raypak Door Assembly with Side Latch Brackets | 005334F
Raypak Door Assembly with Side Latch Brackets | 005334F
Quantity:
$255.05

7-S
Raypak Access Panel Group 2 1/2" with Pump Header | 002304F
Raypak Access Panel Group 2 1/2" with Pump Header | 002304F
Quantity:
$118.11

7-S
Raypak Access Panel Group 2 1/2" without Pump | 002303F
Raypak Access Panel Group 2 1/2" without Pump | 002303F
Quantity:
$118.11

8-S
Raypak Sheet Metal Junction-Box | 002668F
Raypak Sheet Metal Junction-Box | 002668F
Quantity:
$146.74

9-S
Raypak Cover for Integral Return Header Mounted Pump | 002671F
Raypak Cover for Integral Return Header Mounted Pump | 002671F
Quantity:
$132.83

10-S
Raypak Low Water Cut Off Control Cover | 016629F
Raypak Low Water Cut Off Control Cover | 016629F
Quantity:
$17.68

1-V
Raypak Stackless Top Kit | 002309F
Raypak Stackless Top Kit | 002309F
Quantity:
$2,757.40
