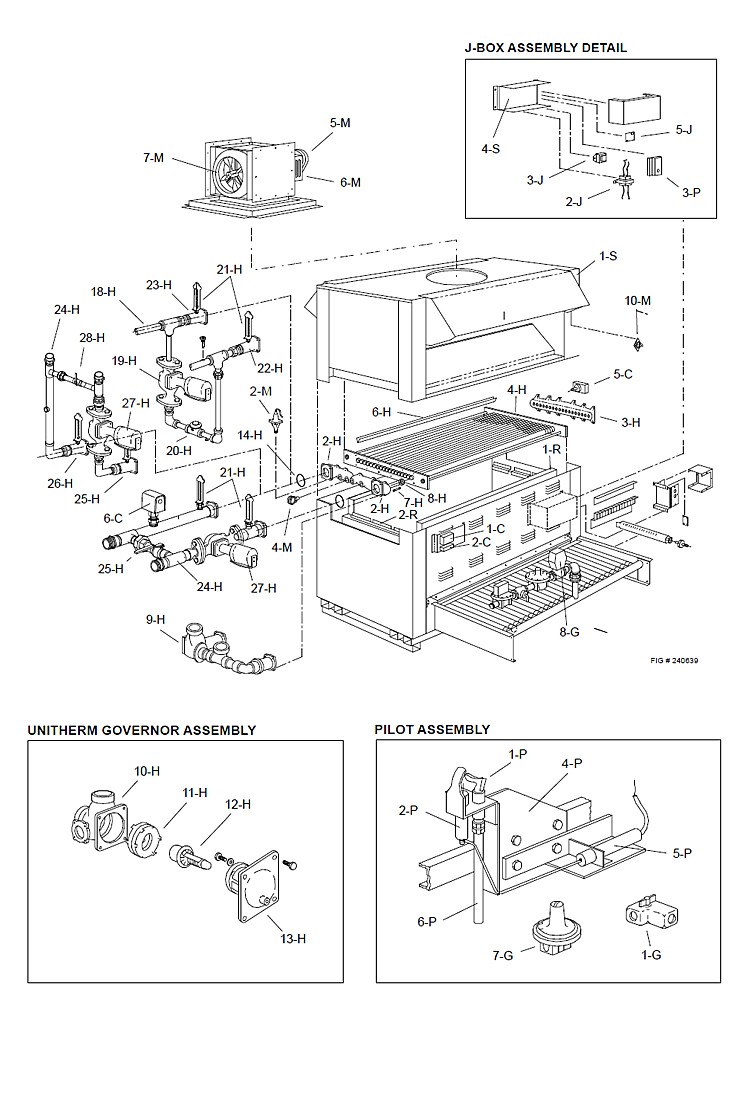

Raypak Raytherm P-2100 #17 Cold Run Commercial Indoor Swimming Pool Heater with H-Style Bypass | Natural Gas 2,100,000 BTUH | 012397 Parts Schematic
1-B
Raypak Burner Tray with Burners | 001897F
Raypak Burner Tray with Burners | 001897F
Quantity:
$2,476.86

1-B
Raypak Burner Tray without Burners | 001902F
Raypak Burner Tray without Burners | 001902F
Quantity:
$1,200.84

2-B
Raypak Burner Spacer/Hold Down Bracket | 001907F
Raypak Burner Spacer/Hold Down Bracket | 001907F
Quantity:
$252.33

3-B
Raypak Burner | 305846
Raypak Burner | 305846
Quantity:
$92.51

4-B
Raypak NG Pilot Burner Orifice #17 | 350791F
Raypak NG Pilot Burner Orifice #17 | 350791F
Quantity:
$43.22

1-C
Raypak Auto Dualstat | 010863F
Raypak Auto Dualstat | 010863F
Quantity:
$412.08

2-C
Raypack High Limit with Manual Reset 40 -180 Degree F | 009554F
Raypack High Limit with Manual Reset 40 -180 Degree F | 009554F
Quantity:
$273.90

5-C
Raypak Low Water Cutoff | 006202F
Raypak Low Water Cutoff | 006202F
Quantity:
$433.93

6-C
Raypak Flow Switch | 007142F
Raypak Flow Switch | 007142F
Quantity:
$208.09

7-C
007907F THERMOSTAT MECHANICAL 40-180^
007907F THERMOSTAT MECHANICAL 40-180^
Quantity:
$242.59

8-C
Raypak I-6 Temperature Limiting - Max 100 Fahrenheit | 006040
Raypak I-6 Temperature Limiting - Max 100 Fahrenheit  | 006040
Quantity:
$290.86

1-G
Raypak Valve Gas Manual B Kit | 007195F
Raypak Valve Gas Manual B Kit | 007195F
Quantity:
$50.25

2-G
Raypak Valve Gas Manual A Kit | 007933F
Raypak Valve Gas Manual A Kit | 007933F
Quantity:
$160.89

3-G
Raypak Auto On/Off Gas Valve 1.5" | 004095F
Raypak Auto On/Off Gas Valve 1.5" | 004095F
Quantity:
$381.38

4-G
Raypak NG Combination Valve 1.5" | 600633
Raypak NG Combination Valve 1.5" | 600633
Quantity:
$450.70

7-G
Raypak Natural Gas Pilot Regulator 3/8" | 004060F
Raypak Natural Gas Pilot Regulator 3/8" | 004060F
Quantity:
$118.83

8-G
Raypak Pilot Gas Valve | 600562 | 100-10000432
Raypak Pilot Gas Valve | 600562 | 100-10000432
Quantity:
$78.43

9-G
Raypak Pilot Gas Valve | 600562 | 100-10000432
Raypak Pilot Gas Valve | 600562 | 100-10000432
Quantity:
$78.43

1-H
Raypak Heat Exchanger Assembly | 001932F
Raypak Heat Exchanger Assembly | 001932F
Quantity:
$10,337.24

2-H
Raypak Brass 2-Pass Inlet Header | 010037F
Raypak Brass 2-Pass Inlet Header | 010037F
Quantity:
$1,172.15

3-H
Raypak Bronze 2-Pass Return Header | 001970F
Raypak Bronze 2-Pass Return Header | 001970F
Quantity:
$2,240.83

4-H
Raypak Tube Bundle | 001942F
Raypak Tube Bundle | 001942F
Quantity:
$6,353.78

5-H
Raypak Heat Exchange Tube | 001952F
Raypak Heat Exchange Tube | 001952F
Quantity:
$404.82

6-H
Raypak Baffle Kit | 001957F
Raypak Baffle Kit | 001957F
Quantity:
$328.44

7-H
Raypak Stud Bolt Kit | 001962F
Raypak Stud Bolt Kit | 001962F
Quantity:
$99.80

8-H
Raypak Header Gasket | 001054F
Raypak Header Gasket | 001054F
Quantity:
$110.80

14-H
Raypak Header Manifold O-Ring | 005891F
Raypak Header Manifold O-Ring | 005891F
Quantity:
$43.22

15-H
350338 350338 SENSOR WELL 1/2" RAY
350338 350338 SENSOR WELL 1/2
Quantity:
$20.86

16-H
Raypak Sensor Well 5/8" | 350337
Raypak Sensor Well 5/8" | 350337
Quantity:
$13.55

17-H
Raypak Well Retaining Clip | 300203
Raypak Well Retaining Clip | 300203
Quantity:
$18.01

19-H
Raypak Bypass Pump Br 1/4 HP 4.5" Impeller | 007226F | 018783F
Raypak Bypass Pump Br 1/4 HP 4.5" Impeller | 007226F | 018783F
Quantity:
$1,639.97

21-H
600133 THERMOMETER BRASS VERTICAL
600133 THERMOMETER BRASS VERTICAL
Quantity:
$91.81

22-H
Raypak Bypass Adapter-Inlet Flange | 005592F
Raypak Bypass Adapter-Inlet Flange | 005592F
Quantity:
$157.26

23-H
Raypak Bypass Adapter Outlet | 005591F
Raypak Bypass Adapter Outlet | 005591F
Quantity:
$484.35

24-H
Raypak Recirculating Assembly | 007749F
Raypak Recirculating Assembly | 007749F
Quantity:
$4,908.85

25-H
Raypak Bypass Adapter Outlet | 005591F
Raypak Bypass Adapter Outlet | 005591F
Quantity:
$484.35

26-H
Raypak Recirculating Adapter Outlet | 007866F
Raypak Recirculating Adapter Outlet | 007866F
Quantity:
$156.93

27-H
Raypak Pump In Line 2HP | 012317F
Raypak Pump In Line 2HP | 012317F
Quantity:
$2,553.72

29-H
001967F INLET/OUTLET HEADER 2100-4001
001967F INLET/OUTLET HEADER 2100-4001
Quantity:
$879.88

29-H
Raypak Flange Gasket 2" or 2 1/2" NPT | 012596F
Raypak Flange Gasket 2" or 2 1/2" NPT | 012596F
Quantity:
$46.41

30-H
Raypak Pump Flange Gasket 4 Bolt | 014000F
Raypak Pump Flange Gasket 4 Bolt | 014000F
Quantity:
$83.18

1-J
Raypak J-Box | 002614F
Raypak J-Box | 002614F
Quantity:
$960.17

1-J
Raypak J-Box with Pump Relay | 005589F
Raypak J-Box with Pump Relay | 005589F
Quantity:
$796.53

2-J
Raypak Transformer for Hi-Delta Series | 006533F
Raypak Transformer for Hi-Delta Series | 006533F
Quantity:
$64.69

3-J
Raypak Relay SPDT 24V | 007377F
Raypak Relay SPDT 24V | 007377F
Quantity:
$66.04

4-J
Raypak Toggle Switch Kit (SPST) | 008079F
Raypak Toggle Switch Kit (SPST) | 008079F
Quantity:
$40.94

4-J
Raypak Toggle Switch DPST | 650958
Raypak Toggle Switch DPST | 650958
Quantity:
$10.15

5-J
Raypak Pump Relay PC Board | 004675F
Raypak Pump Relay PC Board | 004675F
Quantity:
$139.11

1-M
Raypak Heater Pressure Switch | 062237B
Raypak Heater Pressure Switch | 062237B
Quantity:
$62.00

2-M
Raypak PRV 125 PSI | 007759F
Raypak PRV 125 PSI | 007759F
Quantity:
$221.88

3-M
Raypak Deliming Kit | 052870F
Raypak Deliming Kit | 052870F
Quantity:
$351.18

4-M
Raypak Temperature & Pressure Gauge Kit | 007399F
Raypak Temperature & Pressure Gauge Kit | 007399F
Quantity:
$63.35

5-M
Raypak Power Vent Motor | 951155F
Raypak Power Vent Motor | 951155F
This item has been discontinued.

6-M
Raypak Power Vent Motor Drive Belt | 951158F
Raypak Power Vent Motor Drive Belt | 951158F
This item has been discontinued.

7-M
Raypak Power Vent Discharge Fan | 951159F
Raypak Power Vent Discharge Fan | 951159F
This item has been discontinued.

8-M
Raypak Power Vent Shaft/Bearing Assembly | 951161F
Raypak Power Vent Shaft/Bearing Assembly | 951161F
This item has been discontinued.

9-M
Raypak D-2 Power Vent PC Board | 005503F
Raypak D-2 Power Vent PC Board | 005503F
Quantity:
$137.05

10-M
Raypak Power Vent Flue Sensor | 006433F
Raypak Power Vent Flue Sensor | 006433F
Quantity:
$47.02

11-M
Raypak Pump Contactor DPST 120VAC | 007906F
Raypak Pump Contactor DPST 120VAC | 007906F
Quantity:
$68.89

12-M
Raypak Touch-Up Paint | Green | 750125
Raypak Touch-Up Paint | Green | 750125
This item has been discontinued.

12-M
Raypak Touch-Up Paint | Dark Grey | 750126
Raypak Touch-Up Paint | Dark Grey | 750126
This item has been discontinued.

12-M
Raypak Touch-Up Paint | Cool Dark Gray | 750256
Raypak Touch-Up Paint | Cool Dark Gray | 750256
This item has been discontinued.

1-P
Raypak Pilot Pro. IID | 002084F
Raypak Pilot Pro. IID | 002084F
Quantity:
$135.23

2-P
600552F ORFICE PILOT NG
600552F ORFICE PILOT NG
This item has been discontinued.

3-P
Raypak Electronic Ignition Control with Lockout LP Propane | 004818B
Raypak Electronic Ignition Control with Lockout LP Propane | 004818B
Quantity:
$176.29

4-P
Raypak Pilot Mounting Bracket | 305847
Raypak Pilot Mounting Bracket | 305847
This item has been discontinued.

5-P
Raypak Ignition Wire IID | 016514F
Raypak Ignition Wire IID | 016514F
Quantity:
$69.47

6-P
400013 PILOT TUBE ALUM 1/4"OD x .035"
400013 PILOT TUBE ALUM 1/4
Quantity:
$4.88

7-P
Raypak High Tension Wire 334-824 | 002663B
Raypak High Tension Wire 334-824 | 002663B
Quantity:
$55.00

1-R
Raypak Refractory Kit - Insulation Brick Set | 001971F
Raypak Refractory Kit - Insulation Brick Set | 001971F
Quantity:
$912.07

2-R
Raypak Refractory Retainer Kit | 001976F
Raypak Refractory Retainer Kit | 001976F
Quantity:
$476.26

3-R
Raypak Heat Shield | 010226F
Raypak Heat Shield | 010226F
Quantity:
$55.84

1-S
Raypak Draft Hood Top Assembly | 002079F
Raypak Draft Hood Top Assembly | 002079F
Quantity:
$2,183.11
