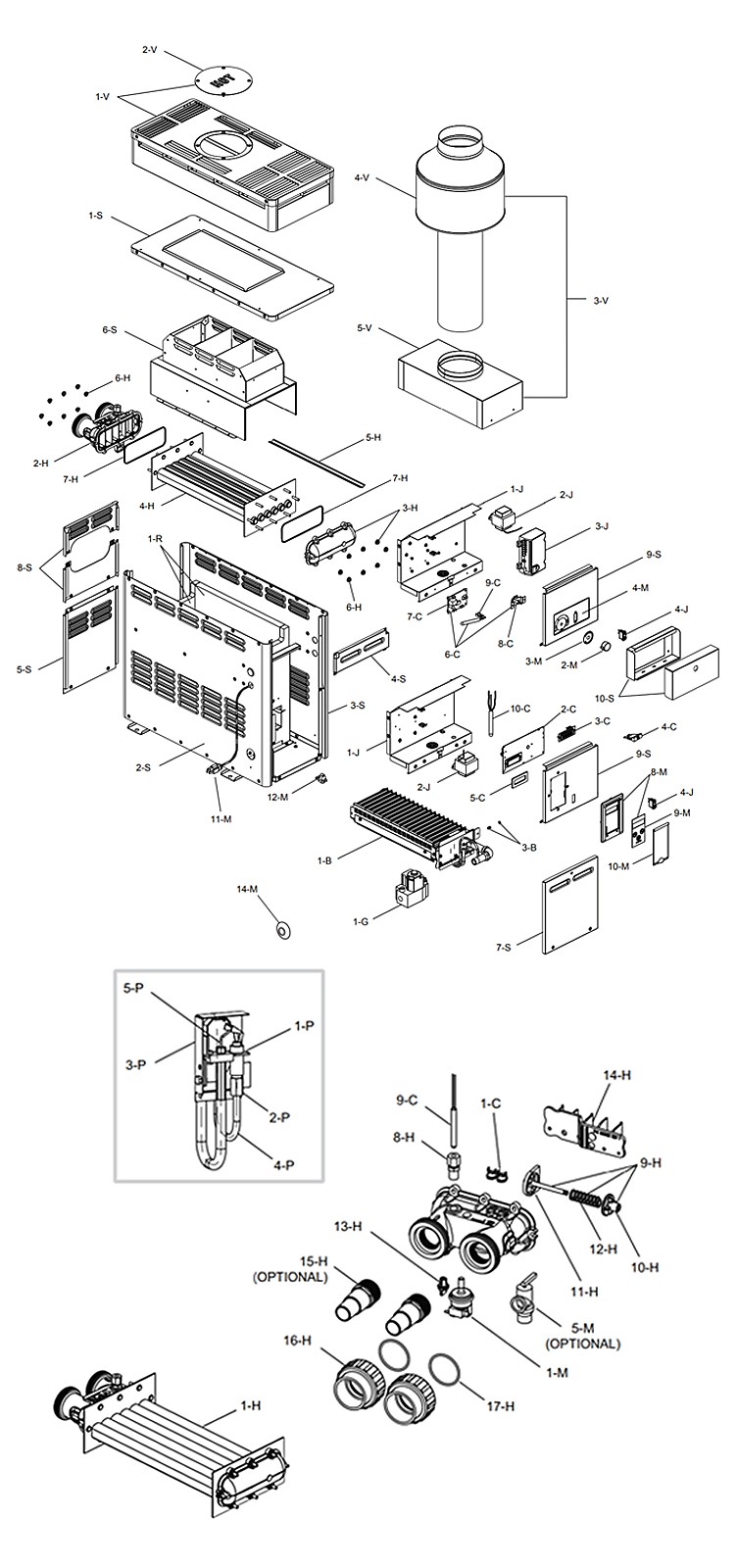

Raypak 106A Above Ground Pool & Spa Heater | Analog | Electronic Ignition | Natural Gas 105K BTU | P-M106A-AN-C 014797 | P-D106A-AN-C 014815 | P-R106A-AN-C 014779 Parts Schematic

1-B

Raypak Natural Gas Burner Tray | 014841F

1-B

Raypak Burner Tray with Natural Gas Valve | 014849F

3-B

Raypak 1.30mm Natural Gas Pilot Burner Orifice | 014857F

1-C

Raypak Auto Reset Thermostat 135 Degree Surface Mount | 006725F

6-C

Raypak Solid State Thermostat Control | DSI Units | 011585F

7-C

Raypak IID PC Board | 014923F

8-C

Raypak Potentiometer | 011586F

9-C

Raypak Temperature Sensor | 011587F

1-G

Raypak Combination Gas Valve Natural Gas 156A | 014867F

1-H

Raypak Heat Exchanger Assembly Cooper 106A Polymer Kit | 014869F

2-H

Raypak Inlet Outlet Header Assembly Complete 130K BTU | 011594F

2-H

Raypak Inlet/Outlet Header 130 | 011595F

3-H

Raypak Return Header Asembly 130K BTU | 011596F

4-H

Raypak Tube Bundle Assembly 106A BTU Heaters Copper for Polymer Heads | 014874F

6-H

Raypak Flange Nut Kit 1/4"-20 | 008259F

7-H

Raypak O-Ring Gasket Set 130K BTU Heaters | 2 Included | 011600F

8-H

Raypak Sensor Adaptor Digital Electronic | 006714F

9-H

Raypak Bypass Kit | 011601F

10-H

Raypak Bypass Valve for Capron Header Heaters | 006716F

11-H

Raypak Capron Bypass Shaft/Dam | 006717F

12-H

Raypak Bypass Spring | 011602F

13-H

Raypak Capron Drain Plug | R185A - R405A | 006721F

14-H

Raypak Inlet/Outlet Header | 014882F

15-H

Raypak 106A,156A Hose Adapter | 1.5" | 011635

16-H

Raypak 2" CPVC Connector & Nut Kit | 006723F

17-H

Raypak 2" O-Ring Kit | 006724F

1-J

Raypak Analog Control Box | 014883F

2-J

Raypak Transformer 120/240/24V | 011605F

3-J

Raypak Electronic Ignition Control with Lockout Natural Gas | 004817B

4-J

Raypak Rocker Switch | 009493F

1-M

Raypak Pressure Switch 1.75 PSI | 006737F

1-M

Raypak Pressure Switch 11 PSI | 009133F

2-M

Raypak Thermostat Knob | 009499F

3-M

Raypak Knob Stop | 006886F

4-M

Raypak Dial Plate Analog | 014912F

5-M

Raypak Pressure Relief Valve 125 PSI | 008091F

6-M

Raypak Deliming Kit | 052871F

7-M

Raypak Analog Wire Harness | 014884F

11-M

Raypak Line Cord | 011609F

12-M

Raypak Thermal Fuse | 005899F

13-M

Raypak Touch-Up Paint | Cool Dark Gray | 750256

13-M

Raypak Touch-Up Paint | Warm Dark Gray | 750258

1-P

Raypak Pilot | Natural Gas & Propane - IID Units | 002003F

2-P

Raypak Pilot Orifice | Natural Gas - IID Units | 003903F

3-P

Raypak Pilot Mounting Bracket | 014889F

4-P

Raypak Pilot Tube | 004078F

1-R

Raypak Refractory Kit | 014890F

1-S

Raypak Jacket Top | 014892F

2-S

Raypak Jacket Left Side Panel | 014894F

3-S

Raypak Jacket Right Side Panel | 014896F

4-S

Raypak Jacket Upper Front Panel | 014898F

5-S

Raypak Jacket Lower Rear Panel | 014899F

6-S

Raypak Flue Collector | 014900F

7-S

Raypak Jaket Door Panel | 014902F

8-S

Raypak Access Panel | 014904F

9-S

Raypak Control Panel Analog | 014905F

10-S

Raypak Control Cover Analog | 014778

1-V

Raypak Outdoor Stackless Top | 014907F

2-V

Raypak Access Panel | 014909F

3-V

Raypak Indoor Stack Top 106A | 6" Vent | 014357

3-V

RayPak 106A Outdoor High Wind Top | 014718

5-V

106A STACK ADAPTER | 014910F

N/A

Raypak 106A Natural Gas to Propane Conversion Kit | 014914F

N/A

Raypak 106A Propane to Natural Gas Conversion Kit for Copper Heat Exchanger | 014918F
