Home SR Smith aXs Semi Portable Basic ADA Compliant Lift with Locking Anchor and Caddy | AXS1006L Parts

SR Smith aXs Semi Portable Basic ADA Compliant Lift with Locking Anchor and Caddy | AXS1006L Parts

Back to Product

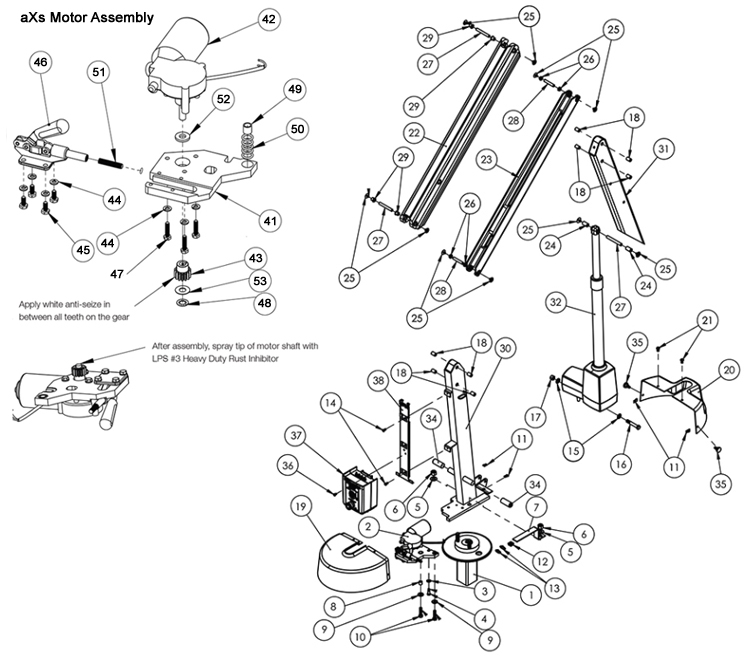

SR Smith aXs Semi Portable Basic ADA Compliant Lift with Locking Anchor and Caddy | AXS1006L Parts Schematic
1
SR Smith aXs Lift Socket Assembly | AX3600
SR Smith aXs Lift Socket Assembly | AX3600
This item has been discontinued.

2
SR Smith Motor Mount Assembly | AX3200
SR Smith Motor Mount Assembly | AX3200
This item has been discontinued.

3
SR Smith aXs Lift 5/16" 18-8 Flat Washer | 5-303
SR Smith aXs Lift 5/16" 18-8 Flat Washer | 5-303
Quantity:
$1.53

4
SR Smith aXs Lift 1/4" -20 x 5/16" Threaded & 1/2" Shoulder | 800-2044
SR Smith aXs Lift 1/4" -20 x 5/16" Threaded & 1/2" Shoulder | 800-2044
Quantity:
$8.12

5
SR Smith aXs Lift 1/2" SAE Flat Washer S/S | 2308100
SR Smith aXs Lift 1/2" SAE Flat Washer S/S | 2308100
Quantity:
$1.97

6
SR Smith 1/2-13 Nylon Nut 316SS | 800-2003
SR Smith 1/2-13 Nylon Nut 316SS | 800-2003
Quantity:
$4.57

7
SR Smith aXs Lift Housing Support Bracket | AX2010
SR Smith aXs Lift Housing Support Bracket | AX2010
Quantity:
$32.07

8
SR Smith aXs Lift Metric 5/16 ID x 1/2 Spacer | AX8860
SR Smith aXs Lift Metric 5/16 ID x 1/2 Spacer | AX8860
Quantity:
$16.05

9
SR Smith aXs Lift 3/8" Thick Flat Washer | AX8830
SR Smith aXs Lift 3/8" Thick Flat Washer | AX8830
Quantity:
$7.86

10
SR Smith aXs Lift 3/8"-16 x 1-1/2" Hex Cap Screw | AX8940
SR Smith aXs Lift 3/8"-16 x 1-1/2" Hex Cap Screw | AX8940
Quantity:
$3.03

11
SR Smith aXs Lift 1/4"-20 x 5/16" Plated U Speed Nut | AX8800
SR Smith aXs Lift 1/4"-20 x 5/16" Plated U Speed Nut | AX8800
Quantity:
$4.45

12
SR Smith aXs Lift 12 Position Terminal | 800-2033
SR Smith aXs Lift 12 Position Terminal | 800-2033
Quantity:
$19.29

13
SR Smith aXs Lift 4" Nylon Ties | 800-2037
SR Smith aXs Lift 4" Nylon Ties | 800-2037
Quantity:
$1.55

14
SR Smith aXs Lift 10-32 Pan Head Screw | 800-5071
SR Smith aXs Lift 10-32 Pan Head Screw | 800-5071
This item has been discontinued.

15
SR Smith aXs Lift 3/8" Flat Washer | 800-2024
SR Smith aXs Lift 3/8" Flat Washer | 800-2024
Quantity:
$1.64

16
SR Smith aXs Lift 3/8" -16 x 2 1/4" Hex Bolt | 800-2026
SR Smith aXs Lift  3/8" -16 x 2 1/4" Hex Bolt | 800-2026
Quantity:
$5.43

17
SR Smith aXs Lift 3/8" -16 Nylon Nut | 800-2000
SR Smith aXs Lift 3/8" -16 Nylon Nut | 800-2000
Quantity:
$3.33

18
SR Smith aXs Lift 3/4" L x 1/2" OD Sleeve Bearing | AX8350
SR Smith aXs Lift 3/4" L x 1/2" OD Sleeve Bearing | AX8350
Quantity:
$4.24

19
SR Smith aXs Lift Housing Back | AX4000
SR Smith aXs Lift Housing Back | AX4000
This item has been discontinued.

20
SR Smith aXs Lift Housing Front | AX4050
SR Smith aXs Lift Housing Front | AX4050
Quantity:
$122.96

21
SR Smith aXs Lift 1/4"-20 x 1/2" Hex Cap Screw | AX8975
SR Smith aXs Lift 1/4"-20 x 1/2" Hex Cap Screw | AX8975
Quantity:
$3.03

22
SR Smith aXs Lift Actuator Arm Finished | AX2100
SR Smith aXs Lift Actuator Arm Finished | AX2100
Quantity:
$403.87

23
SR Smith aXs Lift Support Arm Finished | AX2200
SR Smith aXs Lift Support Arm Finished | AX2200
Quantity:
$306.91

24
SR Smith aXs Lift 7/8" L x 1/2" OD Sleeve Bearing | AX5020
SR Smith aXs Lift 7/8" L x 1/2" OD Sleeve Bearing | AX5020
Quantity:
$4.24

25
SR Smith aXs Lift 1/4" OD x 1/2" Phillips Screw | AX8000
SR Smith aXs Lift 1/4" OD x 1/2" Phillips Screw | AX8000
Quantity:
$4.45

26
SR Smith aXs Lift 3/8" ID x 1/2" OD x 1/4" L Flange Bearing | AX8340
SR Smith aXs Lift 3/8" ID x 1/2" OD x 1/4" L Flange Bearing | AX8340
Quantity:
$4.45

27
SR Smith aXs Lift 2.91" Threaded Axle | AX8400
SR Smith aXs Lift 2.91" Threaded Axle | AX8400
Quantity:
$32.07

28
SR Smith aXs Lift 2.16" Threaded Axle | AX8500
SR Smith aXs Lift 2.16" Threaded Axle | AX8500
Quantity:
$29.16

29
SR Smith aXs Lift 3/8" ID x 1/2" OD x 1/2" L Flange Bearing | AX8360
SR Smith aXs Lift 3/8" ID x 1/2" OD x 1/2" L Flange Bearing | AX8360
Quantity:
$5.26

30
SR Smith aXs Lift Mast | AX2000
SR Smith aXs Lift Mast | AX2000
Quantity:
$1,134.92

31
SR Smith aXs Lift Seat Arm | AX2300
SR Smith aXs Lift Seat Arm | AX2300
Quantity:
$306.91

32
SR Smith aXs Lift 30mm Stroke Actuator | AX5001
SR Smith aXs Lift 30mm Stroke Actuator | AX5001
Quantity:
$1,215.43

34
SR Smith aXs Lift 5/16" ID Push On Cap | 800-2229
SR Smith aXs Lift 5/16" ID Push On Cap | 800-2229
Quantity:
$4.31

35
SR Smith aXs Lift Service Thumb Screw Assembly | 700-0001
SR Smith aXs Lift Service Thumb Screw Assembly | 700-0001
Quantity:
$30.71

36
SR Smith aXs Lift 10-24 x 3/8" Pan Head Torx Screw | 1001494
SR Smith aXs Lift 10-24 x 3/8" Pan Head Torx Screw | 1001494
Quantity:
$3.09

37
SR Smith 4 Button Control Unit | 1001499
SR Smith 4 Button Control Unit | 1001499
Call us to order.

38
SR Smith aXs Lift LiftOperator Mount Plate | 1001498
SR Smith aXs Lift LiftOperator Mount Plate | 1001498
Quantity:
$48.80

39
SR Smith aXs Lift Long Motor Cord Assembly | 120-1800A
SR Smith aXs Lift Long Motor Cord Assembly | 120-1800A
Quantity:
$98.79

42
SR Smith 24V Motor for Splash! Lift | 120-1100
SR Smith 24V Motor for Splash! Lift | 120-1100
Quantity:
$458.46

43
SR Smith Small Spur Gear | Plated | 800-5065
SR Smith Small Spur Gear | Plated | 800-5065
Quantity:
$123.24

44
SR Smith 1/4 Lock Washer S/S | 5-149
SR Smith 1/4 Lock Washer S/S | 5-149
Quantity:
$1.50

45
SR Smith aXs Lift 1/4-20 x 9/16 HHCS | 800-2226
SR Smith aXs Lift 1/4-20 x 9/16 HHCS | 800-2226
Quantity:
$1.50

47
SR Smith aXs Lift Metric 18-8 SS Hex Head Screw M6 Size 25mm Length 1mm Pitch Fully Threaded | 800-2225
SR Smith aXs Lift Metric 18-8 SS Hex Head Screw M6 Size 25mm Length 1mm Pitch Fully Threaded | 800-2225
Quantity:
$4.57

50
SR Smith aXs Lift O Ring 1/2 ID 11/16 OD 3/32 W | AX8950
SR Smith aXs Lift O Ring 1/2 ID 11/16 OD 3/32 W | AX8950
Quantity:
$3.03

51
SR Smith aXs Lift 5/16 Threaded Stud | 800-2227
SR Smith aXs Lift 5/16 Threaded Stud | 800-2227
Quantity:
$4.93

52
SR Smith aXs Lift Pur Flat Disc .125 Thick .825 OD | 800-8718
SR Smith aXs Lift Pur Flat Disc .125 Thick .825 OD | 800-8718
Quantity:
$15.90

53
SR Smith 3/8 Nylon Protective Washer | 05-32-111
SR Smith 3/8 Nylon Protective Washer | 05-32-111
Quantity:
$3.03
