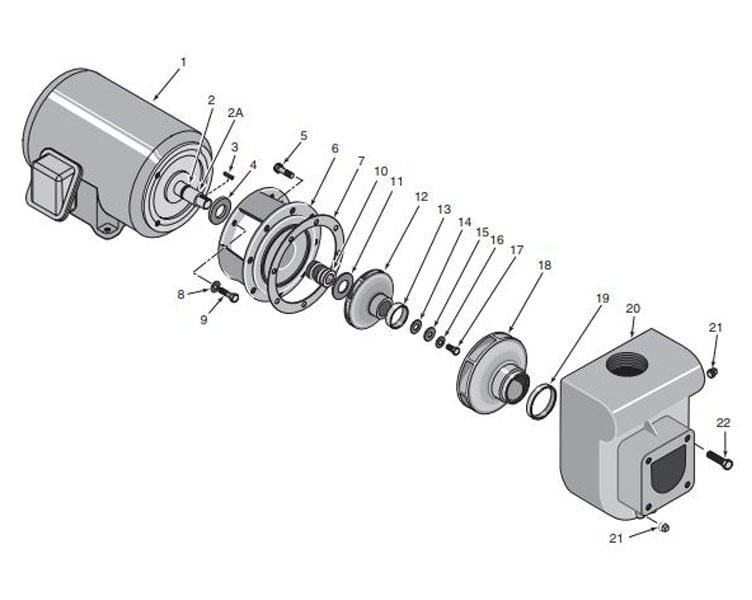

Sta-Rite D-Series 5HP Standard Efficiency Single Phase Commercial Pool Pump 230V | DMJ-172 Parts Schematic
1
Pentair D Series Motor Keyed | 5HP Single Phase 230V | C218-180
Pentair D Series Motor Keyed | 5HP Single Phase 230V | C218-180
Quantity:
$1,173.02

2
Pentair O-Ring for Shaft | U9-265
Pentair O-Ring for Shaft | U9-265
Quantity:
$6.08

2A
Pentair Shaft Sleeve D & CC/C Series | C23-58
Pentair Shaft Sleeve D & CC/C Series | C23-58
Quantity:
$122.24

3
Pentair Key Square 1 1/2" Large | U65-42A
Pentair Key Square 1 1/2" Large | U65-42A
Quantity:
$17.30

4
Pentair D Series Water Slinger | C69-15
Pentair D Series Water Slinger | C69-15
Quantity:
$17.40

5
Pentair Capscrew Hex Head | .375 - 16 X .875 | U30-73ZP
Pentair Capscrew Hex Head | .375 - 16 X .875 | U30-73ZP
This item has been discontinued.

6
Pentair D Series Motor Adapter | C2-66
Pentair D Series Motor Adapter | C2-66
Quantity:
$257.12

7
Pentair Sta-Rite Gasket for D-Series Pump Adapater Plate | C20-46
Pentair Sta-Rite Gasket for D-Series Pump Adapater Plate | C20-46
Quantity:
$16.91

8
Pentair Lockwasher 3/8" CC/C Series | U43-12ZP
Pentair Lockwasher 3/8" CC/C Series | U43-12ZP
Quantity:
$4.17

9
Pentair Capscrew Hex Head | .375 - 16 X .875 | U30-73ZP
Pentair Capscrew Hex Head | .375 - 16 X .875 | U30-73ZP
This item has been discontinued.

11
Pentair Gasket Seal 29/32"IDx1" | C20-101
Pentair Gasket Seal 29/32"IDx1" | C20-101
Quantity:
$7.12

12
Pentair C5-247 Impeller 5Hp Mh D Series
Pentair C5-247 Impeller 5Hp Mh D Series
Quantity:
$619.93

13
Pentair D Series Wear Ring | C23-14
Pentair D Series Wear Ring | C23-14
Quantity:
$38.63

14
Pentair Gasket Impeller 27/32"IDx1" | C20-100
Pentair Gasket Impeller 27/32"IDx1" | C20-100
Quantity:
$7.12

15
Pentair Washer for Impeller 13/32"IDx1" | C43-45SS
Pentair Washer for Impeller 13/32"IDx1" | C43-45SS
Quantity:
$10.44

16
Pentair Washer Stat-O-Seal 600-100 | C43-46
Pentair Washer Stat-O-Seal 600-100 | C43-46
Quantity:
$11.57

17
Pentair Capscrew Hex Head 3/8"-16x3/4" | U30-72SS
Pentair Capscrew Hex Head 3/8"-16x3/4" | U30-72SS
Quantity:
$8.84

18
Pentair Volute Diffuser with Wear Ring | C101-126B
Pentair Volute Diffuser with Wear Ring | C101-126B
Quantity:
$157.25

19
Pentair O-Ring for Diffuser | C21-2
Pentair O-Ring for Diffuser | C21-2
Quantity:
$11.99

20
Pentair D Series Body with Capscrew 2" NPT | C76-12C
Pentair D Series Body with Capscrew 2" NPT | C76-12C
Quantity:
$661.19

21
Pentair .25" NPT Hex Head Pipe Plug | U78-941ZPV
Pentair .25" NPT Hex Head Pipe Plug | U78-941ZPV
Quantity:
$4.53

22
Pentair 5/16-18 x .75" Hex Cap Screw | U30-60ZP
Pentair 5/16-18 x .75" Hex Cap Screw | U30-60ZP
Quantity:
$4.07
