Home Sta-Rite Dyna Glas Uprated Pool Pump | 2.0HP 230V | MPRA6G-155L Parts

Sta-Rite Dyna Glas Uprated Pool Pump | 2.0HP 230V | MPRA6G-155L Parts

Back to Product

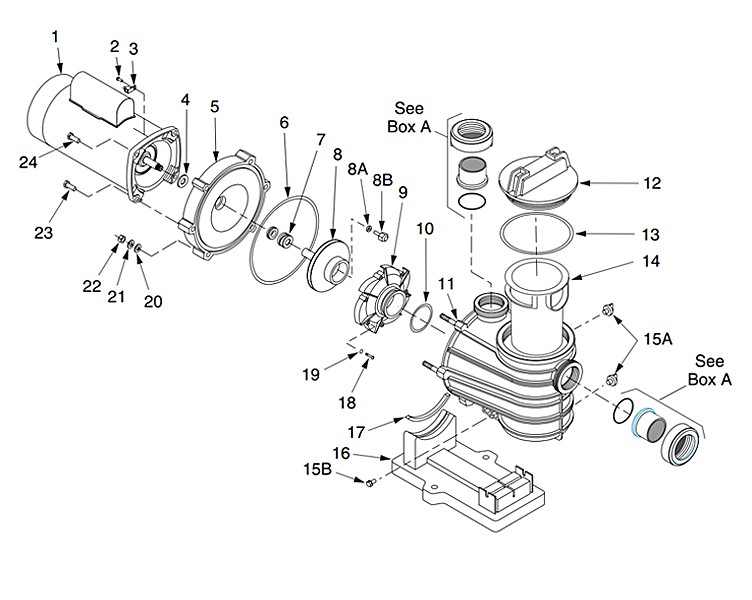

Sta-Rite Dyna Glas Uprated Pool Pump | 2.0HP 230V | MPRA6G-155L Parts Schematic
1
Pentair 2HP Square Flange Up Rated Motor | 230 V 60 Hz | A100GLL
Pentair 2HP Square Flange Up Rated Motor | 230 V 60 Hz | A100GLL
This item has been discontinued.

2
Pentair Stainless Steel Ground Screw | 10-32 x .5" | U30-692SS
Pentair Stainless Steel Ground Screw | 10-32 x .5" | U30-692SS
Quantity:
$5.93

3
Pentair Grounding/Bonding Lug | U17-568
Pentair Grounding/Bonding Lug | U17-568
Quantity:
$16.31

4
Sta-Rite Motor Shaft Water Slinger | 17351-0009
Sta-Rite Motor Shaft Water Slinger | 17351-0009
Quantity:
$5.23

5
Pentair DYNA-GLAS/MAX Seal Plate | C3-184P
Pentair DYNA-GLAS/MAX Seal Plate | C3-184P
Quantity:
$111.57

6
Pentair Seal Plate O-Ring | U9-373 U9-373Z
Pentair Seal Plate O-Ring | U9-373 U9-373Z
Quantity:
$10.57

7
Pentair Shaft Seal Buna | 37400-0027S
Pentair Shaft Seal Buna | 37400-0027S
A Replacement is available for this item.
This item has been discontinued.

8
Pentair Dyna-Glas Impeller 2HP Full Rate | C105-236PDA
Pentair Dyna-Glas Impeller 2HP Full Rate | C105-236PDA
Quantity:
$48.47

8A
Pentair Impeller Reverse Screw O-Ring Metric Gasket Ring | 33455-1047
Pentair Impeller Reverse Screw O-Ring Metric Gasket Ring | 33455-1047
This item has been discontinued.

8B
Pentair Impeller Lock Screw | 37337-6080
Pentair Impeller Lock Screw | 37337-6080
Quantity:
$25.75

9
Pentair Dyna-Glas Dyna-Pro Diffuser | 1.5HP UR 2.5HP UR | C1-270P
Pentair Dyna-Glas Dyna-Pro Diffuser | 1.5HP UR 2.5HP UR | C1-270P
Quantity:
$35.02

10
Pentair O-Ring Diffuser | U9-374 U9-374Z
Pentair O-Ring Diffuser | U9-374 U9-374Z
Quantity:
$11.26

11
Pentair Tank and Trap Body | C76-58P
Pentair Tank and Trap Body | C76-58P
Quantity:
$210.96

11A
Pentair Tank and Trap Body Assembly | C176-71P
Pentair Tank and Trap Body Assembly | C176-71P
Quantity:
$302.85

12
Sta-Rite Trap Cover 6" | C3-185P
Sta-Rite Trap Cover 6" | C3-185P
Quantity:
$62.09

13
Pentair Trap Cover O-Ring | U9-375
Pentair Trap Cover O-Ring | U9-375
Quantity:
$22.11

14
Pentair Max-E-Pro Basket Strainer Trap | C8-58P | C8-58PZ
Pentair Max-E-Pro Basket Strainer Trap | C8-58P | C8-58PZ
Quantity:
$25.90

15A
Pentair Multiport Valve Drain Plug With O-Ring | U178-920P U178-920PZ
Pentair Multiport Valve Drain Plug With O-Ring | U178-920P U178-920PZ
Quantity:
$16.57

15B
Pentair Mounting Screw | U30-919SS
Pentair Mounting Screw | U30-919SS
Quantity:
$9.09

16
Pentair Dyna-Jet Plastic Pump Base Plastic | C4-77P
Pentair Dyna-Jet Plastic Pump Base Plastic | C4-77P
Quantity:
$50.52

17
Pentair Plastic Base Motor Pad | C35-45
Pentair Plastic Base Motor Pad | C35-45
Quantity:
$9.37

18
Pentair 8-32 x 7/8" Stainless Steel Round Head Diffuser Capscrew | U30-542SS
Pentair 8-32 x 7/8" Stainless Steel Round Head Diffuser Capscrew | U30-542SS
Quantity:
$5.60

19
Pentair #8 External Tooth Lock Washer | U43-21SS
Pentair #8 External Tooth Lock Washer | U43-21SS
Quantity:
$5.11

20
Pentair Flat Washer | 3/8" NOM 1 X .438 X .083S | U43-62SS
Pentair Flat Washer | 3/8" NOM 1 X .438 X .083S | U43-62SS
Quantity:
$4.82

21
Pentair Split Lock Washer | 3/8" | U43-12SS
Pentair Split Lock Washer | 3/8" | U43-12SS
Quantity:
$6.25

22
Pentair 3/8-16 Hex Head Nut | U36-38SS
Pentair 3/8-16 Hex Head Nut | U36-38SS
Quantity:
$6.09

24
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Quantity:
$9.09
