Home Sta-Rite Dyna-Pro E 1HP Energy Efficient Pool Pump Full Rated 115V 230V | MPE6E-206L Parts

Sta-Rite Dyna-Pro E 1HP Energy Efficient Pool Pump Full Rated 115V 230V | MPE6E-206L Parts

Back to Product

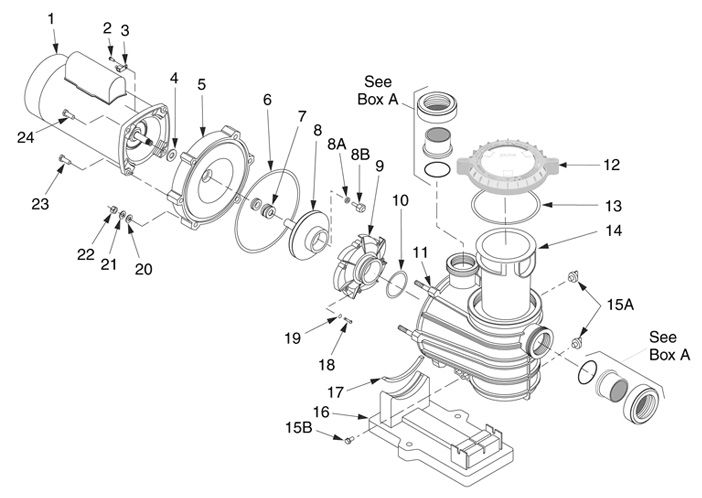

Sta-Rite Dyna-Pro E 1HP Energy Efficient Pool Pump Full Rated 115V 230V | MPE6E-206L Parts Schematic
1
Pentair Square Flange Motor | 1HP Energy Efficient | Full-Rated | 115V-230V | AE100EHL
Pentair Square Flange Motor | 1HP Energy Efficient | Full-Rated | 115V-230V | AE100EHL
Quantity:
$378.36

2
Pentair Stainless Steel Ground Screw | 10-32 x .5" | U30-692SS
Pentair Stainless Steel Ground Screw | 10-32 x .5" | U30-692SS
Quantity:
$5.48

3
Pentair Grounding/Bonding Lug | U17-568
Pentair Grounding/Bonding Lug | U17-568
Quantity:
$15.76

4
Sta-Rite Motor Shaft Water Slinger | 17351-0009
Sta-Rite Motor Shaft Water Slinger | 17351-0009
Quantity:
$5.11

5
Pentair DYNA-GLAS/MAX Seal Plate | C3-184P
Pentair DYNA-GLAS/MAX Seal Plate | C3-184P
Quantity:
$111.18

6
Pentair Seal Plate O-Ring | U9-373 U9-373Z
Pentair Seal Plate O-Ring | U9-373 U9-373Z
Quantity:
$10.57

7
Pentair Shaft Seal Buna | 37400-0027S
Pentair Shaft Seal Buna | 37400-0027S
A Replacement is available for this item.
This item has been discontinued.

8
Pentair Dyna/Max-Glas Impeller 1HP | C105-236PB
Pentair Dyna/Max-Glas Impeller 1HP | C105-236PB
Quantity:
$46.76

9
Pentair Diffuser 1HP Dyna-Glas/Max | C1-270PC
Pentair Diffuser 1HP Dyna-Glas/Max | C1-270PC
Quantity:
$33.81

10
Pentair O-Ring Diffuser | U9-374 U9-374Z
Pentair O-Ring Diffuser | U9-374 U9-374Z
Quantity:
$10.86

10
Pentair Diffuser O-Ring | Blue Coating | 357098Z
Pentair Diffuser O-Ring | Blue Coating | 357098Z
Quantity:
$8.20

11
Pentair Dyna-Pro Tank and Trap Body Only | C76-71P
Pentair Dyna-Pro Tank and Trap Body Only | C76-71P
Quantity:
$227.28

12
Pentair Trap Cover Assembly Kit | 17307-0111S
Pentair Trap Cover Assembly Kit | 17307-0111S
Quantity:
$68.24

13
Pentair Trap Cover O-Ring | 35505-1440
Pentair Trap Cover O-Ring | 35505-1440
Quantity:
$23.92

14
Pentair Max-E-Pro Basket Strainer Trap | C8-58P | C8-58PZ
Pentair Max-E-Pro Basket Strainer Trap | C8-58P | C8-58PZ
Quantity:
$24.99

15A
Pentair Multiport Valve Drain Plug With O-Ring | U178-920P U178-920PZ
Pentair Multiport Valve Drain Plug With O-Ring | U178-920P U178-920PZ
Quantity:
$15.99

15B
Pentair Mounting Screw | U30-919SS
Pentair Mounting Screw | U30-919SS
Quantity:
$8.75

16
Pentair Dyna-Jet Plastic Pump Base Plastic | C4-77P
Pentair Dyna-Jet Plastic Pump Base Plastic | C4-77P
Quantity:
$48.98

17
Pentair Plastic Base Motor Pad | C35-45
Pentair Plastic Base Motor Pad | C35-45
Quantity:
$9.06

18
Pentair 8-32 x 7/8" Stainless Steel Round Head Diffuser Capscrew | U30-542SS
Pentair 8-32 x 7/8" Stainless Steel Round Head Diffuser Capscrew | U30-542SS
Quantity:
$5.93

19
Pentair #8 External Tooth Lock Washer | U43-21SS
Pentair #8 External Tooth Lock Washer | U43-21SS
Quantity:
$4.62

20
Pentair Flat Washer | 3/8" NOM 1 X .438 X .083S | U43-62SS
Pentair Flat Washer | 3/8" NOM 1 X .438 X .083S | U43-62SS
Quantity:
$4.62

21
Pentair Split Lock Washer | 3/8" | U43-12SS
Pentair Split Lock Washer | 3/8" | U43-12SS
Quantity:
$5.69

22
Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403
Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403
Quantity:
$4.16

23
Pentair Cap Screw Hex | 3/8-16 X 1-1/4" | U30-75SS
Pentair Cap Screw Hex | 3/8-16 X 1-1/4" | U30-75SS
Quantity:
$5.86

24
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Quantity:
$8.75
