Sta-Rite Dyna-Pro E 2HP Energy Efficient 2-Speed Pool Pump Up Rated 230V | MPEA6YG-207L Parts

Back to Product

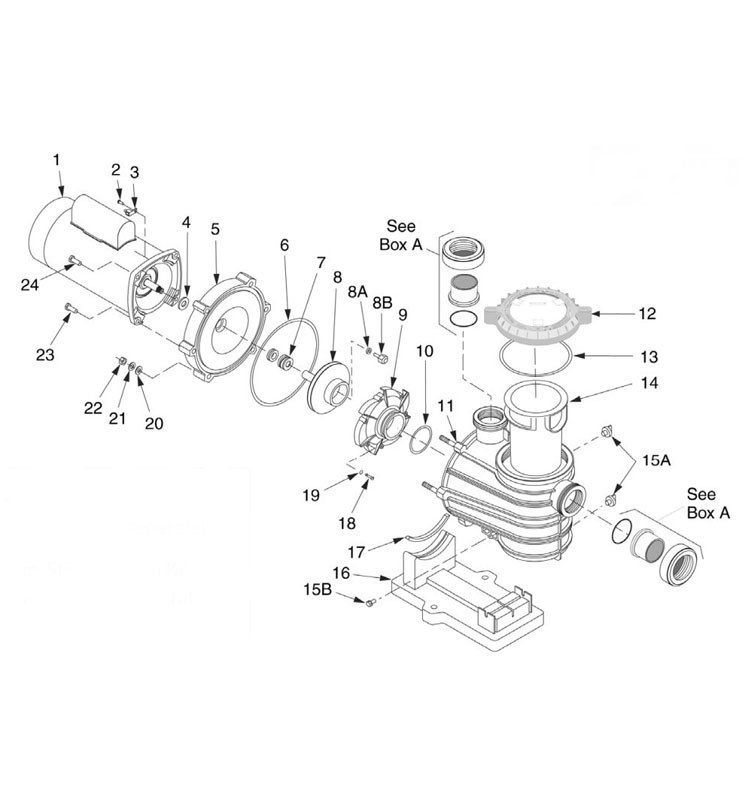

Sta-Rite Dyna-Pro E 2HP Energy Efficient 2-Speed Pool Pump Up Rated 230V | MPEA6YG-207L Parts Schematic
1
Pentair Replacement Motor | 2HP 2-Speed | 48 Frame Up-Rated | 230V | AE100GLL-Y
Pentair Replacement Motor | 2HP 2-Speed | 48 Frame Up-Rated | 230V | AE100GLL-Y
Quantity:
$538.90

2
Pentair Stainless Steel Ground Screw | 10-32 x .5" | U30-692SS
Pentair Stainless Steel Ground Screw | 10-32 x .5" | U30-692SS
Quantity:
$5.36

3
Pentair Grounding/Bonding Lug | U17-568
Pentair Grounding/Bonding Lug | U17-568
Quantity:
$15.27

4
Sta-Rite Motor Shaft Water Slinger | 17351-0009
Sta-Rite Motor Shaft Water Slinger | 17351-0009
Quantity:
$4.95

5
Pentair DYNA-GLAS/MAX Seal Plate | C3-184P
Pentair DYNA-GLAS/MAX Seal Plate | C3-184P
Quantity:
$107.94

6
Pentair Seal Plate O-Ring | U9-373 U9-373Z
Pentair Seal Plate O-Ring | U9-373 U9-373Z
Quantity:
$10.57

7
Pentair Shaft Seal Dyna-Jet TPE Series | 17351-0101S
Pentair Shaft Seal Dyna-Jet TPE Series | 17351-0101S
Quantity:
$30.81

8
Pentair Dyna-Glas Impeller 2HP Full Rate | C105-236PDA
Pentair Dyna-Glas Impeller 2HP Full Rate | C105-236PDA
Quantity:
$45.42

9
Pentair Dyna-Glas Dyna-Pro Diffuser | 1.5HP UR 2.5HP UR | C1-270P
Pentair Dyna-Glas Dyna-Pro Diffuser | 1.5HP UR 2.5HP UR | C1-270P
Quantity:
$32.81

10
Pentair Diffuser O-Ring | Blue Coating | 357098Z
Pentair Diffuser O-Ring | Blue Coating | 357098Z
Quantity:
$8.20

10
Pentair O-Ring Diffuser | U9-374 U9-374Z
Pentair O-Ring Diffuser | U9-374 U9-374Z
Quantity:
$7.83

11
Pentair Dyna-Pro Tank and Trap Body Only | C76-71P
Pentair Dyna-Pro Tank and Trap Body Only | C76-71P
Quantity:
$220.66

12
Pentair Trap Cover Assembly Kit | 17307-0111S
Pentair Trap Cover Assembly Kit | 17307-0111S
Quantity:
$66.27

13
Pentair Trap Cover O-Ring | 35505-1440
Pentair Trap Cover O-Ring | 35505-1440
Quantity:
$23.72

14
Pentair Trap Basket Max-E-Pro | C8-58P C8-58PZ
Pentair Trap Basket Max-E-Pro | C8-58P C8-58PZ
Quantity:
$14.23

15A
Pentair Multiport Valve Drain Plug With O-Ring | U178-920P U178-920PZ
Pentair Multiport Valve Drain Plug With O-Ring | U178-920P U178-920PZ
Quantity:
$5.71

15B
Pentair Mounting Screw | U30-919SS
Pentair Mounting Screw | U30-919SS
Quantity:
$8.48

16
Pentair Dyna-Jet Plastic Pump Base Plastic | C4-77P
Pentair Dyna-Jet Plastic Pump Base Plastic | C4-77P
Quantity:
$47.57

17
Pentair Plastic Base Motor Pad | C35-45
Pentair Plastic Base Motor Pad | C35-45
Quantity:
$8.78

18
Pentair 8-32 x 7/8" Stainless Steel Round Head Diffuser Capscrew | U30-542SS
Pentair 8-32 x 7/8" Stainless Steel Round Head Diffuser Capscrew | U30-542SS
Quantity:
$5.73

19
Pentair #8 External Tooth Lock Washer | U43-21SS
Pentair #8 External Tooth Lock Washer | U43-21SS
Quantity:
$4.53

20
Pentair Flat Washer | 3/8" NOM 1 X .438 X .083S | U43-62SS
Pentair Flat Washer | 3/8" NOM 1 X .438 X .083S | U43-62SS
Quantity:
$4.53

8A
Pentair Impeller Reverse Screw O-Ring Metric Gasket Ring | 33455-1047
Pentair Impeller Reverse Screw O-Ring Metric Gasket Ring | 33455-1047
Quantity:
$10.87

8B
Pentair Impeller Lock Screw | 37337-6080
Pentair Impeller Lock Screw | 37337-6080
Quantity:
$24.10

21
Pentair Split Lock Washer | 3/8" | U43-12SS
Pentair Split Lock Washer | 3/8" | U43-12SS
Quantity:
$6.26

22
Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403
Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403
Quantity:
$4.98

23
Pentair Cap Screw Hex | 3/8-16 X 1-1/4" | U30-75SS
Pentair Cap Screw Hex | 3/8-16 X 1-1/4" | U30-75SS
Quantity:
$5.73

24
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Quantity:
$8.51

BoxA
Pentair 2" Valve Union Adapter Assembly | U11-199P
Pentair 2" Valve Union Adapter Assembly | U11-199P
Quantity:
$17.38
