Home Sta-Rite SuperMax 1.5HP High Performance Energy Efficient Pool Pump | 208-230V | PHK2E6F-103L Parts

Sta-Rite SuperMax 1.5HP High Performance Energy Efficient Pool Pump | 208-230V | PHK2E6F-103L Parts

Back to Product

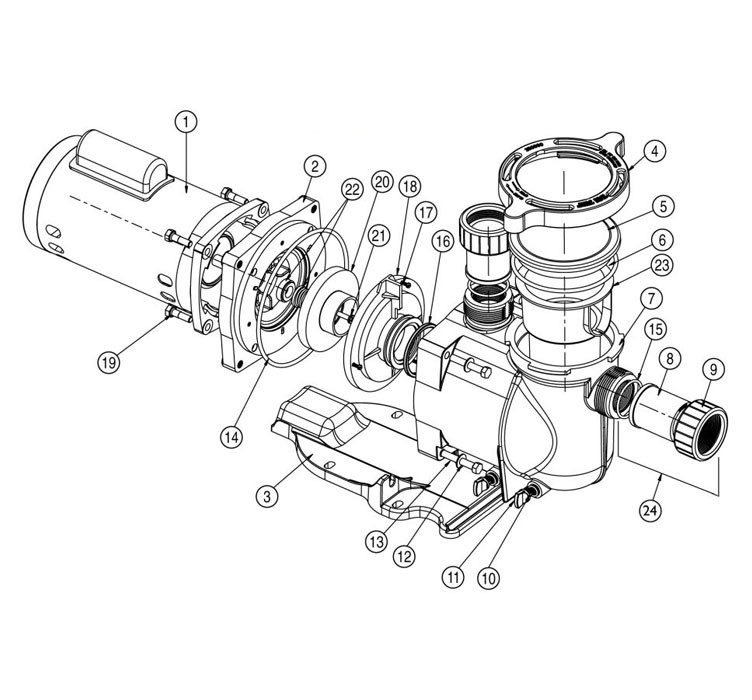

Sta-Rite SuperMax 1.5HP High Performance Energy Efficient Pool Pump | 208-230V | PHK2E6F-103L Parts Schematic
1
Pentair Square Flange Motor | 1HP Standard Efficiency | 115/208-230V | Black | 355023S
Pentair Square Flange Motor | 1HP Standard Efficiency | 115/208-230V | Black | 355023S
Quantity:
$294.31

2
Pentair Sta-Rite Seal Plate BLack | 355612
Pentair Sta-Rite Seal Plate BLack | 355612
Quantity:
$83.49

3
Pentair SuperMax Base | Black | 351094
Pentair SuperMax Base | Black | 351094
Quantity:
$92.23

4
Pentair Clamp Ramp & Cam | Black | 351090
Pentair Clamp Ramp & Cam | Black | 351090
Quantity:
$42.07

5
Pentair SuperFlo Strainer Cover | Clear | 350091
Pentair SuperFlo Strainer Cover | Clear | 350091
Quantity:
$35.50

6
Pentair SuperFlo Strainer O-Ring | 357255 | 357255Z
Pentair SuperFlo Strainer O-Ring | 357255 | 357255Z
Quantity:
$9.99

7
Pentair Volute SuperMax Black | 351089
Pentair Volute SuperMax Black | 351089
Quantity:
$227.91

8
Pentair Superflo/SuperMax Union Adapter | 350093
Pentair Superflo/SuperMax Union Adapter | 350093
Quantity:
$23.96

9
Pentair Sta-Rite Slide Valve Replacement Parts | Cap Nut | Black | 270141
Pentair Sta-Rite Slide Valve Replacement Parts | Cap Nut | Black | 270141
Quantity:
$26.68

10
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$13.99

11
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Quantity:
$17.99

12
Pentair 3/8-16 x 2 - 1/4" Hex Head Screw | 4 Required | 355621
Pentair 3/8-16 x 2 - 1/4" Hex Head Screw | 4 Required | 355621
Quantity:
$10.04

13
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Quantity:
$10.99

14
Pentair Pinnacle/SuperFlo Seal Plate O-Ring | 355619 355619Z
Pentair Pinnacle/SuperFlo Seal Plate O-Ring | 355619 355619Z
Quantity:
$12.44

15
Pentair SuperFlo Pump Adapter O-Ring | 2 Required | 6020018
Pentair SuperFlo Pump Adapter O-Ring | 2 Required | 6020018
Quantity:
$1.46

16
Pentair Challenger, Pinnacle, SuperFlo, SuperMax Diffuser O-ring Diffuser Seal | 355030 | 355030Z
Pentair Challenger, Pinnacle, SuperFlo, SuperMax Diffuser O-ring Diffuser Seal | 355030 | 355030Z
Quantity:
$10.79

17
Pentair Hex Washer Head Screw # 8-32 x 1" | 3 Required | 355334 355334Z
Pentair Hex Washer Head Screw # 8-32 x 1" | 3 Required | 355334 355334Z
Quantity:
$4.20

18
Pentair SuperFlo Diffuser | 0.5-1.0HP355617
Pentair SuperFlo Diffuser | 0.5-1.0HP355617
Quantity:
$91.97

19
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Quantity:
$8.75

20
Pentair SuperFlo Max Impeller | 1.5HP Up Rated | 355074
Pentair SuperFlo Max Impeller | 1.5HP Up Rated | 355074
Quantity:
$55.04

21
Pentair Impeller Locking Screw | 355389
Pentair Impeller Locking Screw | 355389
Quantity:
$4.16

22
Pentair OEM Mechanical Pump Seal | 5/8" | Type 6 | 354545S
Pentair OEM Mechanical Pump Seal | 5/8" | Type 6 | 354545S
Quantity:
$32.97

23
Pentair OEM Pump Large Basket | SuperFlo, Pinnacle, SuperMax, OptiFlo | 355667
Pentair OEM Pump Large Basket | SuperFlo, Pinnacle, SuperMax, OptiFlo | 355667
Quantity:
$27.00

N/A
Pentair Motor End Cap and Screw Kit | Black | 401014Z
Pentair Motor End Cap and Screw Kit | Black | 401014Z
Quantity:
$31.61
