Sta-Rite SuperMax VS Variable Speed Pool Pump 1-1/2 HP | 1 Phase 115/208-230V | 343001 Parts

Back to Product

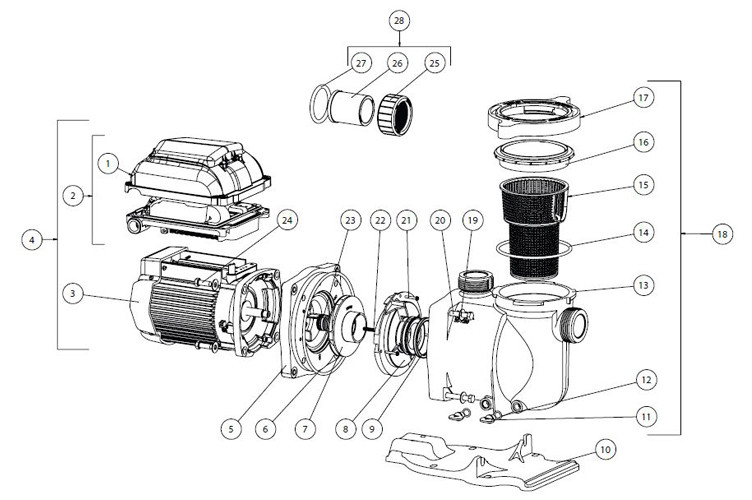

Sta-Rite SuperMax VS Variable Speed Pool Pump 1-1/2 HP | 1 Phase 115/208-230V | 343001 Parts Schematic
3
Pentair Motor Package without Drive TEFC | Black | 353135S
Pentair Motor Package without Drive TEFC | Black | 353135S
Quantity:
$421.78

1
Pentair HMI Drive Cover with Control Panel | Black | 353124
Pentair HMI Drive Cover with Control Panel | Black | 353124
Quantity:
$244.13

2
Pentair Drive/Cover Kit | Black | 353128
Pentair Drive/Cover Kit | Black | 353128
Quantity:
$621.04

4
Pentair Sta-Rite Motor Drive/Assembly | 353133S
Pentair Sta-Rite Motor Drive/Assembly | 353133S
Quantity:
$952.28

5
Pentair Sta-Rite Seal Plate BLack | 355612
Pentair Sta-Rite Seal Plate BLack | 355612
Quantity:
$83.49

6
Pentair Pinnacle/SuperFlo Seal Plate O-Ring | 355619 355619Z
Pentair Pinnacle/SuperFlo Seal Plate O-Ring | 355619 355619Z
Quantity:
$12.44

7
Pentair SuperFlo Max Impeller | 1.5HP Up Rated | 355074
Pentair SuperFlo Max Impeller | 1.5HP Up Rated | 355074
Quantity:
$55.04

8
Pentair SuperFlo Diffuser | 1.5-2HP Up Rated | 355618
Pentair SuperFlo Diffuser | 1.5-2HP Up Rated | 355618
Quantity:
$91.97

9
Pentair Challenger, Pinnacle, SuperFlo, SuperMax Diffuser O-ring Diffuser Seal | 355030 | 355030Z
Pentair Challenger, Pinnacle, SuperFlo, SuperMax Diffuser O-ring Diffuser Seal | 355030 | 355030Z
Quantity:
$10.79

10
Pentair SuperMax Base | Black | 351094
Pentair SuperMax Base | Black | 351094
Quantity:
$92.23

11
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Quantity:
$17.99

12
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$13.99

13
Pentair Volute SuperMax Black | 351089
Pentair Volute SuperMax Black | 351089
Quantity:
$227.91

14
Pentair SuperFlo Strainer O-Ring | 357255 | 357255Z
Pentair SuperFlo Strainer O-Ring | 357255 | 357255Z
Quantity:
$9.99

15
Pentair OEM Pump Large Basket | SuperFlo, Pinnacle, SuperMax, OptiFlo | 355667
Pentair OEM Pump Large Basket | SuperFlo, Pinnacle, SuperMax, OptiFlo | 355667
Quantity:
$27.00

16
Pentair SuperFlo Strainer Cover | Clear | 350091
Pentair SuperFlo Strainer Cover | Clear | 350091
Quantity:
$35.50

17
Pentair Clamp Ramp & Cam | Black | 351090
Pentair Clamp Ramp & Cam | Black | 351090
Quantity:
$42.07

18
Pentair SuperMax Volute Assembly | Black | 353110
Pentair SuperMax Volute Assembly | Black | 353110
Quantity:
$301.61

19
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Quantity:
$10.99

20
Pentair 3/8-16 x 2 - 1/4" Hex Head Screw | 4 Required | 355621
Pentair 3/8-16 x 2 - 1/4" Hex Head Screw | 4 Required | 355621
Quantity:
$10.04

21
Pentair Hex Washer Head Screw # 8-32 x 1" | 3 Required | 355334 355334Z
Pentair Hex Washer Head Screw # 8-32 x 1" | 3 Required | 355334 355334Z
Quantity:
$4.20

22
Pentair Impeller Locking Screw | 355389
Pentair Impeller Locking Screw | 355389
Quantity:
$4.16

23
Pentair OEM Mechanical Pump Seal | 5/8" | Type 6 | 354545S
Pentair OEM Mechanical Pump Seal | 5/8" | Type 6 | 354545S
Quantity:
$32.97

24
Pentair Screw Cap 3/8-16x1" Stainless Steel | 354290
Pentair Screw Cap 3/8-16x1" Stainless Steel | 354290
Call us to order.

25
Pentair Sta-Rite Slide Valve Replacement Parts | Cap Nut | Black | 270141
Pentair Sta-Rite Slide Valve Replacement Parts | Cap Nut | Black | 270141
Quantity:
$26.68

26
Pentair Superflo/SuperMax Union Adapter | 350093
Pentair Superflo/SuperMax Union Adapter | 350093
Quantity:
$23.96

27
Pentair SuperFlo Pump Adapter O-Ring | 2 Required | 6020018
Pentair SuperFlo Pump Adapter O-Ring | 2 Required | 6020018
Quantity:
$1.46

N/A
Pentair Digital Input 25' Cord Kit SuperFlo VS | 353129Z
Pentair Digital Input 25' Cord Kit SuperFlo VS | 353129Z
A Replacement is available for this item.
This item has been discontinued.
