Waterco Hydro5000 15HP Cast Iron Commercial High Performance Pump | 3-Phase 208-230/460V | 19B05002 Parts

Back to Product

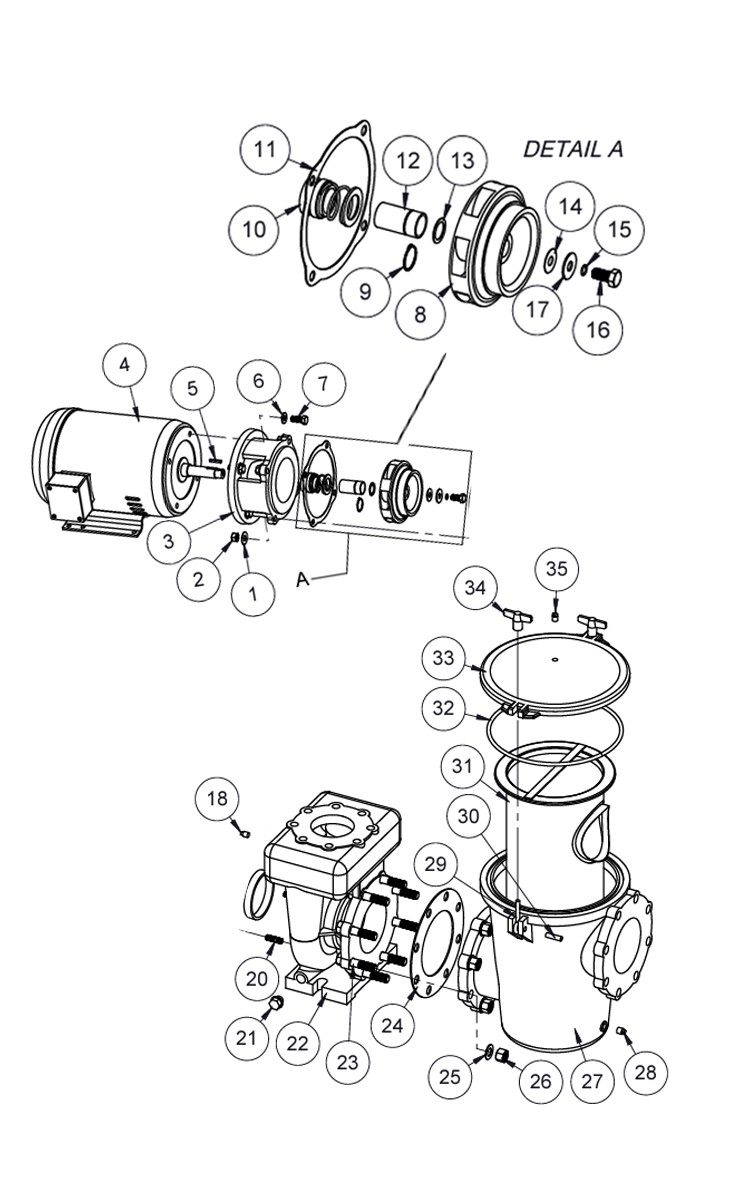

Waterco Hydro5000 15HP Cast Iron Commercial High Performance Pump | 3-Phase 208-230/460V | 19B05002 Parts Schematic
1
Waterco Cast Iron Lock Washer | 1/2" 18-8 Stainless Steel | 19B5038
Waterco Cast Iron Lock Washer | 1/2" 18-8 Stainless Steel | 19B5038
Quantity:
$8.35

2
Waterco Cast Iron Nut | 1/2" - 13 Stainless Steel | 19B5036
Waterco Cast Iron Nut | 1/2" - 13 Stainless Steel | 19B5036
Quantity:
$8.35

3
Waterco Cast Iron Motor Bracket | 7.5 10 15HP 1PH Only | 19B5040
Waterco Cast Iron Motor Bracket  | 7.5 10 15HP 1PH Only | 19B5040
Quantity:
$137.90

4
Waterco Baldor Motor | 15HP 3PH 230V | 19B5044
Waterco Baldor Motor | 15HP 3PH 230V | 19B5044
Quantity:
$1,354.41

6
Waterco Cast Iron Lock Washer | 1/2" 18-8 Stainless Steel | 19B5038
Waterco Cast Iron Lock Washer | 1/2" 18-8 Stainless Steel | 19B5038
Quantity:
$8.35

7
Waterco Cast Bolt | 1/2" - 13 x 1.25" Hexagonal Stainless Steel | 19B5037
Waterco Cast Bolt | 1/2" - 13 x 1.25" Hexagonal Stainless Steel | 19B5037
Quantity:
$11.75

8
Waterco 15HP Cast Iron Impeller | 19B5023
Waterco 15HP Cast Iron Impeller | 19B5023
Quantity:
$570.33

9
Waterco 7.5-15HP Commercial Pump Retaining Ring | 19B5030
Waterco 7.5-15HP Commercial Pump Retaining Ring | 19B5030
Quantity:
$21.22

10
Waterco 7.5-15HP Commercial Mechanical Shaft Seal | 19B5032
Waterco 7.5-15HP Commercial Mechanical Shaft Seal | 19B5032
Quantity:
$84.54

11
Waterco Cast Iron Volute Gasket | 19B5025
Waterco Cast Iron Volute Gasket | 19B5025
Quantity:
$13.13

12
Waterco 7.5/10/15HP Pump Shaft Sleeve | 19B5028
Waterco 7.5/10/15HP Pump Shaft Sleeve | 19B5028
Quantity:
$114.09

13
Waterco Sleeve Gasket for 7.5/10/15HP Pump | 19B5026
Waterco Sleeve Gasket for 7.5/10/15HP Pump | 19B5026
Quantity:
$13.08

14
Waterco Impeller Gasket for 7.5/10/15HP Pump | 19B5017
Waterco Impeller Gasket for 7.5/10/15HP Pump | 19B5017
Quantity:
$10.89

16
Waterco Sealing Washer | 1/2" Stainless Steel Buna | 19B5016
Waterco Sealing Washer | 1/2" Stainless Steel Buna | 19B5016
Quantity:
$15.85

16
Waterco Cast Bolt | 1/2" - 13 x 1.25" Hexagonal Stainless Steel | 19B5037
Waterco Cast Bolt | 1/2" - 13 x 1.25" Hexagonal Stainless Steel | 19B5037
Quantity:
$11.75

17
Waterco Impeller Washer for 7.5/10/15HP Pump | 19B5019
Waterco Impeller Washer for 7.5/10/15HP Pump | 19B5019
Quantity:
$26.58

18
Waterco Drain Plug | 1/4" NPT | 19B5011
Waterco Drain Plug | 1/4" NPT | 19B5011
Quantity:
$13.55

20
Waterco Cast Iron Pump Stud | 0.5" - 13 x 1.5" | 19B5034
Waterco Cast Iron Pump Stud | 0.5" - 13 x 1.5" | 19B5034
Quantity:
$14.14

21
Waterco Cast Iron Pump 1/2" Plug | 19B5012
Waterco Cast Iron Pump 1/2" Plug | 19B5012
Quantity:
$14.61

22
Waterco Cast Iron Pump Housing | 19B5010
Waterco Cast Iron Pump Housing | 19B5010
Quantity:
$1,043.75

24
Waterco Hydrostar Plus Flange Gasket | 6" x 0.125" | 88B3064
Waterco Hydrostar Plus Flange Gasket | 6" x 0.125" | 88B3064
Quantity:
$20.98

27
Waterco Cast Iron Pump Strainer Housing | 19B5057
Waterco Cast Iron Pump Strainer Housing | 19B5057
Quantity:
$735.77

28
Waterco Cast Iron Pump 1/2" Plug | 19B5012
Waterco Cast Iron Pump 1/2" Plug | 19B5012
Quantity:
$14.61

29
Waterco Strainer Knob Bolt | 19B5054
Waterco Strainer Knob Bolt | 19B5054
Quantity:
$45.31

30
Waterco Strainer Knob Roll Pin | 19B5056
Waterco Strainer Knob Roll Pin | 19B5056
Quantity:
$13.06

31
Waterco Strainer Basket | Stainless Steel | 19B5052
Waterco Strainer Basket | Stainless Steel | 19B5052
Quantity:
$405.54

32
Waterco Strainer Lid O-Ring | 19B5051
Waterco Strainer Lid O-Ring | 19B5051
Quantity:
$39.77

33
Waterco Strainer Lid | 19B5050
Waterco Strainer Lid | 19B5050
Quantity:
$219.89

34
Waterco Strainer Hold Down Knob | 19B5053
Waterco Strainer Hold Down Knob | 19B5053
Quantity:
$43.28

35
Waterco Drain Plug | 1/4" NPT | 19B5011
Waterco Drain Plug | 1/4" NPT | 19B5011
Quantity:
$13.55
