Home Waterco Hydrostar Plus 10HP Commercial High Performance Pump without Strainer | 3-Phase 208-230/460V | 2461001A Parts

Waterco Hydrostar Plus 10HP Commercial High Performance Pump without Strainer | 3-Phase 208-230/460V | 2461001A Parts

Back to Product

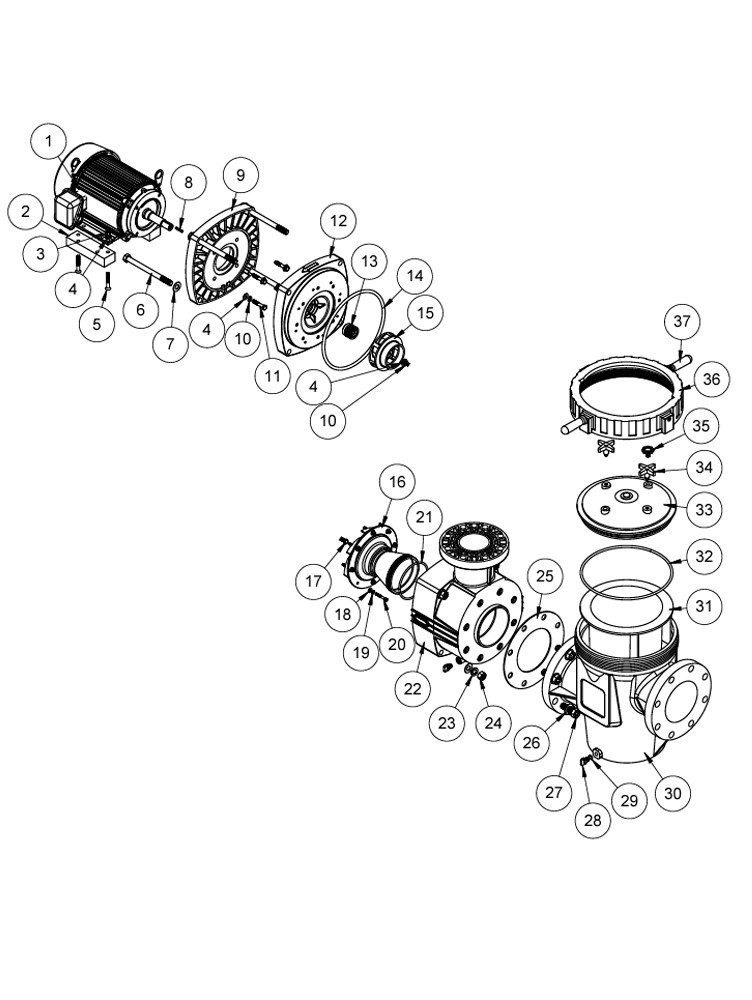

Waterco Hydrostar Plus 10HP Commercial High Performance Pump without Strainer | 3-Phase 208-230/460V | 2461001A Parts Schematic
4
Waterco 3/8" 304 Stainless Steel Washer | 6302181
Waterco 3/8" 304 Stainless Steel Washer | 6302181
Quantity:
$5.60

9
Waterco 7.5 - 15HP Hydrostar Plus Pump Adapter Plate | 634600
Waterco 7.5 - 15HP Hydrostar Plus Pump Adapter Plate | 634600
Quantity:
$511.98

12
Waterco 5 - 15HP Hydrostar Plus Pump Seal Plate with Inserts | 634601
Waterco 5 - 15HP Hydrostar Plus Pump Seal Plate with Inserts | 634601
Quantity:
$602.44

13
Waterco Hydrostar Plus Pump Seal | 63401629
Waterco Hydrostar Plus Pump Seal | 63401629
Quantity:
$88.57

14
Waterco Hydrostar Plus Pump O-Ring | Body to Seal Plate ID 283MM x CS 9.5MM | 634605
Waterco Hydrostar Plus Pump O-Ring | Body to Seal Plate ID 283MM x CS 9.5MM | 634605
Quantity:
$45.54

15
Waterco 10HP Hydrostar Plus Impeller with Insert | 6346116
Waterco 10HP Hydrostar Plus Impeller with Insert | 6346116
Quantity:
$306.20

16
Waterco 7.5HP - 10HP Hydrostar Plus Pump Diffuser with Nozzle | 6346022
Waterco 7.5HP - 10HP Hydrostar Plus Pump Diffuser with Nozzle | 6346022
Quantity:
$420.50

17
Waterco Hydrostar Plus Pump Socket Head Cap Screw | 3/8" x 1" - SS304 | 634651
Waterco Hydrostar Plus Pump Socket Head Cap Screw | 3/8" x 1" - SS304 | 634651
Quantity:
$13.16

18
Waterco Supatuf / Hydrostar Plus H/L Pot Foot M6 SS31 Washer | 6340030
Waterco Supatuf / Hydrostar Plus H/L Pot Foot M6 SS31 Washer | 6340030
Quantity:
$5.60

19
Waterco Multicyclone 1/4" Spring Washer | 645461
Waterco Multicyclone 1/4" Spring Washer | 645461
Quantity:
$11.02

21
Waterco Hydrostar Plus O-Ring BS354 Diffuser Nozzle | 634606
Waterco Hydrostar Plus O-Ring BS354 Diffuser Nozzle | 634606
Quantity:
$21.49

22
Waterco Hydrostar Plus Body with 4" ANSI Discharge Port | 6346040
Waterco Hydrostar Plus Body with 4" ANSI Discharge Port | 6346040
Quantity:
$1,476.39

25
Waterco Hydrostar Plus Flange Gasket | 6" x 0.125" | 88B3064
Waterco Hydrostar Plus Flange Gasket | 6" x 0.125" | 88B3064
Quantity:
$20.98

28
Waterco Drain Plug 1/4" BSP | 63402302
Waterco Drain Plug 1/4" BSP | 63402302
Quantity:
$7.32

29
Waterco O-Ring for Drain Plug | 620193
Waterco O-Ring for Drain Plug | 620193
Quantity:
$6.12

30
Waterco Hydrostar Plus Strainer Housing Only | 6" x 6" Flanged Ports | 63450580
Waterco Hydrostar Plus Strainer Housing Only | 6" x 6" Flanged Ports | 63450580
Quantity:
$602.44

31
Waterco Hydrostar Plus Pump Strainer Basket Polypropylene Mk2 for Composite Housing | 63450520
Waterco Hydrostar Plus Pump Strainer Basket Polypropylene Mk2 for Composite Housing | 63450520
Quantity:
$159.18

32
Waterco O-Ring for Old White Opal | 62027
Waterco O-Ring for Old White Opal | 62027
Quantity:
$26.30

33
Waterco Hydrostar Plus Lid 12" PC Clear for Strainer | 63450500
Waterco Hydrostar Plus Lid 12" PC Clear for Strainer | 63450500
Quantity:
$215.95

34
Waterco Hydrostar Plus Knob for Clear Opal Lid | W02629
Waterco Hydrostar Plus Knob for Clear Opal Lid | W02629
Quantity:
$17.62

35
Waterco Multiport Valve Replacement Parts | Air Release Valve Plug | 620221
Waterco Multiport Valve Replacement Parts | Air Release Valve Plug | 620221
Quantity:
$11.60

36
Waterco 12" Lock Ring for S1050 & S1200 65mm Valve | 620232
Waterco 12" Lock Ring for S1050 & S1200 65mm Valve | 620232
Quantity:
$148.07

37
Waterco Hydrostar Plus Handle Lock Ring | 6202321
Waterco Hydrostar Plus Handle Lock Ring | 6202321
Quantity:
$10.20
