Home Waterway Center Discharge 48-Frame .5HP Above Ground Pool Pump 115V | 3' NEMA Cord | 3410210-1549 Parts
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. ... We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Waterway Center Discharge 48-Frame .5HP Above Ground Pool Pump 115V | 3' NEMA Cord | 3410210-1549 Parts

Back to Product

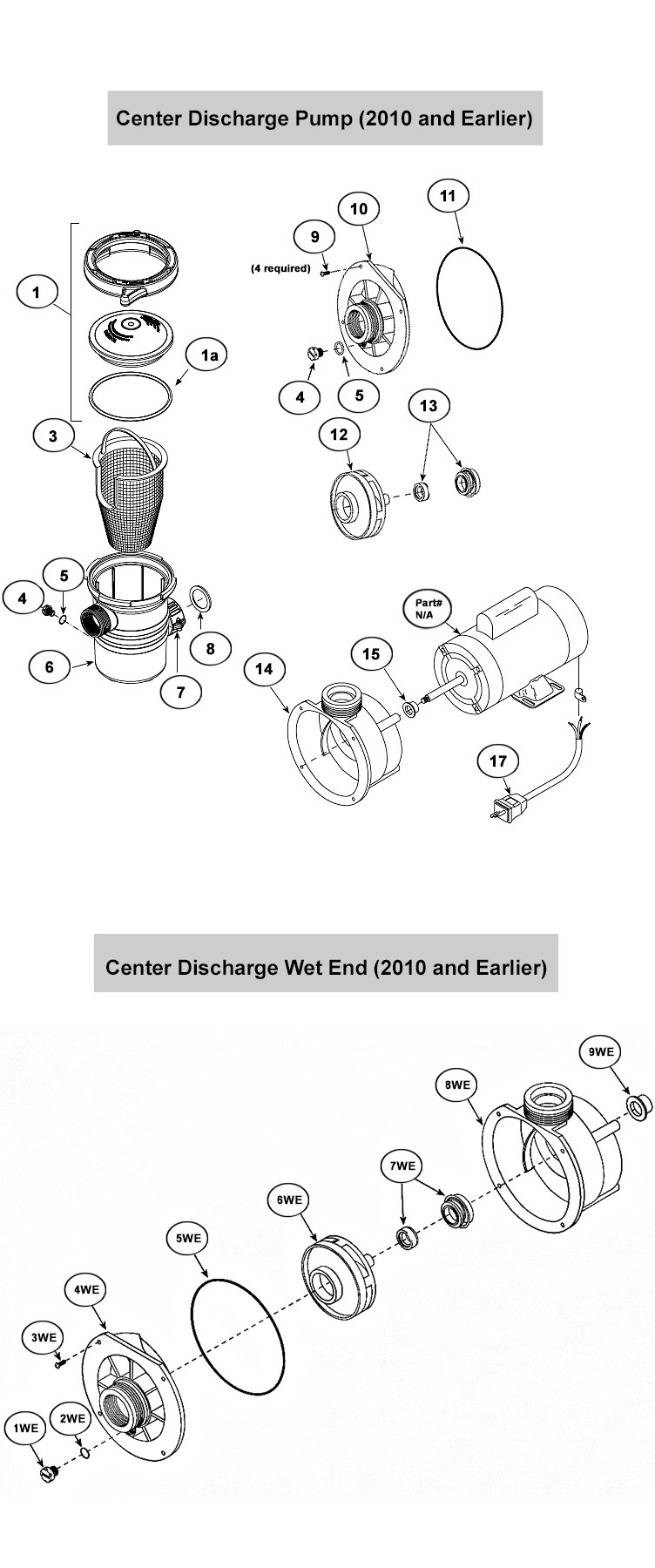

Waterway Center Discharge 48-Frame .5HP Above Ground Pool Pump 115V | 3' NEMA Cord | 3410210-1549 Parts Schematic
1
Waterway Lid Assembly | 319-4100
Waterway Lid Assembly | 319-4100
Quantity:
$35.54

1a
Waterway Trap Lid O-Ring | 805-0436
Waterway Trap Lid O-Ring | 805-0436
Quantity:
$7.90

3
Waterway 6" Trap Basket with Handle | 319-3230
Waterway 6" Trap Basket with Handle |  319-3230
Quantity:
$18.26

4
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Quantity:
$5.02

5
Waterway Drain Plug O-Ring | 805-0112
Waterway Drain Plug O-Ring | 805-0112
A Recommended Replacement is available for this item.
This item has been discontinued.

6
Waterway Trap Body | 6" 1.5" x 1.5" | 319-2160
Waterway Trap Body | 6" 1.5" x 1.5" | 319-2160
Quantity:
$37.07

7
Waterway 1.5" Split Nut Union Buttress Thread | 415-4051
Waterway 1.5" Split Nut Union Buttress Thread | 415-4051
Quantity:
$11.11

8
Waterway Gasket 1.5" Union | 711-4000
Waterway Gasket 1.5" Union | 711-4000
Quantity:
$1.39

8
Waterway 1.5" Flat Union Gasket | 711-4000B
Waterway 1.5" Flat Union Gasket | 711-4000B
Quantity:
$3.85

9
Waterway Machine Screw #8-32 x 5/8" | Stainless Steel | 819-1110
Waterway Machine Screw #8-32 x 5/8" | Stainless Steel | 819-1110
Quantity:
$4.86

10
Waterways Center Discharge Pump Volute Face Plate | 311-1110
Waterways Center Discharge Pump Volute Face Plate | 311-1110
A Direct Replacement is available for this item.
This item has been discontinued.

11
Waterway Volute O-Ring | 805-0252
Waterway Volute O-Ring | 805-0252
Quantity:
$7.80

12
Waterway Impeller "A" Assembly | 310-5110
Waterway Impeller "A" Assembly | 310-5110
Quantity:
$29.98

13
Waterway SMF Series Viton Shaft Seal with O-Ring | 319-3100B
Waterway SMF Series Viton Shaft Seal with O-Ring | 319-3100B
Quantity:
$22.13

14
Waterway Volute | 315-1120
Waterway Volute | 315-1120
This item has been discontinued.

15
Waterways Slinger | 313-1400
Waterways Slinger | 313-1400
Quantity:
$4.28

17
Waterway Electrical Cord | NEMA Plug | 110V 3' | 741-CGGZ-67R
Waterway Electrical Cord | NEMA Plug | 110V 3' | 741-CGGZ-67R
Quantity:
$24.94

1WE
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Quantity:
$5.02

2WE
Waterway Drain Plug O-Ring | 805-0112
Waterway Drain Plug O-Ring | 805-0112
A Recommended Replacement is available for this item.
This item has been discontinued.

3WE
Waterway Machine Screw #8-32 x 5/8" | Stainless Steel | 819-1110
Waterway Machine Screw #8-32 x 5/8" | Stainless Steel | 819-1110
Quantity:
$4.86

4WE
Waterways Center Discharge Pump Volute Face Plate | 311-1110
Waterways Center Discharge Pump Volute Face Plate | 311-1110
A Direct Replacement is available for this item.
This item has been discontinued.

5WE
Waterway Volute O-Ring | 805-0252
Waterway Volute O-Ring | 805-0252
Quantity:
$7.80

7WE
Waterway SMF Series Viton Shaft Seal with O-Ring | 319-3100B
Waterway SMF Series Viton Shaft Seal with O-Ring | 319-3100B
Quantity:
$22.13

8WE
Waterway Volute | 315-1120
Waterway Volute | 315-1120
This item has been discontinued.

9WE
Waterways Slinger | 313-1400
Waterways Slinger | 313-1400
Quantity:
$4.28
