Home Waterway Center Discharge 48-Frame .75HP Above Ground 2-Speed Pool Pump 115V | 3' NEMA Cord | 3420310-1549 Parts

Waterway Center Discharge 48-Frame .75HP Above Ground 2-Speed Pool Pump 115V | 3' NEMA Cord | 3420310-1549 Parts

Back to Product

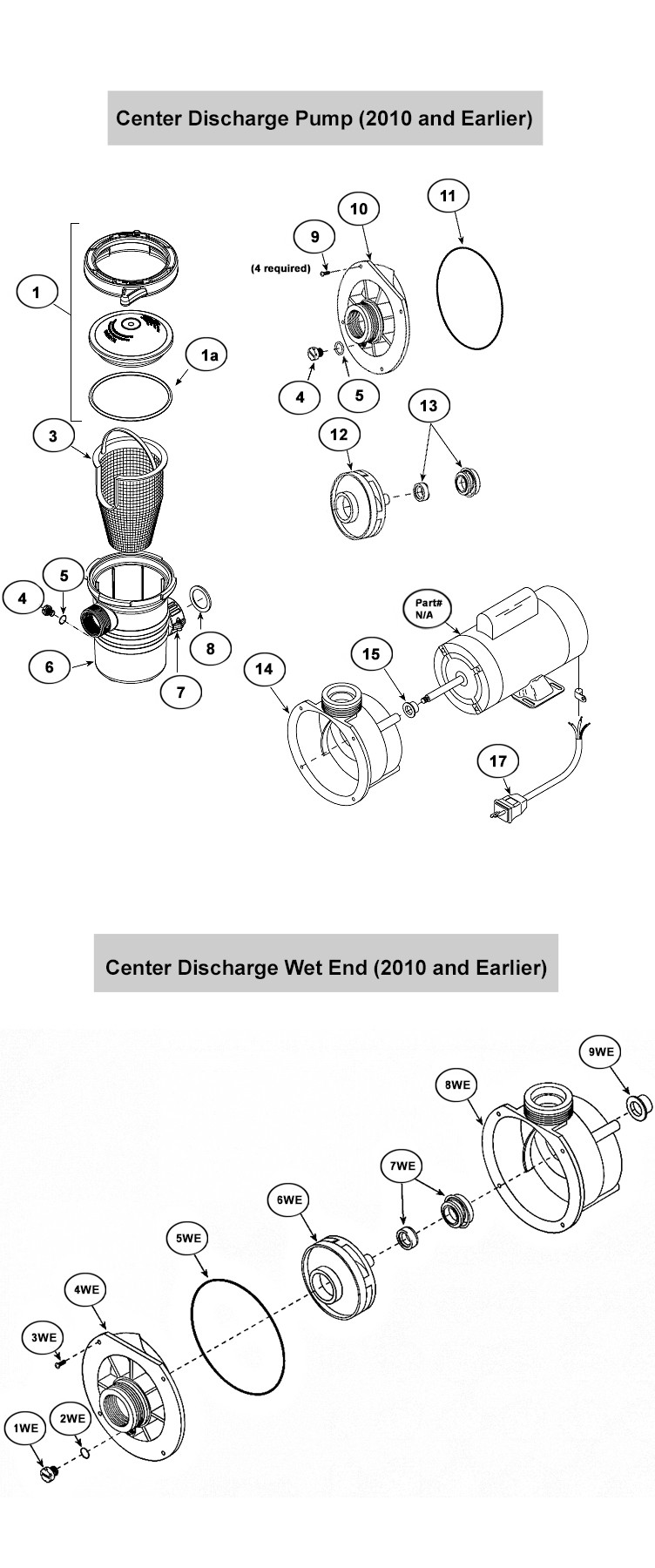

Waterway Center Discharge 48-Frame .75HP Above Ground 2-Speed Pool Pump 115V | 3' NEMA Cord | 3420310-1549 Parts Schematic
1
Waterway Lid Assembly | 319-4100
Waterway Lid Assembly | 319-4100
Quantity:
$54.63

1a
Waterway Trap Lid O-Ring | 805-0436
Waterway Trap Lid O-Ring | 805-0436
Quantity:
$6.11

3
Waterway 6" Trap Basket with Handle | 319-3230
Waterway 6" Trap Basket with Handle |  319-3230
Quantity:
$24.83

4
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Quantity:
$5.23

5
Waterway Drain Plug O-Ring | 805-0112
Waterway Drain Plug O-Ring | 805-0112
A Replacement is available for this item.
This item has been discontinued.

6
Waterway Trap Body | 6" 1.5" x 1.5" | 319-2160
Waterway Trap Body | 6" 1.5" x 1.5" | 319-2160
Quantity:
$51.09

7
Waterway 1.5" Split Nut Union Buttress Thread | 415-4051
Waterway 1.5" Split Nut Union Buttress Thread | 415-4051
Quantity:
$11.11

8
Waterway Gasket 1.5" Union | 711-4000
Waterway Gasket 1.5" Union | 711-4000
Quantity:
$2.24

8
Waterway 1.5" Flat Union Gasket | 711-4000B
Waterway 1.5" Flat Union Gasket | 711-4000B
Quantity:
$4.20

9
Waterway Machine Screw #8-32 x 5/8" | Stainless Steel | 819-1110
Waterway Machine Screw #8-32 x 5/8" | Stainless Steel | 819-1110
Quantity:
$5.02

10
Waterways Center Discharge Pump Volute Face Plate | 311-1110
Waterways Center Discharge Pump Volute Face Plate | 311-1110
A Replacement is available for this item.
This item has been discontinued.

11
Waterway Volute O-Ring | 805-0252
Waterway Volute O-Ring | 805-0252
Quantity:
$11.17

12
Waterway Impeller Assembly | 310-5120
Waterway Impeller Assembly | 310-5120
This item has been discontinued.

13
Waterway SMF Series Viton Shaft Seal with O-Ring | 319-3100B
Waterway SMF Series Viton Shaft Seal with O-Ring | 319-3100B
Quantity:
$32.15

14
Waterway Volute | 315-1120
Waterway Volute | 315-1120
This item has been discontinued.

15
Waterways Slinger | 313-1400
Waterways Slinger | 313-1400
Quantity:
$4.32

17
Waterway Electrical Cord | NEMA Plug | 110V 3' | 741-CGGZ-67R
Waterway Electrical Cord | NEMA Plug | 110V 3' | 741-CGGZ-67R
Quantity:
$17.73

1WE
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Quantity:
$5.23

2WE
Waterway Drain Plug O-Ring | 805-0112
Waterway Drain Plug O-Ring | 805-0112
A Replacement is available for this item.
This item has been discontinued.

3WE
Waterway Machine Screw #8-32 x 5/8" | Stainless Steel | 819-1110
Waterway Machine Screw #8-32 x 5/8" | Stainless Steel | 819-1110
Quantity:
$5.02

4WE
Waterways Center Discharge Pump Volute Face Plate | 311-1110
Waterways Center Discharge Pump Volute Face Plate | 311-1110
A Replacement is available for this item.
This item has been discontinued.

5WE
Waterway Volute O-Ring | 805-0252
Waterway Volute O-Ring | 805-0252
Quantity:
$11.17

6WE
Waterway Impeller Assembly | 310-5120
Waterway Impeller Assembly | 310-5120
This item has been discontinued.

7WE
Waterway SMF Series Viton Shaft Seal with O-Ring | 319-3100B
Waterway SMF Series Viton Shaft Seal with O-Ring | 319-3100B
Quantity:
$32.15

8WE
Waterway Volute | 315-1120
Waterway Volute | 315-1120
This item has been discontinued.

9WE
Waterways Slinger | 313-1400
Waterways Slinger | 313-1400
Quantity:
$4.32
