Home Spa Hot Tub & Spa Pumps Waterway Pumps Waterway Hi Flo Spa Pump | 2-Speed 1.0HP 115V 48-Frame Side Discharge | 3420410-10 Parts

Waterway Hi Flo Spa Pump | 2-Speed 1.0HP 115V 48-Frame Side Discharge | 3420410-10 Parts

Back to Product

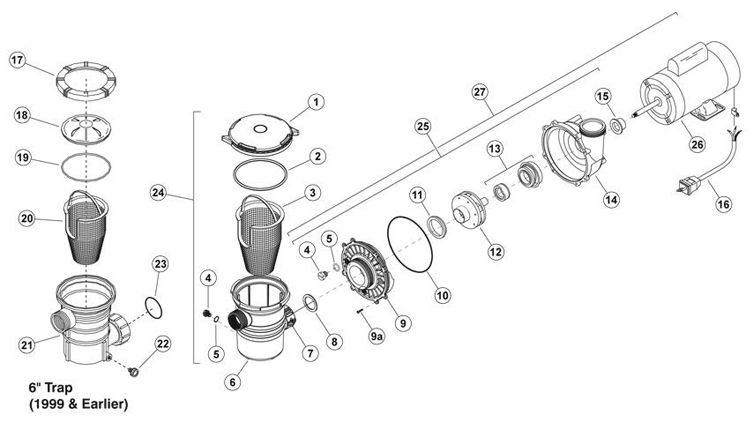

Waterway Hi Flo Spa Pump | 2-Speed 1.0HP 115V 48-Frame Side Discharge | 3420410-10 Parts Schematic
1
Waterway Trap Lid | 319-3260
Waterway Trap Lid | 319-3260
This item has been discontinued.

2
Waterway Trap Lid O-Ring | 805-0436
Waterway Trap Lid O-Ring | 805-0436
Quantity:
$6.11

3
Waterway 6" Trap Basket with Handle | 319-3230
Waterway 6" Trap Basket with Handle |  319-3230
Quantity:
$24.83

4
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Quantity:
$5.23

5
Waterway Drain Plug O-Ring | 805-0112
Waterway Drain Plug O-Ring | 805-0112
A Replacement is available for this item.
This item has been discontinued.

6
Waterway 6" Trap Body | 1-1/2" x 1 - 1/2" x 2" | 319-2170
Waterway 6" Trap Body | 1-1/2" x 1 - 1/2" x 2" | 319-2170
Quantity:
$51.09

7
Waterway 2" Slip Nut with Screw Bag | 400-5421B
Waterway 2" Slip Nut with Screw Bag | 400-5421B
Quantity:
$7.41

8
Waterway Plastics 2" Flat Union Gasket | 711-4010B
Waterway Plastics 2" Flat Union Gasket | 711-4010B
Quantity:
$4.41

9
Waterway Machine Screw #8-32 x 5/8" | Stainless Steel | 819-1110
Waterway Machine Screw #8-32 x 5/8" | Stainless Steel | 819-1110
Quantity:
$5.02

10
Waterway Face Plate 2" Intake Volute | 311-2140
Waterway Face Plate 2" Intake Volute | 311-2140
Quantity:
$33.56

11
Waterways Side Discharge O-Ring Volute | 805-0256
Waterways Side Discharge O-Ring Volute | 805-0256
Quantity:
$11.60

12
Waterway Wear Ring #12 | 319-1390
Waterway Wear Ring #12 | 319-1390
Quantity:
$11.99

13
Waterway High Flow Pump Impeller | Side Discharge .75HP Hi Flow B | 310-3990
Waterway High Flow Pump Impeller | Side Discharge .75HP Hi Flow B | 310-3990
Quantity:
$29.89

13
Waterway Hi-Flo "C" 1 HP Impeller | 310-4000
Waterway Hi-Flo "C" 1 HP Impeller | 310-4000
Quantity:
$36.28

13
Waterway Hi-Flo "D" 1.5HP Impeller | 310-4010
Waterway Hi-Flo "D" 1.5HP Impeller | 310-4010
Quantity:
$36.28

13
Waterway 2HP Impeller | 310-4030
Waterway 2HP Impeller | 310-4030
Quantity:
$33.15

13
Waterway 3HP Impeller | 310-4020
Waterway 3HP Impeller | 310-4020
Quantity:
$36.28

14
Waterway SMF Series Viton Shaft Seal with O-Ring | 319-3100B
Waterway SMF Series Viton Shaft Seal with O-Ring | 319-3100B
Quantity:
$32.15

16
Waterways Slinger | 313-1400
Waterways Slinger | 313-1400
Quantity:
$4.32

18
Waterway Electrical Cord | NEMA Plug | 110V 3' | 741-CGGZ-67R
Waterway Electrical Cord | NEMA Plug | 110V 3' | 741-CGGZ-67R
Quantity:
$17.73
