Waterway TWM 19" Sand Filter System | 1HP Pump 2 Sq. Ft. Filter | 3' NEMA Cord | 520-1910 Parts

Back to Product

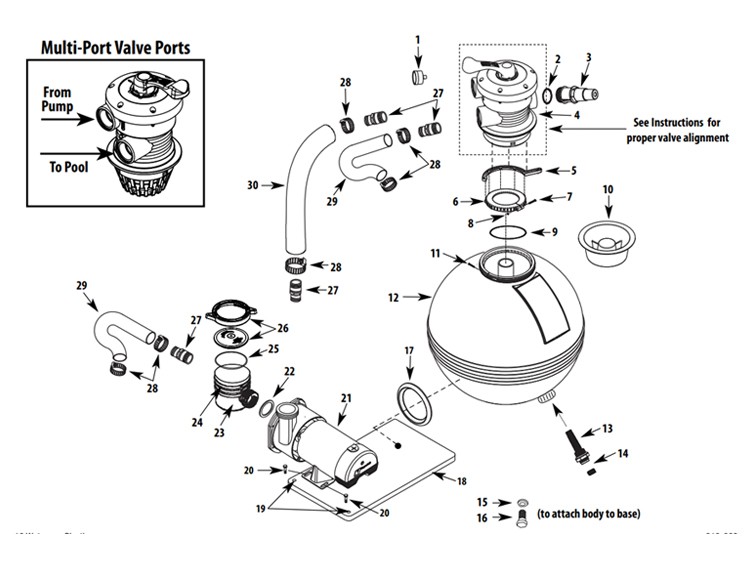

Waterway TWM 19" Sand Filter System | 1HP Pump 2 Sq. Ft. Filter | 3' NEMA Cord | 520-1910 Parts Schematic
22
Waterway Gasket 1.5" Union | 711-4000
Waterway Gasket 1.5" Union | 711-4000
Quantity:
$1.39

2
Waterway O-Ring | 805-0224
Waterway O-Ring | 805-0224
This item is no longer available.

3
Waterway Waste Adapter Fitting | 425-1928B
Waterway Waste Adapter Fitting | 425-1928B
Quantity:
$15.47

4
Waterway 1.5" Top Mount Sand Backwash Valve 7 Position with Split-Nut 2002 Aand After | WVS003
Waterway 1.5" Top Mount Sand Backwash Valve 7 Position with Split-Nut 2002 Aand After | WVS003
Quantity:
$78.24

5
Waterway Collar Wrench for Threaded Style Split-Nut | 505-1970B
Waterway Collar Wrench for Threaded Style Split-Nut | 505-1970B
Quantity:
$17.17

6
Waterway Split Nut 2002 to Present | 718-1960
Waterway Split Nut 2002 to Present | 718-1960
Call us to order this item.

7
Waterway Srew #20 1/4 X 2" PPH - Sand Filter | 819-0015
Waterway Srew #20 1/4 X 2" PPH - Sand Filter | 819-0015
Quantity:
$2.92

8
Waterway Serrated Hex Nut | 1/4-20 Nickel Plated Sand | 820-0013
Waterway Serrated Hex Nut | 1/4-20 Nickel Plated Sand | 820-0013
Quantity:
$3.97

9
Waterway O-Ring - Multi-Port Valve | 805-0435B
Waterway O-Ring - Multi-Port Valve | 805-0435B
Quantity:
$10.07

10
Waterway Sand Fill Guide | 502-2011B 502-2011
Waterway Sand Fill Guide | 502-2011B 502-2011
This item has been discontinued.

11
Waterway Threaded Sleeve for Split Nut Sand Filter R3 | 505-1960
Waterway Threaded Sleeve for Split Nut Sand Filter R3 | 505-1960
Quantity:
$7.90

13
Waterway Self-Threading Drain Screen | 602-5310B
Waterway Self-Threading Drain Screen | 602-5310B
Quantity:
$7.77

14
Waterway Plastics Drain Screen Cap | 602-5321
Waterway Plastics Drain Screen Cap | 602-5321
Quantity:
$8.38

14
Waterway O-Ring | 805-0224
Waterway O-Ring | 805-0224
This item is no longer available.

16
Waterway 3/8" Bolt-16 x 1 1/4" Hex - 16" Sand Filter | 819-0020B
Waterway 3/8" Bolt-16 x 1 1/4" Hex - 16" Sand Filter | 819-0020B
Quantity:
$5.89

17
Waterway Support Mount | 218-6680
Waterway Support Mount | 218-6680
Quantity:
$5.23

18
Waterway Pump Base | 1" x 15 1/4" x 26 1/4" | 672-1000
Waterway Pump Base | 1" x 15 1/4" x 26 1/4" | 672-1000
Quantity:
$40.38

19
Waterway Pump Washer | 820-9001
Waterway Pump Washer | 820-9001
Quantity:
$3.92

20
Waterway Screw No. 12 x 3/4" Hex Washer | 819-9001
Waterway Screw No. 12 x 3/4" Hex Washer | 819-9001
Quantity:
$1.92

21
Waterway E Series Spa Pump | 1 Speed .75HP 115V 48-Frame Center Discharge | 3410310-15
Waterway E Series Spa Pump | 1 Speed .75HP 115V 48-Frame Center Discharge | 3410310-15
Quantity:
$217.55

23
Waterway Trap Body | 6" 1.5" x 1.5" | 319-2160
Waterway Trap Body | 6" 1.5" x 1.5" | 319-2160
Quantity:
$35.07

24
Waterway 6" Trap Basket with Handle | 319-3230
Waterway 6" Trap Basket with Handle |  319-3230
Quantity:
$16.40

25
Waterway Trap Lid O-Ring | 805-0436
Waterway Trap Lid O-Ring | 805-0436
Quantity:
$7.90

26
Waterway Lid Assembly | 319-4100
Waterway Lid Assembly | 319-4100
Quantity:
$32.30

27
Waterway 1 1/2" MPT x 1 1/2" Hose Barb Adapter | 417-6151
Waterway 1 1/2" MPT x 1 1/2" Hose Barb Adapter | 417-6151
Quantity:
$4.65

28
Waterway Pipe Clamp Assembly Without Hole | 872-0010
Waterway Pipe Clamp Assembly Without Hole | 872-0010
Quantity:
$5.92

29
Waterway Corrugated Hose 1 1/2" x 6 ft. | Black | 872-9002B
Waterway Corrugated Hose 1 1/2" x 6 ft. | Black | 872-9002B
Quantity:
$17.73

30
Waterway Corrugated Hose 3 ft | 872-9001
Waterway Corrugated Hose 3 ft | 872-9001
Quantity:
$13.47

N/A
Waterway Instruction Sheet | 810-0092
Waterway Instruction Sheet | 810-0092
Quantity:
$1.33
