Home Waterway ClearWater Above Ground Pool 22" Sand Standard Filter System | 1.5HP Pump 2.6 Sq. Ft. Filter | 3' NEMA Cord | 520-5240-6S Parts

Waterway ClearWater Above Ground Pool 22" Sand Standard Filter System | 1.5HP Pump 2.6 Sq. Ft. Filter | 3' NEMA Cord | 520-5240-6S Parts

Back to Product

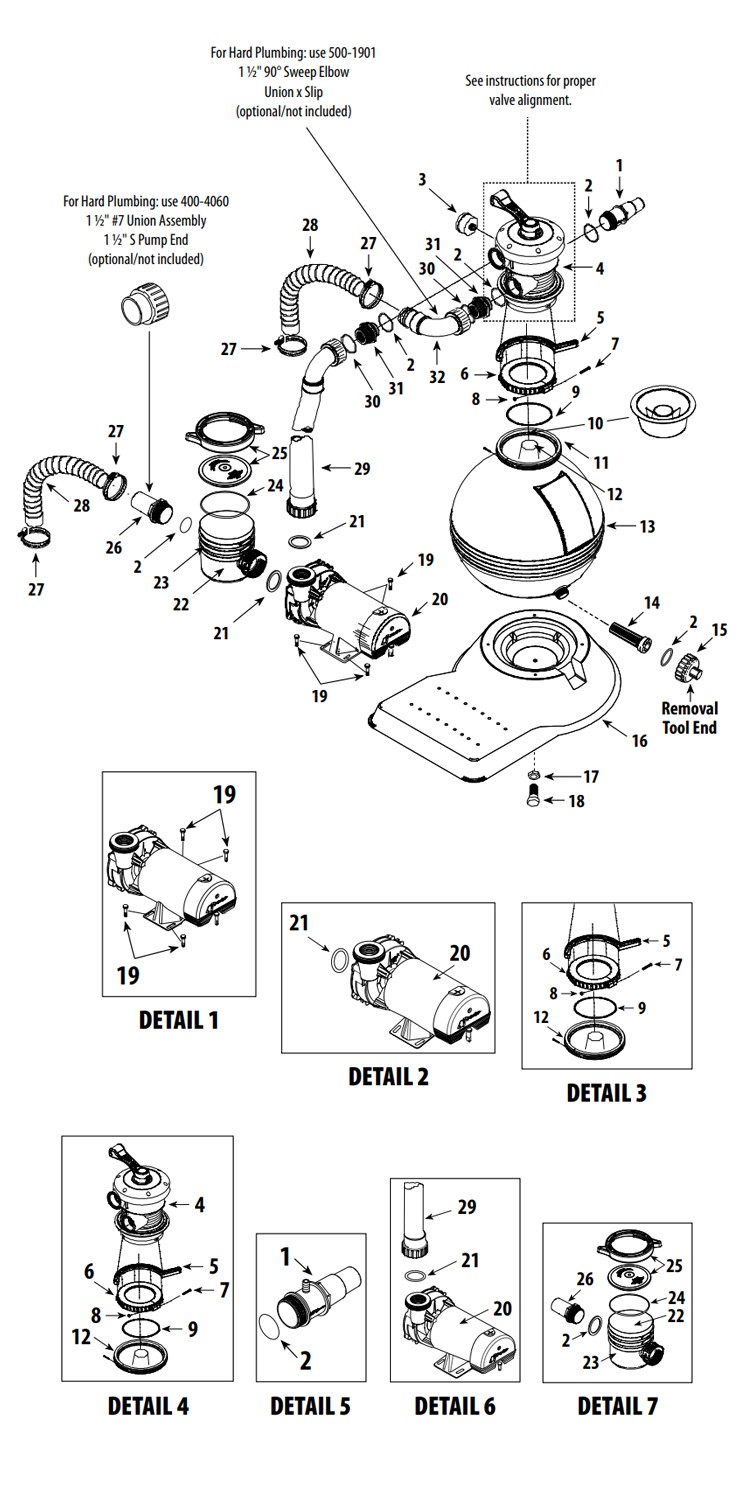

Waterway ClearWater Above Ground Pool 22" Sand Standard Filter System | 1.5HP Pump 2.6 Sq. Ft. Filter | 3' NEMA Cord | 520-5240-6S Parts Schematic
1
Waterway Waste Adapter Fitting | 425-1928B
Waterway Waste Adapter Fitting | 425-1928B
Quantity:
$18.66

2
Waterway O-Ring | 805-0224
Waterway O-Ring | 805-0224
This item is no longer available.

3
Waterway Pressure Gauge | 830-3000B
Waterway Pressure Gauge | 830-3000B
This item has been discontinued.

4
Waterway 1.5" Top Mount 7-Function Split-Nut Sand Filter Backwash Valve | WVS003B
Waterway 1.5" Top Mount 7-Function Split-Nut Sand Filter Backwash Valve | WVS003B
Quantity:
$92.42

5
Waterway Collar Wrench for Threaded Style Split-Nut | 505-1970B
Waterway Collar Wrench for Threaded Style Split-Nut | 505-1970B
Quantity:
$17.44

6
Waterway Split-Nut Assembly - Multi-Port Valve | 505-3010B
Waterway Split-Nut Assembly - Multi-Port Valve | 505-3010B
Quantity:
$22.74

7
Waterway Srew #20 1/4 X 2" PPH - Sand Filter | 819-0015
Waterway Srew #20 1/4 X 2" PPH - Sand Filter | 819-0015
Quantity:
$2.92

8
Waterway 1/4-20 Serated Hex Nut | 820-0013
Waterway 1/4-20 Serated Hex Nut | 820-0013
Quantity:
$9.58

9
Waterway O-Ring - Multi-Port Valve | 805-0435B
Waterway O-Ring - Multi-Port Valve | 805-0435B
Quantity:
$12.09

10
Waterway Sand Fill Guide | 502-2011B 502-2011
Waterway Sand Fill Guide | 502-2011B 502-2011
This item has been discontinued.

11
Waterway Threaded Sleeve Assembly | 505-3000B
Waterway Threaded Sleeve Assembly | 505-3000B
Quantity:
$20.14

12
Waterway Plastics Lateral and Manifold Assembly | 505-2060
Waterway Plastics Lateral and Manifold Assembly | 505-2060
Quantity:
$60.30

15
Waterway Plastics Drain Screen Cap | 602-5321
Waterway Plastics Drain Screen Cap | 602-5321
Quantity:
$10.04

16
Waterway ClearWater Standard Filter and Pump Base | 672-7241
Waterway ClearWater Standard Filter and Pump Base | 672-7241
Quantity:
$50.26

17
Waterway Flat Washer 3/8" Hi-Flo Type B | 820-0017
Waterway Flat Washer 3/8" Hi-Flo Type B | 820-0017
Quantity:
$4.07

18
Waterway Hex Screw | 3/8" - 16 x 2" | 819-0016
Waterway Hex Screw | 3/8" - 16 x 2" | 819-0016
Quantity:
$7.77

19
Waterway Hi-Flo II Side Discharge 48-Frame 1.5HP Above Ground Pool Pump 115V | 3' NEMA Cord | PH1150-6
Waterway Hi-Flo II Side Discharge 48-Frame 1.5HP Above Ground Pool Pump 115V | 3' NEMA Cord | PH1150-6
This item has been discontinued.

20
Waterway Pin and Anchor Replacement Assembly Kit for Base | 429-7300
Waterway Pin and Anchor Replacement Assembly Kit for Base | 429-7300
Quantity:
$10.86

21
Waterway Plastics 2" Flat Union Gasket | 711-4010B
Waterway Plastics 2" Flat Union Gasket | 711-4010B
Quantity:
$3.86

22
Waterway 6" Trap Basket with Handle | 319-3230
Waterway 6" Trap Basket with Handle |  319-3230
Quantity:
$17.90

23
Waterway 6" Trap Body | 1-1/2" x 1 - 1/2" x 2" | 319-2170
Waterway 6" Trap Body | 1-1/2" x 1 - 1/2" x 2" | 319-2170
Quantity:
$39.79

24
Waterway Trap Lid O-Ring | 805-0436
Waterway Trap Lid O-Ring | 805-0436
Quantity:
$7.90

25
Waterway Lid Assembly | 319-4100
Waterway Lid Assembly | 319-4100
Quantity:
$38.80

26
Waterway Plastics Male Smooth Adapter | 417-6141
Waterway Plastics Male Smooth Adapter | 417-6141
Quantity:
$5.08

27
Waterway Pipe Clamp Assembly Without Hole | 872-0010
Waterway Pipe Clamp Assembly Without Hole | 872-0010
Quantity:
$5.92

28
Waterway Corrugated Hose 1 1/2" x 6 ft. | Black | 872-9002B
Waterway Corrugated Hose 1 1/2" x 6 ft. | Black | 872-9002B
Quantity:
$18.79

29
Waterway PVC Flex Hose Assembly | 16" and 19" Sand Filters | 550-1821B
Waterway PVC Flex Hose Assembly | 16" and 19" Sand Filters | 550-1821B
Quantity:
$49.90

30
Waterway Gasket 1.5" Union | 711-4000
Waterway Gasket 1.5" Union | 711-4000
Quantity:
$1.66

31
Waterway 1 1/2" Buttress x 1 1/2" MPT Tailpiece | 417-4161B
Waterway 1 1/2" Buttress x 1 1/2" MPT Tailpiece | 417-4161B
Quantity:
$7.15

32
Waterway Return Sweep Assembly | 550-1841
Waterway Return Sweep Assembly | 550-1841
Quantity:
$20.91
