Home Waterway Champion 56-Frame 1HP Standard Efficiency Maximum Rated Pool Pump 115/230V | CHAMPS-110 Parts

Waterway Champion 56-Frame 1HP Standard Efficiency Maximum Rated Pool Pump 115/230V | CHAMPS-110 Parts

Back to Product

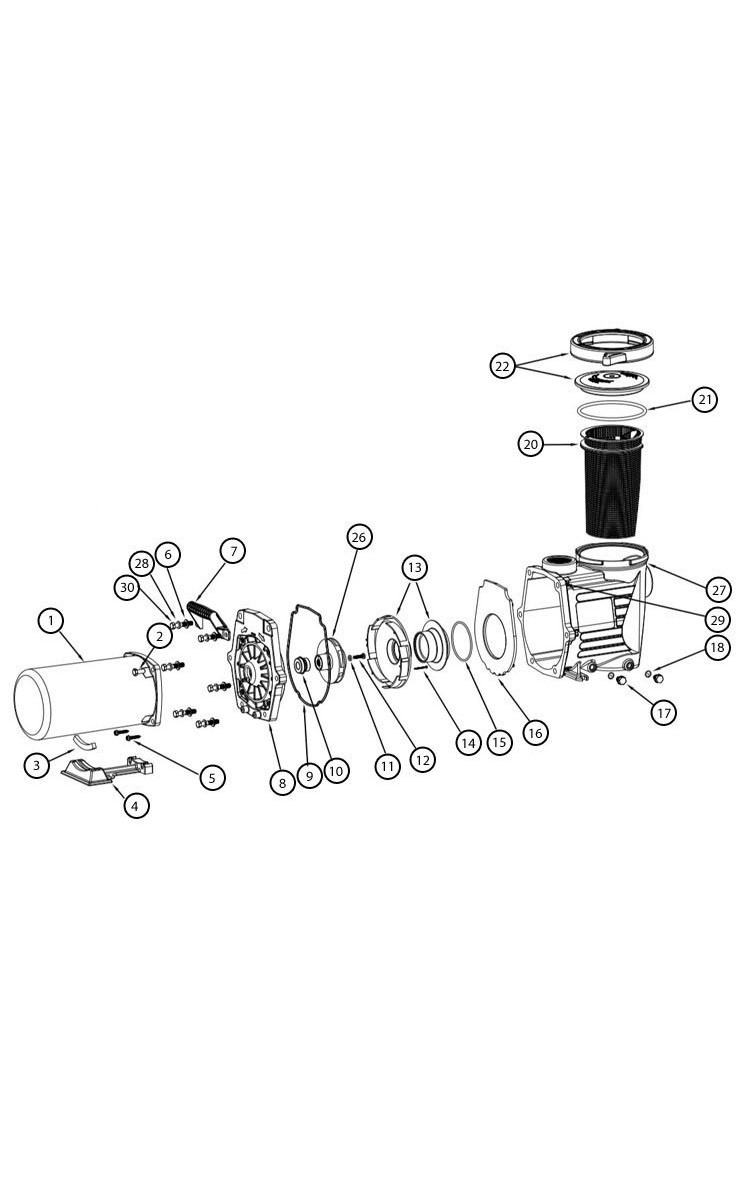

Waterway Champion 56-Frame 1HP Standard Efficiency Maximum Rated Pool Pump 115/230V | CHAMPS-110 Parts Schematic
2
Waterway Hex Cap Screw 3/8" - 16 x 7/8" | 4 required | 819-0035
Waterway Hex Cap Screw 3/8" - 16 x 7/8" | 4 required | 819-0035
Quantity:
$5.85

3
Waterway Motor Support Supra Max | 672-1350
Waterway Motor Support Supra Max | 672-1350
This item is no longer available.

4
Waterway Motor Support Base | 319-1500
Waterway Motor Support Base | 319-1500
Quantity:
$35.50

5
Waterway Hex Screw Slotted | 1/4" x 1-1/4" | 819-0013
Waterway Hex Screw Slotted | 1/4" x 1-1/4" | 819-0013
Quantity:
$3.27

6
Waterway Flat Washer 3/8" Hi-Flo Type B | 820-0017
Waterway Flat Washer 3/8" Hi-Flo Type B | 820-0017
Quantity:
$3.56

7
Waterway Pump Handle | 319-1700
Waterway Pump Handle | 319-1700
Quantity:
$32.79

8
Waterway Faceplate | 311-1450
Waterway Faceplate | 311-1450
A Replacement is available for this item.
This item has been discontinued.

9
Waterway Gasket - Faceplate | 806-1400
Waterway Gasket - Faceplate | 806-1400
Quantity:
$9.48

10
Waterway Carbide Pump Seal Set | 319-3080
Waterway Carbide Pump Seal Set | 319-3080
This item has been discontinued.

11
Waterway Left Hand Screw Gasket | 711-4300
Waterway Left Hand Screw Gasket | 711-4300
Quantity:
$10.13

12
Waterway Screw | #20 x 1" Left Hand Threaded | 819-4360
Waterway Screw | #20 x 1" Left Hand Threaded | 819-4360
Quantity:
$6.60

13
Waterway Diffuser Assembly | All Except CHAMPE-130 | 310-7470
Waterway Diffuser Assembly | All Except CHAMPE-130 | 310-7470
Quantity:
$71.29

14
Waterway Diffuser Screw Bolt #4-40 | 2 Required | 819-0018
Waterway Diffuser Screw Bolt #4-40 | 2 Required | 819-0018
Quantity:
$5.77

15
Waterway Diffuser O-Ring #238 | 805-0238
Waterway Diffuser O-Ring #238 | 805-0238
Quantity:
$6.21

16
Waterway Diffuser Plate | 319-1420
Waterway Diffuser Plate | 319-1420
Quantity:
$48.91

17
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Quantity:
$5.23

18
Waterway Drain Plug O-Ring | 805-0112
Waterway Drain Plug O-Ring | 805-0112
A Replacement is available for this item.
This item has been discontinued.

20
Waterway Basket Assembly | 319-1430
Waterway Basket Assembly | 319-1430
Quantity:
$18.78

21
Waterway Trap Lid O-Ring | 805-0436
Waterway Trap Lid O-Ring | 805-0436
Quantity:
$6.11

22
Waterway Lid Assembly | 319-4100
Waterway Lid Assembly | 319-4100
Quantity:
$54.63

26
Waterway Impeller Assembly | 0.75HP Full Rated | 310-7410
Waterway Impeller Assembly | 0.75HP Full Rated | 310-7410
Quantity:
$57.12

26
Waterway CHAMPE-110 Impeller Assembly | 310-7420
Waterway CHAMPE-110 Impeller Assembly | 310-7420
Quantity:
$58.59

27
Waterway Pump Housing | 315-1400
Waterway Pump Housing | 315-1400
This item has been discontinued.

28
Waterway 3/8" Washer Split Lock | 820-0017-1
Waterway 3/8" Washer Split Lock | 820-0017-1
Quantity:
$3.39

29
Waterway Brass Insert 3/8"-16 Unc Housing | 820-4280
Waterway Brass Insert 3/8"-16 Unc Housing | 820-4280
A Replacement is available for this item.
This item has been discontinued.

30
Waterway Hex Screw | 3/8" - 16 x 2" | 819-0016
Waterway Hex Screw | 3/8" - 16 x 2" | 819-0016
Quantity:
$7.77
