Waterway Champion 56-Frame 1.5HP Standard Efficiency Maximum Rated 2-Speed Pool Pump 230V | CHAMPS-215 Parts

Back to Product

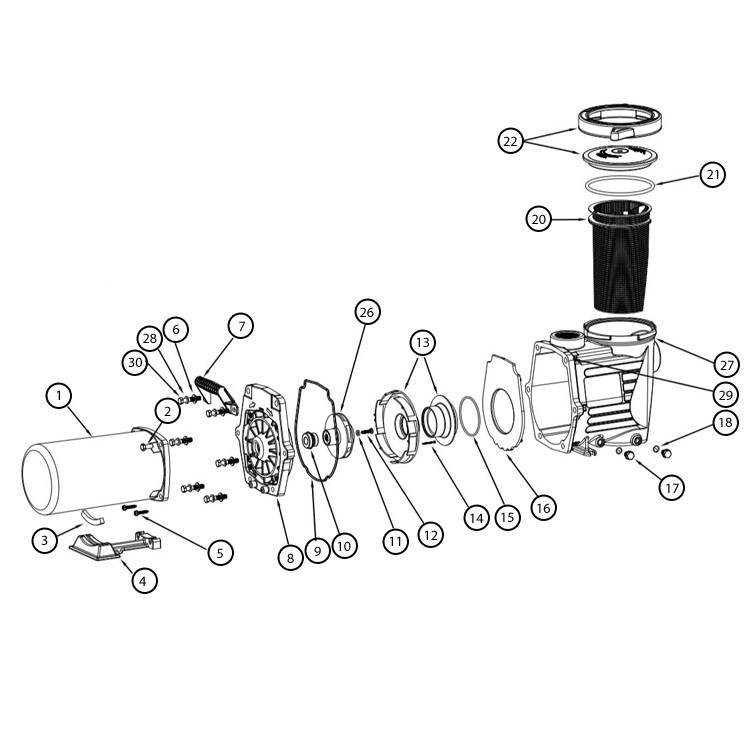

Waterway Champion 56-Frame 1.5HP Standard Efficiency Maximum Rated 2-Speed Pool Pump 230V | CHAMPS-215 Parts Schematic
2
Waterway Hex Cap Screw 3/8" - 16 x 7/8" | 4 required | 819-0035
Waterway Hex Cap Screw 3/8" - 16 x 7/8" | 4 required | 819-0035
Quantity:
$4.70

3
Waterway Motor Support Supra Max | 672-1350
Waterway Motor Support Supra Max | 672-1350
Call us to order.

4
Waterway Motor Support Base | 319-1500
Waterway Motor Support Base | 319-1500
Quantity:
$35.50

5
Waterway Hex Screw Slotted - 1/4" x 1 1/4" | 2 required | 819-0013
Waterway Hex Screw Slotted - 1/4" x 1 1/4" | 2 required | 819-0013
Quantity:
$2.80

6
Waterway 3/8" SCL56 Hi-Flo Type B Flat Washer | 820-0017
Waterway 3/8" SCL56 Hi-Flo Type B Flat Washer | 820-0017
Quantity:
$1.93

7
Waterway Pump Handle | 319-1700
Waterway Pump Handle | 319-1700
Quantity:
$10.10

8
Waterway Faceplate | 311-1450
Waterway Faceplate | 311-1450
Quantity:
$48.28

9
Waterway Gasket - Faceplate | 806-1400
Waterway Gasket - Faceplate | 806-1400
Quantity:
$7.72

10
Waterway Carbide Pump Seal Set | 319-3080
Waterway Carbide Pump Seal Set | 319-3080
Call us to order.

11
Waterway Gasket - Left Hand Screw | 711-4300
Waterway Gasket - Left Hand Screw | 711-4300
Quantity:
$10.07

12
Waterway Screw - 20 x 1" Left Hand Thread | 819-4360
Waterway Screw - 20 x 1" Left Hand Thread | 819-4360
Quantity:
$5.63

13
Waterway Diffuser Assembly | All Except CHAMPE-130 | 310-7470
Waterway Diffuser Assembly | All Except CHAMPE-130 | 310-7470
Quantity:
$45.10

14
Waterway Bolt #4-40 | 2 Required | 819-0018
Waterway Bolt #4-40 | 2 Required | 819-0018
Quantity:
$6.00

15
Waterway Diffuser O-Ring #238 | 805-0238
Waterway Diffuser O-Ring #238 | 805-0238
Quantity:
$6.47

16
Waterway Diffuser Plate | 319-1420
Waterway Diffuser Plate | 319-1420
Quantity:
$33.63

17
Waterway 3/8" Quarter Slot Plug Black | 2 required | 715-1201
Waterway 3/8" Quarter Slot Plug Black | 2 required | 715-1201
Quantity:
$4.28

18
Waterway O-Ring #112 Pump Drain Plug | 805-0112
Waterway O-Ring #112 Pump Drain Plug | 805-0112
Quantity:
$1.21

20
Waterway Basket & Extention Assembly Champion Pool Pump | 319-1430
Waterway Basket & Extention Assembly Champion Pool Pump | 319-1430
Quantity:
$12.49

21
Waterway Trap Lid O-Ring | 805-0436
Waterway Trap Lid O-Ring | 805-0436
Quantity:
$5.40

22
Waterways Lid Champion Pump | 319-4100
Waterways Lid Champion Pump | 319-4100
Quantity:
$26.48

27
Waterway Pump Housing | 315-1400
Waterway Pump Housing | 315-1400
Quantity:
$138.40

28
Waterway 3/8" Washer Split Lock | 820-0017-1
Waterway 3/8" Washer Split Lock | 820-0017-1
Quantity:
$3.39

29
Waterway Brass Insert 3/8"-16 Unc Housing | 820-4280
Waterway Brass Insert 3/8"-16 Unc Housing | 820-4280
Quantity:
$0.62

30
Waterway 3/8" - 16 x 2" Leght Hex Screw Head | 819-0016
Waterway 3/8" - 16 x 2" Leght Hex Screw Head | 819-0016
Quantity:
$4.57
