Home Waterway Champion 56 Frame 2.5HP Standard Efficiency Maximum Rated 2-Speed Pool Pump 115/230V | CHAMPS-225 Parts

Waterway Champion 56 Frame 2.5HP Standard Efficiency Maximum Rated 2-Speed Pool Pump 115/230V | CHAMPS-225 Parts

Back to Product

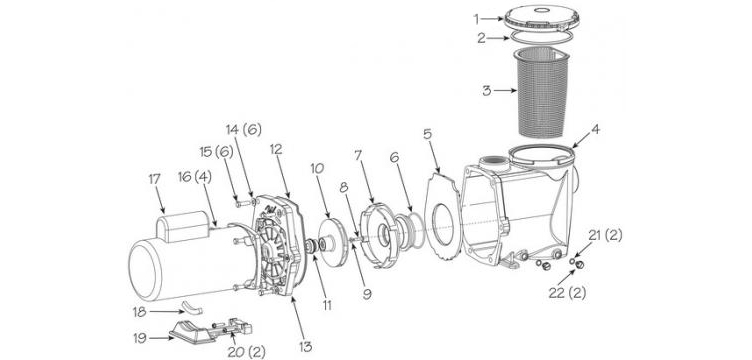

Waterway Champion 56 Frame 2.5HP Standard Efficiency Maximum Rated 2-Speed Pool Pump 115/230V | CHAMPS-225 Parts Schematic
1
Waterway Trap Lid | 319-3260
Waterway Trap Lid | 319-3260
This item has been discontinued.

2
Waterway Trap Lid O-Ring | 805-0436
Waterway Trap Lid O-Ring | 805-0436
Quantity:
$6.11

3
Waterway Basket with Basket Extension | 319-1430B
Waterway Basket with Basket Extension | 319-1430B
Quantity:
$22.17

4
Waterway Pump Housing | 315-1400
Waterway Pump Housing | 315-1400
This item has been discontinued.

5
Waterway Diffuser Plate | 319-1420
Waterway Diffuser Plate | 319-1420
Quantity:
$48.91

6
Waterway Diffuser O-Ring #238 | 805-0238
Waterway Diffuser O-Ring #238 | 805-0238
Quantity:
$6.21

7
Waterway Diffuser Assembly | All Except CHAMPE-130 | 310-7470
Waterway Diffuser Assembly | All Except CHAMPE-130 | 310-7470
Quantity:
$71.29

8
Waterway Diffuser Screw Bolt #4-40 | 2 Required | 819-0018
Waterway Diffuser Screw Bolt #4-40 | 2 Required | 819-0018
Quantity:
$5.77

9
Waterway Screw | #20 x 1" Left Hand Threaded | 819-4360
Waterway Screw | #20 x 1" Left Hand Threaded | 819-4360
Quantity:
$6.60

10
Waterway CHAMPE-120 Impeller Assembly | 310-7440
Waterway CHAMPE-120 Impeller Assembly | 310-7440
Quantity:
$60.39

11
Waterway SMF Series Viton Shaft Seal with O-Ring | 319-3100B
Waterway SMF Series Viton Shaft Seal with O-Ring | 319-3100B
Quantity:
$32.15

12
Waterway Gasket - Faceplate | 806-1400
Waterway Gasket - Faceplate | 806-1400
Quantity:
$9.48

13
Waterway Faceplate | 311-1450
Waterway Faceplate | 311-1450
A Replacement is available for this item.
This item has been discontinued.

14
Waterway 3/8" Flat Washer | 820-0017B
Waterway 3/8" Flat Washer | 820-0017B
Quantity:
$3.86

15
Waterway 3/8" Bolt-16 x 1 1/4" Hex - 16" Sand Filter | 819-0020B
Waterway 3/8" Bolt-16 x 1 1/4" Hex - 16" Sand Filter | 819-0020B
Quantity:
$5.89

16
Waterway Hex Cap Screw 3/8" - 16 x 7/8" | 4 required | 819-0035
Waterway Hex Cap Screw 3/8" - 16 x 7/8" | 4 required | 819-0035
Quantity:
$5.85

18
Waterway Motor Support Strip | 672-1310
Waterway Motor Support Strip | 672-1310
Quantity:
$13.30

19
Waterway Motor Support Base | 319-1500
Waterway Motor Support Base | 319-1500
Quantity:
$35.50

20
Waterway Hex Screw Slotted | 1/4" x 1-1/4" | 819-0013
Waterway Hex Screw Slotted | 1/4" x 1-1/4" | 819-0013
Quantity:
$3.27

21
Waterway Drain Plug O-Ring | 805-0112
Waterway Drain Plug O-Ring | 805-0112
A Replacement is available for this item.
This item has been discontinued.

22
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Quantity:
$5.23
