Home Waterway CSA ClearWater II Above Ground Pool Deluxe D.E. Filter System | 1HP Pump 18 Sq. Ft. Filter | FDSC06710-25S Parts

Waterway CSA ClearWater II Above Ground Pool Deluxe D.E. Filter System | 1HP Pump 18 Sq. Ft. Filter | FDSC06710-25S Parts

Back to Product

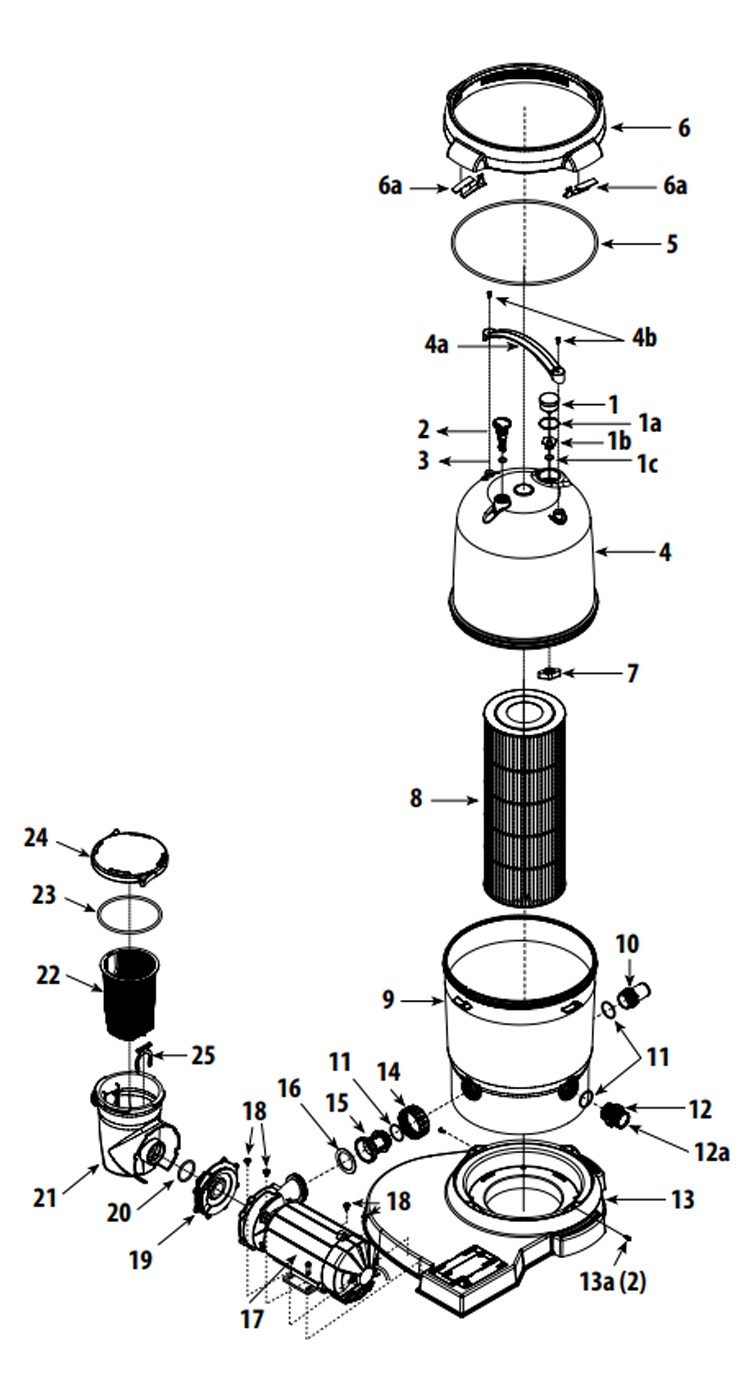

Waterway CSA ClearWater II Above Ground Pool Deluxe D.E. Filter System | 1HP Pump 18 Sq. Ft. Filter | FDSC06710-25S Parts Schematic
1
Waterway Plastics Pressure Gauge For Clearwater II | 830-4000SSB
Waterway Plastics Pressure Gauge For Clearwater II | 830-4000SSB
Quantity:
$25.65

1a
Waterway O-Ring | 805-0224
Waterway O-Ring | 805-0224
This item is no longer available.

1b
Waterway Plastics Pressure Gauge Adapter For ClearWater II | 519-7431B
Waterway Plastics Pressure Gauge Adapter For ClearWater II | 519-7431B
Quantity:
$7.98

1c
Waterway O-Ring Air Relief Plug | 805-0117SD
Waterway O-Ring Air Relief Plug | 805-0117SD
Quantity:
$5.52

2
WaterWay Air Relief Plug | 602-0200
WaterWay Air Relief Plug | 602-0200
This item has been discontinued.

3
Waterway Plastics O-Ring - Air Relief Valve For ClearWater II | 805-0207B
Waterway Plastics O-Ring - Air Relief Valve For ClearWater II | 805-0207B
Quantity:
$4.78

4a
Waterway Plastics Handle - Lid for Clearwater II | 519-7601B
Waterway Plastics Handle - Lid for Clearwater II | 519-7601B
Quantity:
$13.37

4b
Waterway Plastics Screw #12 x 3/4" Stainless Steel Phillips Head for Clearwater II | 819-9002B
Waterway Plastics Screw #12 x 3/4" Stainless Steel Phillips Head for Clearwater II | 819-9002B
Quantity:
$1.46

5
Waterway Plastics O-Ring - Lid for Clearwater II | 805-0460B
Waterway Plastics O-Ring - Lid for Clearwater II | 805-0460B
Quantity:
$13.48

6
Waterway Plastics Filter Locknut Assembly | 718-7251 | 550-7500
Waterway Plastics Filter Locknut Assembly | 718-7251 | 550-7500
Quantity:
$62.63

6a
Waterway Plastics Handle Assembly | 519-7451
Waterway Plastics Handle Assembly | 519-7451
This item has been discontinued.

7
Waterway Plastics Gauge Lock-Nut For ClearWater II | 519-7441B
Waterway Plastics Gauge Lock-Nut For ClearWater II | 519-7441B
Quantity:
$17.78

9
Waterway Plastics Filter Bottom Body | Gray | 515-7257
Waterway Plastics Filter Bottom Body | Gray | 515-7257
Quantity:
$343.46

9a
Waterway Plastics Lid Removal Tool For ClearWater II | 519-7470B
Waterway Plastics Lid Removal Tool For ClearWater II | 519-7470B
This item has been discontinued.

11
Waterway O-Ring | 805-0224
Waterway O-Ring | 805-0224
This item is no longer available.

12
Waterway Plastics Drain Assembly For ClearWater II | 500-5300B
Waterway Plastics Drain Assembly For ClearWater II | 500-5300B
Quantity:
$13.33

12a
Waterway Drain Cap Assembly (2004 and earlier) | 505-2030B
Waterway Drain Cap Assembly (2004 and earlier) | 505-2030B
Quantity:
$12.12

13
Waterway ClearWater II Filter and Pump Base | 672-7401
Waterway ClearWater II Filter and Pump Base | 672-7401
This item has been discontinued.

14
Waterway Plastics 2 Inch Black Union Nut | 415-5001
Waterway Plastics 2 Inch Black Union Nut | 415-5001
Quantity:
$9.06

15
Waterway Plastics Coupling For ClearWater II | 419-7241
Waterway Plastics Coupling For ClearWater II | 419-7241
Quantity:
$17.95

16
Waterway Plastics 2" Flat Union Gasket | 711-4010B
Waterway Plastics 2" Flat Union Gasket | 711-4010B
Quantity:
$3.86

18
Waterway Plastics Snap Pin Base Fasteners For ClearWater II | 4 required | 429-7221B
Waterway Plastics Snap Pin Base Fasteners For ClearWater II | 4 required | 429-7221B
Quantity:
$5.34

19
Waterway Supreme Pump Face Plate | 311-1520
Waterway Supreme Pump Face Plate | 311-1520
This item has been discontinued.

20
Waterway O-Ring | 805-0330
Waterway O-Ring | 805-0330
Quantity:
$3.97

21
Waterway Supreme Pump Trap Body | 319-1510
Waterway Supreme Pump Trap Body | 319-1510
Quantity:
$147.28

22
Waterway Trap Basket for Supreme Pump | 319-1530
Waterway Trap Basket for Supreme Pump | 319-1530
Quantity:
$18.88

23
Waterway Trap Lid O-Ring | 805-0439
Waterway Trap Lid O-Ring | 805-0439
Quantity:
$11.78

24
Waterway Lid Trap SVL56 | 511-1310
Waterway Lid Trap SVL56 | 511-1310
Quantity:
$45.76

25
Waterway Supreme Pump C-Clip | 319-1540
Waterway Supreme Pump C-Clip | 319-1540
Quantity:
$11.06
