Waterway Power Defender 300SVL Variable Speed Pump 3HP 13.5AMP 230V | PD-VSA300 Parts

Back to Product

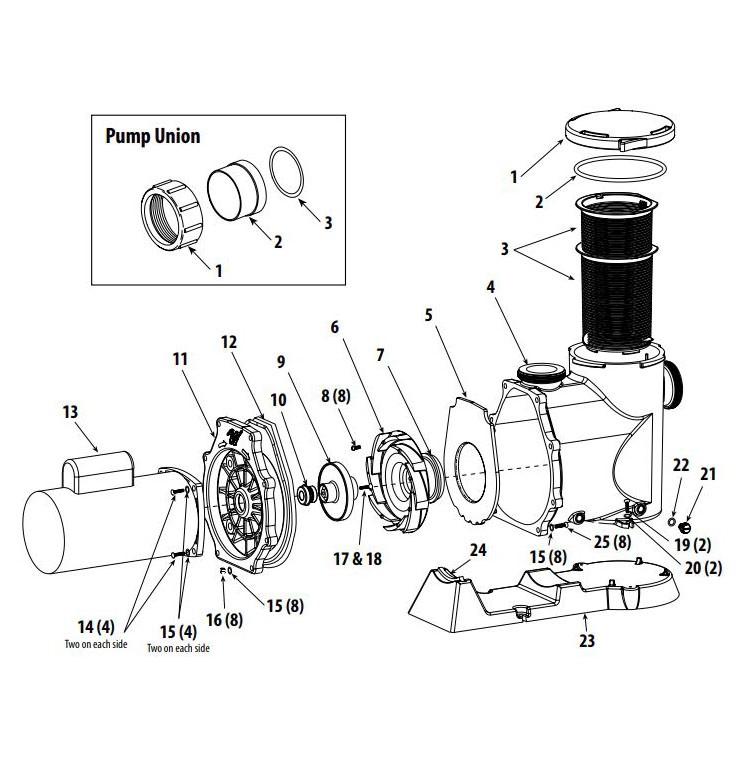

Waterway Power Defender 300SVL Variable Speed Pump 3HP 13.5AMP 230V | PD-VSA300 Parts Schematic
1
Waterways Lid Trap SVL56 | 511-1310
Waterways Lid Trap SVL56 | 511-1310
Quantity:
$38.30

2
Waterways Lid O-Ring for SVL56 Pump | 805-0439
Waterways Lid O-Ring for SVL56 Pump | 805-0439
Quantity:
$9.37

3
Waterway SVL56 Strainer Basket | 319-1310
Waterway SVL56 Strainer Basket | 319-1310
Quantity:
$18.80

4
Waterway SVL56 Hi-Flo Volute Housing | 315-1300
Waterway SVL56 Hi-Flo Volute Housing | 315-1300
Quantity:
$159.44

5
Waterway Diffuser Plate - High-Pressure | 319-1260
Waterway Diffuser Plate - High-Pressure | 319-1260
Quantity:
$32.33

6
Waterway SVL56 Hi-Flo Diffuser | 310-3300
Waterway SVL56 Hi-Flo Diffuser | 310-3300
Quantity:
$45.10

6
Waterway Diffuser Assembly | All Except CHAMPE-130 | 310-7470
Waterway Diffuser Assembly | All Except CHAMPE-130 | 310-7470
Quantity:
$45.10

7
Waterway Diffuser O-Ring #238 | 805-0238
Waterway Diffuser O-Ring #238 | 805-0238
Quantity:
$6.47

8
Waterway Bolt #4-40 | 2 Required | 819-0018
Waterway Bolt #4-40 | 2 Required | 819-0018
Quantity:
$6.00

9
Waterway 3HP SVL56E-130 Impeller Assembly | High Flow | 310-3680
Waterway 3HP SVL56E-130 Impeller Assembly | High Flow | 310-3680
Quantity:
$39.22

9
Waterway CHAMPE-130 Impeller Assembly | 310-7450
Waterway CHAMPE-130 Impeller Assembly | 310-7450
Quantity:
$40.42

11
Waterway SVL56 Hi-Flo Volute FacePlate | 311-1400
Waterway SVL56 Hi-Flo Volute FacePlate | 311-1400
Quantity:
$55.11

12
Waterway SVL56 Hi-Flo Face Plate Gasket | 711-4290
Waterway SVL56 Hi-Flo Face Plate Gasket | 711-4290
Quantity:
$17.99

13
Waterway SVL56E-130 Motor | 56 Frame 3HP 230V B844 | 3511450
Waterway SVL56E-130 Motor | 56 Frame 3HP 230V B844 | 3511450
Quantity:
$513.13

14
Waterway 3/8" - 16 x 18" Screw | 819-0011
Waterway 3/8" - 16 x 18" Screw | 819-0011
Quantity:
$6.15

15
Waterway 3/8" Flat Washer | 820-0017B
Waterway 3/8" Flat Washer | 820-0017B
Quantity:
$3.62

16
Waterway 3/8" SVL56 Hi-Flo 16 Fin Serrated Hex Nut | 820-0016
Waterway 3/8" SVL56 Hi-Flo 16 Fin Serrated Hex Nut | 820-0016
Quantity:
$7.70

17
Waterway Screw - 20 x 1" Left Hand Thread | 819-4360
Waterway Screw - 20 x 1" Left Hand Thread | 819-4360
Quantity:
$5.63

18
Waterway Gasket - Left Hand Screw | 711-4300
Waterway Gasket - Left Hand Screw | 711-4300
Quantity:
$10.07

19
Waterway Hex Screw Slotted - 1/4" x 1 1/4" | 2 required | 819-0013
Waterway Hex Screw Slotted - 1/4" x 1 1/4" | 2 required | 819-0013
Quantity:
$2.80

20
Waterway Flat Washer | 820-0018
Waterway Flat Washer | 820-0018
Quantity:
$1.44

21
Waterway 3/8" Quarter Slot Plug Black | 2 required | 715-1201
Waterway 3/8" Quarter Slot Plug Black | 2 required | 715-1201
Quantity:
$4.28

22
Waterway O-Ring #112 Pump Drain Plug | 805-0112
Waterway O-Ring #112 Pump Drain Plug | 805-0112
Quantity:
$1.21

23
Waterway SVL56 Hi-Flo Pump Base | 672-1300
Waterway SVL56 Hi-Flo Pump Base | 672-1300
Quantity:
$36.82

24
Waterway Motor Support Strip | 672-1310
Waterway Motor Support Strip | 672-1310
Quantity:
$11.68

25
Waterway 3/8" - 16 x 2" Leght Hex Screw Head | 819-0016
Waterway 3/8" - 16 x 2" Leght Hex Screw Head | 819-0016
Quantity:
$4.57

1
Waterway Union Nut 2-1/2" Tailpiece | 415-4211
Waterway Union Nut 2-1/2" Tailpiece | 415-4211
Quantity:
$9.67

2
Waterway 2" Tailpiece | 417-5971
Waterway 2" Tailpiece | 417-5971
Quantity:
$5.82

2
Waterway 2 1/2" Tailpiece | 417-6001
Waterway 2 1/2" Tailpiece | 417-6001
Quantity:
$6.18

3
Waterways Union Gasket 2-1/2 inch Heater | 711-6020
Waterways Union Gasket 2-1/2 inch Heater | 711-6020
Quantity:
$2.24

N/A
Waterway 2 1/2" Union x 2 1/2" Socket Pump Union Assembly | 400-6021B
Waterway 2 1/2" Union x 2 1/2" Socket Pump Union Assembly | 400-6021B
Quantity:
$10.64

N/A
Waterway 2.5" FBTX2"S Pump Union | Black | 400-5971B
Waterway 2.5" FBTX2"S Pump Union | Black | 400-5971B
Quantity:
$10.10
