Home Waterway Power Defender 300 Variable Speed Pump 3HP 13.5AMP 230V | PD-VSC300 Parts

Waterway Power Defender 300 Variable Speed Pump 3HP 13.5AMP 230V | PD-VSC300 Parts

Back to Product

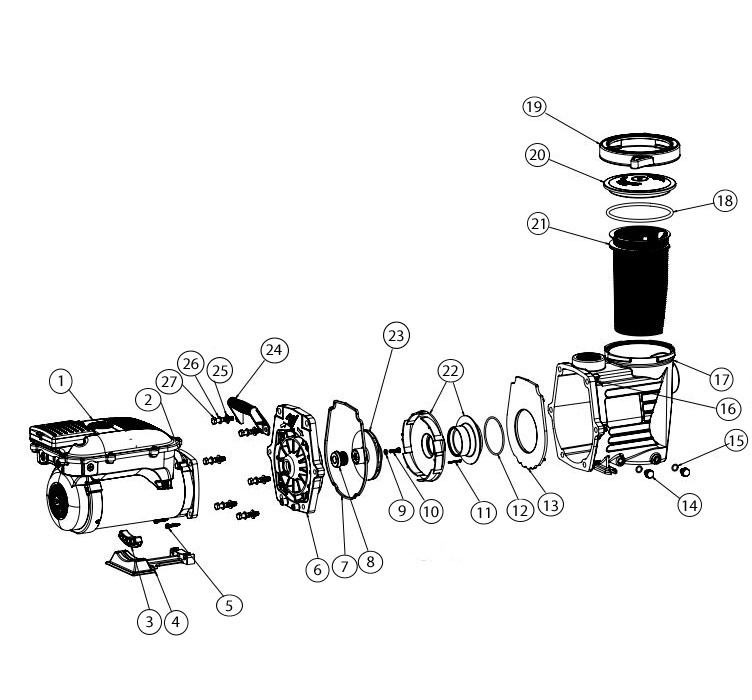

Waterway Power Defender 300 Variable Speed Pump 3HP 13.5AMP 230V | PD-VSC300 Parts Schematic
2
Waterway Hex Cap Screw 3/8" - 16 x 7/8" | 4 required | 819-0035
Waterway Hex Cap Screw 3/8" - 16 x 7/8" | 4 required | 819-0035
Quantity:
$5.85

3
Waterway Motor Support Supra Max | 672-1350
Waterway Motor Support Supra Max | 672-1350
This item is no longer available.

4
Waterway Motor Support Base | 319-1500
Waterway Motor Support Base | 319-1500
Quantity:
$35.50

5
Waterway Hex Screw Slotted | 1/4" x 1-1/4" | 819-0013
Waterway Hex Screw Slotted | 1/4" x 1-1/4" | 819-0013
Quantity:
$3.27

6
Waterway Faceplate | 311-1450
Waterway Faceplate | 311-1450
Quantity:
$57.28

7
Waterway Gasket - Faceplate | 806-1400
Waterway Gasket - Faceplate | 806-1400
Quantity:
$9.48

8
Waterway Carbide Pump Seal Set | 319-3080
Waterway Carbide Pump Seal Set | 319-3080
This item has been discontinued.

9
Waterway Left Hand Screw Gasket | 711-4300
Waterway Left Hand Screw Gasket | 711-4300
Quantity:
$11.99

10
Waterway Screw | #20 x 1" Left Hand Threaded | 819-4360
Waterway Screw | #20 x 1" Left Hand Threaded | 819-4360
Quantity:
$6.60

11
Waterway Diffuser Screw Bolt #4-40 | 2 Required | 819-0018
Waterway Diffuser Screw Bolt #4-40 | 2 Required | 819-0018
Quantity:
$6.34

12
Waterway Diffuser O-Ring #238 | 805-0238
Waterway Diffuser O-Ring #238 | 805-0238
Quantity:
$7.77

13
Waterway Diffuser Plate | 319-1420
Waterway Diffuser Plate | 319-1420
Quantity:
$39.84

15
Waterway Drain Plug O-Ring | 805-0112
Waterway Drain Plug O-Ring | 805-0112
A Replacement is available for this item.
This item has been discontinued.

16
Waterway Brass Insert 3/8"-16 Unc Housing | 820-4280
Waterway Brass Insert 3/8"-16 Unc Housing | 820-4280
A Replacement is available for this item.
This item has been discontinued.

17
Waterway Pump Housing 2" x 2" NPT | 315-2410
Waterway Pump Housing 2" x 2" NPT | 315-2410
This item has been discontinued.

18
Waterway Trap Lid O-Ring | 805-0436
Waterway Trap Lid O-Ring | 805-0436
Quantity:
$7.90

19
Waterway Lid 6" Trap | 319-3270 | 319-3240
Waterway Lid 6" Trap | 319-3270 | 319-3240
A Replacement is available for this item.
This item has been discontinued.

20
Waterway Lid 6" Trap | 319-3228
Waterway Lid 6" Trap | 319-3228
Quantity:
$24.71

21
Waterway Basket Assembly | 319-1430
Waterway Basket Assembly | 319-1430
Quantity:
$15.69

22
Waterway Diffuser Assembly | All Except CHAMPE-130 | 310-7470
Waterway Diffuser Assembly | All Except CHAMPE-130 | 310-7470
Quantity:
$52.23

23
Waterway CHAMPE-130 Impeller Assembly | 310-7450
Waterway CHAMPE-130 Impeller Assembly | 310-7450
This item has been discontinued.

24
Waterway Pump Handle | 319-1700
Waterway Pump Handle | 319-1700
Quantity:
$33.11

25
Waterway 3/8" Flat Washer | 820-0017B
Waterway 3/8" Flat Washer | 820-0017B
Quantity:
$3.86

26
Waterway 3/8" Washer Split Lock | 820-0017-1
Waterway 3/8" Washer Split Lock | 820-0017-1
Quantity:
$3.39

27
Waterway Hex Screw | 3/8" - 16 x 2" | 819-0016
Waterway Hex Screw | 3/8" - 16 x 2" | 819-0016
Quantity:
$7.41
