Waterway CSA Hi-Flo II Side Discharge 48-Frame 1.5HP Above Ground Pool Pump 115V 11.6 Amps | 25' NEMA Cord | PHC1151-25 Parts

Back to Product

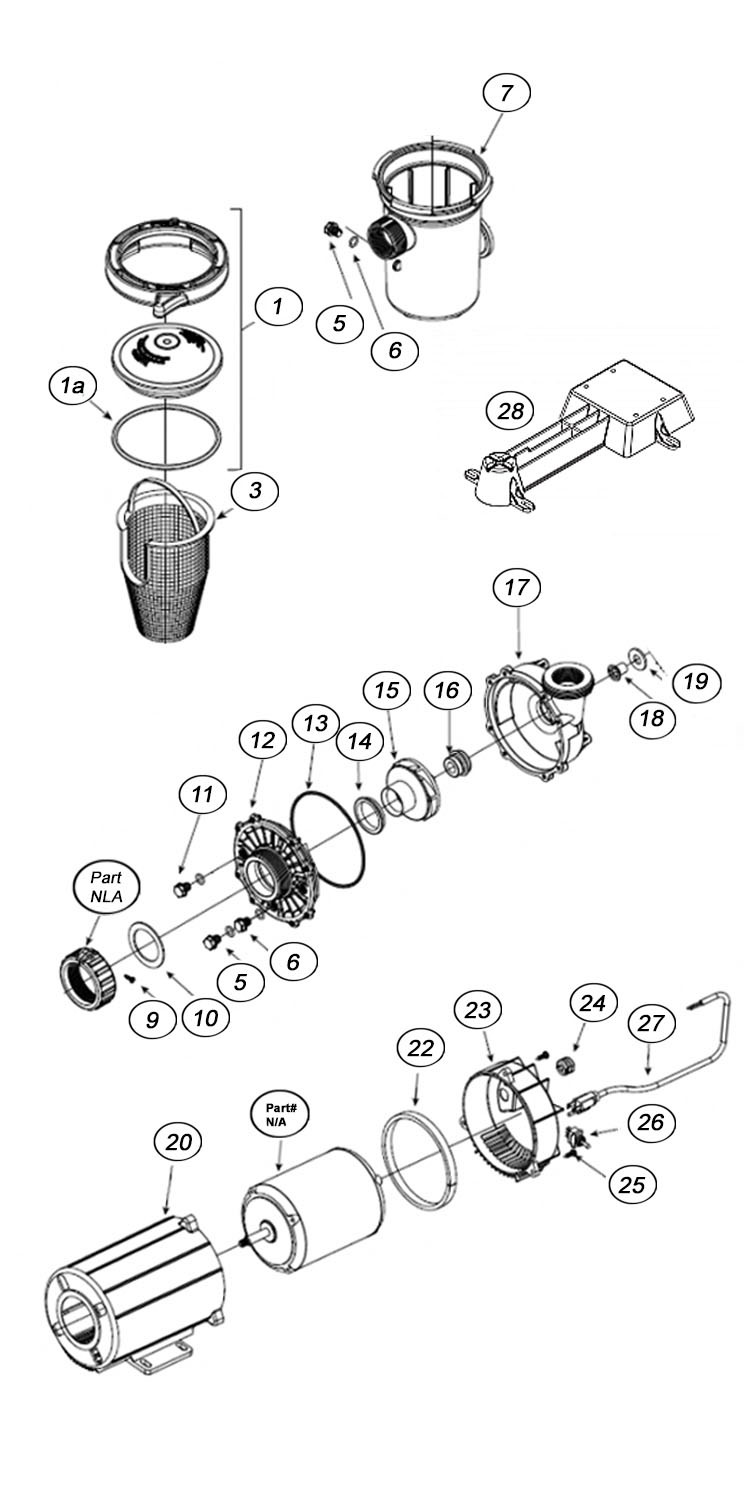

Waterway CSA Hi-Flo II Side Discharge 48-Frame 1.5HP Above Ground Pool Pump 115V 11.6 Amps | 25' NEMA Cord | PHC1151-25 Parts Schematic
1
Waterway Lid Assembly | 319-4100
Waterway Lid Assembly | 319-4100
Quantity:
$36.97

1a
Waterway Trap Lid O-Ring | 805-0436
Waterway Trap Lid O-Ring | 805-0436
Quantity:
$7.90

3
Waterway 6" Trap Basket with Handle | 319-3230
Waterway 6" Trap Basket with Handle |  319-3230
Quantity:
$17.38

5
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Quantity:
$5.23

6
Waterway Drain Plug O-Ring | 805-0112
Waterway Drain Plug O-Ring | 805-0112
A Replacement is available for this item.
This item has been discontinued.

7
Waterway 6" Trap Body | 1-1/2" x 1 - 1/2" x 2" | 319-2170
Waterway 6" Trap Body | 1-1/2" x 1 - 1/2" x 2" | 319-2170
Quantity:
$37.91

9
Waterway Split Nut Screw | #8 x 5/8" | 819-4350
Waterway Split Nut Screw | #8 x 5/8" | 819-4350
Quantity:
$1.35

10
Waterway Plastics 2" Flat Union Gasket | 711-4010B
Waterway Plastics 2" Flat Union Gasket | 711-4010B
Quantity:
$4.20

11
Waterway Machine Screw #8-32 x 5/8" | Stainless Steel | 819-1110
Waterway Machine Screw #8-32 x 5/8" | Stainless Steel | 819-1110
Quantity:
$5.02

12
Waterway Face Plate 2" Intake Volute | 311-2140
Waterway Face Plate 2" Intake Volute | 311-2140
Quantity:
$26.58

13
Waterways Side Discharge O-Ring Volute | 805-0256
Waterways Side Discharge O-Ring Volute | 805-0256
Quantity:
$7.87

14
Waterway Wear Ring #12 | 319-1390
Waterway Wear Ring #12 | 319-1390
Quantity:
$11.99

15
Waterway Hi-Flo "D" 1.5HP Impeller | 310-4010
Waterway Hi-Flo "D" 1.5HP Impeller | 310-4010
Quantity:
$26.43

16
Waterway SMF Series Viton Shaft Seal with O-Ring | 319-3100B
Waterway SMF Series Viton Shaft Seal with O-Ring | 319-3100B
Quantity:
$22.81

17
Waterway HI-FLO Side Discharge Volute with Inserts | 315-2500
Waterway HI-FLO Side Discharge Volute with Inserts | 315-2500
Quantity:
$37.23

18
Waterway CSA Slinger | 319-3520
Waterway CSA Slinger | 319-3520
This item has been discontinued.

19
Waterway CSA Slinger Washer | 319-3530
Waterway CSA Slinger Washer | 319-3530
This item has been discontinued.

20
Waterway CSA Supreme Pump Body Enclosure | 319-3500
Waterway CSA Supreme Pump Body Enclosure | 319-3500
Quantity:
$50.79

22
Waterway Foam Ring | 865-0800
Waterway Foam Ring | 865-0800
Quantity:
$17.95

23
Waterway CSA Motor End Back Cover | 319-3510
Waterway CSA Motor End Back Cover | 319-3510
Quantity:
$22.25

24
Waterway 3/8" Strain Relief Plug | 813-0025
Waterway 3/8" Strain Relief Plug | 813-0025
Quantity:
$4.20

25
Waterway Plastics Screw #12 x 3/4" Stainless Steel Phillips Head for Clearwater II | 819-9002B
Waterway Plastics Screw #12 x 3/4" Stainless Steel Phillips Head for Clearwater II | 819-9002B
Quantity:
$1.46

26
Waterways Toggle Switch | 250/125V | 815-4011
Waterways Toggle Switch | 250/125V | 815-4011
Quantity:
$11.30

27
Waterway Power Cord | NEMA Plug | 25' | 741-CGGZ-257R
Waterway Power Cord | NEMA Plug | 25' | 741-CGGZ-257R
Quantity:
$45.48

28
Waterway Pump Base Assembly | 675-1500
Waterway Pump Base Assembly | 675-1500
Quantity:
$24.22
