Waterway SVL56 High Flow 56-Frame 1HP Energy Efficient Full Rated Pool Pump 115/230V | SVL56E-110 Parts

Back to Product

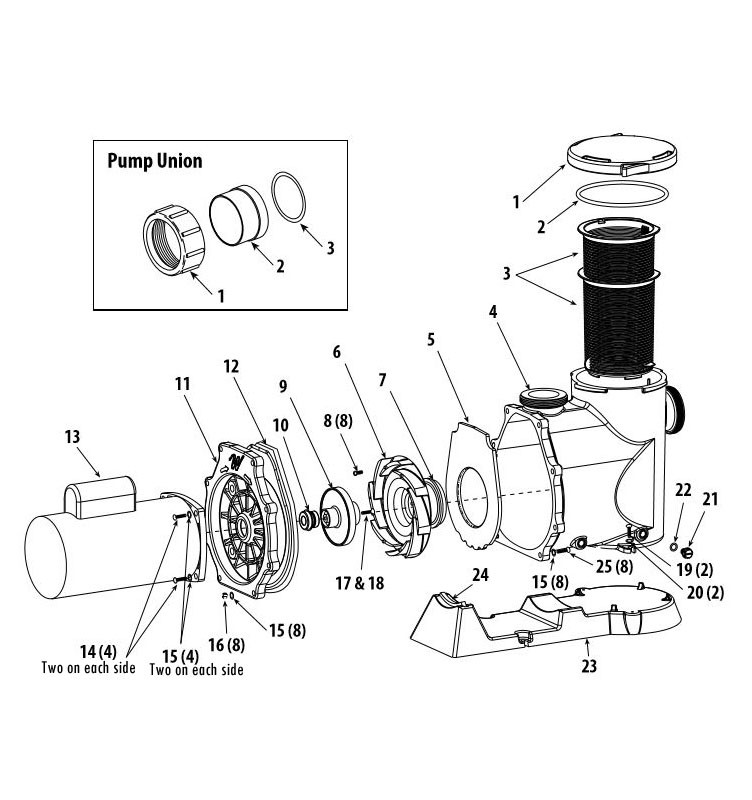

Waterway SVL56 High Flow 56-Frame 1HP Energy Efficient Full Rated Pool Pump 115/230V | SVL56E-110 Parts Schematic
1
Waterway Lid Trap SVL56 | 511-1310
Waterway Lid Trap SVL56 | 511-1310
Quantity:
$43.59

2
Waterway Trap Lid O-Ring | 805-0439
Waterway Trap Lid O-Ring | 805-0439
Quantity:
$11.20

3
Waterway SVL56 Strainer Basket | 319-1310
Waterway SVL56 Strainer Basket | 319-1310
Quantity:
$23.40

4
Waterway SVL56 Hi-Flo Volute Housing | 315-1300
Waterway SVL56 Hi-Flo Volute Housing | 315-1300
Quantity:
$188.30

5
Waterway Diffuser Plate - High-Pressure | 319-1260
Waterway Diffuser Plate - High-Pressure | 319-1260
Call us to order.

6
Waterway SVL56 Hi-Flo Diffuser | 310-3300
Waterway SVL56 Hi-Flo Diffuser | 310-3300
Quantity:
$52.23

7
Waterway Diffuser O-Ring #238 | 805-0238
Waterway Diffuser O-Ring #238 | 805-0238
Quantity:
$7.77

8
Waterway Diffuser Screw Bolt #4-40 | 2 Required | 819-0018
Waterway Diffuser Screw Bolt #4-40 | 2 Required | 819-0018
Quantity:
$6.34

9
Waterway Impeller Assembly | 310-3650
Waterway Impeller Assembly | 310-3650
Quantity:
$41.04

10
Waterway Seal Set Viton | 319-3110B
Waterway Seal Set Viton | 319-3110B
A Replacement is available for this item.
This item has been discontinued.

11
Waterway SVL56 Hi-Flo Volute FacePlate | 311-1400
Waterway SVL56 Hi-Flo Volute FacePlate | 311-1400
Quantity:
$65.89

12
Waterway SVL56 Hi-Flo Face Plate Gasket | 711-4290
Waterway SVL56 Hi-Flo Face Plate Gasket | 711-4290
Quantity:
$19.59

13
Waterway SVL56E-110 Motor | 3510440
Waterway SVL56E-110 Motor | 3510440
Quantity:
$285.22

14
Waterway 3/8" - 16 x 18" Screw | 819-0011
Waterway 3/8" - 16 x 18" Screw | 819-0011
Quantity:
$6.15

15
Waterway Flat Washer 3/8" Hi-Flo Type B | 820-0017
Waterway Flat Washer 3/8" Hi-Flo Type B | 820-0017
Quantity:
$3.86

16
Waterway 3/8" SVL56 Hi-Flo 16 Fin Serrated Hex Nut | 820-0016
Waterway 3/8" SVL56 Hi-Flo 16 Fin Serrated Hex Nut | 820-0016
Quantity:
$8.63

17
Waterway Screw | #20 x 1" Left Hand Threaded | 819-4360
Waterway Screw | #20 x 1" Left Hand Threaded | 819-4360
Quantity:
$6.60

18
Waterway Left Hand Screw Gasket | 711-4300
Waterway Left Hand Screw Gasket | 711-4300
Quantity:
$11.99

19
Waterway Hex Screw Slotted | 1/4" x 1-1/4" | 819-0013
Waterway Hex Screw Slotted | 1/4" x 1-1/4" | 819-0013
Quantity:
$3.27

20
Waterway Flat Washer | 820-0018
Waterway Flat Washer | 820-0018
Quantity:
$1.44

21
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Quantity:
$5.23

22
Waterway Drain Plug O-Ring | 805-0112
Waterway Drain Plug O-Ring | 805-0112
A Replacement is available for this item.
This item has been discontinued.

23
Waterway SVL56 Hi-Flo Pump Base | 672-1300
Waterway SVL56 Hi-Flo Pump Base | 672-1300
Quantity:
$42.22

24
Waterway Motor Support Strip | 672-1310
Waterway Motor Support Strip | 672-1310
Quantity:
$14.12

25
Waterway Hex Screw | 3/8" - 16 x 2" | 819-0016
Waterway Hex Screw | 3/8" - 16 x 2" | 819-0016
Quantity:
$7.41

1
Waterway Union Nut 2-1/2" Tailpiece | 415-4211
Waterway Union Nut 2-1/2" Tailpiece | 415-4211
Quantity:
$11.57

2
Waterway 2" Tailpiece | 417-5971
Waterway 2" Tailpiece | 417-5971
Quantity:
$5.82

2
Waterway 2 1/2" Tailpiece | 417-6001
Waterway 2 1/2" Tailpiece | 417-6001
Quantity:
$6.18

3
Waterway Heater Union Gasket | 2.5" | 711-6020
Waterway Heater Union Gasket | 2.5" | 711-6020
Quantity:
$2.67

N/S
Waterway 2.5" FBTX2"S Pump Union | Black | 400-5971B
Waterway 2.5" FBTX2"S Pump Union | Black | 400-5971B
Quantity:
$12.02

N/S
Waterway Union Assembly | 400-6021B
Waterway Union Assembly | 400-6021B
Quantity:
$10.64
