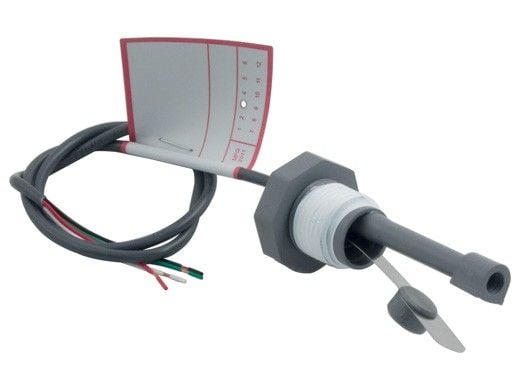

Pentair IntelliChlor Flow Switch Replacement Kit | 520736

$202.54

Intellichlor Flow Switch Replacement Kit Instructions:

Switch OFF power to the pool pump and the Intellichlor cell before starting
Remove the flow switch from the IntelliChlor cell

Using a small Phillips Screwdriver, remove the flow switch cover screw, then remove the cover from the cell
Loosen the flow switch cable that is wrapped around the switch nut. Note the direction of the arrows on top of the switch nut.
Cut the cable close to the switch to allow enough wire for the new switch cable to be connected to.
Using a flat 1/2" (30mm) wrench carefully unscrew the flow switch assembly until the switch can e removed from the cell. Be careful not to damage the cell plastic coupling with the edge of the wrench.

Install the replacement flow switch
1. Insert the flow switch into threaded hole in the cell and hand tighten the switch as much as possible
2. Using a flat 1/2" (30mm) wrench carefully tighten the flow switch assembly until the switch thread nearly bottoms out.
3. Tighten the switch nut until the arrows on the top of the switch nut are pointing in the flow direction and the center arrow is aligned in the center position.
4. Strip back the two wires on the replacement flow switch cable and the switch wire that was cut.
5. Match each of the wire colors and twist the wire together. Place a wire cap on each of the wires. Wrap the excess wire around the flow switch nut.
6. Replace the switch cover and secure it with the small Phillips screw.
The IntelliChlor is now ready for operation! Switch power on to pool pump and IntelliChlor cell.

Brand: Pentair

REVIEWS

Q&A

Questions that need answers | My Posts

Start typing your question and we'll check if it was already asked and answered. Learn More

Browse 5 questions Browse 5 questions and 6 answers

what problems would cause the need to replace the fiow switch?

harold w on May 15, 2017

BEST ANSWER: I had to replace my flow switch because the metal activation tab had corroded off. I noticed the flow indicator light was red and inspected the switch (required removing the Chlorinator) but was un-aware of the missing tab until I viewed a picture of the flow switch part. I assume I used to strong an acid wash on my periodic cleaning or a piece of debris damaged the switch. Either way the replacement only took about 15 mins. Read the directions thoroughly before starting.

Reply
Inaccurate
Richard H on Sep 18, 2018
Purchased on Aug 29, 2018

how to connect switch to cell?

frank c on Sep 4, 2016

BEST ANSWER: You should read the directions thoroughly before starting. In addition to the physical installation and proper alignment you will also (probably) need to cut the electrical lead from the cell to the old switch, being careful to leave sufficient wire to allow easy connection to the replacement leads. The water proof electrical connects make the electrical hookup easy as long as you can match color to color. Remember you can always shorten your wires. There is usually room for an extra 8 to 10 inches under the cover.

Reply
Inaccurate
Richard H on Sep 18, 2018
Purchased on Aug 29, 2018

Do you send to Mexico by DHL or FedEx? Just lost 1 flow switch in the mail last month

A shopper on Oct 3, 2019

BEST ANSWER: Please see our International Orders page for information: https://www.poolsupplyunlimited.com/faq#internationalshipping.
You can also call our customer service team they are available Monday - Thursday 6am-6pm (Central Time) at (888) 836-6025 or you can send a message: https://www.poolsupplyunlimited.com/contact.

Reply
Inaccurate
Sydney R Staff on Feb 10, 2023

how do you know if he flow switch is bad?

A shopper on Mar 25, 2019

BEST ANSWER: Remove flow switch.Tie Elastic band from flapper to post . Replace switch if flow lite is red switch is faulty. If lite is green switch is OK.

Reply
Inaccurate
John Z on Mar 27, 2019
Purchased on Nov 25, 2018

is this the replacement flow switch for an ic40? I have the model number saying FS-22-T.

lisa m on Jul 10, 2016

BEST ANSWER: Yes, this is the flow switch I purchased for my IC40, and it resolved my problem.

Reply
Inaccurate
Terry P on Jul 10, 2016
Purchased on Jun 14, 2016
