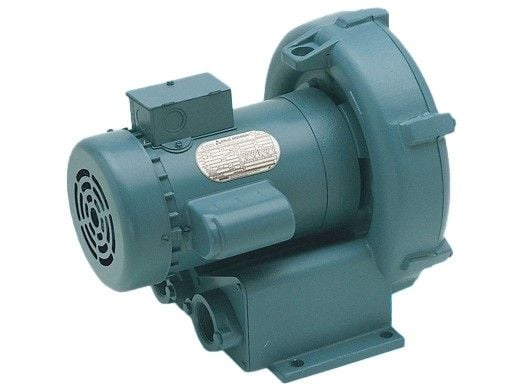

Air Supply Rotron Regenerative Commercial Spa Blower | 2HP 115/230V 1 Phase | DR505AW58M

Name: Air Supply Rotron Regenerative Commercial Spa Blower | 2HP 115/230V 1 Phase | DR505AW58M
Brand: Air Supply Of The Future
SKU: 1091
Availability: InStock

$2,836.74

Air Supply Rotron Regenerative Commercial Spa Blower | 2HP 115/230V 1 Phase | DR505AW58M

The Rotron was designed for continuous-running operations in health clubs, condominiums, hotels, and motels.

Features:

Manufactured in the USA – ISO 9001 compliant
CE compliant – Declaration of Conformity on file
Maximum flow: 105, 127, 160, 200 or 78 SCFM
Maximum pressure: 56, 58, 74, 69 or 88 IWG
Standard motor: 1.0, 1.5, 2.0, 3.0 HP, Spa Duty ODP
Cast aluminum blower housing, impeller & cover; cast iron flanges (threaded)
UL & CSA approved motor with permanently sealed ball bearings and Class B rated thermal protection
Inlet & outlet internal muffling
Quiet operation within OSHA standards

Specifications:

Motor Enclosure - Shaft Material: SPA (ODP) - CS
Horsepower - 2.0
Voltage 1 - 115/230
Phase 1 - Frequency: Single - 50/60 Hz
Insulation Class 2 - F
NEMA Rated Motor Amps - 17.6/8.8
Service Factor - 1.2
Locked Rotor Amps - 106/53
Max. Blower Amps 3,4 - 26/13
Recommended NEMA Starter Size - 1/0
Recommended Number of Jets - 5-10

1 Rotron motors are designed to handle a broad range of world voltages and power supply variations. Our dual voltage 3 phase motors are factory tested and certified to operate on both: 208-230 /415-460 VAC-3 ph-60 Hz and 190-208/380-415 VAC-3 ph-50 Hz. Our dual voltage 1 phase motors are factory tested and certified to operate on both: 104-115/208-230 VAC-1 ph-60 Hz and 100-110 /200-220 VAC-1 ph-50 Hz. All voltages above can handle a ±10% voltage fluctuation. Special wound motors can be ordered for voltages outside our certified range

2 Maximum operating temperature: Motor winding temperature (winding rise plus ambient) should not exceed 140°C for Class F rated motors or 120°C for Class B rated motors. Blower outlet air temperature should not exceed 140°C (air temperature rise plus inlet temperature). Performance curve maximum pressure and suction points are based on a 40°C inlet and ambient temperature. Consult factory for inlet or ambient temperatures above 40°C.

3 Maximum blower amps corresponds to the performance point at which the motor or blower temperature rise with a 40°C inlet and/or ambient temperature reaches the maximum operating temperature.

4 Note: The blowers should not be stopped/started more than four times an hour.

5 Use of a relief valve is recommended. Only applies to items DR513V58 5 DR656L5M 5
