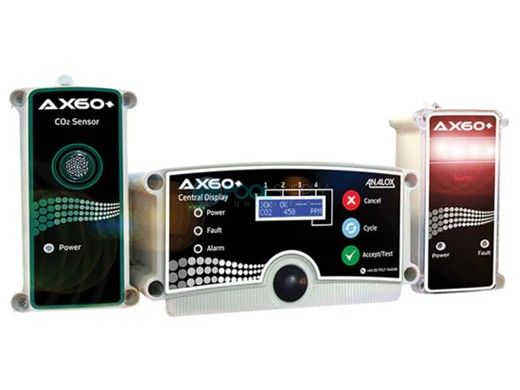

Protect your team, customers and site with the Ax60+.The Ax60+ is a fixed/wall-mount modular gas safety system capable of measuring carbon dioxide (CO2), oxygen(O2), carbon monoxide (CO) or a combination of these gases.The bespoke modular setup provides the flexibility to integrate up to four different sensors (per central display unit) for the simultaneous measurement of various gases, as needed.Analox pre-configure the unit for your local regulations so all you need to do is follow the simple quick start guide supplied with your unit.

Gases Detected

Benefits

• Ready to install - straight from the box
• Meets all state and local fire/building codes
• Relays can be set to activate fans or gas shut-off on alarm set points, system faults and power outage
• Connect to your Building Management System (BMS) with the Data Output Module (DOM) for live, remote readings
• Flexible system to suit your application
• Sensors can be retro fitted if your requirements change
• Alarm set points can be changed by the user if there is a change in legislation
• Easy to maintain and calibrate if required

Features

• Central unit with digital display
• Choice of 1-4 sensors
• Choose the number of alarm units (up to 4 per sensor, system maximum 8 alarm units)
• Choose any combinations of gases (CO2, CO or O2)
• 2 built-in relays
• Audible & Visual alarms
• Time weighted average (TWA) alarm
• Quick connect or hard wired installation options
• Optional MODBUS RTU & 4-20mA via the Data Output Module (DOM)
• Optional external beacon

Industries

• Ready to Install

• Flexible System

• Easy to Maintain
